Description
WL5

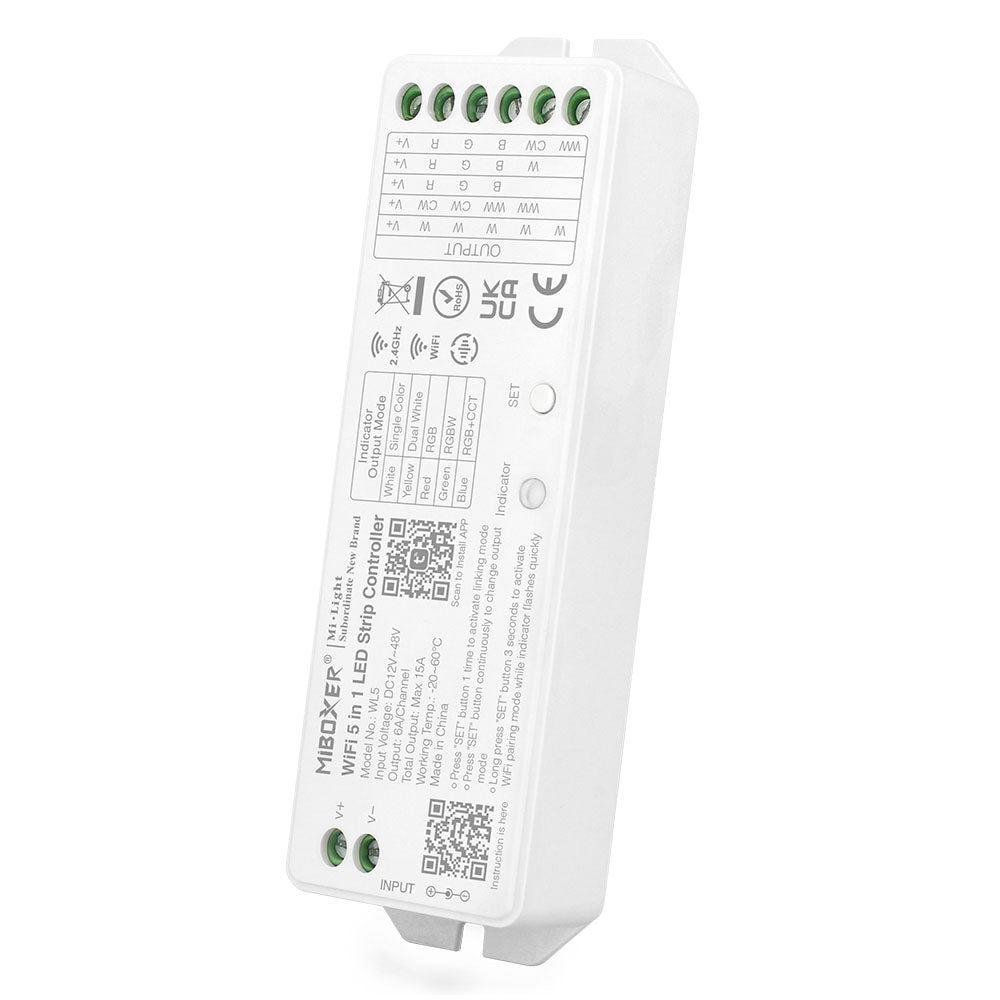

5 in 1 LED Strip Controller (WiFi+2.4G)
• Support “Tuya Smart” app control
• Support music rhythm
• Support third party voice control (Alexa, Google Assistant)
• 2.4G RF Remote controllable
• 16 Millions of colors to choose
• Color temperature adjustable
• Brightness and saturation controllable
• Switching 5 output mode via one button (Single color / Dual white / RGB / RGBW / RGB+CCT)
Available Downloads:
Manual
| Product Name |
5 in 1 LED Strip Controller (WiFi+2.4G) |
|---|---|
| Model No. |
WL5 |
| Input Voltage |
DC12~48V |
| Output |
6A/Channel |
| Total Output |
Max 15A |
| Communication Protocol |
WiFi+2.4GHz |
| 2.4G RF Control Distance |
30m |
| IP Rate |
– |
| Working Temperature |
-20~60°C |
| WiFi Standard |
IEEE 802.11b/g/n 2.4GHz |
| Bluetooth Protocol |
Bluetooth 4.2 (low power consumption) |
Single Color \ Dual White \ RGB \ RGBW \ RGB+CCT
One lighting fixtures can transmit the signals from the remote control to another lighting fixtures within 30m, as long as there is a lighting fixtures within 30m, the remote control distance can be limitless.
Different lighting fixtures can work synchronously when they are started at different times, controlled by the same remote, under same dynamic mode and within 30m distance.
High frequency / low frequency can be switched
No need 2.4GHz gateway, directly control
- Enhance the distribution network experience
- Bluetooth distribution network adaptability is stronger
- Significantly improve the distribution network success rate
Download and install the “Tuya Smart” app Start your smart life
Music rhythm function
The Lamp will automatically change color along with music
Group Control
Group control can be achieved through the mobile app
Only for RGB+CCT output mode, Need DMX512 LED transmitter
