A Transparent LED Screen is ideal for indoor window displays and are commonly used for reinforcing a brand.
To advertise or to inform, these screens are an excellent option for anyone who wishes to display content in style without blocking out light or the view on both sides.
It allows designers to offer a screen solution for retail buildings with a focus on glass architecture without detracting from the overall design.
2022 New Catalog of LED Display Screens
2022 New Catalog of Transparent LED Display Screen
Installation Manual
DIFFERENCE BETWEEN EACH SERIES
NEW! Small Pixel Pitch Indoor Transparent LED Display Screen |
P2.6 Indoor Low Brightness |
P2.6 Indoor High Brightness |
P2.975 Indoor Low Brightness |
P2.975 Indoor High Brightness |
| 1.LED diode SMD1515; National Star | 1.LED diode: SMD1415; National Star | 1.LED diode: SMD1515; National Star | 1.LED diode: SMD1415; National Star |
| 2.LED package: SMD three-in-one; | 2.LED package: SMD three-in-one; | 2.LED package: SMD three-in-one; | 2.LED package: SMD three-in-one; |
| 3.Pixel pitch: 2.6mm horizontally, 2.6mm vertically; | 3.Pixel pitch: 2.6mm horizontally, 2.6mm vertically; | 3.Pixel pitch: 2.975mm horizontally, 2.975mm vertically; | 3.Pixel pitch: 2.975mm horizontally, 2.975mm vertically; |
| 4.Refresh rate: 3840Hz; | 4.Refresh rate: 3840Hz; | 4.Refresh rate: 3840Hz; | 4.Refresh rate: 3840Hz; |
| 5.Frame rate: 60Hz; | 5.Frame rate: 60Hz; | 5.Frame rate: 60Hz; | 5.Frame rate: 60Hz; |
| 6.Pixel resolution (W*H): 192*24; | 6.Pixel resolution (W*H): 192*24; | 6.Pixel resolution (W*H): 168*21; | 6.Pixel resolution (W*H): 168*21; |
| 7.Module size (W*H): 500*62.5; | 7.Module size (W*H): 500*62.5; | 7.Module size (W*H): 500*62.5; | 7.Module size (W*H): 500*62.5; |
| 8.Box unit board composition: 1*16; | 8.Box unit board composition: 1*16; | 8.Box unit board composition: 2*16; | 8.Box unit board composition: 2*16; |
| 9.Box resolution (W*H): 192*96; | 9.Box resolution (W*H): 192*96; | 9.Box resolution (W*H): 336*336; | 9.Box resolution (W*H): 336*336; |
| 10.Box size (W*H): 500*1000; | 10.Box size (W*H): 500*1000; | 10.Box size (W*H): 1000*1000; | 10.Box size (W*H): 1000*1000; |
| 11.Pixel density: 147456Pixels/m² ; | 11.Pixel density: 147456Pixels/m² ; | 11.Pixel density: 112896Pixels/m² ; | 11.Pixel density: 112896Pixels/m² ; |
| 12. White balance brightness: 1000-1500cd/m²; | 12. White balance brightness: 4500-5000cd/m²; | 12. White balance brightness: 1000-1500cd/m²; | 12. White balance brightness: 4500-5000cd/m²; |
| 13. Horizontal viewing angle 120±10° Vertical 120±10° | 13. Horizontal viewing angle 120±10° Vertical 120±10° | 13. Horizontal viewing angle 120±10° Vertical 120±10° | 13. Horizontal viewing angle 120±10° Vertical 120±10° |
| 14. Transparency: 35%; | 14. Transparency: 35%; | 14. Transparency: 40%; | 14. Transparency: 40%; |
| 15. Brightness uniformity: 97%; | 15. Brightness uniformity: 97%; | 15. Brightness uniformity: 97%; | 15. Brightness uniformity: 97%; |
| 16. Peak power consumption (W/m²): 400; | 16. Peak power consumption (W/m²): 800; | 16. Peak power consumption (W/m²): 400; | 16. Peak power consumption (W/m²): 800; |
| 17. Average power consumption (W/m²): 140; | 17. Average power consumption (W/m²): 240; | 17. Average power consumption (W/m²): 140; | 17. Average power consumption (W/m²): 240; |
P3.47 Indoor Low Brightness |
P3.47 Indoor High Brightness |
P4.29 Indoor Low Brightness |
P4.29 Indoor High Brightness |
| 1.LED diode: SMD1515; National Star | 1.LED diode: SMD1415; National Star | 1.LED diode: SMD2020; National Star | 1.LED diode: SMD1921; National Star |
| 2.LED package: SMD three-in-one; | 2.LED package: SMD three-in-one; | 2.LED package: SMD three-in-one; | 2.LED package: SMD three-in-one; |
| 3.Pixel pitch: 3.47mm horizontally, 3.47mm vertically; | 3.Pixel pitch: 3.47mm horizontally, 3.47mm vertically; | 3.Pixel pitch: 4.29mm horizontally, 4.29mm vertically; | 3.Pixel pitch: 4.29mm horizontally, 4.29mm vertically; |
| 4.Refresh rate: 3840Hz; | 4.Refresh rate: 3840Hz; | 4.Refresh rate: 3840Hz; | 4.Refresh rate: 3840Hz; |
| 5.Frame rate: 60Hz; | 5.Frame rate: 60Hz; | 5.Frame rate: 60Hz; | 5.Frame rate: 60Hz; |
| 6.Pixel resolution (W*H): 144*24; | 6.Pixel resolution (W*H): 144*24; | 6.Pixel resolution (W*H): 128*16 ; | 6.Pixel resolution (W*H): 128*16 ; |
| 7.Module size (W*H): 500*83.23; | 7.Module size (W*H): 500*83.23; | 7. Module size (W*H): 550*68.75; | 7. Module size (W*H): 550*68.75; |
| 8.Box unit board composition: 2*12; | 8.Box unit board composition: 2*12; | 8. Cabinet unit board composition: 2*16; | 8. Cabinet unit board composition: 2*16; |
| 9.Box resolution (W*H): 288*288; | 9.Box resolution (W*H): 288*288; | 9. Cabinet resolution (W*H): 256*256; | 9. Cabinet resolution (W*H): 256*256; |
| 10.Box size (W*H): 1000*1000; | 10.Box size (W*H): 1000*1000; | 10. Cabinet size (W*H): 1100*1100; | 10. Cabinet size (W*H): 1100*1100; |
| 11.Pixel density: 82944Pixels/m² ; | 11.Pixel density: 82944Pixels/m² ; | 11. Pixel density: 65536Pixels/block; | 11. Pixel density: 65536Pixels/block; |
| 12. White balance brightness: 1000-1500cd/m²; | 12. White balance brightness: 45000-5000cd/m²; | 12. White balance brightness: 1000-1500cd/m²; | 12. White balance brightness: 45000-5000cd/m²; |
| 13. Horizontal viewing angle 120±10° Vertical 120±10° | 13. Horizontal viewing angle 120±10° Vertical 120±10° | 13. Horizontal viewing angle 120±10° vertical 120±10° | 13. Horizontal viewing angle 120±10° vertical 120±10° |
| 14. Transparency: 42%; | 14. Transparency: 42%; | 14. Transparency: 50%; | 14. Transparency: 50%; |
| 15. Brightness uniformity: 97%; | 15. Brightness uniformity: 97%; | 15. Brightness uniformity: 97%; | 15. Brightness uniformity: 97%; |
| 16. Peak power consumption (W/m²): 400; | 16. Peak power consumption (W/m²): 800; | 16. Peak power consumption (W/m²): 400; | 16. Peak power consumption (W/m²): 800; |
| 17. Average power consumption (W/m²): 140; | 17. Average power consumption (W/m²): 240; | 17. Average power consumption (W/m²): 140; | 17. Average power consumption (W/m²): 240; |
P2.6-P5.95 Indoor Low Brightness |
P2.6-P5.95 Indoor High Brightness |
P3.9-7.81 Indoor Super Brightness |
P3.9-7.81 Outdoor High Brightness |
| 1.LED diode: SMD2020; National Star | 1.LED diode: SMD1921; National Star | 1.LED diode SMD1921; National Star | 1.LED diode: SMD1415; National Star |
| 2.LED package: SMD three-in-one; | 2.LED package: SMD three-in-one; | 2.LED package: SMD three-in-one; | 2.LED package: SMD three-in-one; |
| 3.Pixel pitch: 2.6mm horizontally, 5.95mm vertically; | 3.Pixel pitch: 2.6mm horizontally, 5.95mm vertically; | 3.Pixel pitch: 3.9mm horizontally, 7.81mm vertically; | 3.Pixel pitch: 3.47mm horizontally, 6.94mm vertically; |
| 4.Refresh rate: 3840Hz; | 4.Refresh rate: 3840Hz; | 4.Refresh rate: 3840Hz; | 4.Refresh rate: 3840Hz; |
| 5.Frame rate: 60Hz; | 5.Frame rate: 60Hz; | 5.Frame rate: 60Hz; | 5.Frame rate: 60Hz; |
| 6.Pixel resolution (W*H): 192*12 ; | 6.Pixel resolution (W*H): 192*12 ; | 6.Pixel resolution (W*H): 128*16 ; | 6.Pixel resolution (W*H): 144*18 ; |
| 7. Module size (W*H): 500*71.4; | 7. Module size (W*H): 500*71.4; | 7. Module size (W*H): 500*125; | 7. Module size (W*H): 500*125; |
| 8. Cabinet unit board composition: 2*14; | 8. Cabinet unit board composition: 2*14; | 8. Cabinet unit board composition: 2*8; | 8. Cabinet unit board composition: 2*4; |
| 9. Cabinet resolution (W*H): 384*168; | 9. Cabinet resolution (W*H): 384*168; | 9. Cabinet resolution (W*H): 256*128; | 9. Cabinet resolution (W*H): 288*72; |
| 10. Cabinet size (W*H): 1000*1000; | 10. Cabinet size (W*H): 1000*1000; | 10. Cabinet size (W*H): 1000*1000; | 10. Cabinet size (W*H): 1000*500; |
| 11. Pixel density: 64512Pixels/m²; | 11. Pixel density: 64512Pixels/m²; | 11. Pixel density: 32768Pixels/m²; | 11. Pixel density: 41472Pixels/m²; |
| 12. White balance brightness: 1000-1500cd/m²; | 12. White balance brightness: 45000-5000cd/m²; | 12. White balance brightness: 6500-7000cd/m²; | 12. White balance brightness: 4500-5000cd/m²; |
| 13. Horizontal viewing angle 120±10° vertical 120±10° | 13. Horizontal viewing angle 120±10° vertical 120±10° | 13. Horizontal viewing angle 120±10° vertical 120±10° | 13. Horizontal viewing angle 120±10° vertical 120±10° |
| 14. Transparency: 55%; | 14. Transparency: 55%; | 14. Transparency: 60%; | 14. Transparency: 55%; |
| 15. Brightness uniformity: 97%; | 15. Brightness uniformity: 97%; | 15. Brightness uniformity: 97%; | 15. Brightness uniformity: 97%; |
| 16. Peak power consumption (W/m²): 400; | 16. Peak power consumption (W/m²): 800; | 16. Peak power consumption (W/m²): 1000; | 16. Peak power consumption (W/m²): 800; |
| 17. Average power consumption (W/m²): 140; | 17. Average power consumption (W/m²): 240; | 17. Average power consumption (W/m²): 350; | 17. Average power consumption (W/m²): 240; |
aClear SeriesModule sizes - 1000 x 1000mm | 1000 x 500mm | 500 x 500mmPixel Pitch - 3.9 x 7.8mm Transparency up to 62% Brightness - 1500 cd/m² | 4500 cd/m² Viewing angle 130 ° * Made with front emitting SMD1921/2121 LEDs |
 |
 |
 |
sClear Series
* Made with side-emitting SMD3510 LEDs |
 |
 |
 |
aFClear Series
* Made with front viewing SMD1921 LEDs |
 |
 |
 |
aSClear SeriesFrameless Modular Designed Transparent LED Screen Designed for Store Windows Module sizes - 1000 x 500mm Pixel Pitch - 3.9 x 7.8mm High Transparency up to 82% High Brightness - >5500 cd/m² Viewing angle 160 ° * Made with side emitting SMD3510 LEDs |
 |
 |
 |
GET ATTRACTIVE
This transparent screen opens up new creative options that were not possible with LCD screens and other LED screens.
BRIGHT ENOUGH
With brightness range from 800nits to 6000nits, the Transparent LED Screens are visible for both indoor and outdoor daylight from a great distance.
TRANSPARENCY
Traditional LED window displays act as a dark wall, so shoppers can’t see in, and they block sunlight, so your indoor areas need to rely on unnatural lighting.
The Transparent LED screen allow people by both sides of the display can see each other.
MODULAR DESIGN - build the size you need

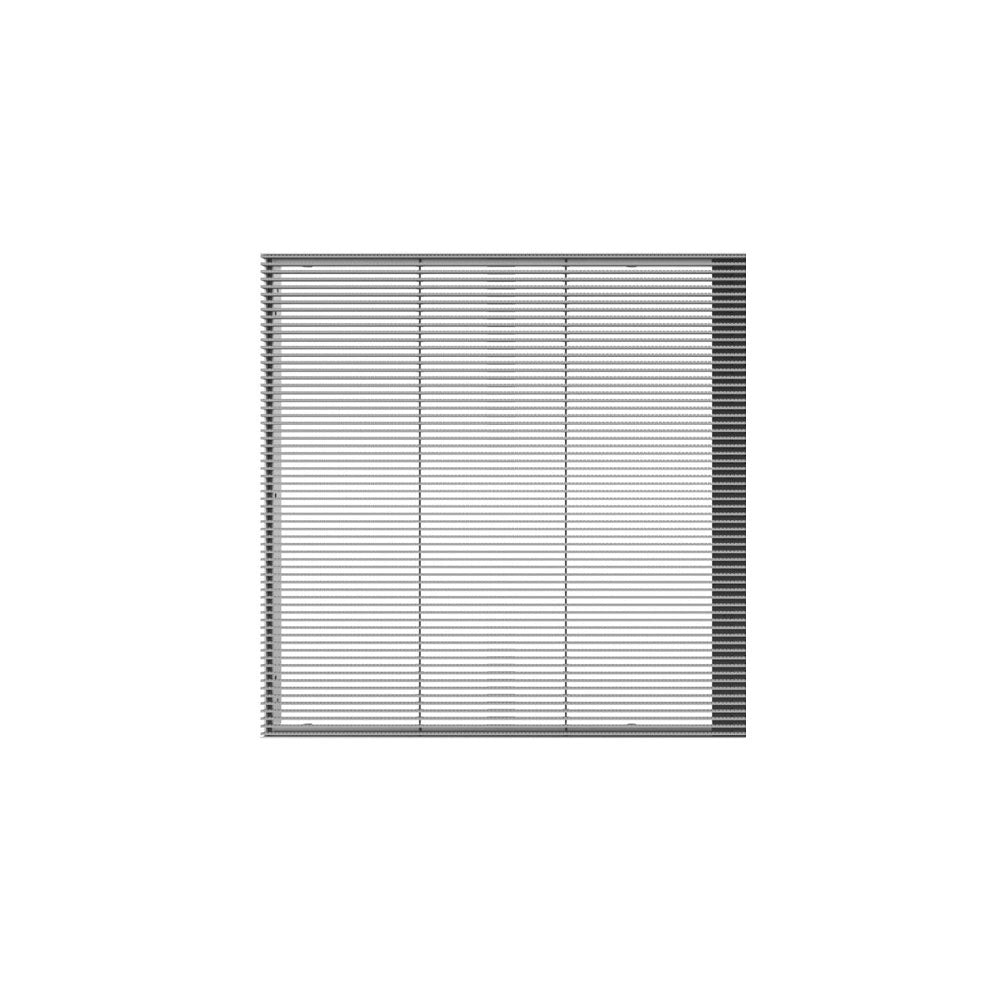

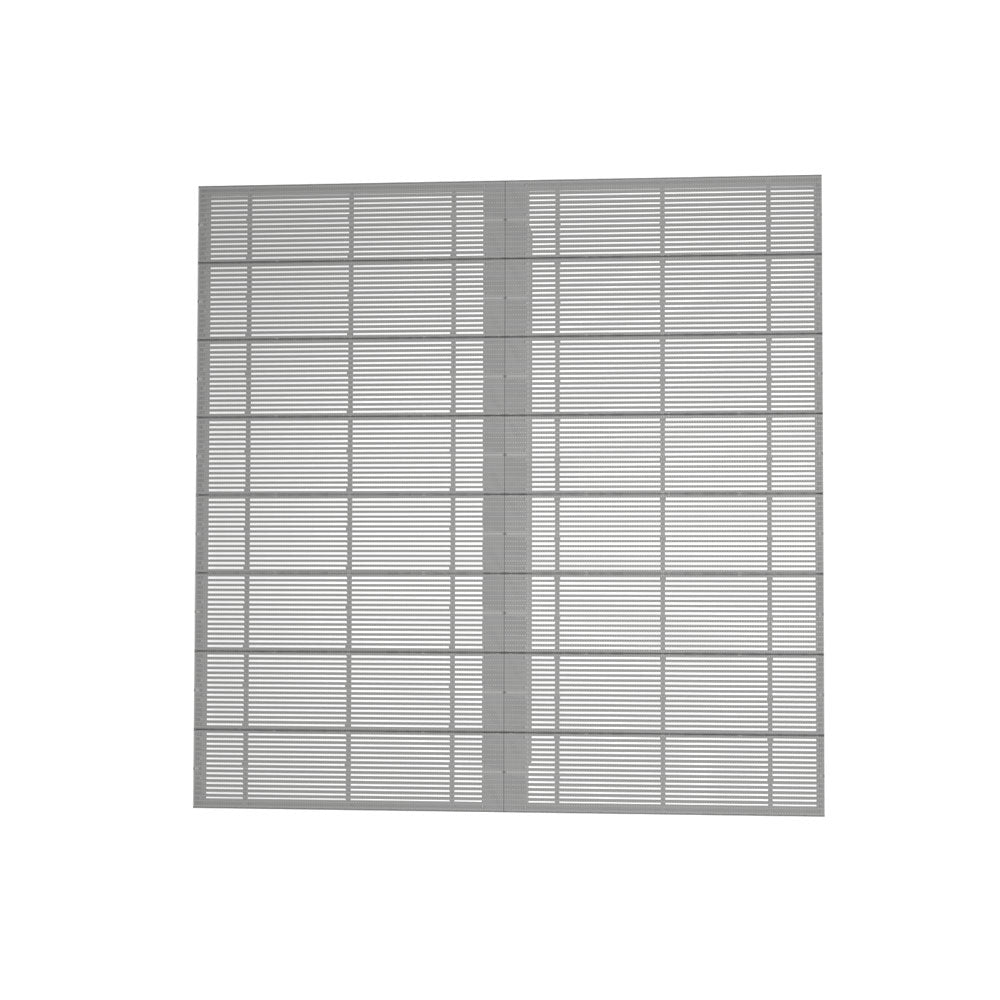

Available in small cabinet 500x500 ,1000x500, and 1000x1000, that can freely combine into large format LED Screens

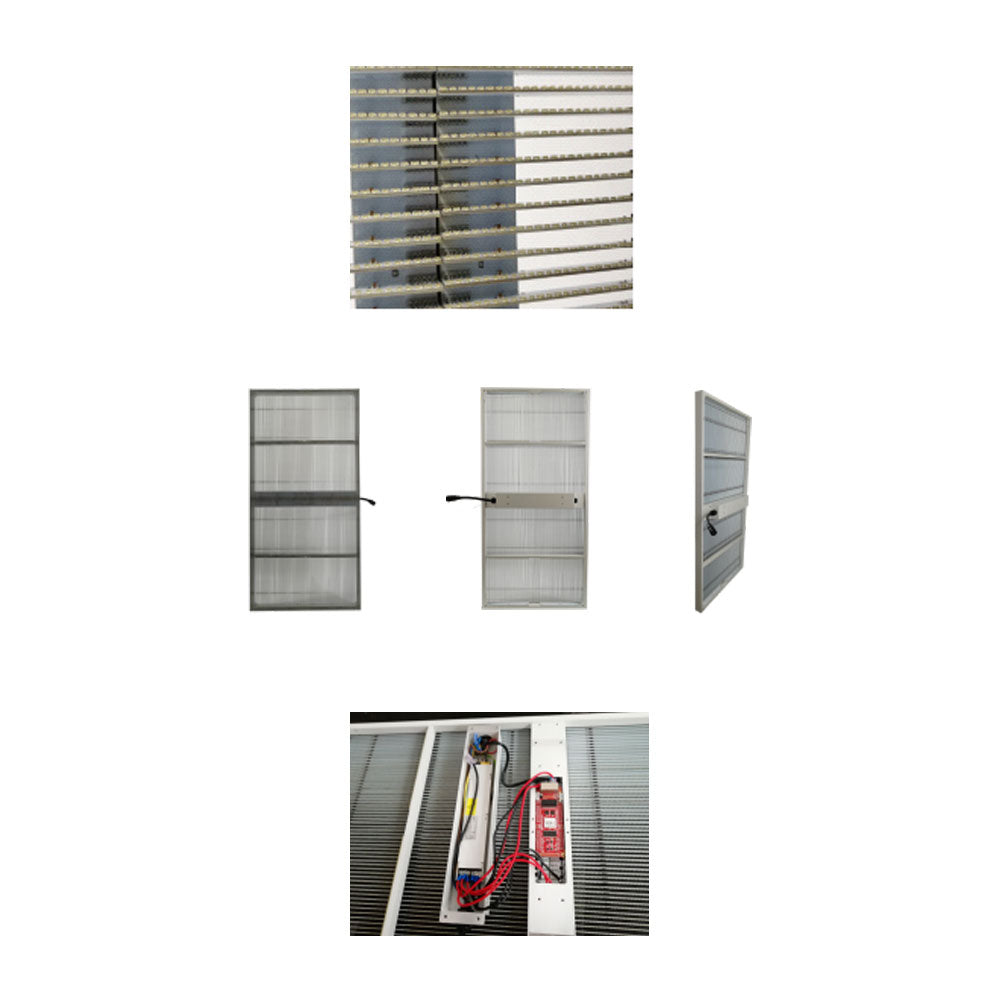

EASY SETUP and INSTALLATION

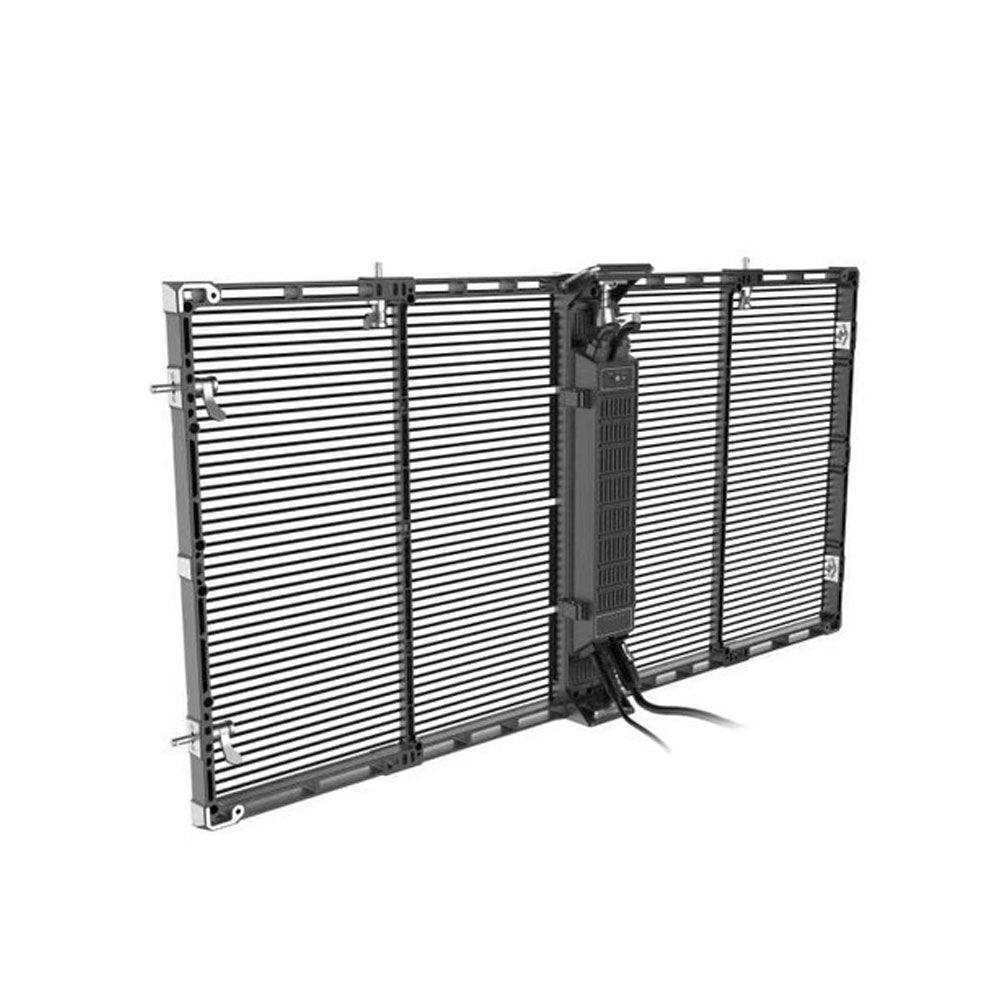

Using lightweight engineered aluminum, the Transparent LED Screen is only 14-15kgs/sqm.
With fast lock, and plug-in connectors, just need to pull and push, then plug and play.
CUSTOMIZED OR OUT OF THE BOX
Besides standard size cabinet panels, the Transparent LED display can also be customzied to fit abnormal shapes or sizes.
Applications:

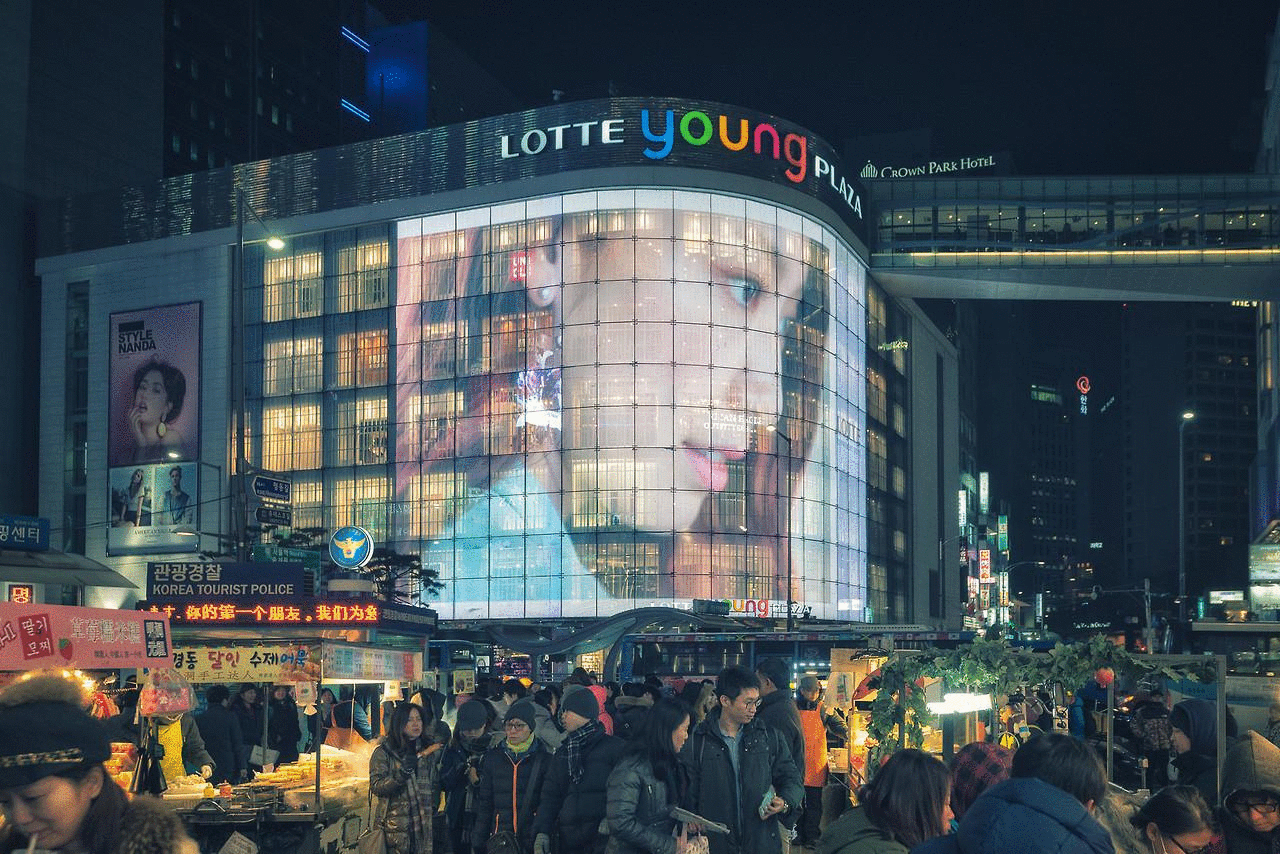

Windows, glass walls & facades
Corporate buildings & offices
Retail stores & shopping centres
Stadiums & arenas
Hotels & airports
Car showrooms
