Magic Cubic LED Display with 5 Faces or 4 Faces screen for Chain Stores.
Smart Design with Various Dimensions
Magic Cube LED Screen Display in different dimensions to fit various application scenarios. And with 4-sided or 5-sided, this multi-faces Cubic LED Screen is able to attract the audience came from all directions, you will miss no one.

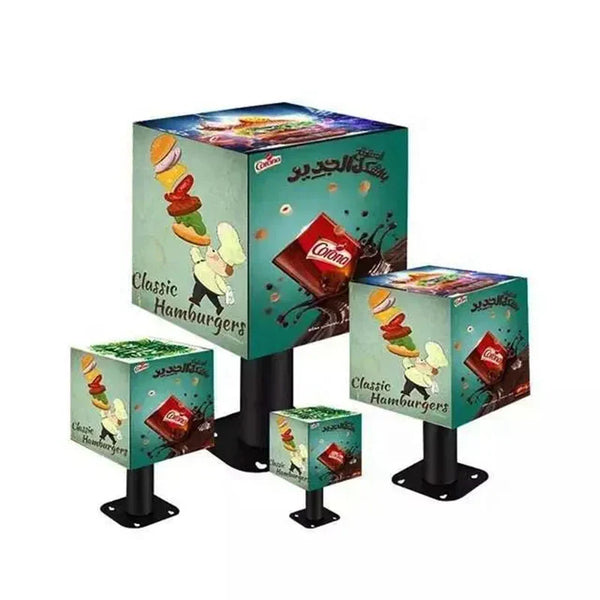

It can be used one unit as store front logo presentation or several small and big cubes in different sizes to create a cluster to create a more attractive effect in a product or event presentation.
320x320x320(mm), P2.5 indoor, P2.5 outdoor
384x384x384(mm), P3 indoor, P3 outdoor
500x500x500(mm), P3.91 outdoor
512x512x512(mm), P4 indoor
User Friendly, plug and play

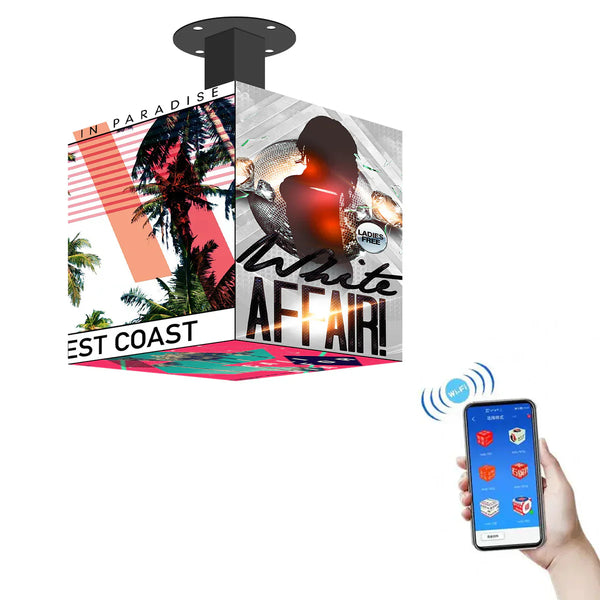

With self-developed APP (Name: MCBox, default), the Magic Cube LED Screen can be remote controlled by Smart Phone (Android system compatible only ); If change to use Novastar controller, then both Android and IOS compatible. Please help to tell when ordering if need to change to use Novastar.
One device can control one Magic Cube LED Display or Many pieces.
MCBox APP
Flexible installation methods

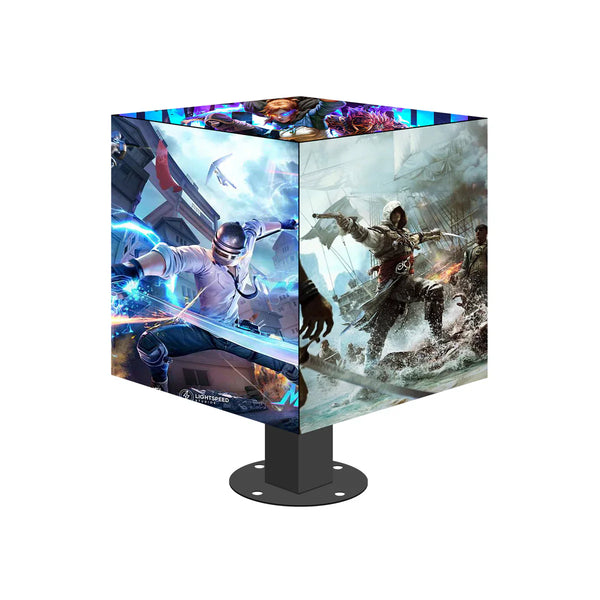

The cube LED display supports standing installation, hanging installation, and wall-mounted installation.

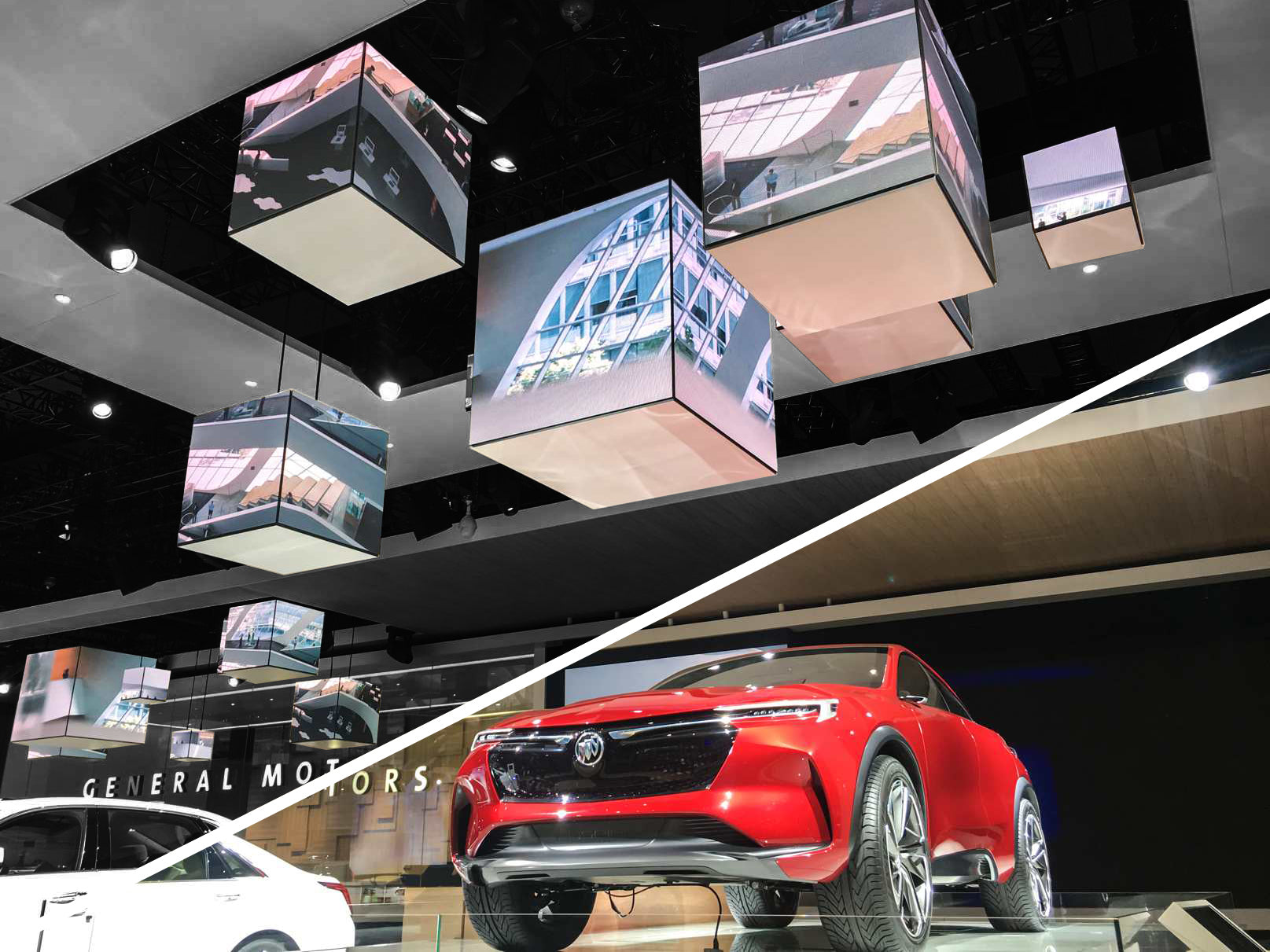

It is usually used in shopping malls, retail stores, airports, exhibitions, museums, etc., which proves 3D visual performance for both effects and dynamic video displays.
Convenience of installation and service
The Magic Cube LED Digital Signage has the advantages of lightweight, good wind resistance, easy installation, water-proof performance (outdoor version).
Modular design secures the fixing of panels and easy removal, make maintenance easier. No need frame for installation, no professional installation is required
Real eye-catcher
The magic LED Cubic Screen with 4 faces or 5 faces that can play video, pictures, it can present your company or product and attract the attention of your customers or visitors from all directions.
Important Notices:
a. Please Handle the screen gently and avoid touching the ground or hard objects
b. We recommend removing the white corner guard and stretch film after installation
c. The indoor magic cube is Not suitable for installation in a dusty and humid environment
d. During install the outdoor 4-side Rubik's cube screen , the air outlet and cable outlet indicated by the red arrow in the figure should face down , and the position indicated by the red arrow should not be allowed to enter water .
e. When install the outdoor 5-side hanging Rubik's cube screen, A. if the screen is completely installed under the eaves, it can be directly hoisted; B. When the product is partially or completely exposed to the outside, the red arrow in the figure indicates that the water is strictly prohibited .
Wide Applications

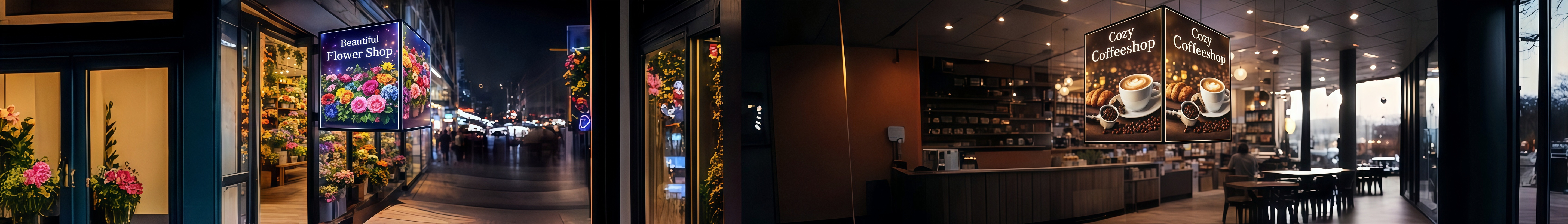

LED Cube Display is popular for chain stores, airports, exhibitions, hotels, 3D digital shows and so on.
Models Available
Item | Mounting Method | Display Area | Pixel Pitch | Resolution | N.W. |
P2.5 Indoor LED Video Cube 5 faces | Roof Hanging | 320mm*320mm * 5 Faces | 2.5mm | 128*128 * 5 Faces | 13kgs |
P2.5 Indoor LED Video Cube 4 faces | Side Fixed | 320mm*320mm * 4 Faces | 2.5mm | 128*128 * 4 Faces | 11kgs |
P3 Indoor LED Video Cube 5 faces | Roof Hanging | 384mm*384mm * 5 Faces | 3mm | 128*128 * 5 Faces | 17kgs |
P3 Indoor LED Video Cube 4 faces | Side Fixed | 384mm*384mm * 4 Faces | 3mm | 128*128 * 4 Faces | 15kgs |
P4 Indoor LED Video Cube 5 faces | Roof Hanging | 512mm*512mm * 5 Faces | 4mm | 128*128 * 5 Faces | 28kgs |
P4 Indoor LED Video Cube 4 faces | Side Fixed | 512mm*512mm * 4 Faces | 4mm | 128*128 * 4 Faces | 25kgs |
P2.5 Outdoor LED Video Cube 5 faces | Roof Hanging | 320mm*320mm * 5 Faces | 2.5mm | 128*128 * 5 Faces | 17kgs |
P2.5 Outdoor LED Video Cube 4 faces | Side Fixed | 320mm*320mm * 4 Faces | 2.5mm | 128*128 * 4 Faces | 15kgs |
P3 Outdoor LED Video Cube 5 faces | Roof Hanging | 384mm*384mm * 5 Faces | 3mm | 128*128 * 5 Faces | 20kgs |
P3 Outdoor LED Video Cube 4 faces | Side Fixed | 384mm*384mm * 4 Faces | 3mm | 128*128 * 4 Faces | 17kgs |
P3.91 Outdoor LED Video Cube 5 faces | Roof Hanging | 500mm*500mm * 5 Faces | 3.91mm | 128*128 * 5 Faces | 34kgs |
P3.91 Outdoor LED Video Cube 4 faces | Side Fixed | 500mm*500mm * 4 Faces | 3.91mm | 128*128 * 4 Faces | 30kgs |
P2.5 Indoor LED Video Cube 5 faces | Roof Hanging | 480mm*480mm*5 Faces | 2.5mm | 192*192*5 Faces | 27KGS |
P2.5 Indoor LED Video Cube 4 faces | Side Fixed | 480*480*4 Faces | 2.5mm | 192*192*4 Faces | 25KG |
P3 Indoor | Roof Hanging | 576*576*5 Faces | 3mm | 192*192*5 Faces | 29KG |
P3 Indoor | Side Fixed | 576*576*4 Faces | 3mm | 192*192*4 Faces | 28KG |
P2 Indoor | Roof Hanging | 640*640*5 Faces | 2mm | 320*320*5 Faces | 30KG |
P2 Indoor | Side Fixed | 640*640*4 Faces | 2mm | 320*320*4 Faces | 28KG |
P2 Indoor | Floor-standing (One corner stands diagonally) | 640*640*6 Faces | 2mm | 320*320*6 Faces | 32KG |
P2.5 Indoor | Roof Hanging | 640*640*5 Faces | 2.5mm | 256*256*5 Faces | 30KG |
P2.5 Indoor | Side Fixed | 640*640*4 Faces | 2.5mm | 256*256*4 Faces | 28KG |
P2.5 Indoor | Floor-standing (One corner stands diagonally) | 640*640*6 Faces | 2.5mm | 256*256*6 Faces | 32KG |
P4 Indoor | Roof Hanging | 640*640*5 Faces | 4mm | 160*160*5 Faces | 30KG |
P4 Indoor | Side Fixed | 640*640*4 Faces | 4mm | 160*160*4 Faces | 28KG |
P4 Indoor | Floor-standing (One corner stands diagonally) | 640*640*6 Faces | 4mm | 160*160*6 Faces | 32KG |
P2.5 Outdoor | Roof Hanging | 480*480*5 Faces | 2.5mm | 192*192*5 Faces | 16KG |
P2.5 Outdoor | Side Fixed | 480*480*4 Faces | 2.5mm | 192*192*4 Faces | 15KG |
P2.5 Outdoor | Roof Hanging | 640*640*5 Faces | 2.5mm | 256*256*5 Faces | 38KG |
P2.5 Outdoor | Side Fixed | 640*640*4 Faces | 2.5mm | 256*256*4 Faces | 35KG |
P3 Outdoor | Roof Hanging | 576*576*5 Faces | 3mm | 192*192*5 Faces | 32KG |
P3 Outdoor | Side Fixed | 576*576*4 Faces | 3mm | 192*192*4 Faces | 28KG |
P3.91 Outdoor | Roof Hanging | 750*750*5 Faces | 3.91mm | 192*192*5 Faces | 48KG |
P3.91 Outdoor | Side Fixed | 750*750*4 Faces | 3.91mm | 192*192*4 Faces | 43KG |
