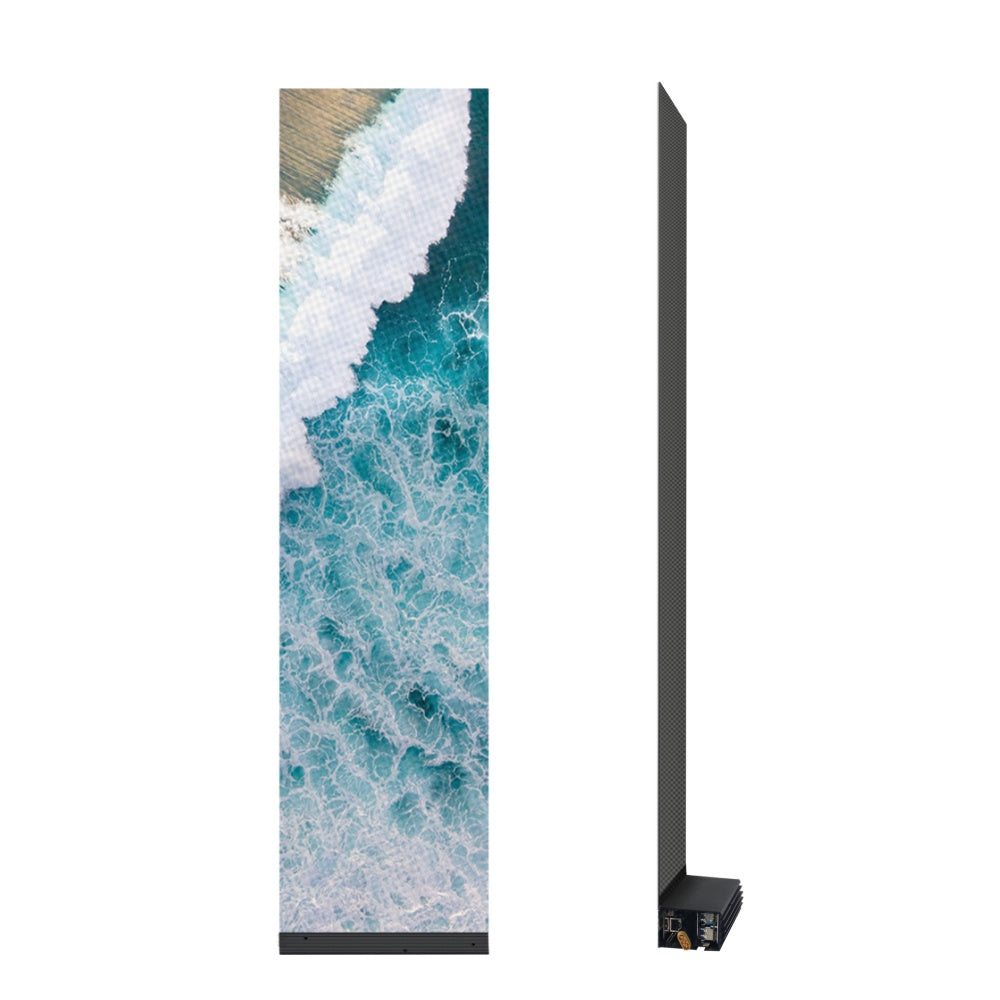

Flexible Holographic LED Screen,Transparent Flexible LED Film Display
Features
* High transparency and structure-less design make the direct viewing transparency rate of the Hologram LED Screen as high as over 90%, allowing people to barely feel the existence of the screen while appreciating the displayed content.
* The holographic invisible screen is light and beautiful, and the screen body is as light as 6KGS/㎡.
* The thickness is as thin as less than 2mm, which fits perfectly on the transparent glass and integrates with the building structure without destroying the beauty of the original building.

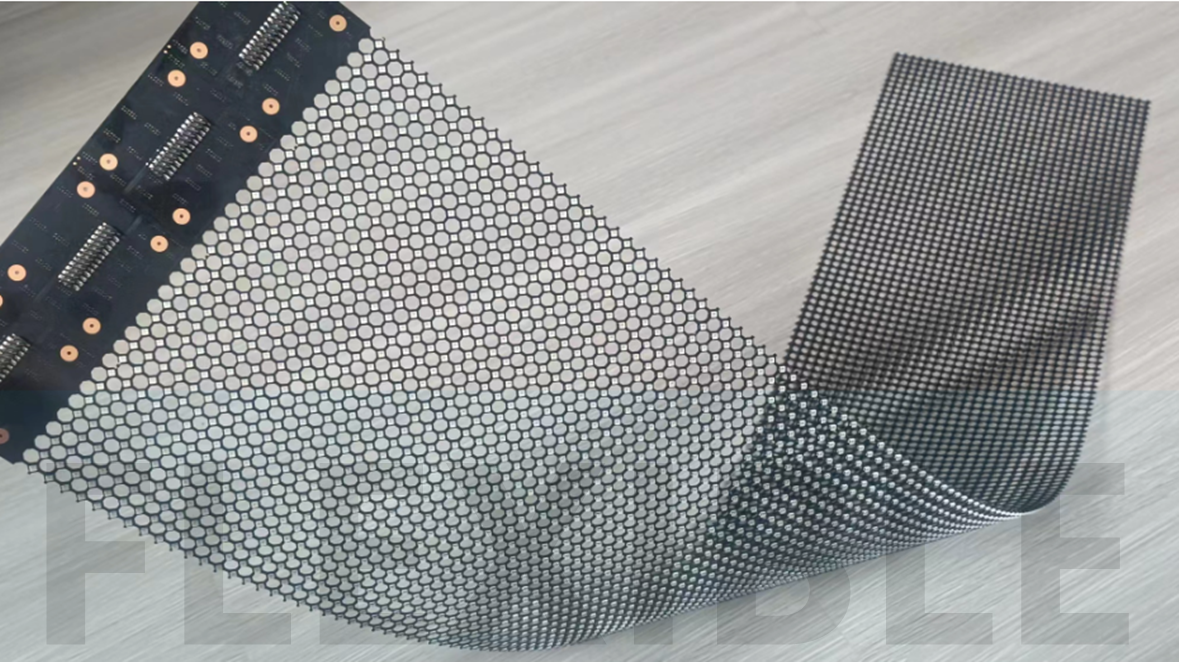

* Its module is cleverly designed, bendable, cuttable, and flexible, and can adapt to display needs of various shapes and sizes.
* Use conventional grid lamp beads (outdoor SMD lamp beads: SMD1921, SMD1415), which are UV-resistant, waterproof and moisture-proof and are more trustworthy.
* Adopt a design with separate lamp beads and drivers: Under the same environment, the surface temperature of a lamp with a separate lamp driver will be lower than that of a lamp with a combined lamp driver. Lamp driver separation means that the lamp and driver chip are separated, and the two components dissipate heat independently.
* The product circuit design is more reasonable, and the product refresh rate reaches 3840HZ
* The materials are of higher quality, the copper and platinum are thicker, and the brightness is easily over 5000CD.
Item | Name | LS-ST6.25 | LS-ST3.9 |
1 | Pixel Pitch (H/V) | W:6.25;H:6.25mm | W:3.91;H:3.91mm |
2 | LED Configuration | SMD1415 1R1PG1PB UV | SMD1415 1R1PG1PB UV |
3 | Pixel Density | 25600dot/㎡ | 65536dot/㎡ |
4 | Transparency | <80% | <70% |
5 | Drive Scheme | 18 aisle | 18 aisle |
6 | Scan method | 0 Scan(4 layer PCB) | 16 Scan |
7 | Refresh Rate | 3840Hz | 3840Hz |
8 | Module Size | 1200X100mm (L/R) | 1500X125mm (L/R) |
9 | Module Resolution | 192X16dot | 384X32dot |
10 | Product Size | 1200X800mm | 1500X500mm |
11 | Cabinet Resolution | 192X128dot | 384X128dot |
12 | Cabinet Weight | 6kg/㎡ | 6kg/㎡ |
13 | IP Rating (front/back) | IP42 | IP42 |
14 | Brightness | 1000-5000nits/㎡ | 1000-5000nits/㎡ |
15 | Viewing Angle (H/V) | 140 °/140 ° | 140 °/140 ° |
16 | Viewing Distance | 4m | 4m |
17 | Gray Scale | 16bit | 16bit |
18 | Max.Power Consumption | 800W/m² | 800W/m² |
19 | Ave.Power Consumption | 240W/m² | 240W/m² |
20 | Environment | indoor | indoor |
21 | Control Mode | Universal (Brand: Novastar) | Universal (Brand: Novastar) |
22 | Support Input | Universal | Universal |
23 | Operation Power | AC100_240V,50/60Hz | AC100_240V,50/60Hz |
24 | Operating Temperature | ﹣10℃~40℃(work) | ﹣10℃~40℃ (work) |
25 | Operating Humidity | 35%~85% (work), 10%~90% | 35%~85% (work), 10%~90% |
26 | Operating Life | 100,000hours | 100,000hours |
27 | Installation Way | By mounting clips. Stick the clips to glass at first, then put the LED film on |
Application:

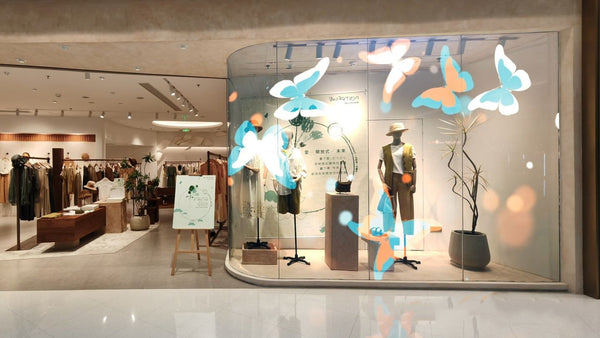

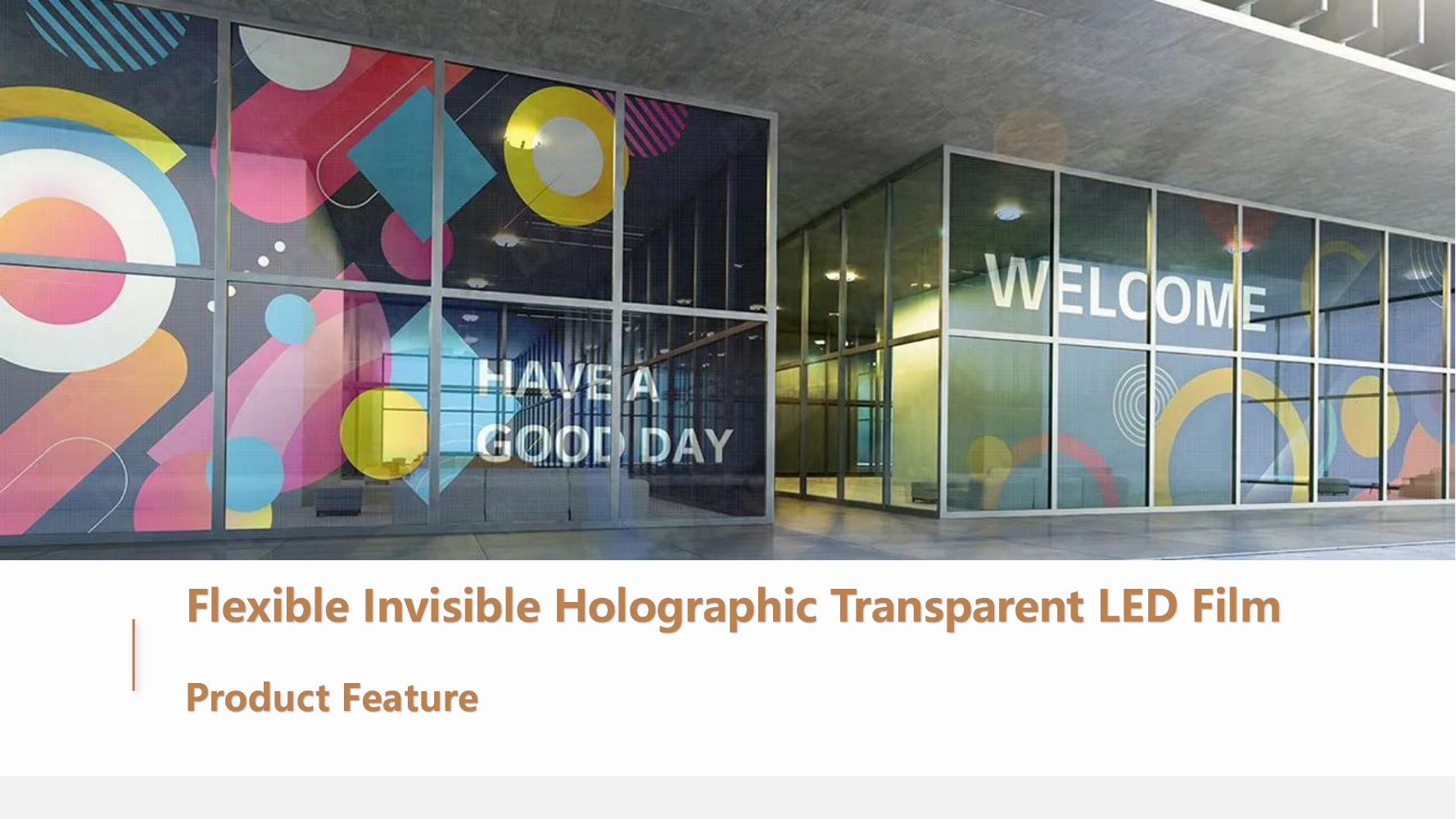

The application fields of holographic invisible screens are very wide. Whether in commercial displays, advertising, entertainment performances or glass curtain walls, holographic invisible screens can bring people a shocking visual experience. Its emergence not only brings new possibilities to display technology, but also injects new vitality into the development of all walks of life.
INSTALLATION WAY 1: Fix the LED Film to the acrylic plate with screws, and then the acrylic plate is directly adhered to the glass |
INSTALLATION WAY 2: Installation through buckles: first fix the buckles on the glass, and then install the screen; |
Adopting the design of lamp driver separation, lamp driver separation means that the lamp and driver chip are separated, and the two components dissipate heat independently. More realiable and the screen Brightness can easily reach 5000nits
|
With holes left open, the Hologram LED Film Sheet can be fixed to Acrylic Panels by Screws |
|

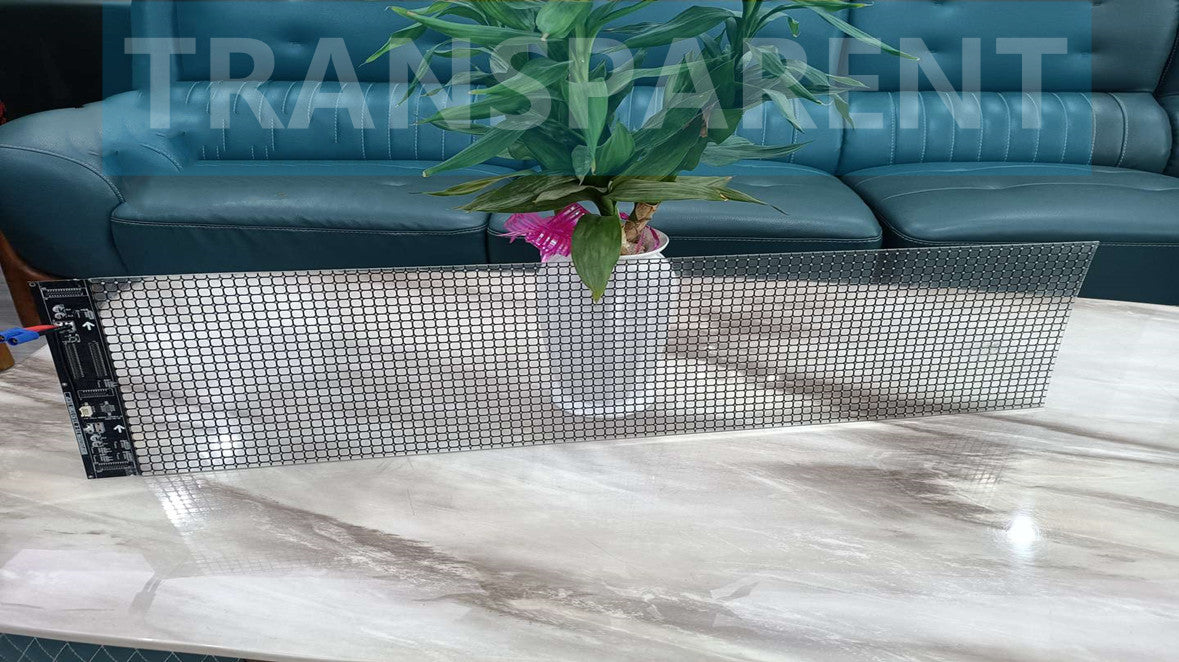

High transparency rate as high as over 90% | |
Light in weight, around 6KGS/㎡. It doesn't add much weight onto your glass panel or structure and bring a lesser difficulty to logistic. | |

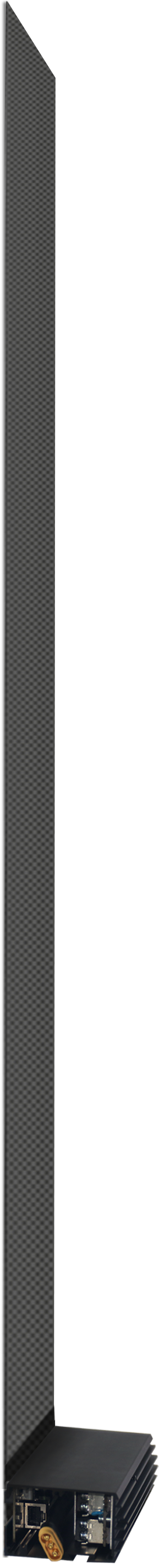

Low profile, thickness around 2mm. It doesn't add much weight onto your glass panel or structure and bring a lesser difficulty to logistic. | |

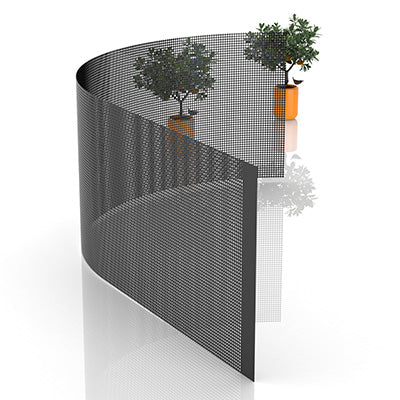

Flexible: LED Module can be bent or cut to meet the actual requirement. Ideally for curved glass panels or tailor-made screens. | |

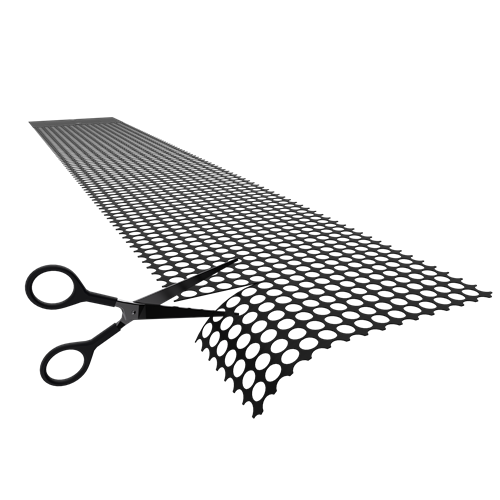

Cuttable :Get creative with unique shapes and aspect ratios. Leverage custom sizes to maximize visual impact and seamlessly integrate displays. |
