P3.91 Flexible Invisible Holographic LED Film Screen, Brightness >3000NITS


Price:
Sale price$4,199.00 USD

Description

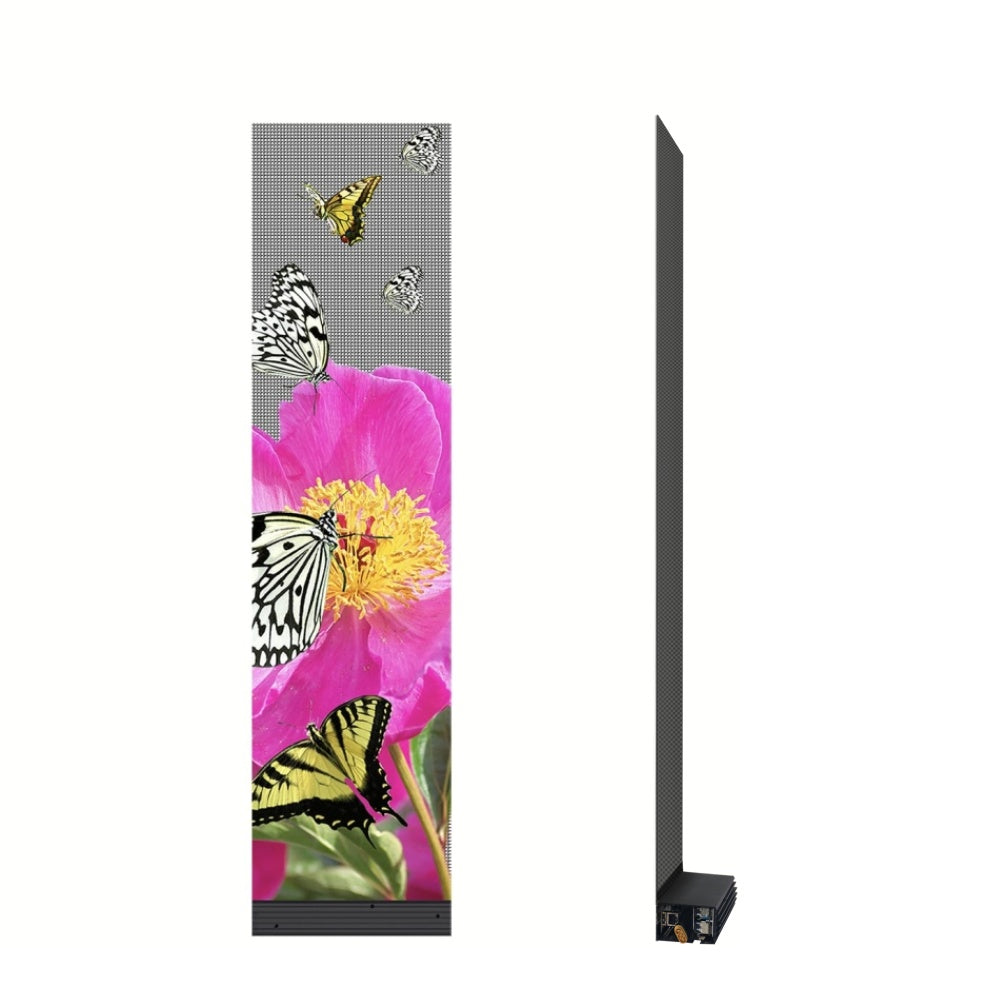

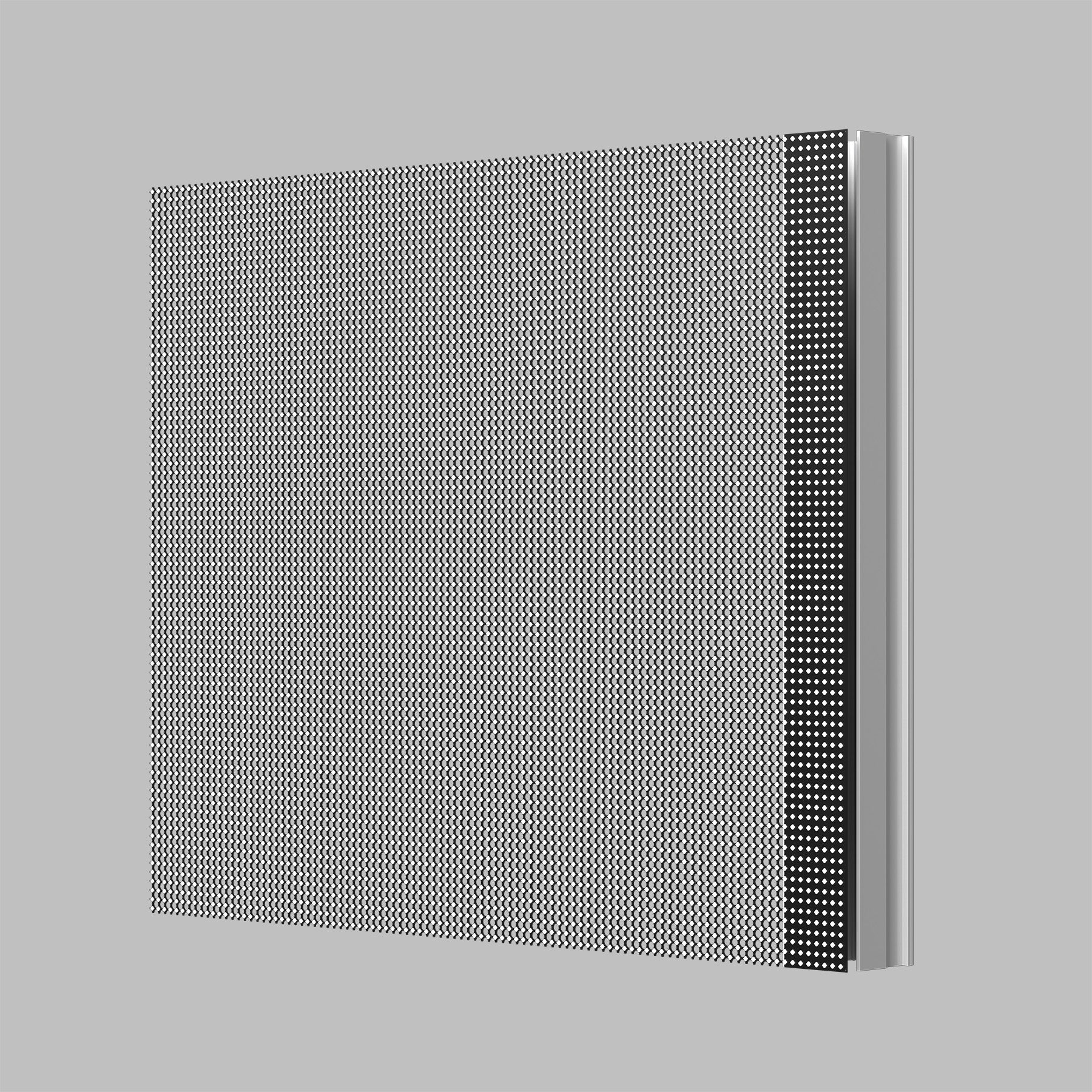

P3.91 Flexible Holographic LED Screen

Features

* High transparency and structure-less design make the direct viewing transparency rate as high as over 90%, allowing people to barely feel the existence of the screen while appreciating the displayed content.
* The holographic invisible screen is light and beautiful, and the screen body is as light as 6KGS/㎡.

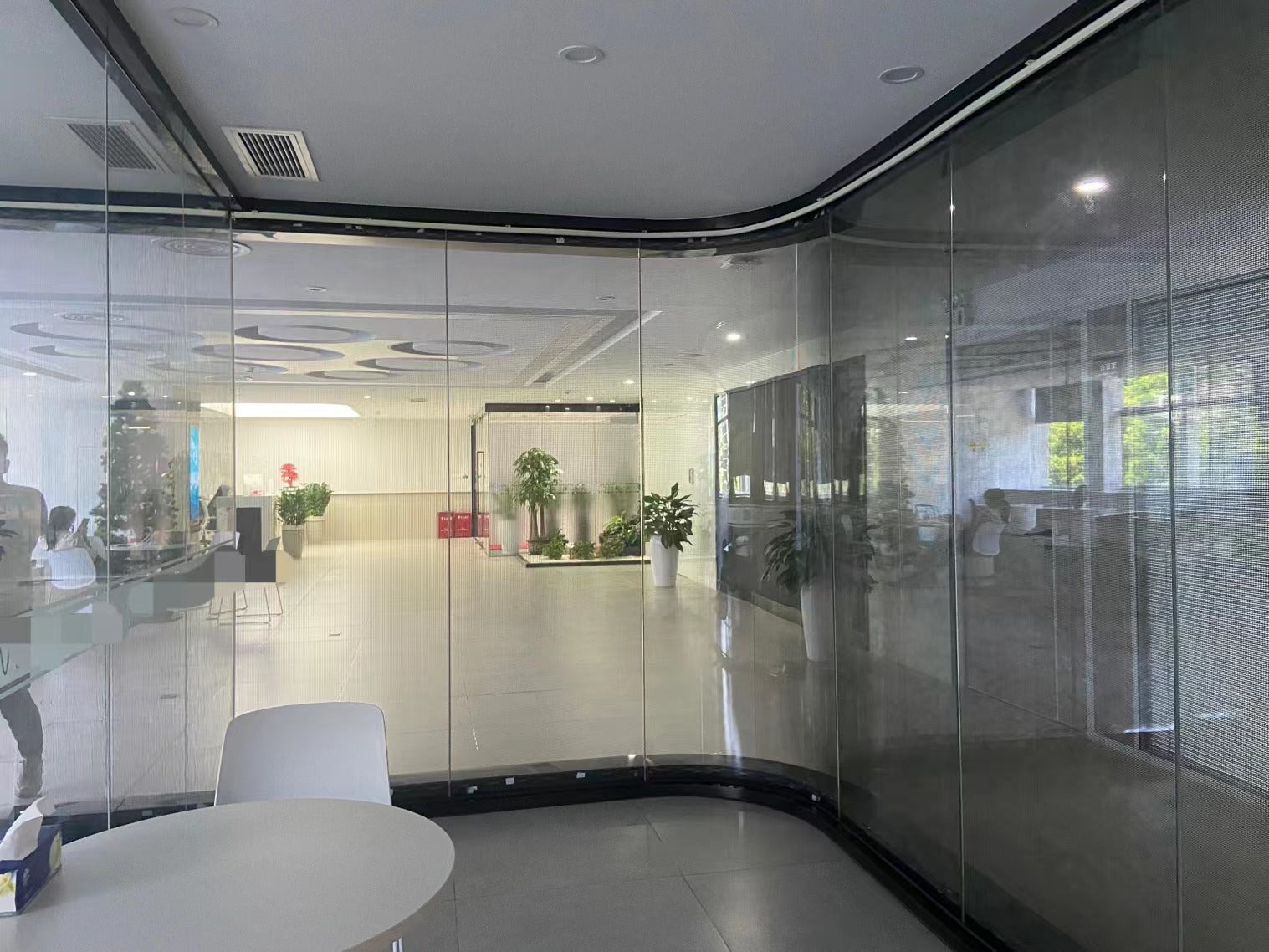

* The thickness is as thin as less than 2mm, which fits perfectly on the transparent glass and integrates with the building structure without destroying the beauty of the original building.
* Its module is cleverly designed, bendable, cuttable, and flexible, and can adapt to display needs of various shapes and sizes.

Application:

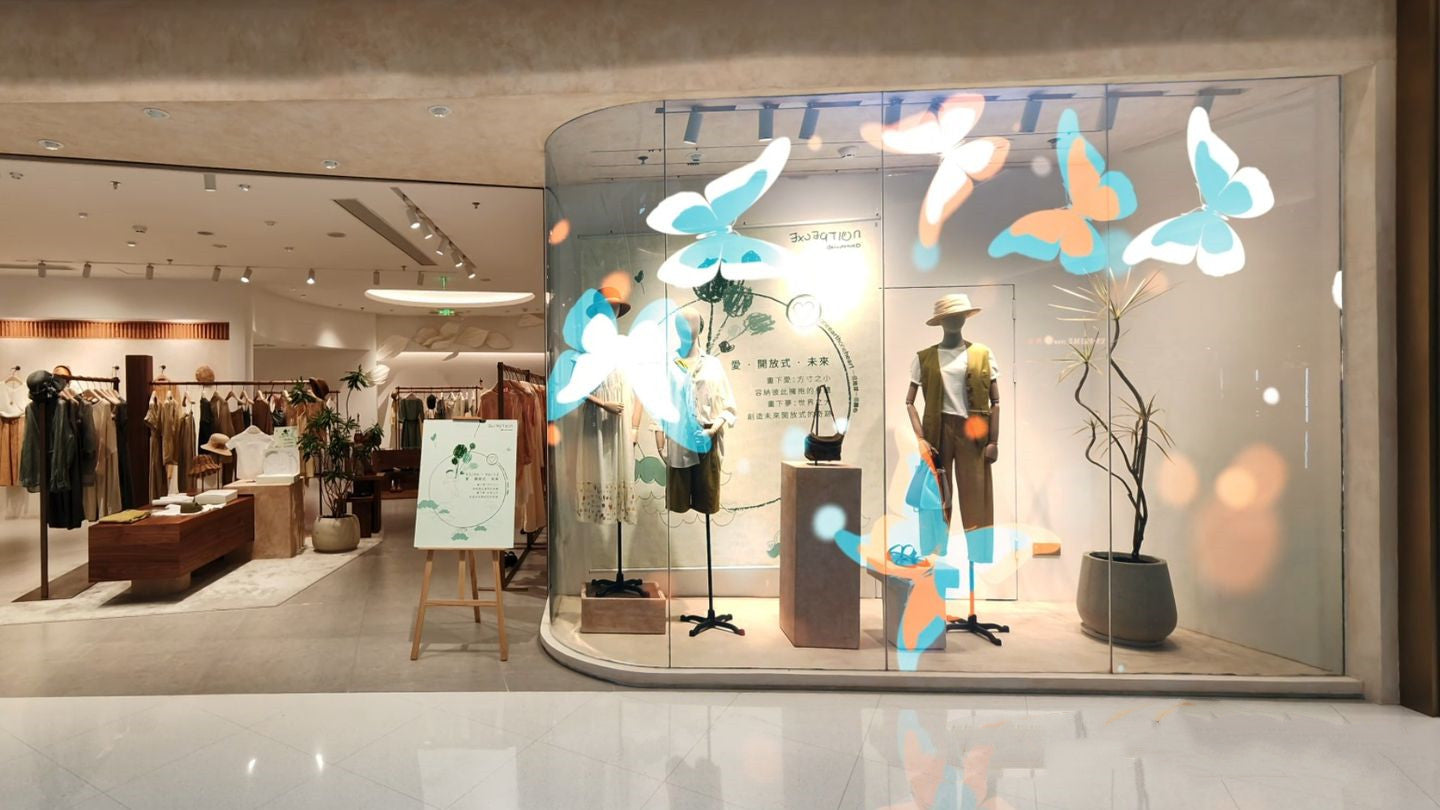

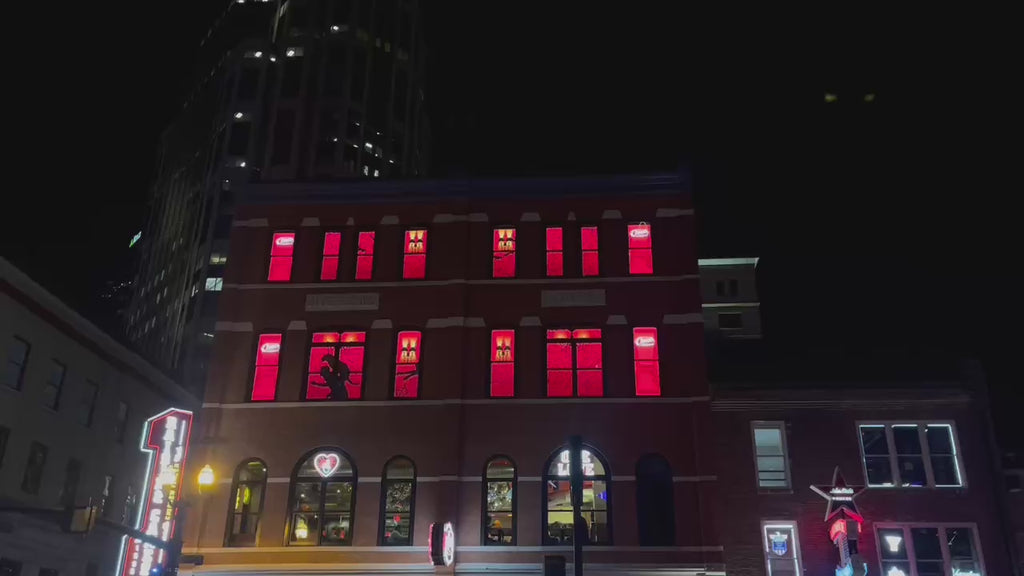

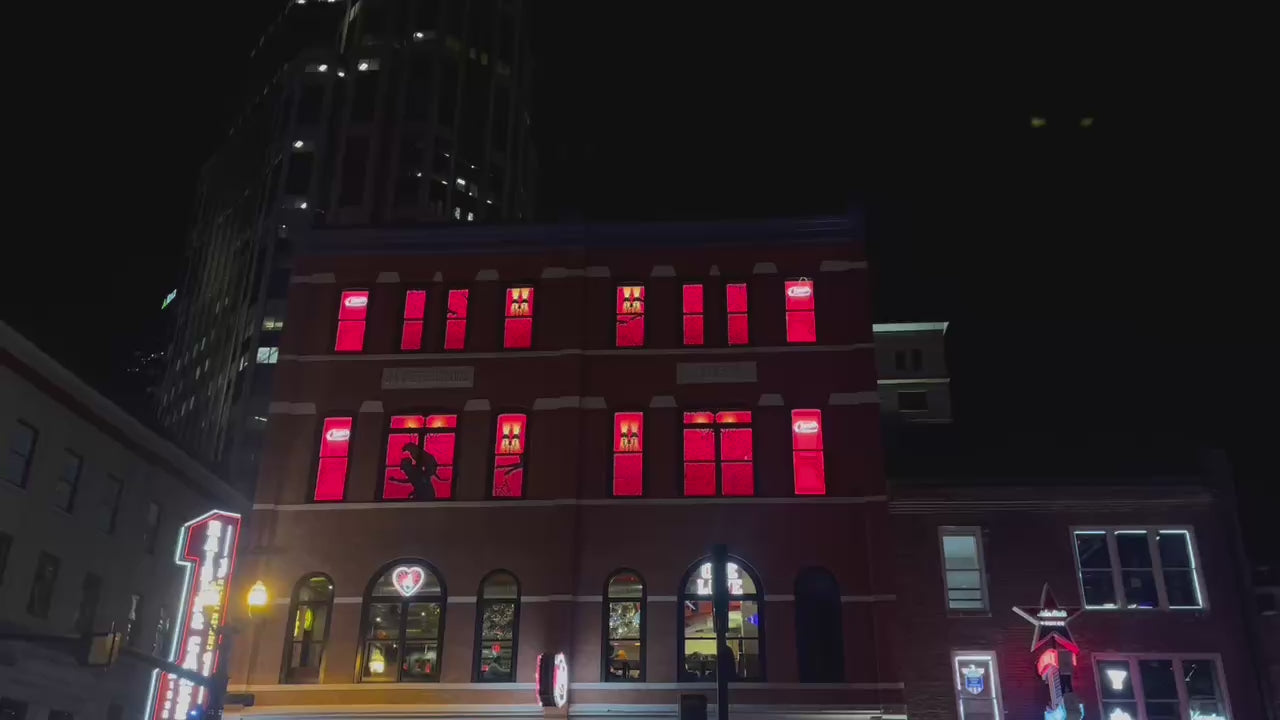

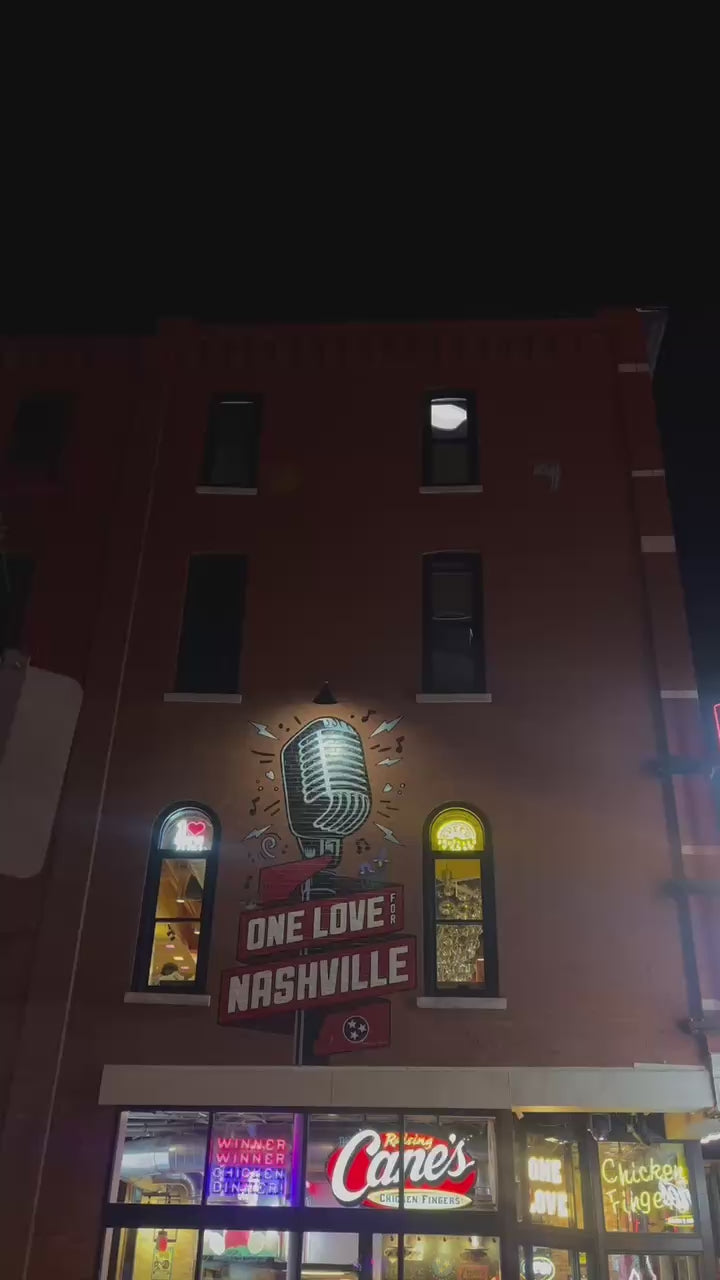

The application fields of holographic invisible screens are very wide. Whether in commercial displays, advertising, entertainment performances or glass curtain walls, holographic invisible screens can bring people a shocking visual experience. Its emergence not only brings new possibilities to display technology, but also injects new vitality into the development of all walks of life.

Specification

#

Name

Parameter

1

像素间距  Pixel  Pitch   (H/V)

W:3.91;H:3.91mm

2

像素构成  LED  Configuration

SMD1415   1R1PG1PB        UV

3

像素密度  Pixel  Density

65536dot/㎡

4

通透率  Transparency

<80%

5

驱动方式 Drive  Scheme

18  aisle

6

扫描方式 Scan  method

16  Scan

7

刷新率  Refresh  Rate

3840Hz

8

模组尺寸  Module  Size

1000X250mm L/R)

9

模组分辨率    Module  Resolution

256X64dot

10

重量    Cabinet  Weight

6kg/㎡

11

防护等级  IP  Rating   (  front/back)

IP42

12

亮度水平  Brightness (adjustable)

>3000nits/㎡

13

可视角度  Viewing  Angle   (H/V)

160 °/140 °

14

观看距离    Viewing  Distance

4m

15

灰度等级  Gray  Scale

16bit

16

最大功率 Max.Power  Consumption

1200W/m²

17

平均功率  Ave.Power  Consumption

450W/m²

18

使用环境  Environment

indoor

19

控制方式  Control  Mode

Universal , brand: Novastar

20

支持信号输入  Support  Input

Universal

21

输入电源  Operation  Power

AC100_240V,50/60Hz

22

工作温度  Operating  Temperature

10℃~40℃ (work)

23

工作湿度  Operating  Humidity

35%85%   (work), 10%90%

24

工作寿命  Operating  Life

100,000hours



Products Details

Customized Sizes

Get creative with unique shapes and aspect ratios. Leverage custom sizes to maximize visual impact and seamlessly integrate displays.

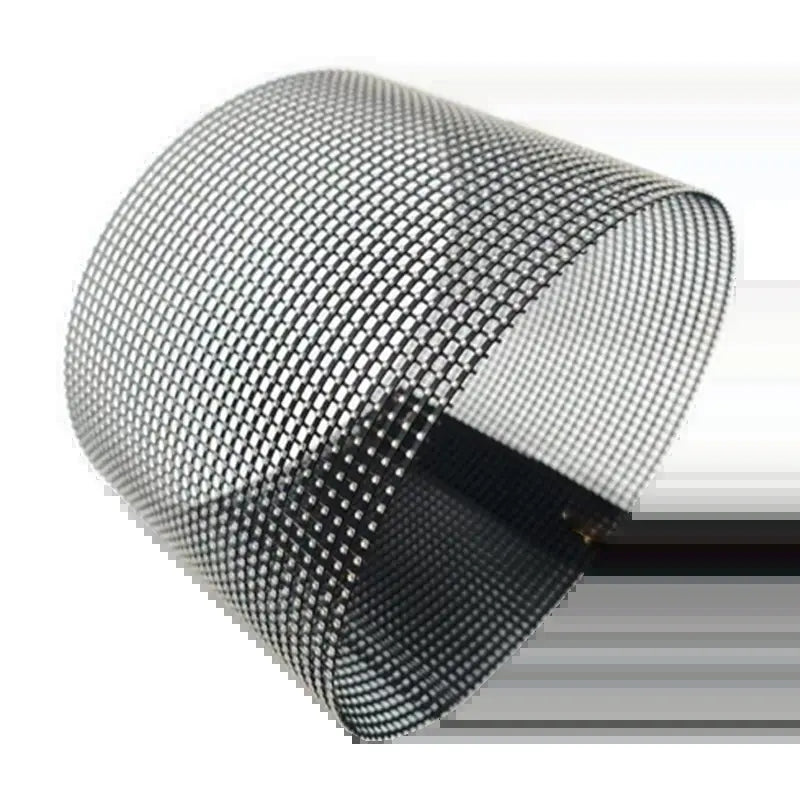

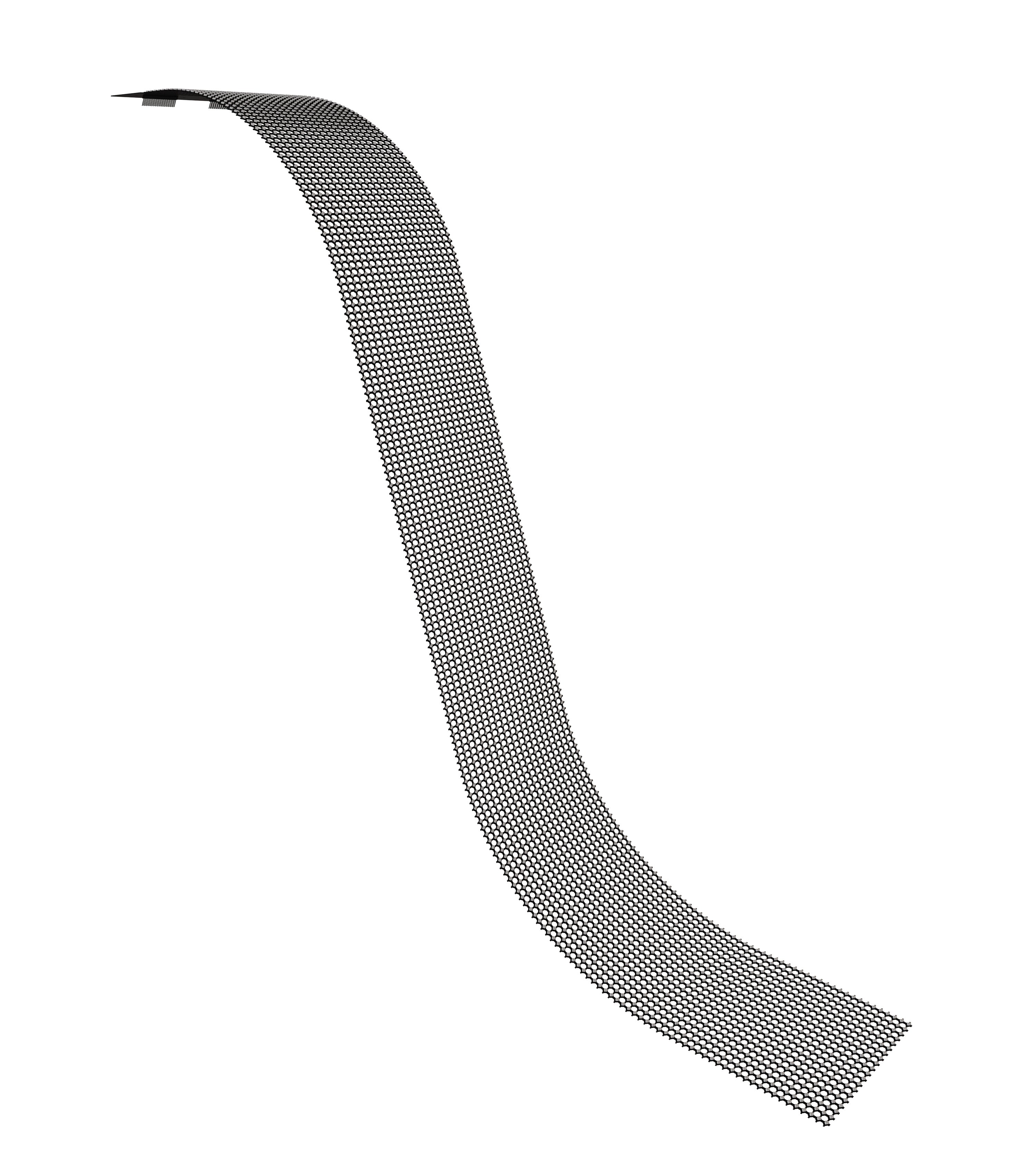

Flexible

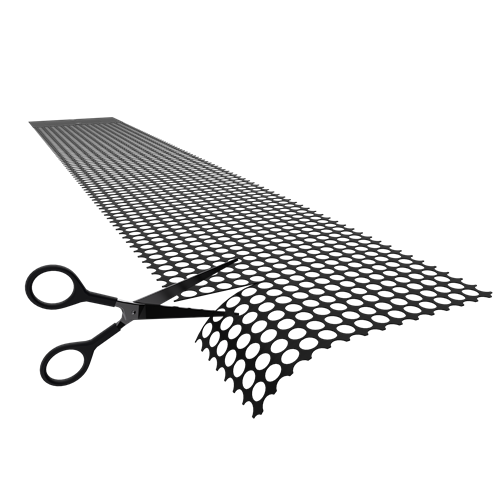

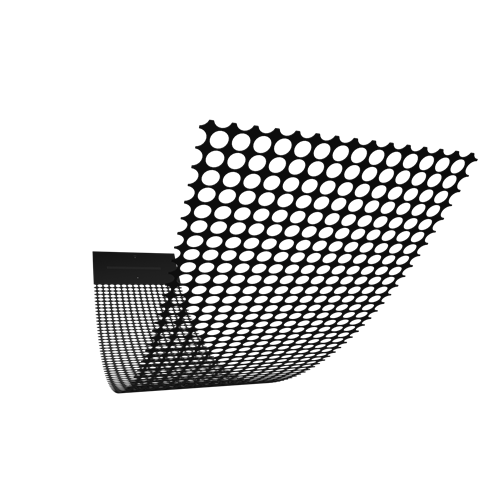

LED Module can be bent or cut to meet the actual requirement. Ideally for curved glass panels or tailor-made screens.

Spicing

Max length for 1 single LED Film can be 150mm, 2pcs Splicing up to 3 meters without obstruction
