Adhesive Transparent LED Film

2 products

Transparent LED Film display is a new type of display technology, which has the characteristics of high transparency, bright colors, and high brightness.

Invisible PCB or Mesh technology comes with up to 95% transparency and at the same time offers full display properties.
At first glance, you do not see any wires between the LED modules. When the LED film is off, the transparency is almost perfect.

Download the Full Catalog of Transparent LED Film Screen

Features

* Invisible PCB & Mesh Technology, Super high transparency up to more than 95%.
* Slim & Soft for Creative Design,Ultra-thin and ultra-light
* Easy Installation & Anti-UV, self-adhesive Film which paste on the glass without frames or other gaps.
* Flexible during installation, the size and layout of the film can be customized to suit different installation areas.
* Sufficient brightness,Excellent color performance

LED flexible transparent film Data sheet
MODEL	P5	P6.25	P8	P10	P15	P20
Module size (mm)	1000x320	1000*400	1000*400	1000*400	990*390	1000*400
LED light	REE1313	REE1515	REE1515	REE1515	REE2121	REE2121
Pixel composition	R1G1B1	R1G1B1	R1G1B1	R1G1B1	R1G1B1	R1G1B1
Pixel spacing (mm)	5*5	6.25*6.25	8*8	10*10	15*15	20*20
Module pixel	200x64=12800	160*64=10240	125*50=6250	100*40=4000	66*26=1716	50*20=1000
Pixel/m2	40000	25600	16500	10000	4356	2500
Brightness	2000-3000cd/m²	2000-3000 cd/m²	2000-3000 cd/m²	2000-4000 cd/m²	2000-4000 cd/m²	2000-4000 cd/m²
Permeability	90%	90%	92%	94%	94%	95%
Angle of view °	160 °	160 °	160 °	160 °	160 °	160 °
Input voltage	AC110-240V50/ 60Hz	AC110-240V50/ 60Hz	AC110-240V50/ 60Hz	AC110-240V50/ 60Hz	AC110-240V50/ 60Hz	AC110-240V50/ 60Hz
Peak power	600w/㎡	600w/㎡	600w/㎡	600w/㎡	600w/㎡	600w/㎡
Average power	200w/㎡	200w/㎡	200w/㎡	200w/㎡	200w/㎡	200w/㎡
Work environment	Temperature -20~55°C Humidity 10-90%	Temperature -20~55°C Humidity 10-90%	Temperature -20~55°C Humidity 10-90%	Temperature -20~55°C Humidity 10-90%	Temperature -20~55°C Humidity 10-90%	Temperature -20~55°C Humidity 10-90%
Weight	1.2kg	1.3kg	1.3kg	1.3kg	1.3kg	1.3kg
Thickness	2.5mm	2.5mm	2.5mm	2.5mm	2.5mm	2.5mm
Drive mode	Static state	Static state	Static state	Static state	Static state	Static state
Control system	Nova/Colorlight	Nova/Colorlight	Nova/Colorlight	Nova/Colorlight	Nova/Colorlight	Nova/Colorlight
Typical value of life	100000H	100000H	100000H	100000H	100000H	100000H
Grayscale level	16bit	16bit	16bit	16bit	16bit	16bit
Refresh rate	3840 Hz	3840 Hz	3840 Hz	3840 Hz	3840 Hz	3840 Hz

Self-adhesive Film, Easy Installation Self-adhesive Film which paste on the existing railing glass or window without frames or other gaps. The easier installation saves labor costs, and the wiring of power and signals is also very easy and can be hidden naturally. It adds a rich visual experience, a great innovation to the glass.
Invisible PCB & Mesh, Superb Transparency Invisible PCB or Mesh technology comes with up to 95% transparency. At first glance, you do not see any wires between the LED modules. When the LED film is on, the played video can delivers various information effectively by attracting the attention of passersby. Importantly, things behind the glass are still visible.
Slim & Flexible for Creative Design The Adhesive LED Film is Ultra-thin and ultra-light, with thickness of the LED film is only 2.5 mm, the maximum sheet size is 1000 x 400 mm, weight 1.3 kg. Fine material is very flexible, can be adapted to both flat and curved glass This gives designers more scope of application and broadens their application occasions.
Outstanding Expandability, Flexible during installation The transparent LED Film can be expanded by adding more films in a vertical or horizontal way, and it can cut or customize to sizes for meet size requirement or specail glass shapes such as triangles.
Sufficient brightness The LED Film with pixel pitch range from 6.25mm, 8mm, 10mm, 15mm and 20mm, the brightness in 2000nits makes indoor viewing very clear. If attached to a glass window or wall facing the street outside, we can provide the film with 4000nits brightness which would be enough to attracts the attention of passersby while displaying a wide range of colors.

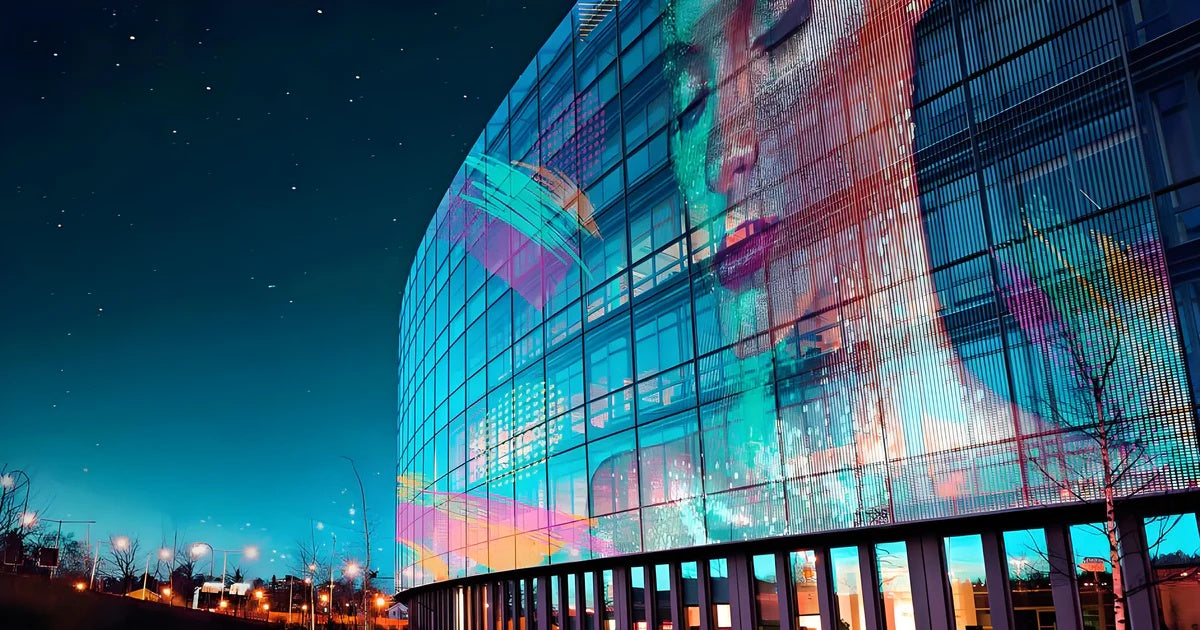

Application Case - Curved Glass Wall	Application Case - Building Facade
	Application-Retail Store Store product display: Transparent LED displays can be used to display store product information and promotional information to attract customers' attention. Branding: Stores can use transparent LED displays to promote brand image and culture and enhance brand influence. Event promotion: Stores can use transparent LED displays to promote various activities, such as new product launches, discounts and promotions. In addition, this solution can also realize real-time update of information and improve the timeliness of store information. At the same time, it can also greatly improve the visual beauty and brand image of the store, making the store more attractive and modern.
ApplicatioApplication-Glass railing In shopping malls, transparent LED displays can be applied to the glass guardrails of shopping malls to attract customers' attention and improve the brand image of shopping malls. We propose an application scheme of transparent LED display in the glass guardrail of shopping malls. The solution uses transparent LED displays installed on the glass guardrail of the shopping mall, so that the shopping mall can display advertising information and attract customers' attention without occupying a large area of space. Event promotion: Shopping malls can use transparent LED displays to promote various activities, such as new product launches, brand displays, etc. Shopping mall advertising: The transparent LED display can be used to display the advertising information of the shopping mall, including the latest discount information, brand promotion, etc. Navigation instructions: The mall can display the map and related information of the mall on the transparent LED display to facilitate customers' navigation and visit.
	Application-Escalator In the escalator, the transparent LED display can be used to display various information and advertisements, so that passengers can more easily understand the elevator information and obtain useful information during the elevator ride. We propose an application scheme of transparent LED display in escalator. The solution adopts a transparent LED display installed on the elevator handrail, so that passengers can obtain useful information without affecting the transparency of the elevator. Elevator running status display: The transparent LED display can be used to display the running status of the elevator, such as running speed, current floor, parking floor and other information. Ad display: The transparent LED display can be used to broadcast advertisements, such as business advertisements on the floor where the elevator is located or related social public service advertisements. Other information display: The transparent LED display can also be used to display other information, such as weather forecast, clock, etc.
