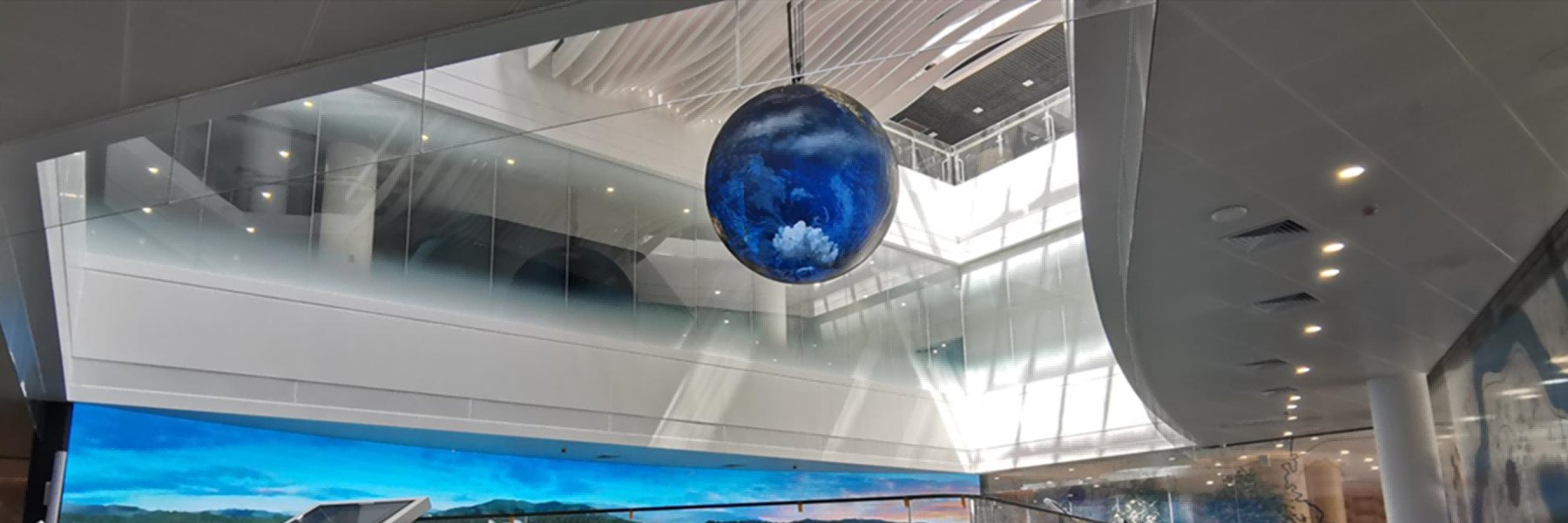

Spherical Display System, Sphere LED Display screen is a creative LED display with a ball shape. It's a new type of media tool mainly used in museums, science and technology conferences, corporate showrooms, exhibition halls, commercial shopping malls, hotel lobby, and so on.
The below products are from our own Sphere LED Display manufacturer: SHENZHEN HUAKE LIGHT ELECTRONICS CO., LTD. (https://www.led.app or https://www.360digitalsigenage.com). All your inquiries about Sphere LED Display will be replied to within one working day directly from the manufacturer's sales team.
Sphere LED Screen Display
Spherical LED Screen, Ball-type LED Display Screen, besides the standard sized we sell online, it can be customized required as any sizes and any pixel pitches.
Sphere LED Display ( Full Color LED ball, Sphere LED Screen) is a kind of creative LED display. In terms of shape characteristics, we generally divide into hemispherical and orthospherical. From the perspective of display, we can divide it to inner arc Sphere LED Video Display and outer arc Sphere LED Display.
Steel Structure of the Sphere Display Screen
The design and manufacture process of the steel structure of the LED spherical display screen also has high requirements.
If the structure is not precise enough, it will affect the surface fixation of the module, the flatness of the splicing and whether there are obvious seams. These will eventually affect the display effect.
Larger diameter LED spherical displays are shipped in several parts, and then reassembled on site. If the structural design is reasonable, it will reduce the difficulty of installing large-sized spherical displays, saving time and manpower.

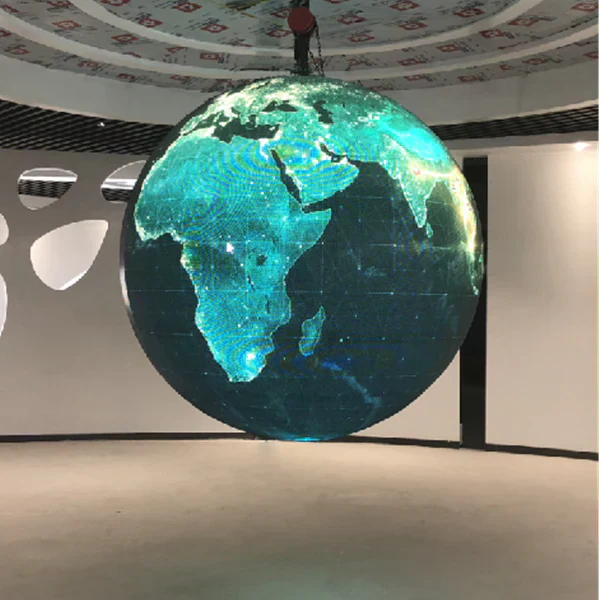

The LED Spherical Display is suitable for indoor and outdoor use. Generally speaking, the indoor full-color spherical screen has a pixel pitch of 2mm (P2), 2.5mm (P2.5), 3mm (P3), 4mm (P4). Outdoor full color pixel screen has a pixel pitch of >5mm (P5).Through the 3D Spherical LED display, we can easily associate with the Circular LED display, but in fact, the generation process of the spherical LED display will be more difficult.

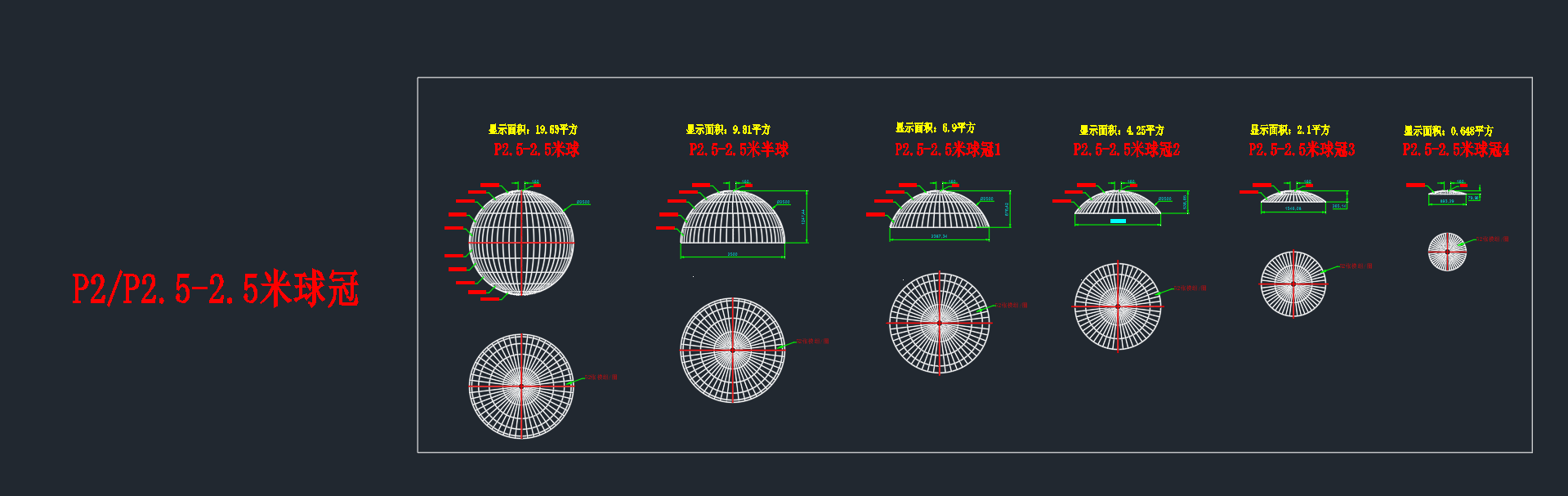

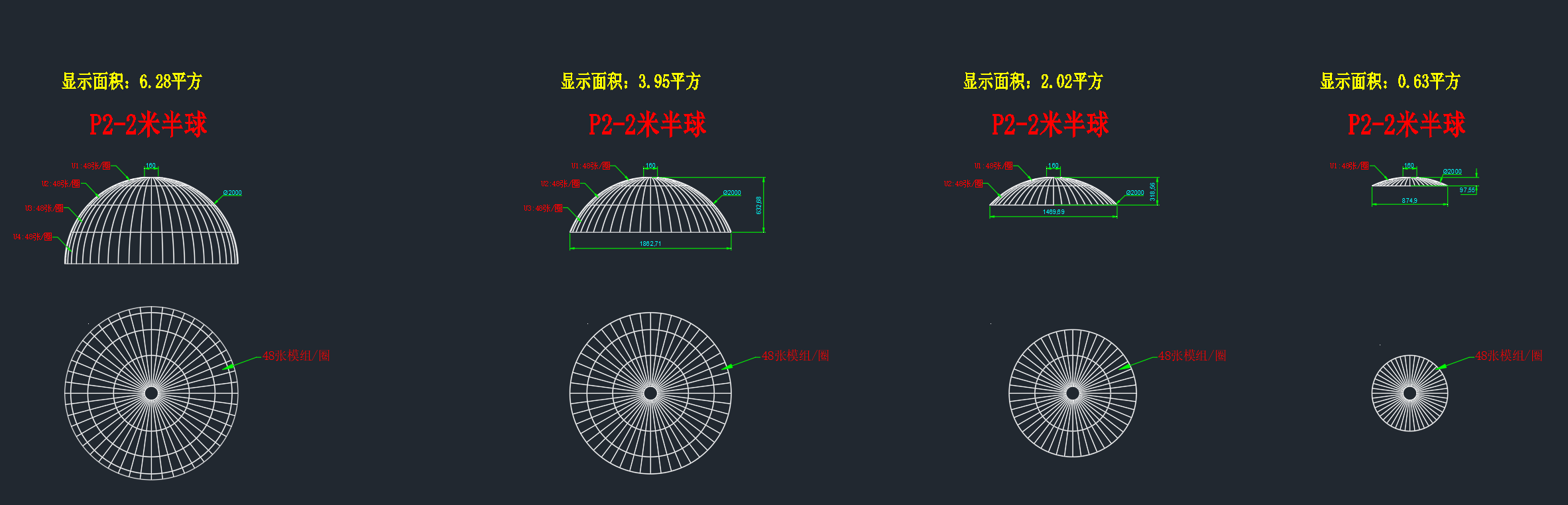

A list of the LED Sphere Display Models already made
P1.875 -Dia.1.5M | Dia. 2.5M | Dia. 2.9M | Dia. 4.42M
P2 - Dia. 1.2M | Dia.1.6M | Dia.1.5M
P2.5 - Dia. 1.0M | Dia.1.5M | Dia. 2.0M
P3 - Dia. 1.2M | Dia. 1.5M | Dia.2.0M | Dia. 3.0M | Dia.5.5M
P4 - Dia. 1.0M | Dia. 1.5M | Dia. 1.8M | Dia.3.0M | Dia. 4M | Dia. 5M | Dia. 8.25M
P5 - Dia.1.0M | Dia. 2.0M | Dia. 2.5M | Dia. 7.2M
P6 - Dia. 1.5M | Dia.2.0M | Dia. 3.0M | Dia.6.0M | Dia.11.15M
P7.62 - Dia. 2.0M | Dia. 2.5M | Dia. 8.0M
P10 - Dia.1.5M | Dia.2.0M | Dia.3.0M | Dia.6.0M | Dia. 8.0M | Dia.14M | Dia.16.3M
For indoor, we would make the P2.5 in Dia.1.0 Meter in stock;
For outdoor, we would make the P5 in Dia. 2.5 Meters in stock.
But it depends, sometimes we just sell it out, then none in stock, but lead time takes 30-35days.
For custom-make sphere that we do not make before, lead time need 55-60days at least and if bigger in dia., longer time will take.
To Customize a Spherical LED Display
To customize the Spherical LED Display you need, you need to pay attention to the following points:
1: Regardless of the change in the diameter or the difference in pixel pitch, we need to redesign and develop new modules to complete.
2: Usually, a complete custom led spherical screen requires 2-30 modules (or more which is depends on the style of shapes), and each one requires an additional payment in module development cost, so purchasing the existing version is the most economical solution.
3: In addition, for the selection of the brand of lamp beads, control system control, and other details. We will communicate with you in detail.
Our Advantages in Globe LED Display
In most cases, Molding Cost is huge because this process is the most important part of the entire project. One customized ball will require dozens of LED modules (PCB, the Carrier, if outdoor sphere also need Waterproof Gasket and LED Mask), which leads to a mass of molding cost need for each LED module. Because we have a lot of experience in production and construction, that we can quickly figure out the most cost efficient solution for your project. And there are some specific styles that we have made product before, so we can provide finished products need no more molding, which will save you a lot of time and money.
