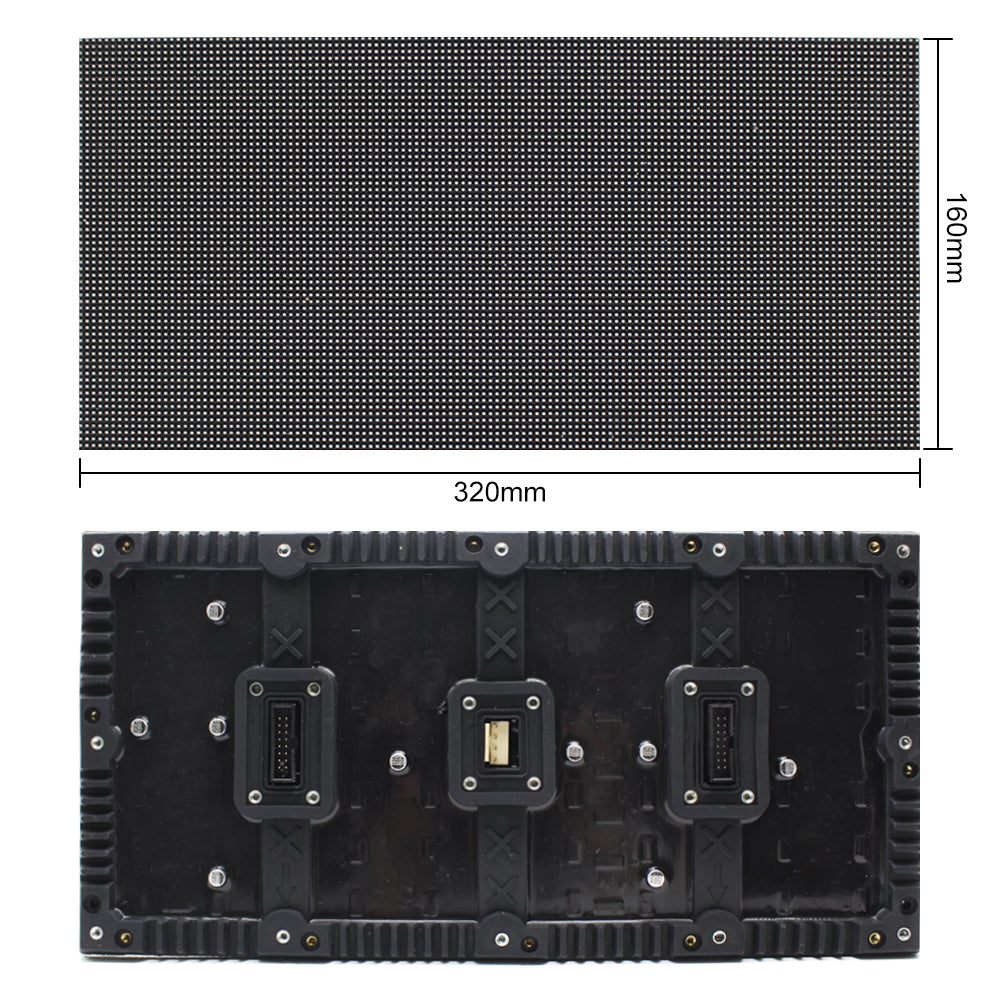

Our outdoor waterproof flexible LED display module panel is designed for high-performance applications in demanding environments. The module features full front and back encapsulation with specialized adhesive, ensuring excellent waterproofing, UV resistance, and long-term durability without bubbling or deformation. Available in multiple pixel pitches (2.5mm, 3.2mm, 4mm, 5mm, and 8mm), it delivers superior brightness of 4500-5000 cd/m², making it ideal for outdoor use even under direct sunlight.
The module incorporates a unique base shell design with waterproof connector caps, paired with compatible waterproof power and control boxes, achieving an IP65 protection rating. Its flexible structure allows for curved installations, enabling creative designs such as cylindrical, concave, or convex LED displays while maintaining excellent waterproof performance.
Datasheet of Outdoor Flexible LED Panels
|
|
|
|
Key Advantages:
-
High Waterproof Rating (IP65) – Fully sealed against rain, dust, and moisture.
-
UV & Weather Resistance – Protects against sunlight and harsh outdoor conditions.
-
High Brightness (4500-5000 cd/m²) – Ensures clear visibility in bright daylight.
-
Flexible & Bendable – Suitable for curved, cylindrical, and custom-shaped displays.
-
Durable Encapsulation – Prevents bubbles and deformation over time.
-
Multiple Pixel Pitches – Supports various resolutions for different viewing distances.
-
Easy Installation – Waterproof connectors and modular design simplify setup.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |

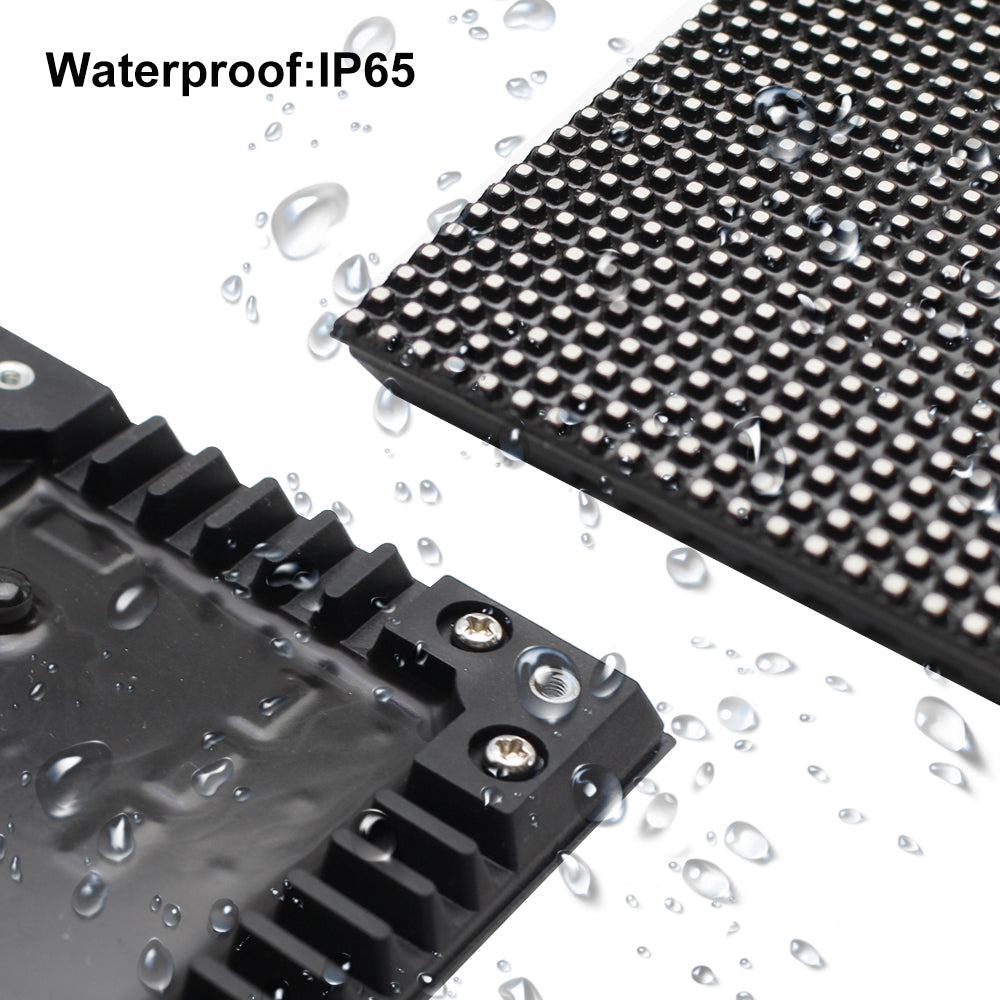

1. Waterproof IP65 Rated for outdoor use :
Silicon Based Flex LED Module with front LED surface and backside all fully covered by black silicon gel.
![]() |
![]() |
2. NEW GENERATION: silicon based flexible LED Module with updated design, both the power and data interfaced are shelled by silicon cover.
![]() |
![]() |
3. Thin and Flexible
The display tile panels can be bended in a certain curve (around 120-150degree) in convex or concave, which is ideal for making variable irregular shaped LED display screen.
![]() |
![]() |
4. Quick installation & stable attachment
Magnetic mounting allows quick installation, along with screw ports set on the board, attachment could be good to any sort of surface and stable.
![]() |
![]() |
5. Pixel Pitch Options
Pitch options as 2.5mm, 3.2mm, 4mm, 5mm, and 8mm.
NOTE: P2 is not available.
![]() |
6. Diverse Applications
-

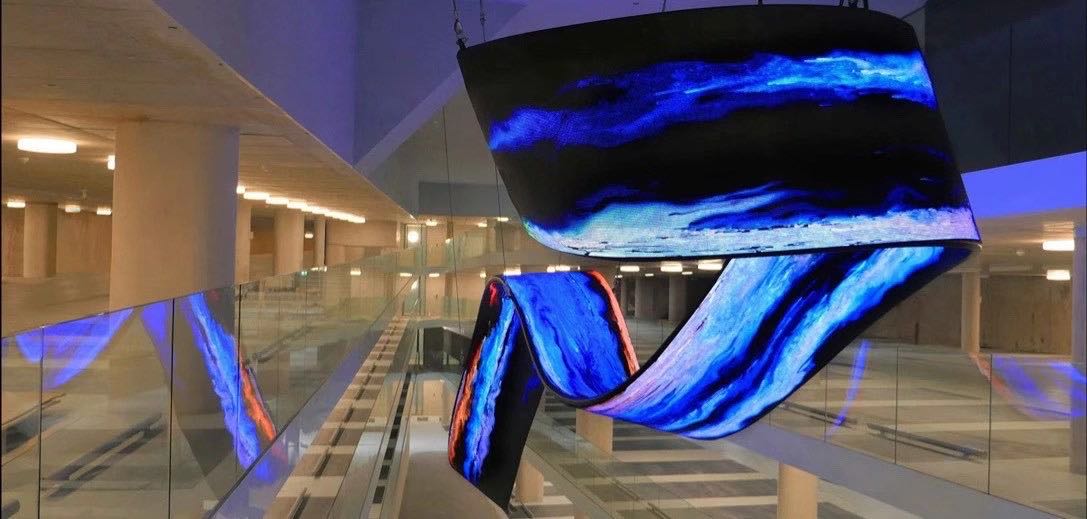

Curved & Cylindrical LED Screens – Perfect for round pillars, arches, and wave-shaped displays.
-
Outdoor Advertising Billboards – High brightness and weatherproof for long-term use.
-
Concave/Convex LED Displays – Creates immersive visual experiences in architectural designs.
-
Small-to-Medium Outdoor LED Screens – Ideal for kiosks, storefronts, and information boards.
-
Stage & Event Backdrops – Flexible installation for dynamic stage designs.
This versatile and rugged LED module is the perfect solution for outdoor projects requiring waterproofing, flexibility, and high brightness.
![]() |
![]() |
IMPORTANT ALERT!
- Operators must wear anti-static gloves when assembling modules.
* It is forbidden to splash water on the screen or module. For example, when cleaning dust, do not use rags, moisture-containing objects, or hard objects to clean. You can use an anti-static soft-bristled brush to clean. - It is forbidden to tear or pull directly with violence. When unplugging and plugging in wires, pull them out gently to avoid breaking the copper pillars and damaging the PCB with excessive force.
- It is prohibited to use galvanized square pipes for installation. Galvanized square pipes cannot guarantee flatness. It is recommended to use iron box spraying for installation.
- It is recommended to use spraying process for simple arc-shaped and cylindrical sheet metal iron boxes, which are easy to install and have good flatness.
- The bending angle of the module is between 158°~162°. It is prohibited to bend the module violently and repeatedly.
|
![]() |
Products in this page are from our own Outdoor Flexible LED Modules manufacturer: SHENZHEN HUAKE LIGHT ELECTRONICS CO., LTD. (https://www.led.app or https://www.360digitalsignage.com). All your inquiries about Outdoor Flexible LED Modules will be replied to within one working day directly from the manufacturer's sales team.
What is the Outdoor LED Flexible Module?
Here we are talking about the full-color LED outdoor flexible display module, our outdoor LED flexible module pixel pitch (P2.5-P8), this series is also one of our more similar LED display products on the market, which is more proud. Product. Based on the flexible shape, high-definition and high-brightness display, the high water-resistance and high-heat-dissipation performance will bring you an unprecedented experience in the use of outdoor LED flexible modules.
What is the quality of high-quality outdoor LED flexible modules?
- First of all, for the outdoor LED flexible display module, waterproof performance, safety performance is definitely our first product property to consider. Outdoor LED flexible display modules are generally used in display engineering projects for outdoor molding. Once the consequences of waterproofing and safety failures are difficult to assess.
- Secondly, it is aimed at the flexibility quality of outdoor LED flexible display modules. Generally speaking, it is necessary to shape an outdoor LED display body to contact two specifications, one is the standard type and the other is shaped shape (customized outdoor LED flexible display module). Therefore, since then, project customers have basically selected standard samples to test the flexibility of outdoor LED flexible module products. After determining the performance of the purchased product, it is determined that the final design of the outdoor LED flexible display module is ultimately required.
(By the way, we have a complete set of outdoor LED flexible display modules for R&D, design, testing and batch production processes and processes. We also have extensive experience in a variety of outdoor LED flexible display designs and solutions.)
- Finally, what are the tolerance requirements for outdoor LED flexible display modules? We know that LED display products, especially flexible display modules, in addition to the display position and modeling characteristics of the overall design, but also fully consider the overall physical and mechanical factors. In addition, the production process of the LED flexible display module needs to include PCB design, bottom shell molding and layout of related electronic components. So if you need to produce outdoor LED flexible display modules according to the design manuscript, then the tolerance requirements of the final product are also considered.
