P6.25 Flexible Transparent Holographic LED Film Screen, Brightness >3000NITS

P6.25 Flexible Holographic LED Screen

Features

* High transparency and structure-less design make the direct viewing transparency rate as high as over 90%, allowing people to barely feel the existence of the screen while appreciating the displayed content.
* The holographic invisible screen is light and beautiful, and the screen body is as light as 6KGS/㎡.

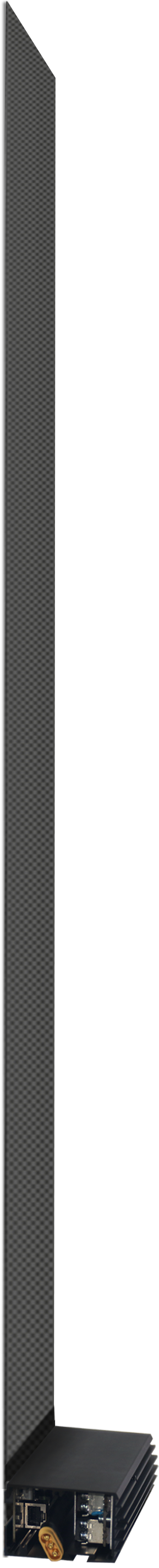

* The thickness is as thin as less than 2mm, which fits perfectly on the transparent glass and integrates with the building structure without destroying the beauty of the original building.
* Its module is cleverly designed, bendable, cuttable, and flexible, and can adapt to display needs of various shapes and sizes.

Application:

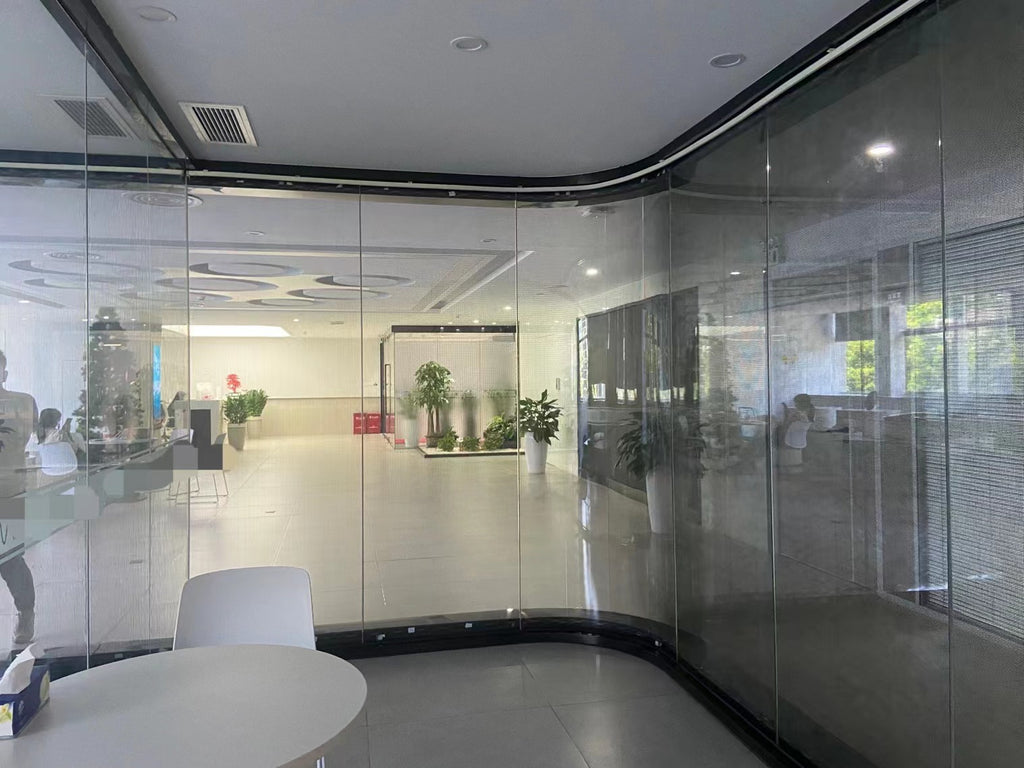

The application fields of holographic invisible screens are very wide. Whether in commercial displays, advertising, entertainment performances or glass curtain walls, holographic invisible screens can bring people a shocking visual experience. Its emergence not only brings new possibilities to display technology, but also injects new vitality into the development of all walks of life.

Specification

#	Name	Parameter
1	像素间距  Pixel  Pitch  (H/V)	W:6.25;H:6.25mm
2	像素构成  LED  Configuration	SMD1415   1R1PG1PB      UV
3	像素密度  Pixel  Density	25600dot/㎡
4	通透率  Transparency	>80%
5	驱动方式 Drive  Scheme	18  aisle
6	扫描方式 Scan  method	0  Scan(4  layer  PCB)
7	刷新率  Refresh  Rate	3840Hz
8	模组尺寸  Module  Size	1025X250mm （L/R）
9	模组分辨率    Module  Resolution	164X40dot
10	重量    Cabinet  Weight	6kg/㎡
11	防护等级  IP  Rating   (  front/back)	IP42
12	亮度水平  Brightness	>3000nits/㎡ (can adjust to 5000nits max)
13	可视角度  Viewing  Angle   (H/V)	160 °/140 °
14	观看距离    Viewing  Distance	6m
15	灰度等级  Gray  Scale	16bit
16	最大功率 Max.Power  Consumption	1200W/m²
17	平均功率  Ave.Power  Consumption	450W/m²
18	使用环境  Environment	indoor
19	控制方式  Control  Mode	Universal, Control System Brand: Novastar
20	支持信号输入  Support  Input	Universal
21	输入电源  Operation  Power	AC100_240V,50/60Hz
22	工作温度  Operating  Temperature	﹣10℃~40℃(work)
23	工作湿度  Operating  Humidity	35%～85%   (work), 10%～90%
24	工作寿命  Operating  Life	100,000hours

Products Details

Customized Sizes Get creative with unique shapes and aspect ratios. Leverage custom sizes to maximize visual impact and seamlessly integrate displays.
Flexible LED Module can be bent or cut to meet the actual requirement. Ideally for curved glass panels or tailor-made screens.
Spicing 1pcs Single LED Film can be made into 1500mm the max, so be bale to splicing up to 3 meters without obstruction
