Description
FUTD01

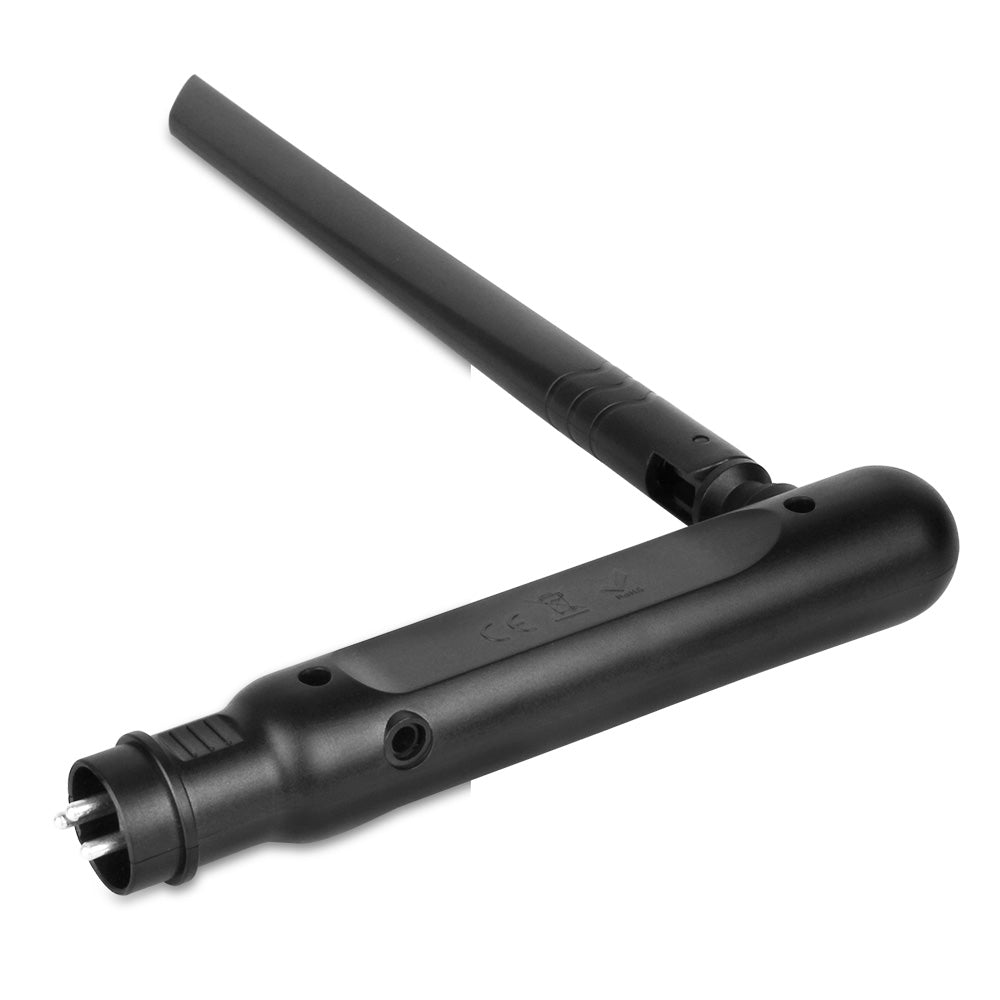

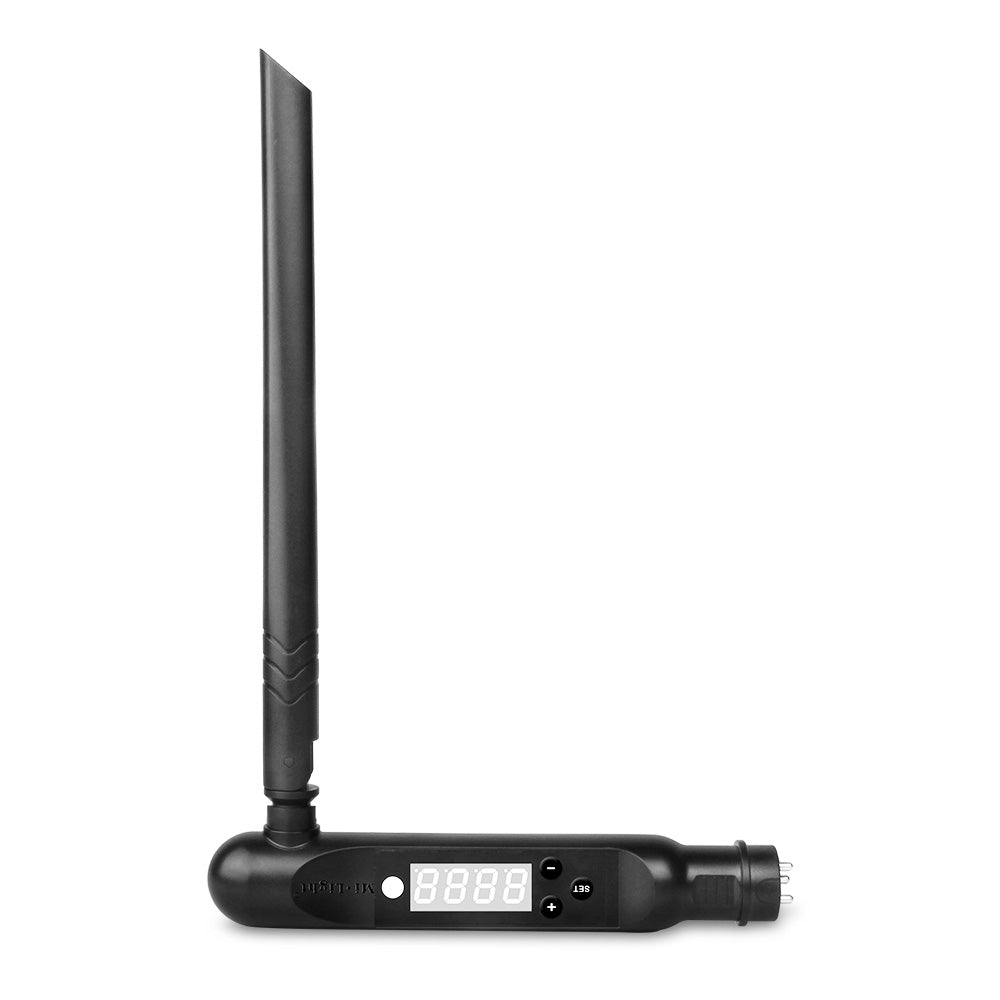

DMX 512 LED Transmitter
• Accord with standard DMX512 protocol
• It can transmit the DMX512 data of 80 channels at the same time.
• Can control 16 groups of 2.4G RGB+CCT lamps at the same time.
Available Downloads:
Manual
DMX 512 LED Transmitter
2.4GHz global ISM frequency, the data is more reliable and has no delay during the transmittin
Product Parameters
| Product Name |
DMX 512 LED Transmitter |
|---|---|
| Model No. |
FUTD01 |
| Input Voltage |
DC5V 500mA |
| Communication Protocol |
DMX512, DMX512 (1990) |
| RF |
2.4GHz |
| RF Transmitting Power |
6dBm |
| RF Control Distance |
30m |
| Modulation Method |
GFSK |
| IP Rate |
– |
| Working Temperature |
-10~40°C |
Accord with DMX512 standard protocol
Comply with DMX512, DMX512 (1990)
How to Use
Our DMX transmitter can control 16 light bulbs / strip light controllers, or 16 groups of light bulbs / strip light controllers at the same time, it can transmit the DMX512 data of 80 channels at the same time.

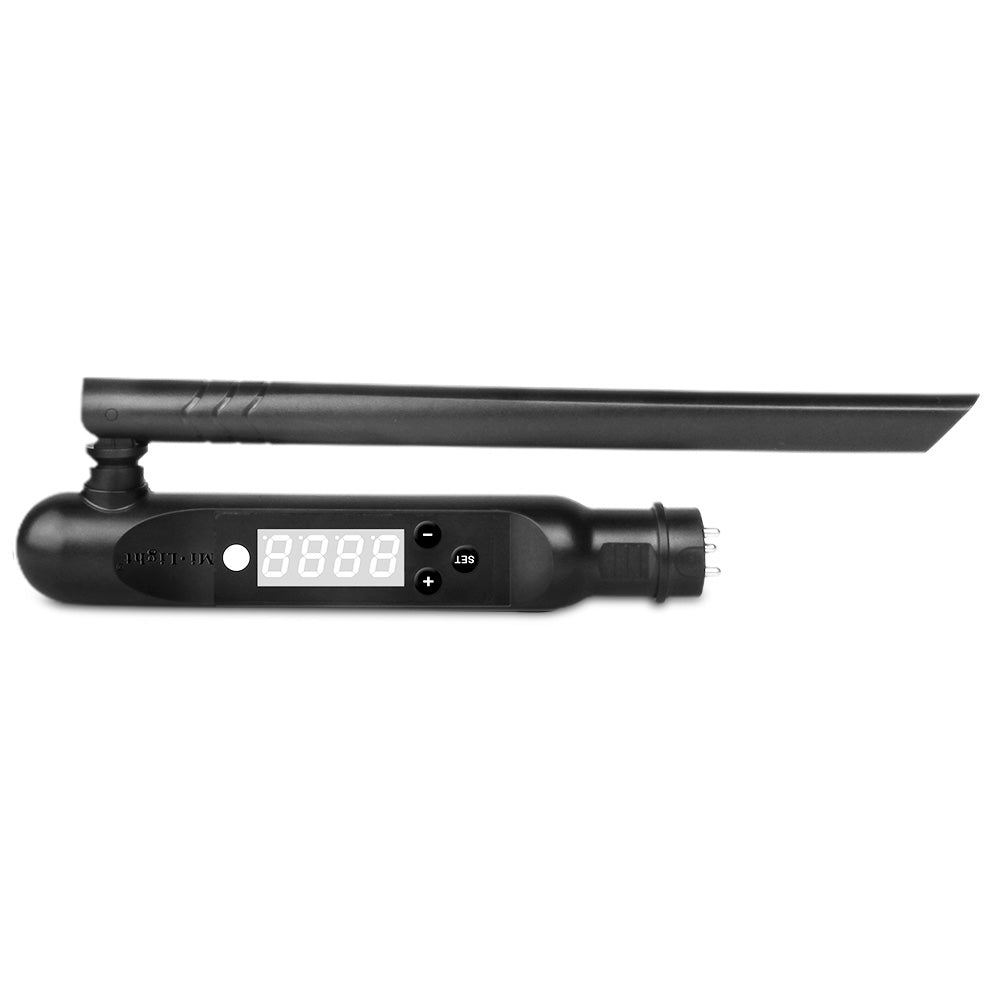

Functions of Keys
Male Connector
Male Connector
