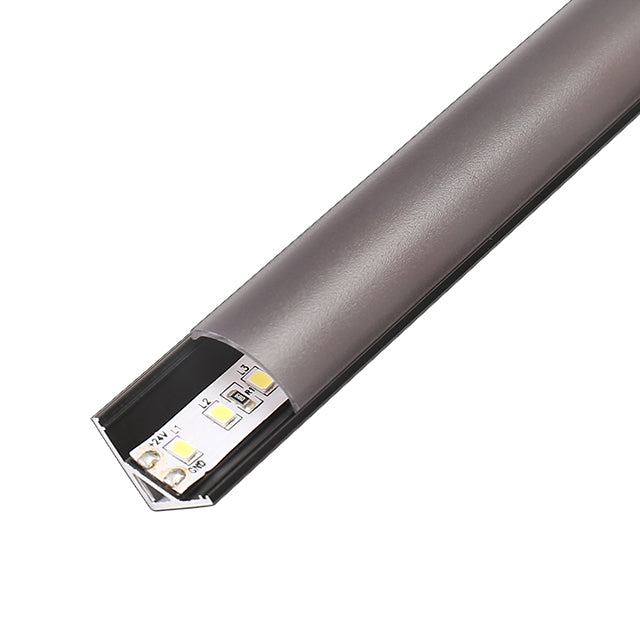

V02 All Black V-Shape Corner Aluminum Profile Arched Smoke Black Diffuser Black Aluminum Extrusion

Features:
1.Lightsworld Aluminum Profile Kit is a great solution for low-cost DIY under cabinet lighting fixture.

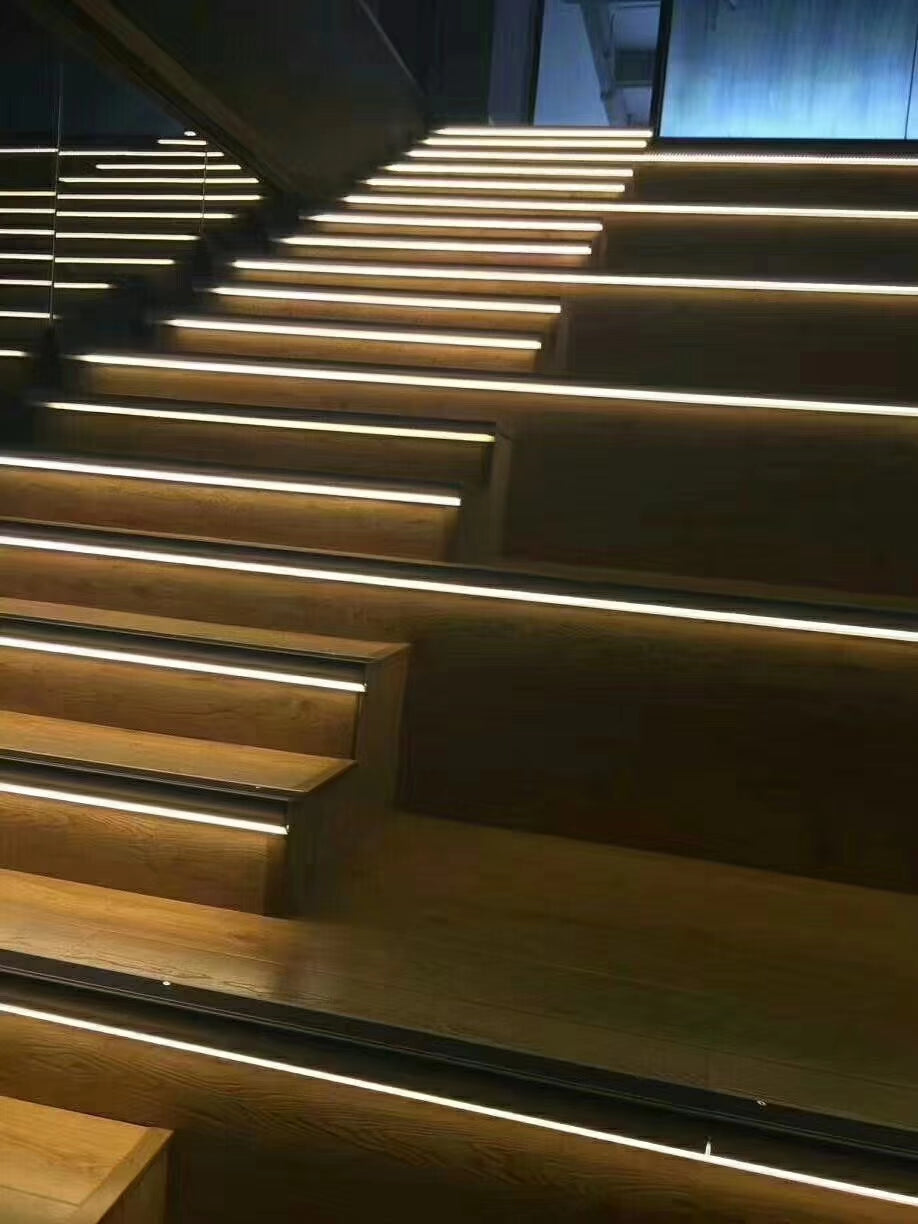

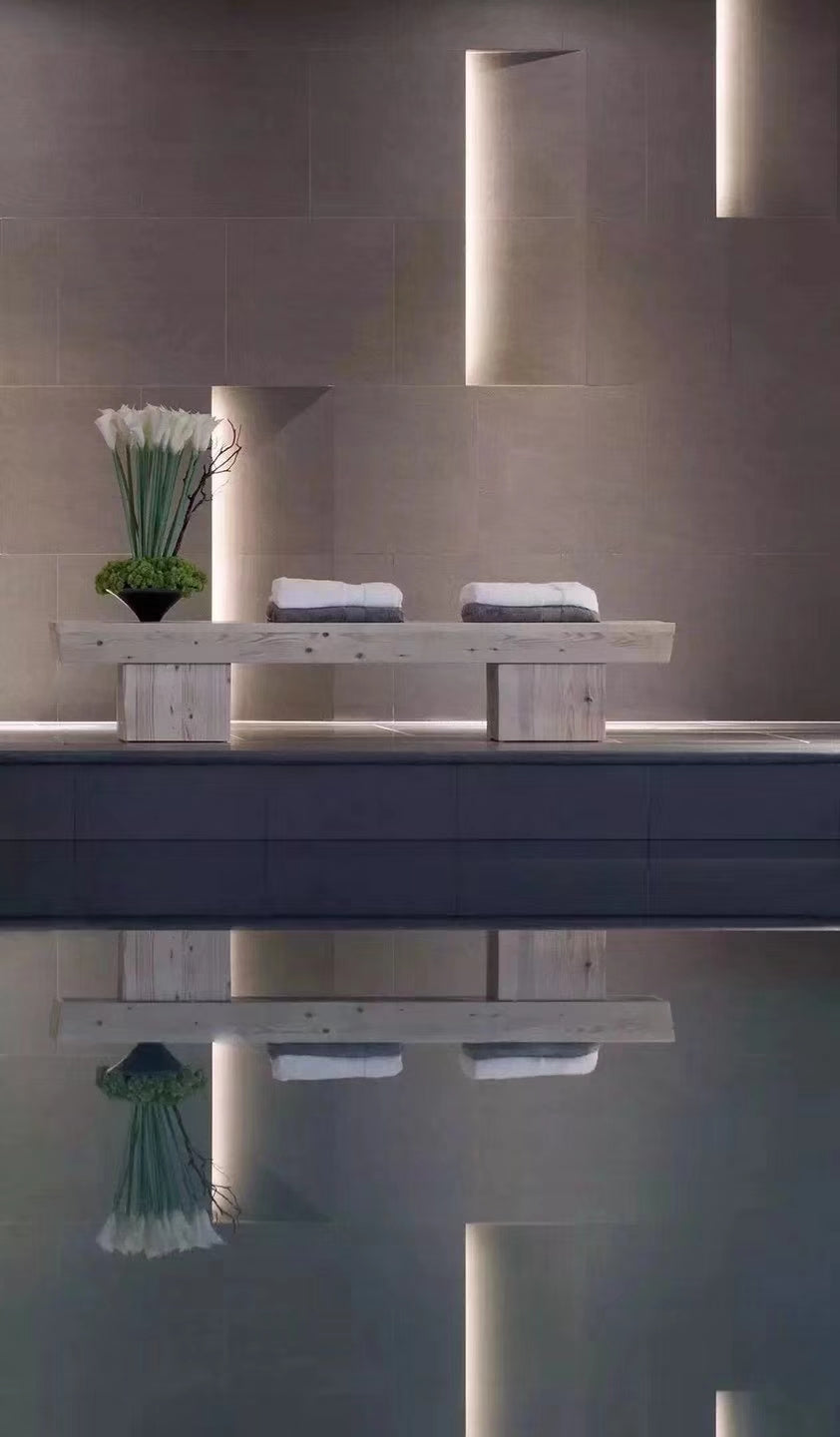

2.It is designed for recessed/surface mounting to tie-in furniture, under cabinet, shelves, drywall, wooden partitions, etc., also can be activated to create decorative luminescent bands in the walls, ceiling, floor, lights, work surfaces, shelves, steps, niches.
3.The Smoked Clear Black PC cover works well to help spread the light. This aluminum channel/profile works with LED flex/rigid strip lights (less than 12.15mm wide).

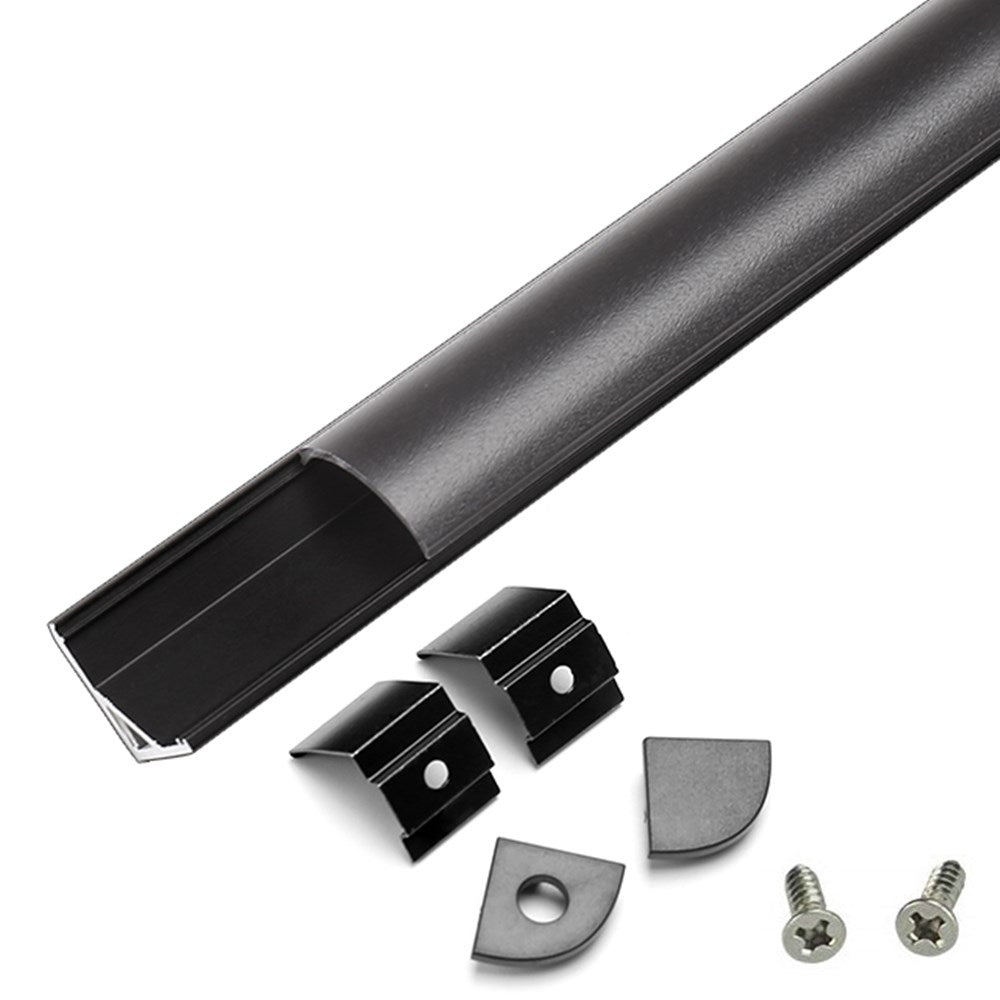

4.This kit includes the channel, cover, end caps, and mounting clips needed for a complete aluminum channel installation.
5.The cover softens the 'spottiness' of LED strip lights, producing a more consistent and pleasing light. This aluminum channel is extendable and sold by meter. You can add as many meters as you need and connect them together seamlessly.

Specifications:
Configuration: Corner V-Shape
Channel: Extruded aluminum
Diffuser: Smoke Clear Black Cover

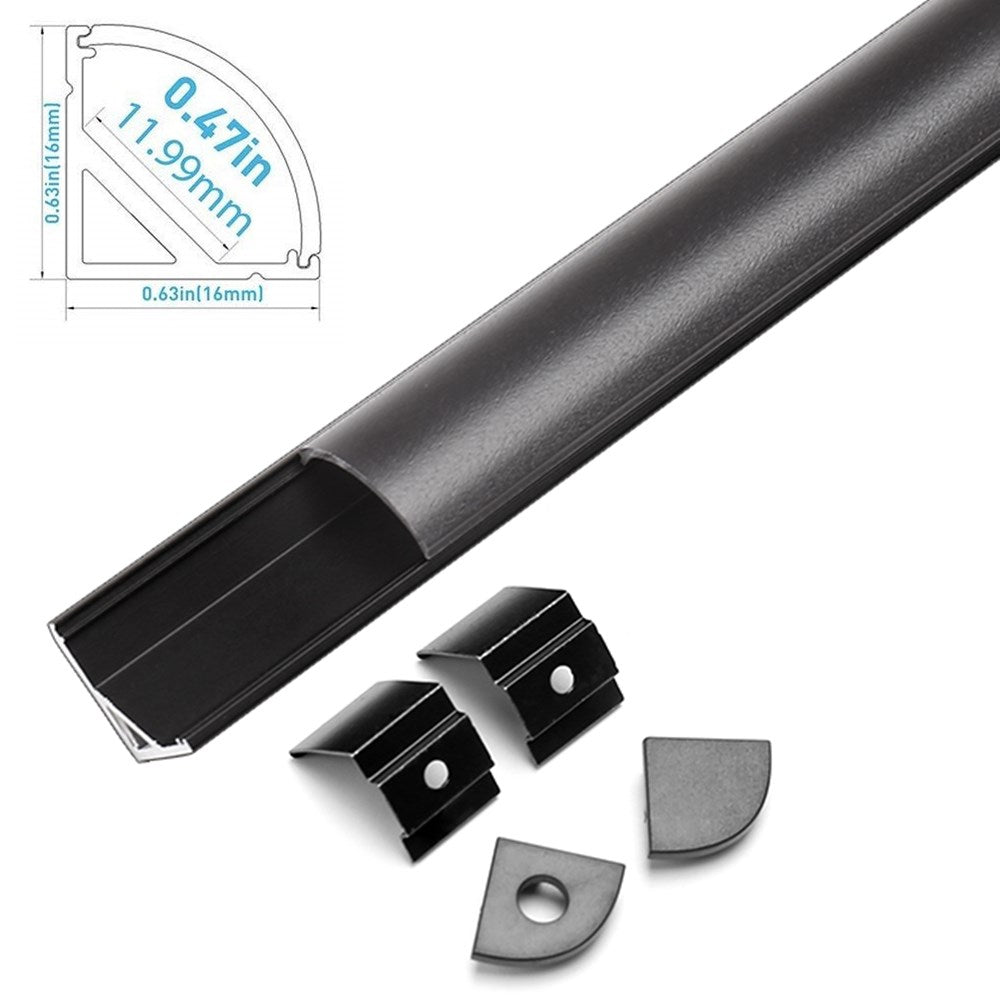

Height: 0.63inch (16mm)
Width: 0.63inch (16mm)
Inner diameter: 0.47inch
Max. LED strip width: 12mm
Note: LED strip light is NOT included in the channel.


Compatible with strips whose PCB width within 12mm:

HK-F3528X30-X DC 12V Dimmable SMD3528-300 Flexible LED Strips 60 LEDs Per Meter 8mm Width 300lm Per Meter

HK-F3528X30-6MM-X Super Slim DC 12V Dimmable SMD3528-300 Flexible LED Strips 60 LEDs Per Meter 6mm Width 300lm Per Meter

HK-F3528X60-X DC 12V Dimmable SMD3528-600 Flexible LED Strips 120 LEDs Per Meter 8mm Width 600lm Per Meter

HK-F3528X30-X-HCRI High CRI > 90 DC 12V SMD3528-300 Flexible LED Strips 60 LEDs Per Meter 8mm Width 300lm Per Meter

HK-F5050X15-X DC 12V Dimmable SMD5050-150 Flexible LED Strips 30 LEDs Per Meter 10mm Width 450lm Per Meter

HK-F5050X30-X DC 12V Dimmable SMD5050-300 Flexible LED Strips 60 LEDs Per Meter 10mm Width 900lm Per Meter

HK-F5630X30-X DC 12V Dimmable SAMSUNG SMD5630-300 Flexible LED Strips 60 LEDs Per Meter 10mm Width 1200lm Per Meter

HK-F2835X30-X DC 12V Dimmable SMD2835-300 Flexible LED Strips 60 LEDs Per Meter 8mm Width 1000lm Per Meter

HK-F2835X30-X-HCRI High CRI > 90 DC 12V Dimmable SMD2835-300 Flexible LED Strips 60 LEDs Per Meter 8mm Width 1000lm Per Meter

Packages Include:

5x1M-PACK Includes:
5x 1meter Aluminum Channel
5x 1meter PC Lens
10x End Caps (5 with a hole, 5 deaf)
10x Mounting Clips

10x1M-PACK Includes:
10x 1meter Aluminum Channel
10x 1meter PMMA Lens
20x End Caps (10 with a hole, 10 deaf)
20x Mounting Clips

25x1M-PACK Includes:
25x 1meter Aluminum Channel
25x 1meter PMMA Lens
50x End Caps (10 with a hole, 10 deaf)
100x Mounting Clips

25x2M-PACK Includes:
25x 2meter Aluminum Channel
25x 2meter PMMA Lens
50x End Caps (25with hole, 25 deaf)
100x Mounting Clips

50x2M-PACK Includes:
50x 2meter Aluminum Channel
50x 2meter PMMA Lens
100x End Caps (50 with hole, 50 deaf)
300x Mounting Clips

50x3M-PACK Includes:
50x 3meter Aluminum Channel
50x 3meter PMMA Lens
100x End Caps (50 with hole, 50 deaf)
300x Mounting Clips
