Description

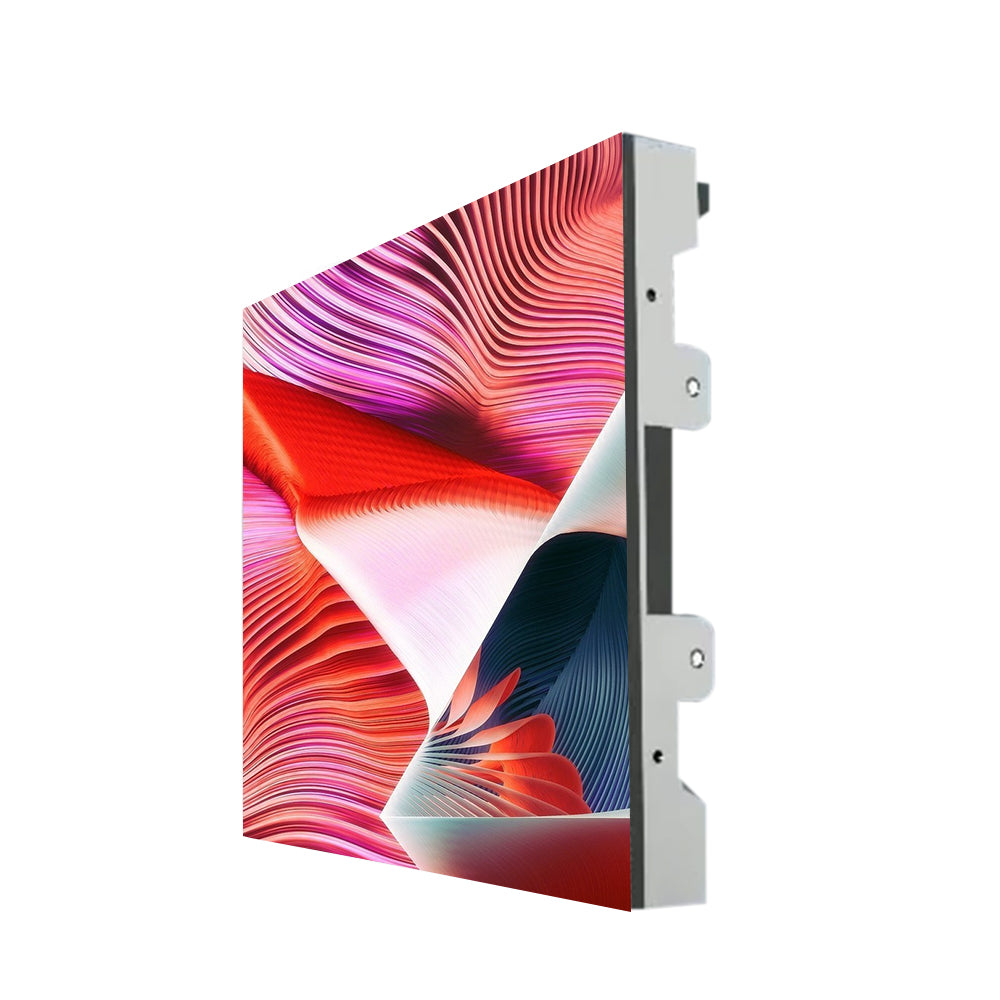

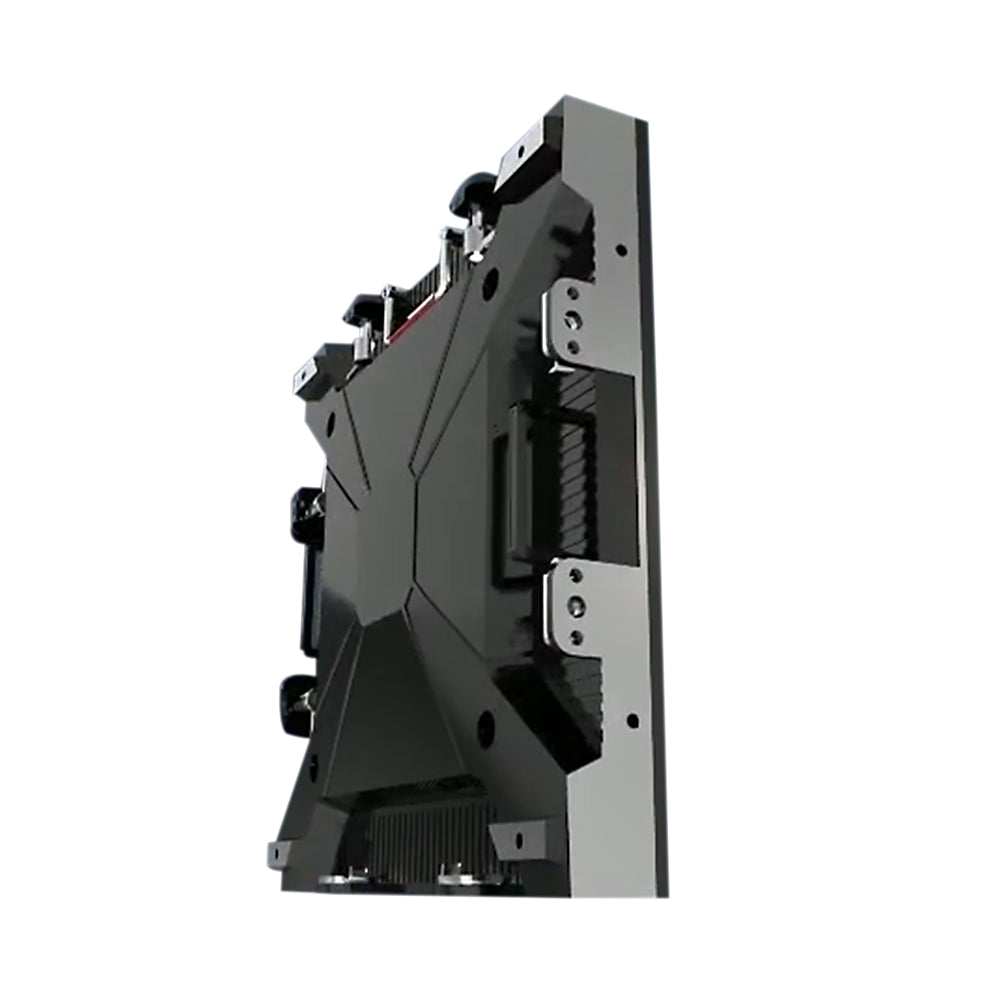

TrueHD-480 GOB Series Indoor Fine Pixel in 1.875/2.0/2.5/3.0 mm LED Display 480x480mm Aluminum Cabinet with Gel Protection Cover on Front Top IP65/IP30 Rated
Unit Price Here is Per One Square Meter, Standard Version
Click to Download Full Catalog of Fine Pixel Pitch LED Display Screen
Features:
* Fine Pixel Pitch produce high resolution pictures
* IP65 at Front and IP30 at Back
* 160 ° Wide Viewing Angle
* Intelligent Correction
* Remove Colored Moire
* None-wire Connected Cabinet, More Humanized Design
* Front/Rear Installation; Front Maintenance
TrueHD-480 GOB Series LED Display Specification
PART NUMBERBREAKDOWN
HD480G-1.87HD【Series Code : High Definition 】- 480【Cabinet length: 600mm】- G【GOB】- 1.87【Pixel Pitch: 1.875mm】
Part No. : HD480G-1.87 | HD480G-2.0 | HD480G-2.5 | HD480G-3.0
Pixel Pitch: 1.875mm | 2mm | 2.5mm | 3mm
LED: SMD1515 | SMD1515 | SMD2121 | SMD2121
LED Brand: Standard: Kinglight/Huaguang etc. Premium:Nationstar
Pixel Configuration: 1R 1G 1B
Wave Length: R:620~625nm, G:520~530nm, B:460~475nm
Module
Module Size: 240*240mm | 240*240mm | 240*240mm | 240*240mm
Module Resolution: 128*128 | 120*120 | 96*96 | 80*90
Module Pixles: 16,384dots | 14,400dots | 9,216dots | 64,000dots
Scan : 1/32 | 1/30 | 1/32 | 1/20
Cabinet/Panel
Cabinet Type: Die-casting Aluminum
Cabinet Size : 480*480mm
Module Qty./Cabinet: 4 | 4 | 4 | 4
Cabinet Qty./㎡: 4.34 | 4.34 | 4.34 | 4.34
Cabinet Resolution: 256*256 | 240*240 | 192*192 | 160*160
Cabinet Pixles: 65,536dots | 57,600dots | 36,864dots | 25.600dots
Pixel Density: 284,426dots/㎡ | 249,984dots | 159,989dots | 111,104dots
Power Consumption (W/㎡) : Max.850 Avg.285 | Max.600 Avg.200
Optical Parameter
Brightness： 800 - 1200 cd/㎡
Contrast Rate： 3000:1
Color Depth： 16bit
Grey Level ： 16384
Refresh Frequency： >3840HZ
Driving IC： MBI/ICN
Color Uniformity： ≥97%
Viewing Angle： H:160deg. V:160deg.
Blind Spot Rate： ≤0.0003
Life span： ≥100,000 hours
Physical Parameter & Operation Conditions
Cabinet Weight： 7.0Kgs
Protection Rating： IP65 & IP30
Operating Temperature： -20°C ~ 60°C(-4°F ~ 140°F)
Operating Humidity ： 10％ ～ 90％
Input voltage： AC100-240V
Power Supply： Standard: CE*1 / Premium:UL CE MeanWell *1
Controlling System： Nova
Maintainance： Front / Rear Installation; Front Maintenance
