Tour Indoor Rental LED Display 1.95/2.6/2.9/3.9/4.8 mm Pixel Pitch in 500x500mm Aluminum Cabinet

Unit Price Here is Per One Square Meter, Standard Version

DO NOT include accessories (like Suspension beam, bottom beam, flight case, main power cord, main network cable, spare parts )

Features:

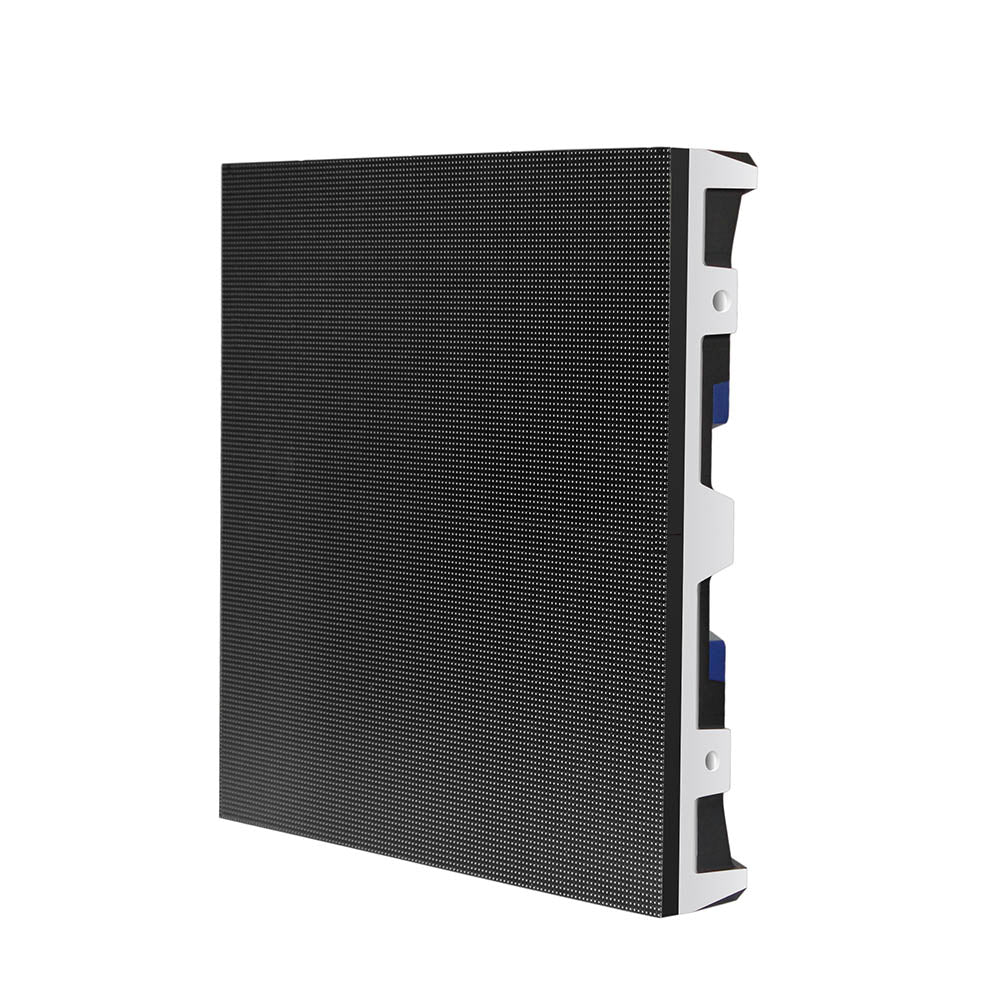

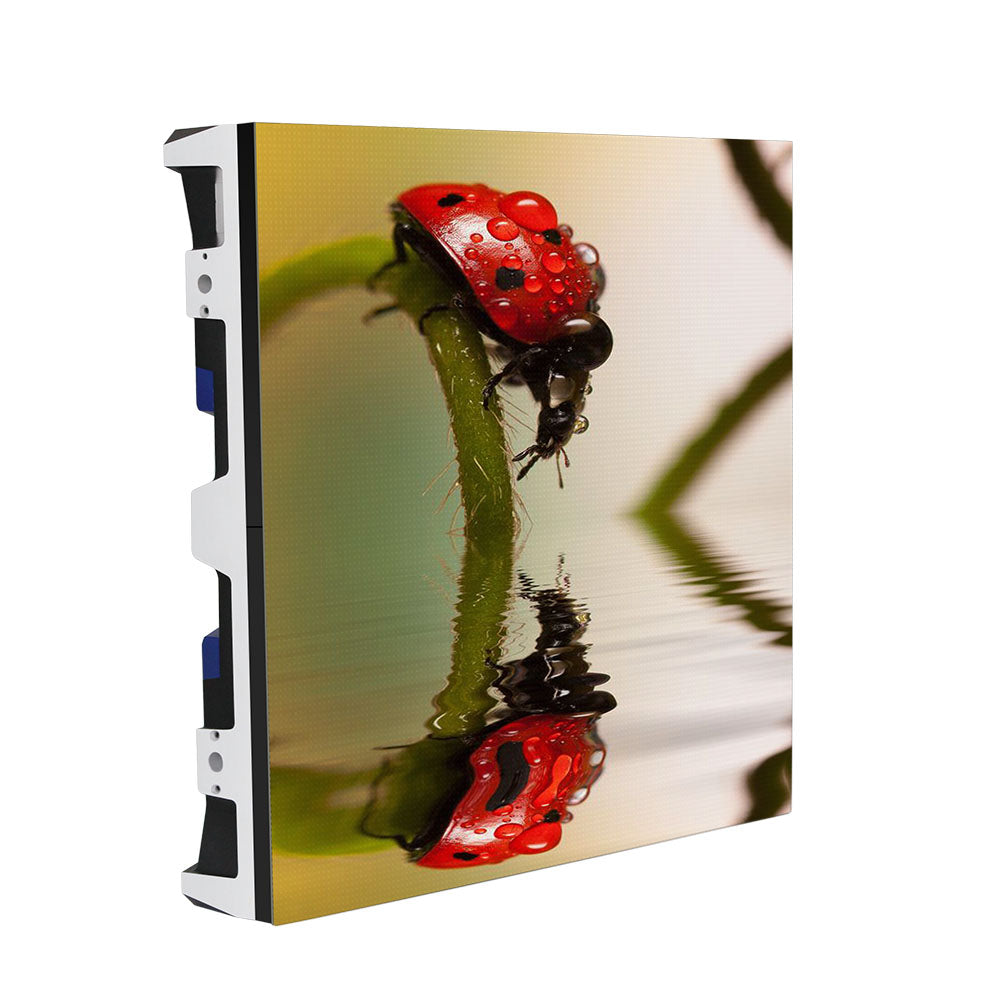

* Standard 500x500mm Aluminum LED Cabinet.

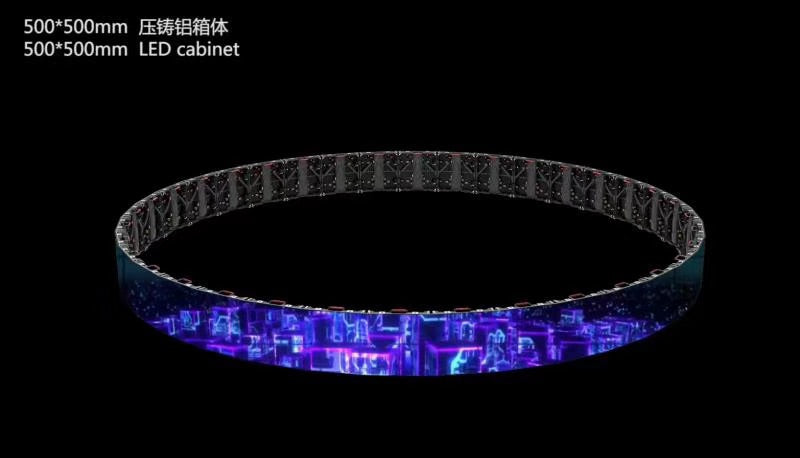

* Straight and Arc Compatible: With radian adjusting lock, the cabinet can be arc joined within +/-10° the max, can get concuve or convex shape screen.

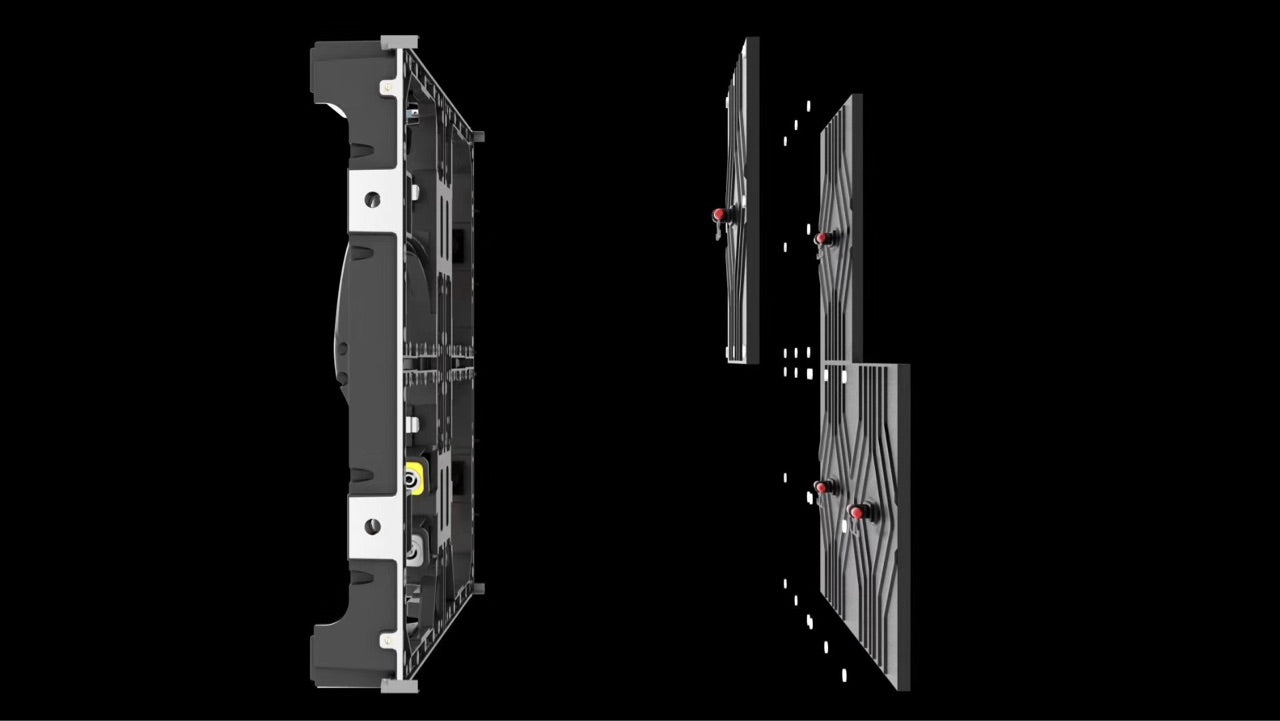

* Front/Brack Servicable: Accessable from front or back, make maintenance more convenient

Specification:

PART NUMBER BREAKDOWN
T1.95：  T【Series Code : Tour 】- 1.95【Pixel Pitch: 1.95mm】
Part No.：T1.95 | T2.6 | T2.9 | T3.9 | T4.8
Pixel Pitch：1.95mm | 2.6mm | 2.9mm | 3.9mm | 4.8mm
LED：SMD1515 | SMD1515 | SMD1515 | SMD2121 | SMD2121
LED Brand：Standard: Kinglight/Huaguang etc.   Premium:Nationstar
Pixel Configuration：1R 1G 1B
Wave Length：R:620~625nm, G:520~530nm, B:460~475nm
Module Size：250*250mm
Module Resolution：128*128 | 96*96 | 84*84 | 64*64 I 52*52
Module Pixles：16384dots | 9216dot | 7056dots | 4096dots | 2704dots
Scan：1/32 | 1/28 | 1/22 | 1/16 | 1/13
Viewing Distance：    >2m | >3m | >3m | >4m | >5m
Cabinet Type：Die-casting Aluminum
Cabinet Size：500*500*75mm
Module Qty./Cabinet：4
Cabinet Qty./㎡：4
Cabinet Resolution：256*256 | 192*192 | 168*168 | 128*128 | 104*104
Cabinet Pixles：65536dots | 36864dots | 28224dots | 16384dots | 10816dots
Pixel Density ：262,144dots/㎡ | 147,456dots/㎡ | 112,896dots | 65,536dots | 43,264dots
Power Consumption ：Max.640W/㎡ Avg.200W/㎡
Brightness：800cd/㎡
Contrast Rate ：3000:1
Color Depth：16bit
Grey Level：16384
Refresh Frequency：>3840HZ
Driving IC    : MBI/ICN
Color Uniformity : ≥97%
Viewing Angle: H:160deg.  V:160deg.
Blind Spot Rate: ≤0.0003
Life span: ≥100,000 hours
Cabinet Weight: 8.5Kgs
Protection Rating: IP30
Operating Temperature: -20°C ~ 60°C(-4°F ~ 140°F)
Operating Humidity    : 10％ ～ 90％
Input voltage: AC100-240V
Power Supply: Standard: CE*1  /  Premium:UL CE MeanWell *1
Controlling System: Nova
Maintainance: Front / Rear Installation; Front/Back Maintenance

NOTE: The Aluminum Cabinet Housing may not be different as pictures showed, this can be confirmed when place the order.

Product Video:

P1.95mm GOB 500x500 Rental LED Display Make a Concuve Screen
