SMD5630,72Leds per meter,3-LED cuttable, Dimmable Rigid LED Strip lighting with U Aluminum Shell,DC12V,Solder with quick plug at both ends

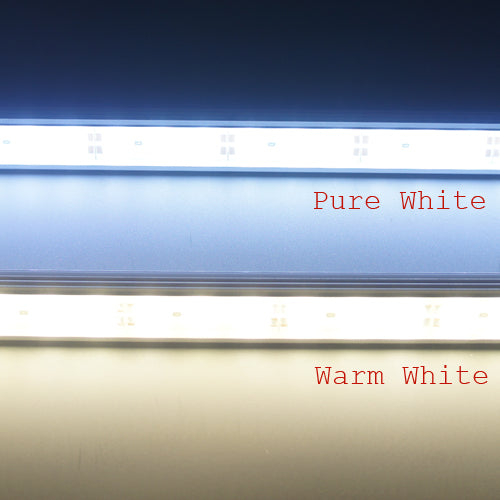

1) Pure White and Warm White available, viewing angle is 120 degrees and voltage is 12V DC
2) 50cm and 100cm available
3) cuttable ar every 3-led. Customize length accaptable
4) Solid-state, high shock / vibration resistant
5) Life:50,000 hours
1) Architectural decorative lighting
2) Path & Contour Marking
3) Auditorium walkway lighting
4) Stairway accent lighting
5) Backlighting for signage letters
6) Indoor lighting and signs
1. The LED light bar in Waterproof IP65 rated, the strip both ends are prewired with waterproof DC5521 female and male plug.
2. The LED light bar in Non-Waterproof the strip both ends are prewired with JST female and male plug.
3. With the female and male plug, mupltiple pieces of the LED Light Bar can chain together. But to avoid voltage drop cause light lost, we recommend the max to connect 5meters long a string in Serial only to a single power supply and dimmer.
Below please find the connection diagram for Single Color Light Strip for reference.
Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)
#1 Typical connection for one Dimmer to control one string of light bars
#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifer loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
