Description
Features:
1.Lightsworld Aluminum Profile Kit is a great solution for low-cost DIY under cabinet lighting fixture.
2.It is designed for recessed/surface mounting to tie-in furniture, under cabinet,shelves, drywall, wooden partitions, etc., also can be activated to create decorative luminescent bands in the walls, ceiling, floor, lights, work surfaces, shelves, steps, niches.?

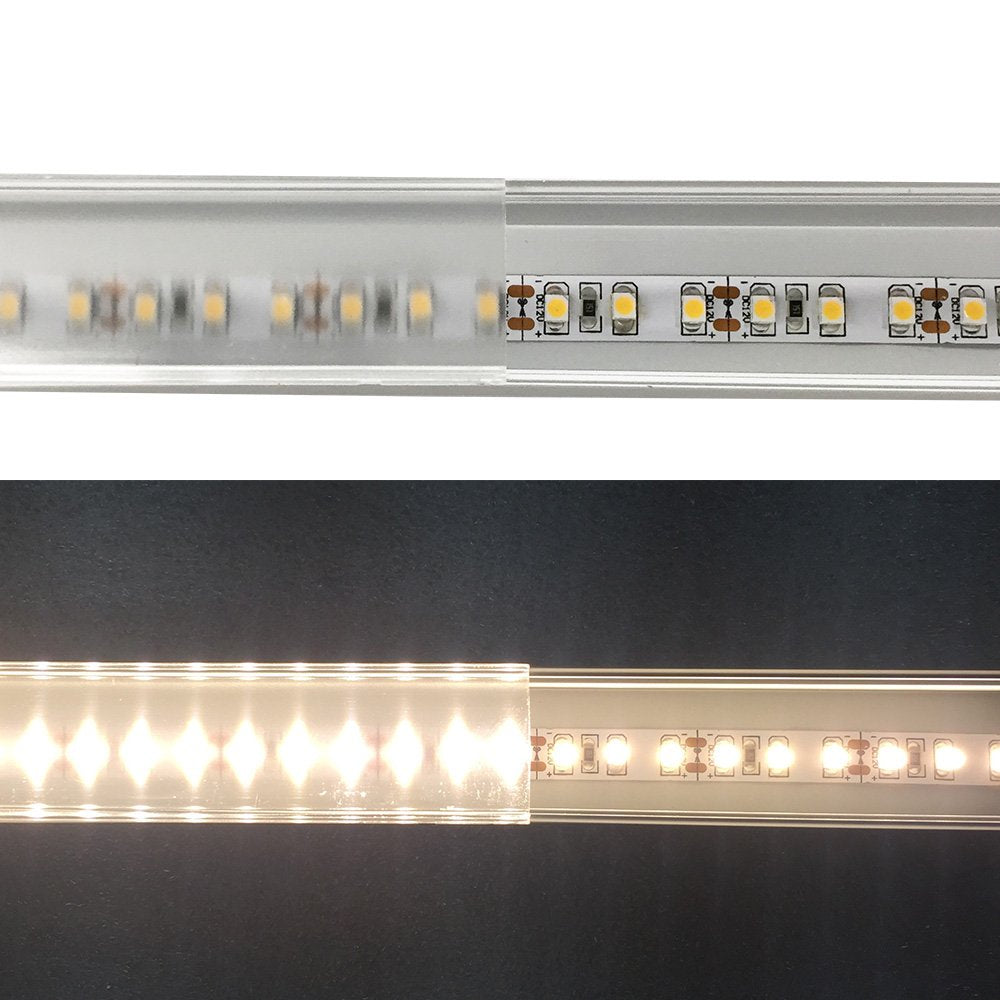

3.The Oyster/Opal white PC cover works well to help spread the light. This aluminum channel/profile works with LED flex/rigid strip lights (not wider than 20mm wide).?
4.This kit includes the channel, cover, end caps, and mounting clips needed for a complete aluminum channel installation.?
5.The cover softens the 'spottiness' of LED strip lights, producing a more consistent and pleasing light. This aluminum channel is extendable and sold by meter. You can add as many meters as you need and connect them together seamlessly.?
Specifications:

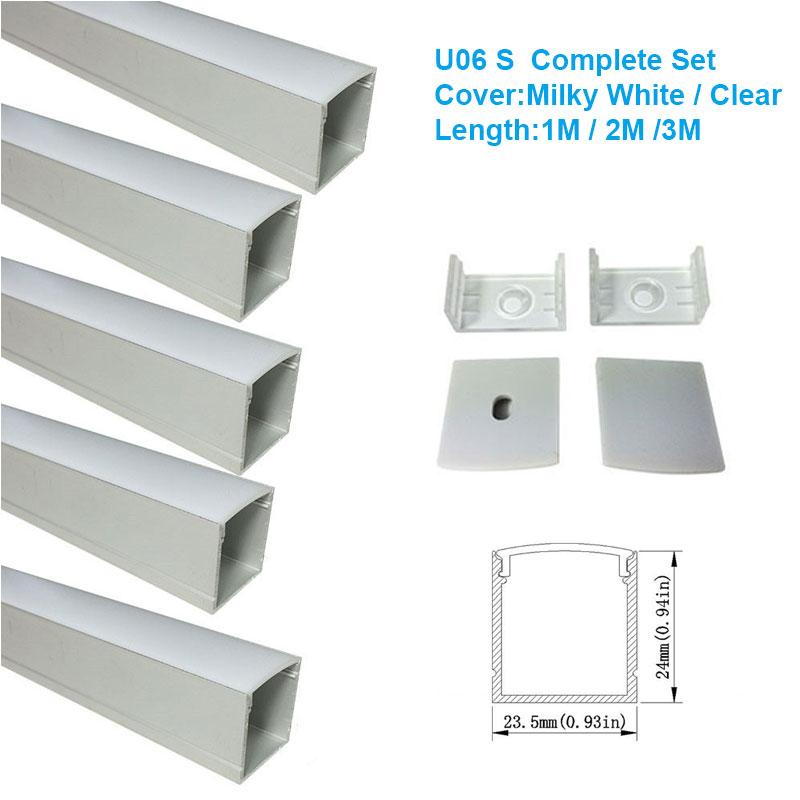

Configuration: U-Shape Channel: Extruded aluminum Diffuser: Oyster White Cover?

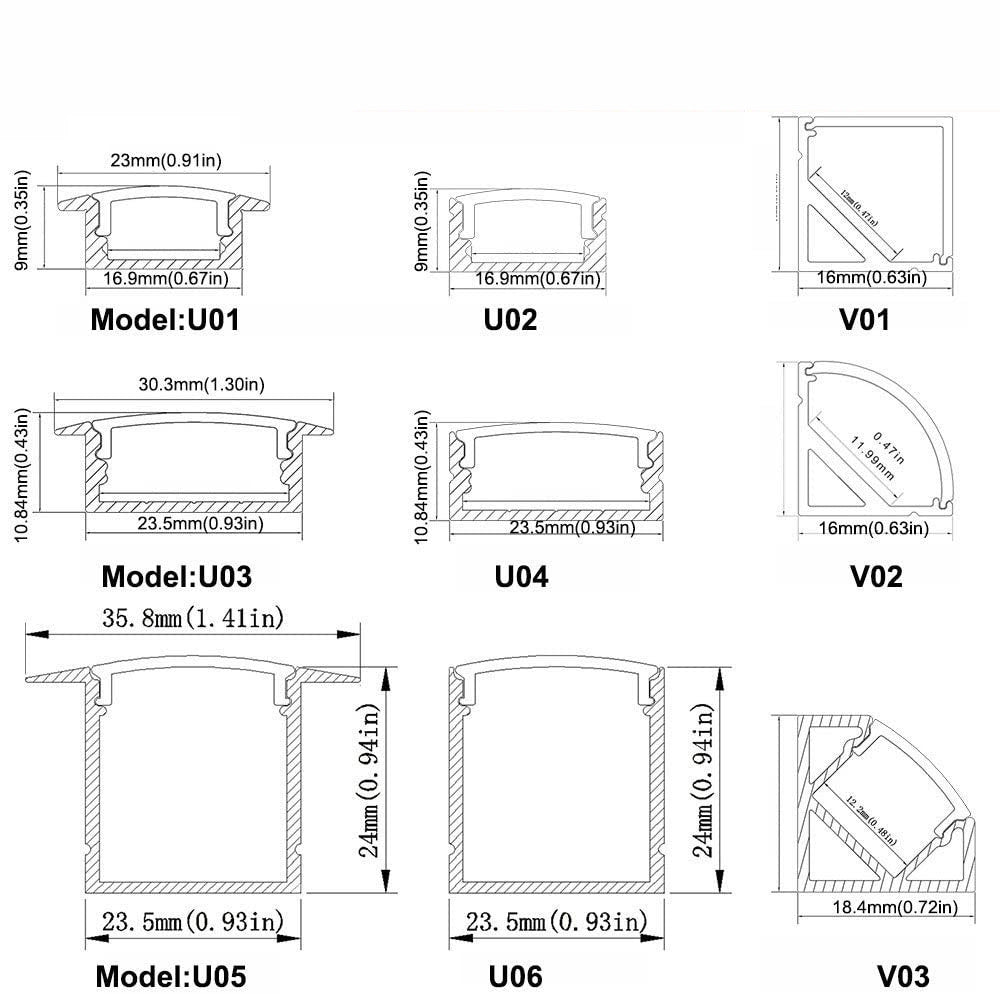

Height: 0.94inch (24mm)?
Inner Width: 0.8inch (20mm)?
Top Width: 1.41inch (35.8mm)?

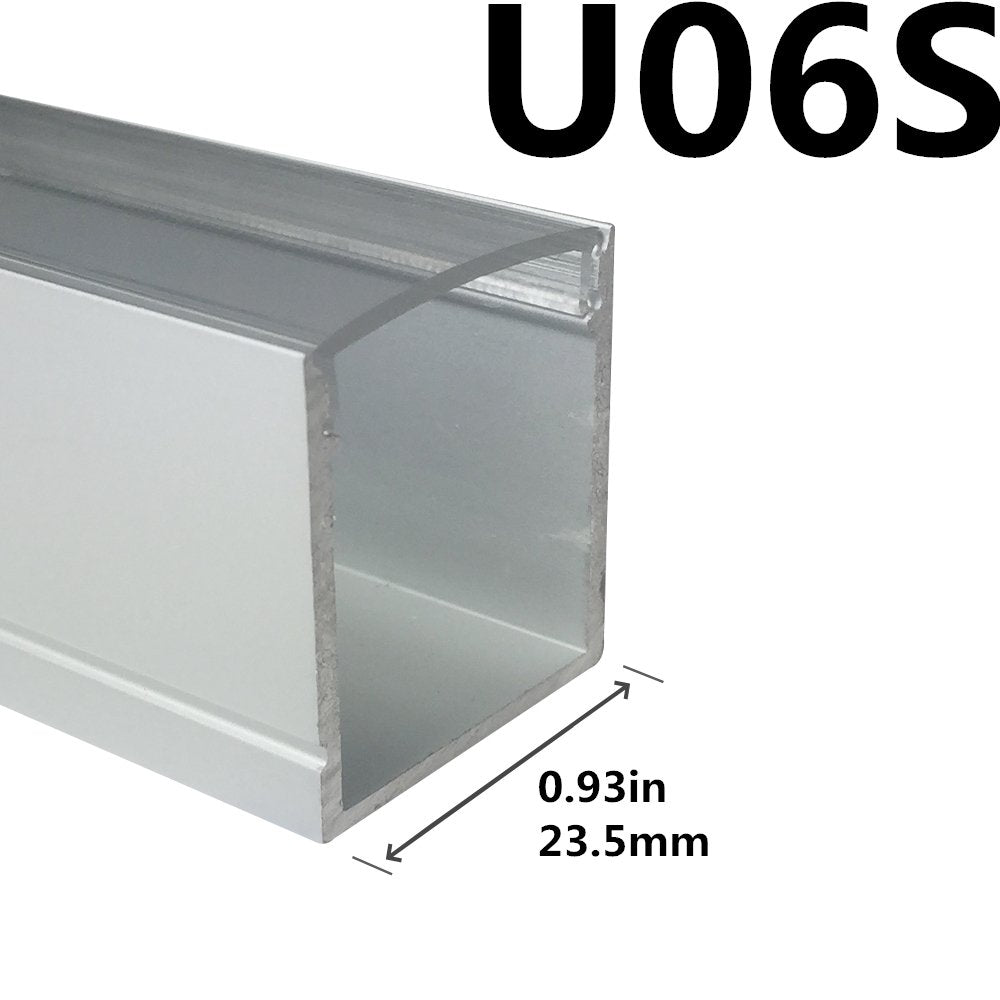

Back Width: 0.93inch (23.5mm)
?

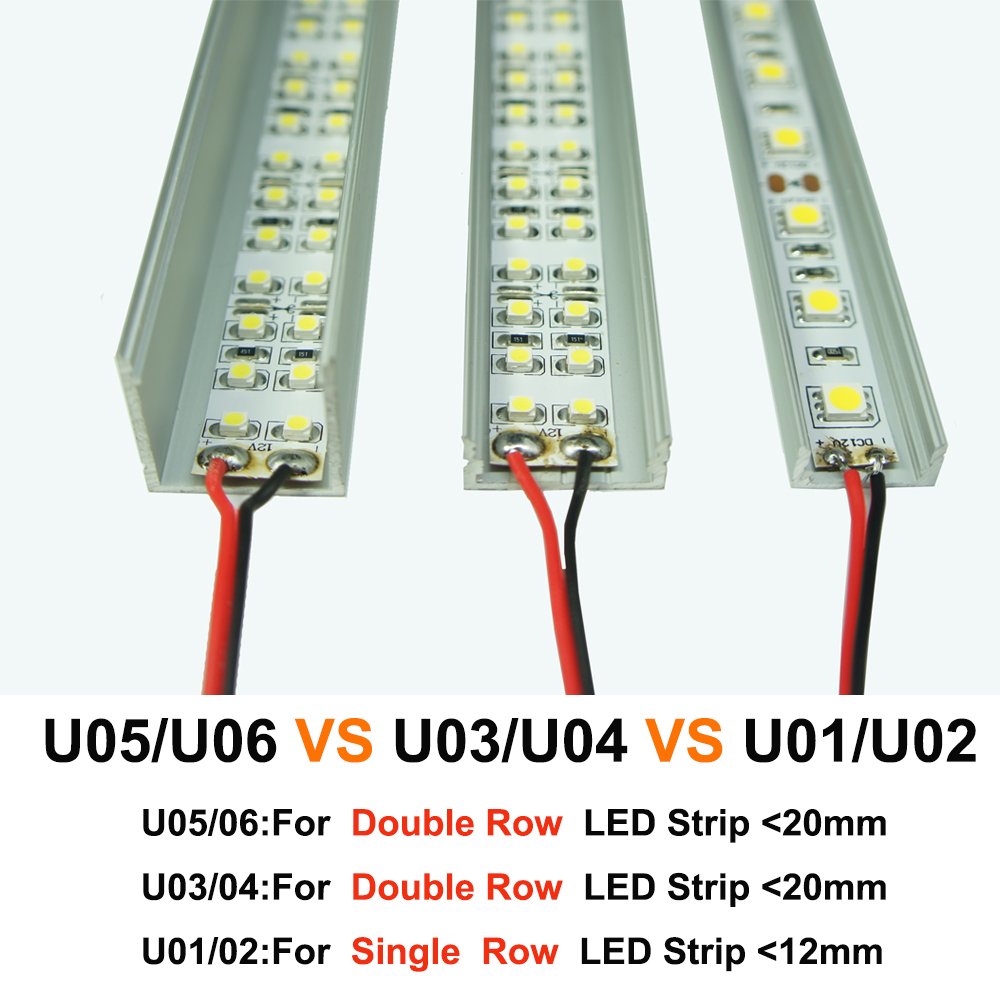

Compatible with strips whose PCB width within 20mm:
HK-F3528X120-X DC 12V Dimmable SMD3528-1200 Double Row Flexible LED Strips 240 LEDs Per Meter 15mm Width 1200lm Per Meter
HK-F5050X60-X DC 12V Dimmable SMD5050-600 Double Row Flexible LED Strips 120 LEDs Per Meter 20mm Width 1800lm Per Meter
HK-F3528X120-X-HCRI High CRI > 90 DC 12V SMD3528-1200 Double Row Flexible LED Strips 240 LEDs Per Meter 15mm Width 1200lm Per Meter
HK-F3528IR120-X DC12V SMD3528-1200-IR InfraRed (850nm/940nm) Double Row Flexible LED Strips 240LEDs 19.2W Per Meter
HK-F5050IR60-X DC12V SMD5050-600-IR InfraRed (850nm/940nm) Tri-Chip Double Row Flexible LED Strips 120LEDs 28.8W Per Meter
HK-F3528X120-X-X-X 0.5M Double-Row Single-Chip (SMD3528) Flexible LED Strip Light
HK-F5050X60-X-X-X 0.5M Double-Row Tri-Chip (SMD5050) Flexible LED Strip Light
Packages Include:

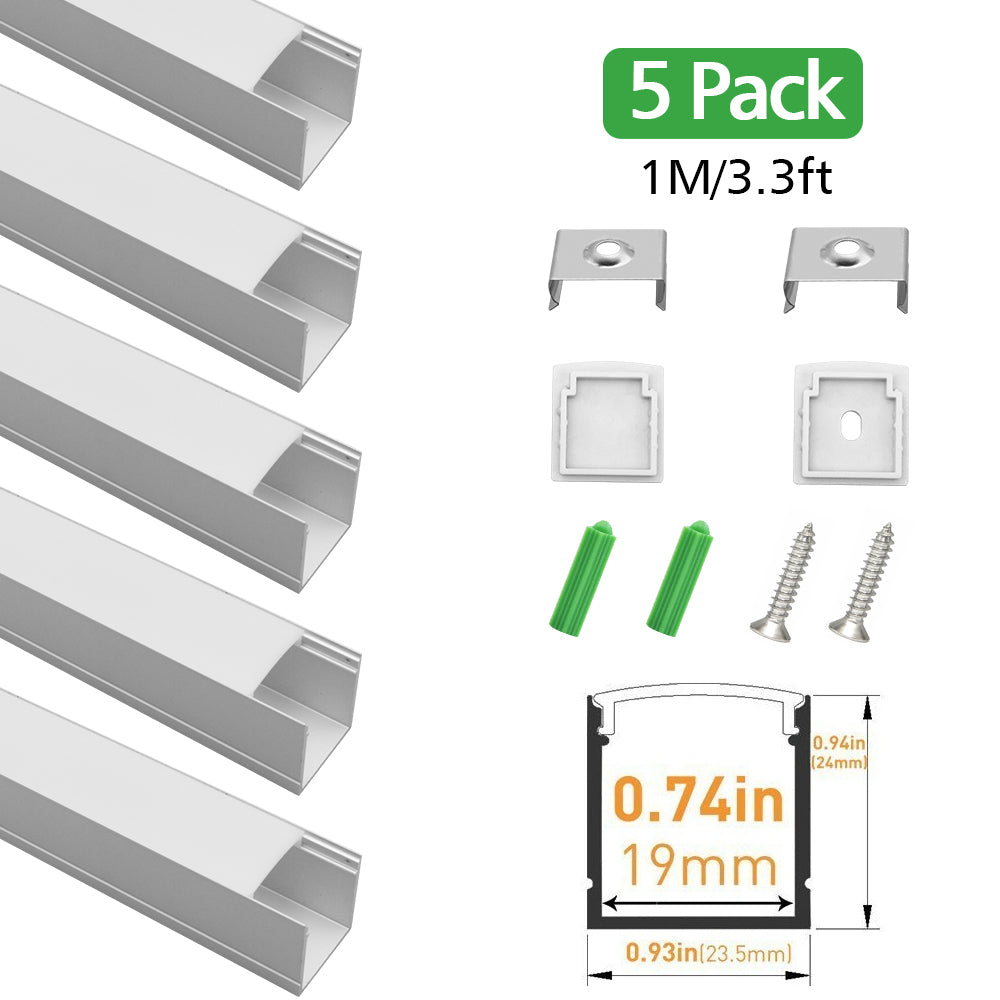

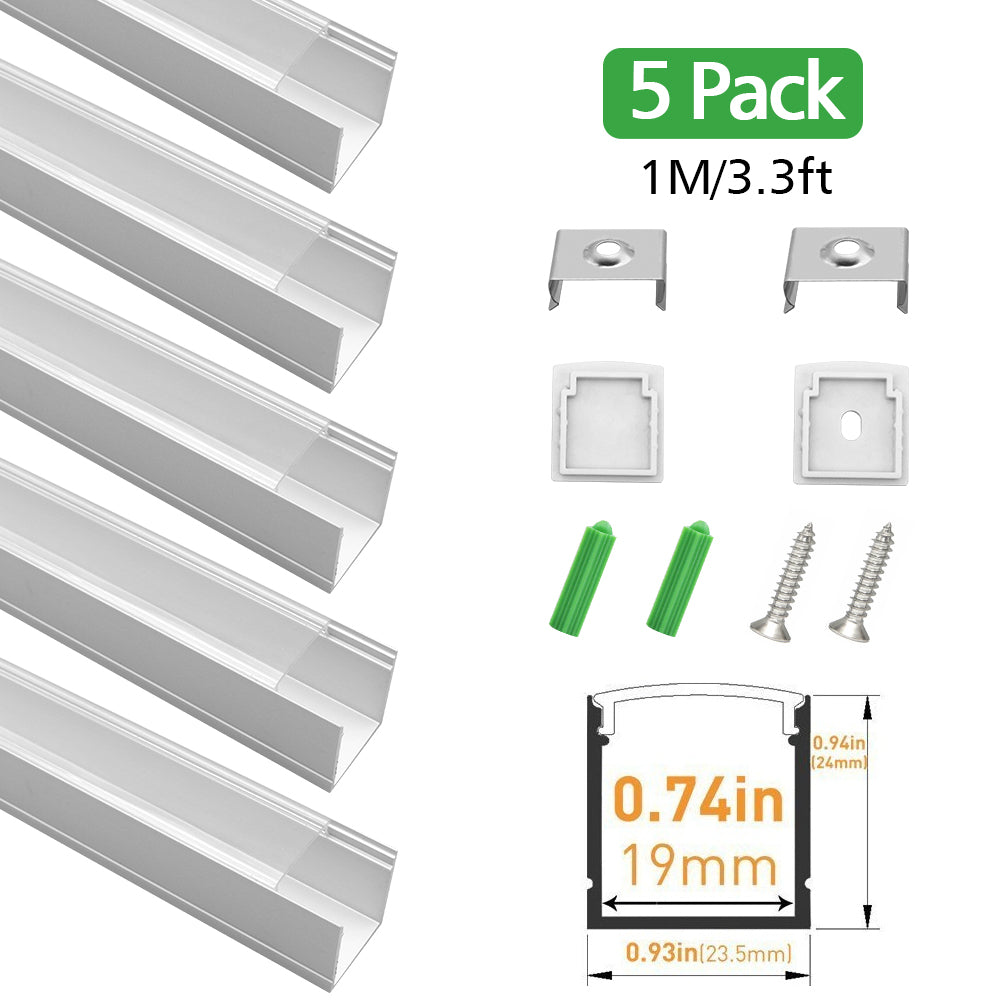

5x1M-PACK Includes:
5x 1meter Aluminum Channel
5x 1meter PC Lens
10x End Caps (5 with hole, 5 deaf)
10x Mounting Clips
10x1M-PACK Includes:
10x 1meter Aluminum Channel
10x 1meter PMMA Lens
20x End Caps (10 with hole, 10 deaf)
20x Mounting Clips
25x1M-PACK Includes:
25x 1meter Aluminum Channel
25x 1meter PMMA Lens
50x End Caps (10 with hole, 10 deaf)
100x Mounting Clips
25x2M-PACK Includes:
25x 2meter Aluminum Channel
25x 2meter PMMA Lens
50x End Caps (25with hole, 25 deaf)
100x Mounting Clips
50x2M-PACK Includes:
50x 2meter Aluminum Channel
50x 2meter PMMA Lens
100x End Caps (50 with hole, 50 deaf)
300x Mounting Clips
50x3M-PACK Includes:
50x 3meter Aluminum Channel
50x 3meter PMMA Lens
100x End Caps (50 with hole, 50 deaf)
300x Mounting Clips
|
 |
 |
 |
