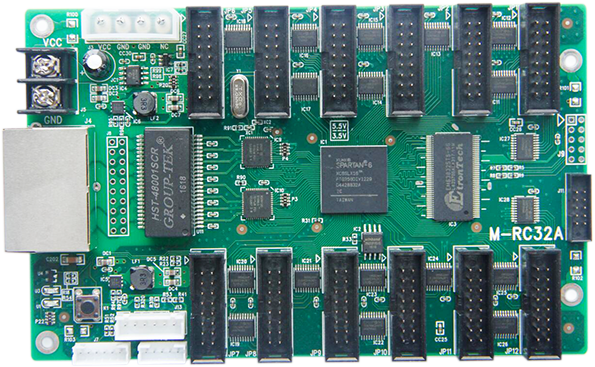

Mooncell RC32A Receiving Card(FPGA Series)

Mooncell RC32A Receive Card (FPGA Series)

Receiving Card M-RC32A Specs

Features:

1.It features 12 x standard HUB75E interfaces

2.It features the conventional IC but with high refresh rate, high brightness and high grey scale

3.It supports the pixel-level brightness&chroma calibration

4.It supports the Intelligent Recovery function while replacing the receiving cards (its programmes will be recovered automatically)

5.It supports network cable hot backup ( online backup)

6.The easy control of led displays with irregular shapes and sizes

7.The Images on the led screen can be rotated 90 degree in a factor of multi times and also can be zoomed in & ou

t8.It supports to have the user-defined data interface(customized)

9.It is RoHS & CE-EMC compliant



Loading Specs:

1.Parallel Data (RGB): 24 Dataset

2.Serial Data: 72 Dataset

3.The maximum loading capac-ity(pixels):256*384

4. The quantity of the receiving cards that itcan be cascading connected:≤1000PCS

5.The scanning line supported:1-128 Lines

6.The maximum loading capacity in width:4095 pixels and in height:2047 pixels
