M-OD8L P8 Outdoor LED Display Module, Full RGB 8mm Pixel Pitch LED Panel in 320*160mm with 800 dots, 5 Scan, 5000 Nits for Outdoor Display Screen

Save $5.00

Price:
Sale price$24.00 USD Regular price$29.00 USD

Description

Specifications:
♥ Pixel Pitch:8mm

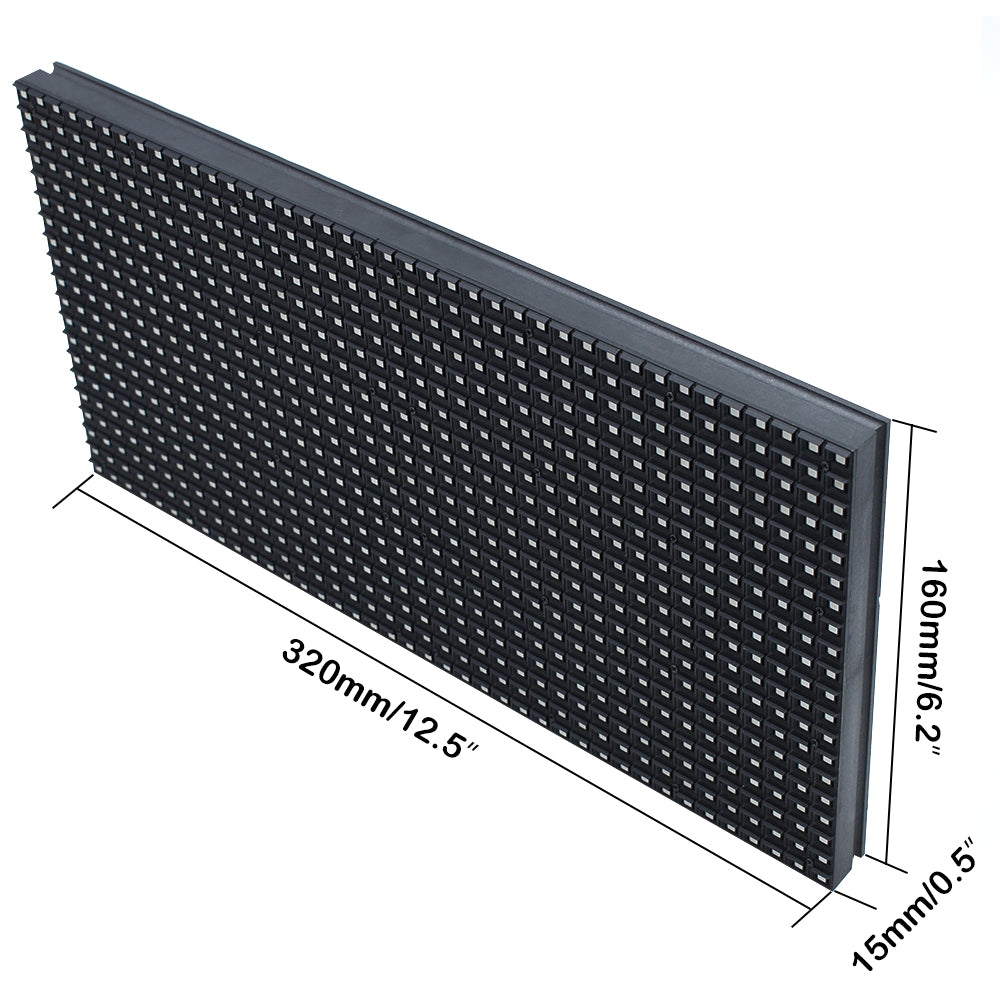

♥ Module Size: 320*160mm
♥ Module Resolution: 40*20
♥ Module Pixels: 800 dots
♥ Scan: 5
♥ Pixel Density : 15625 dots/㎡
♥ Viewing Distance: >8m
♥ LED: SMD3535
♥ Pixel Configuration: 1R 1G 1B Brightness: ≥5000 Nits
♥ Contrast Rate : 3000:1
♥ Color Depth: 16bit
♥ Grey Level: 16384
♥ Refresh Frequency: >3840HZ
♥ Driving IC: ICN/FM
♥ Color Uniformity : ≥97%
♥ Protection Rating: IP65
♥ Life span: ≥100,000 hours
♥ Operating Temperature: -20°C ~ 60°C(-4°F ~ 140°F)
♥ Operating Humidity: 10% ~ 90%
♥ Voltage: 5V
♥ Viewing Angle: H:160deg. V:160deg.
♥ Power Consumption(w) : Max. 20W
♥ Blind Spot Rate: ≤0.0003

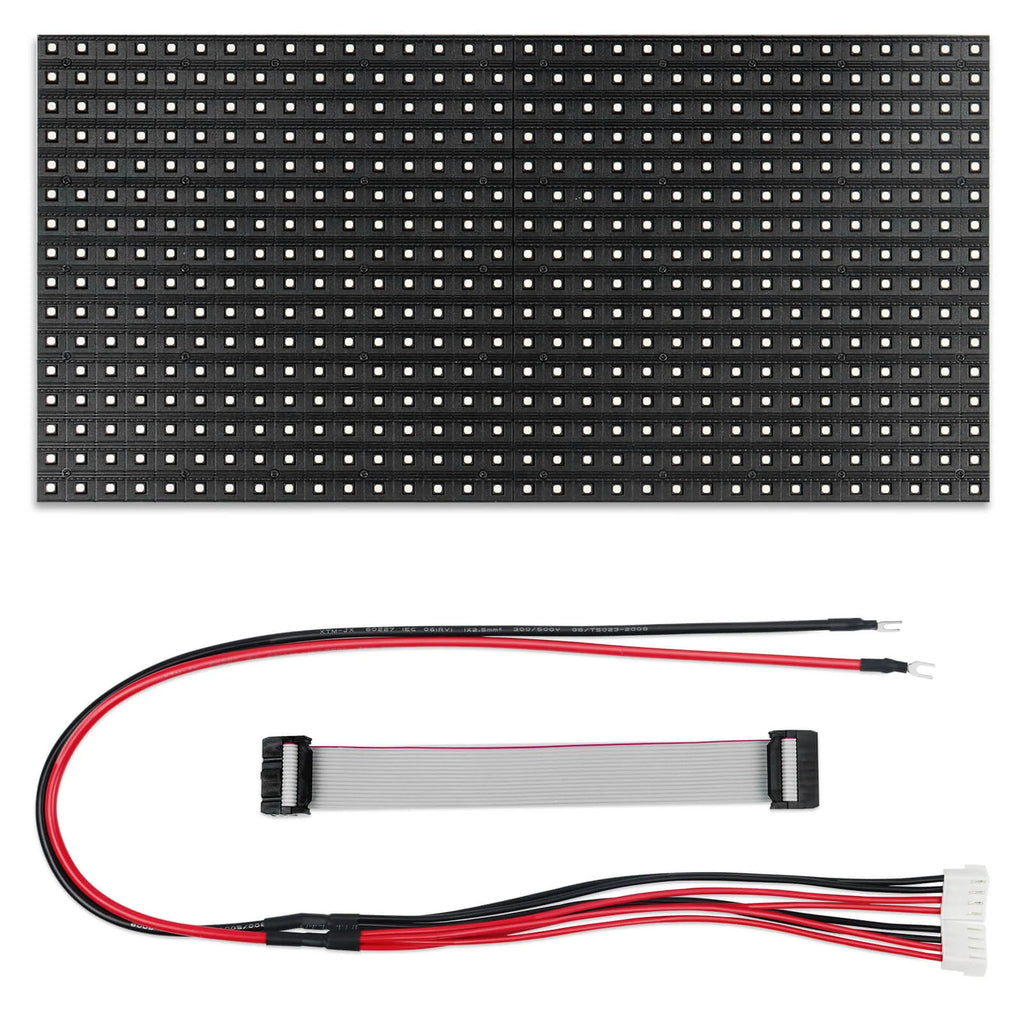

Package include:
♥1x LED Matrix Module
♥1x 1 to 2 Power Cord
♥1x 16pin cable

Kindly Note:
If you need a large quantity of these items,
please contact us for wholesale price directly.
