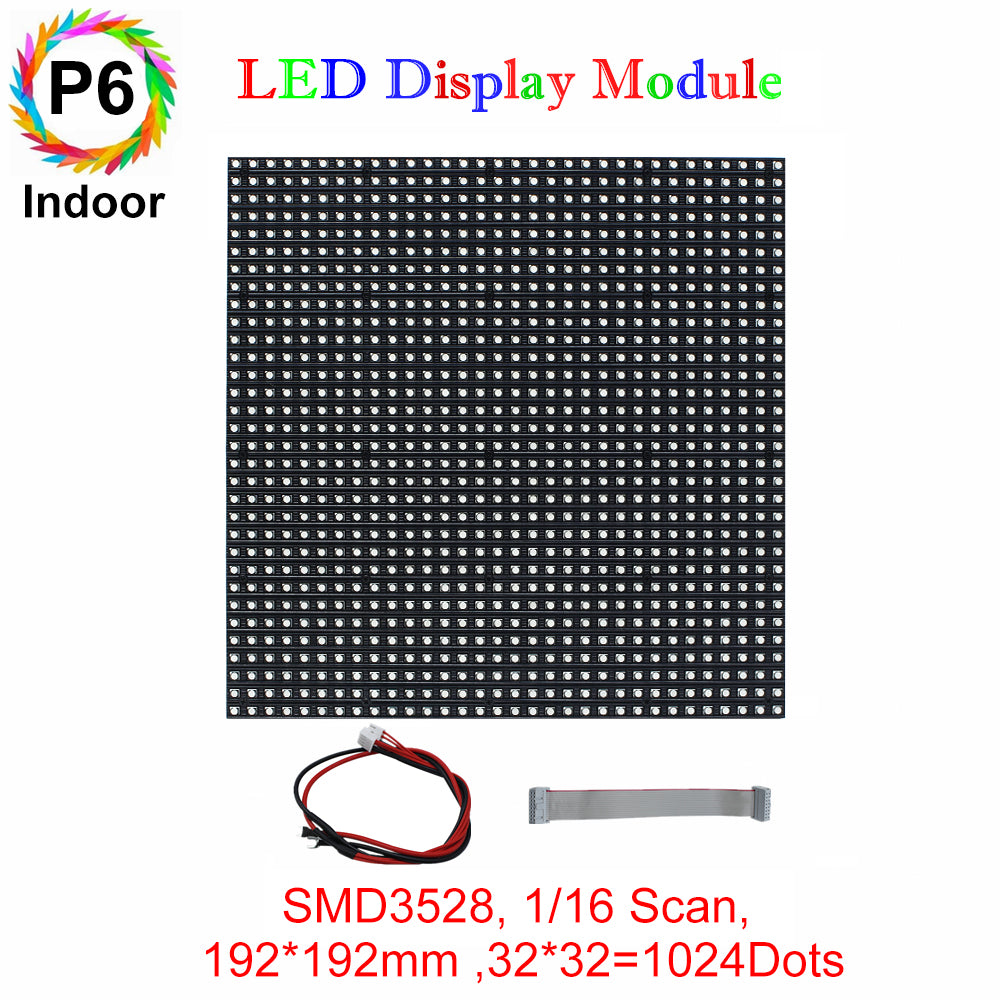

M-ID6 P6 Normal Indoor Series LED Module, Full RGB 6mm Pixel Pitch LED Display Tile in 192*192mm with 1024 dots, 1/16 Scan, 800 Nits for indoor Display


Price:
Sale price$25.00 USD

Description

Specifications:
♥ Pixel Pitch:6mm

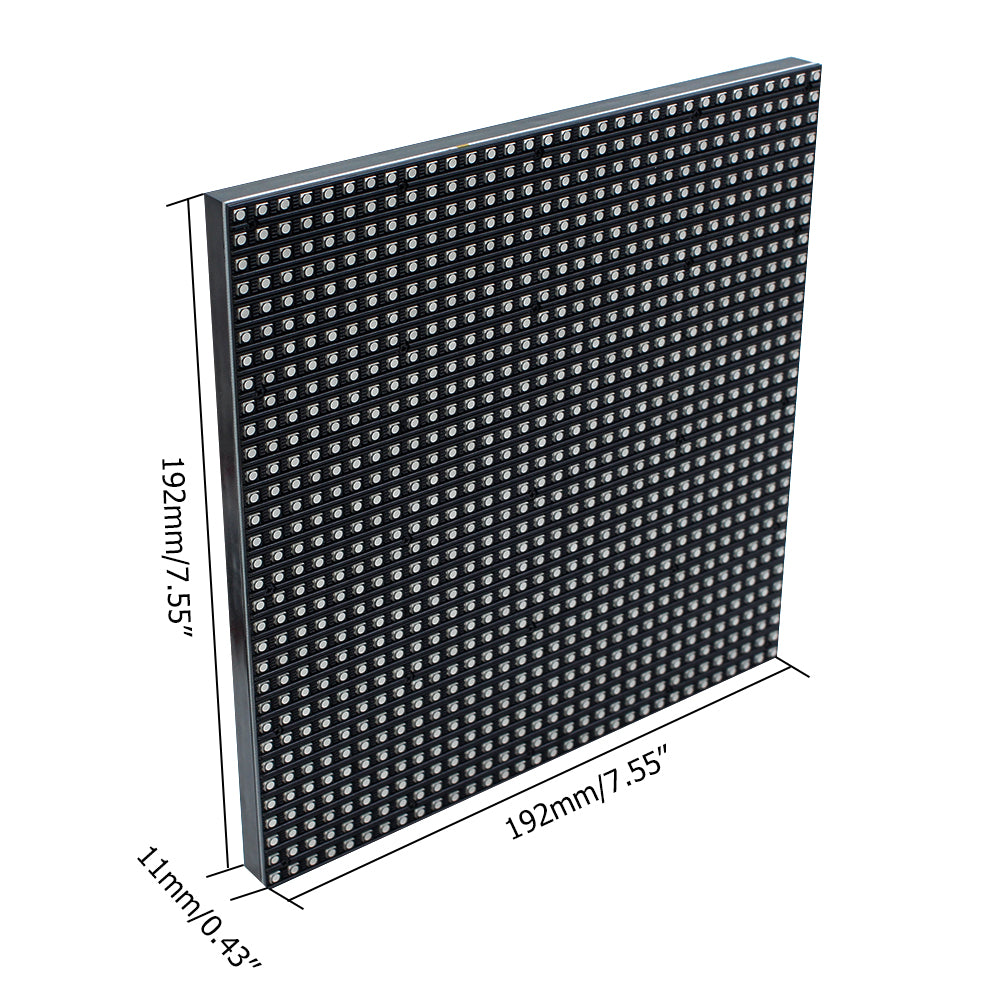

♥ Module Size: 192*192mm
♥ Module Resolution: 32*32
♥ Module Pixles: 1024dots
♥ Scan: 1/16
♥ Pixel Density : 27777dots/㎡
♥ Viewing Distance: >6m

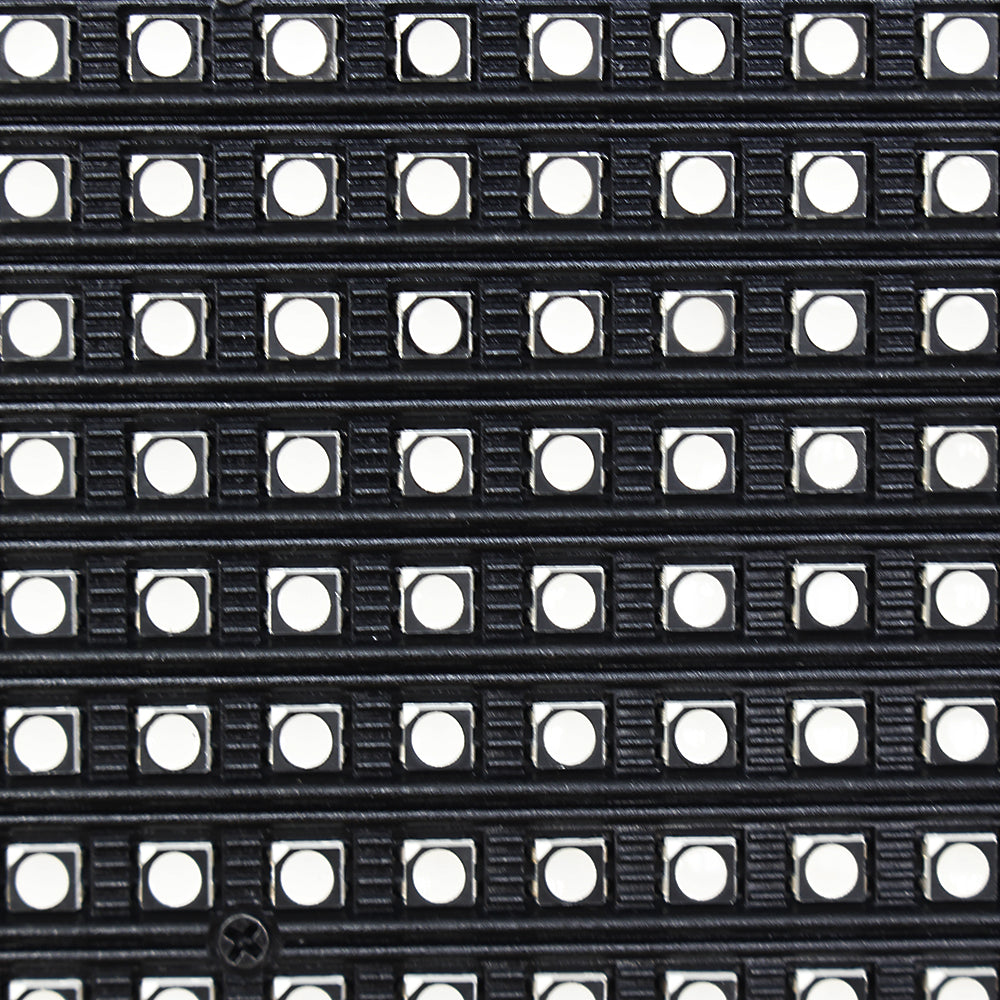

♥ LED: SMD3528
♥ Pixel Configuration: 1R 1G 1B Brightness: ≥800 Nits
♥ Contrast Rate : 3000:1
♥ Color Depth: 16bit
♥ Grey Level: 16384
♥ Refresh Frequency: >1920HZ
♥ Driving IC: MBI/ICN
♥ Color Uniformity : ≥97%
♥ Protection Rating: IP30
♥ Life span: ≥100,000 hours
♥ Operating Temperature: -20°C ~ 60°C(-4°F ~ 140°F)
♥ Operating Humidity: 10% ~ 90%
♥ Voltage: 5V
♥ Viewing Angle: H:160deg. V:160deg.
♥ Power Consumption(w) : Max. 20W
♥ Blind Spot Rate: ≤0.0003

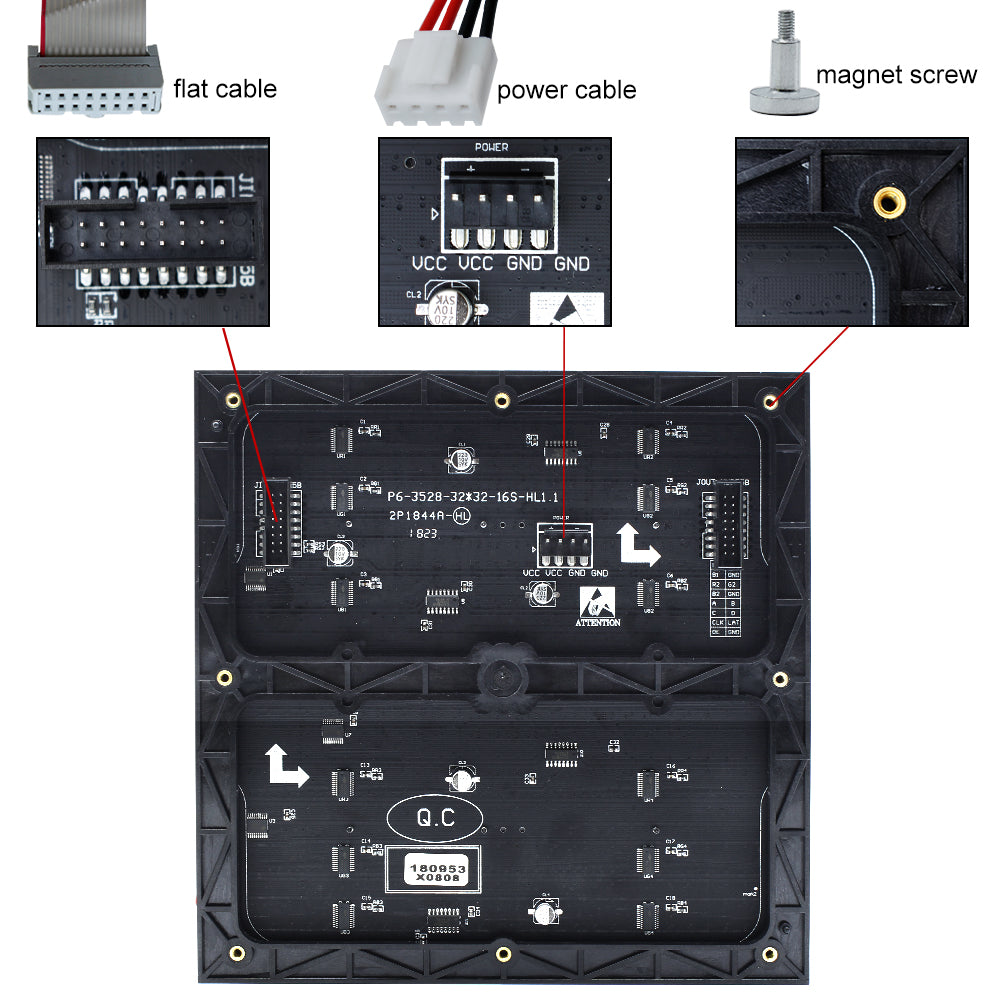

♥ Package include:
♥1x LED Matrix Module
♥1x 1 to2 Power Cord
♥1x 16pin cables (about 15cm)

Kindly Note:
If you need a large quantity of these items,
please contact us for wholesale price directly.
