New Generation M-WF4L P4 (4mm) Outdoor Waterproof LED Module, 4mm Pixel Pitch Full RGB LED Panel Screen in 320 * 160 mm with 3200 dots, 1/24 Scan, 4500 Nits For Outdoor Display
Features

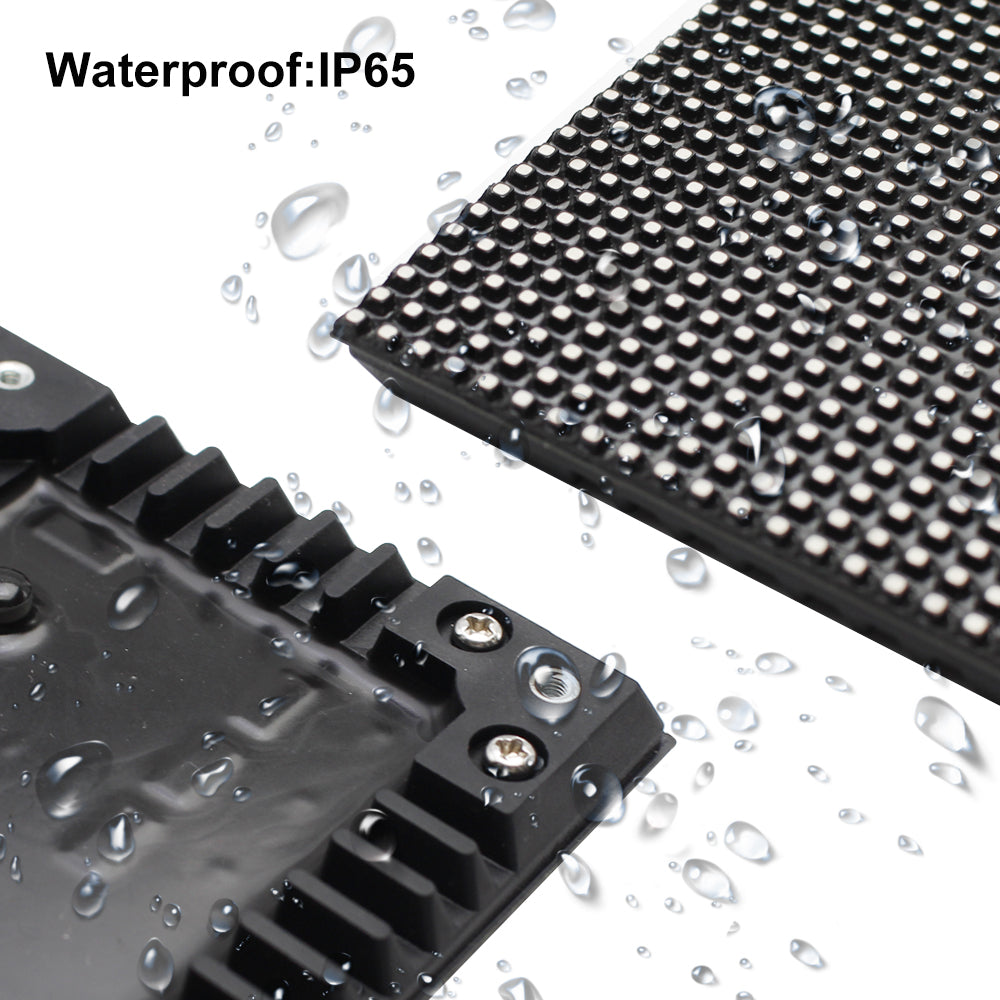

* Outdoor Waterproof IP65 Rated! LED Module with silicon base and both surface and back be covered by special gel, the LED Module can be used outdoor.
* Flexible LED Tiles can be bent into concuve and convex with a radian around 150 degree
* Ideal for customzing outdoor and irregular LED display screen
* More Elaborate Performance! The pixel pitch of this outdoor module is only (4mm), smooths the image on screen and shows more details. (10scans) per seconds, provides great dynamic expression.
* Bright and Even for Long Usage! This display screen provides brightness of (4500 Nits) and could be automatically adjust according to the changes in surrounding. Less lumen depreciation than LCD and DLP display, guarantee the even performance in long time usage!
* Vivid Visual Experience! Bigger view angel(140°-160°) with digital RGB chip could provide a great visual of color, plus its scanning rate of 1/10, could almost bring you the real scenery.
* A Whole Screen! This module could be seamless spliced, not like LCD or DLP display. It looks like an whole screen but LCD or DLP display have terrible black cracks on screen.
* DIY with Widely Usage: It has so many combinations to fit your situation. [Tips for Customers: Need the cooperation of receiving card, sending card, software and DC 5V power supply to work. Make sure you know about this product and the parts before you buy it.] If you have your plan of display, please feel free to contact us!
Parameter
Pixel Pitch: 4mm
Module Size: 320*160mm
Module Resolution: 80*40
Module Pixles: 3200dots
Scan: 1/24
Viewing Distance: >4m
LED: SMD1921
Pixel Configuration: 1R 1G 1B
Brightness: ≥4500Nits
Contrast Rate : 3000:1
Color Depth: 16bit
Grey Level: 16384
Refresh Frequency: >3840HZ
Driving IC: MBI/ICN
Color Uniformity : ≥97%
Protection Rating: IP65
Life span: ≥100,000 hours
Operating Temperature: -20°C ~ 60°C(-4°F ~ 140°F)
Operating Humidity: 10% ~ 90%
Voltage: 5V
Viewing Angle: H:160deg. V:140deg.
Power Consumption(w) : Max. 20W
Blind Spot Rate: ≤0.0003
Included
1 * Power Cable
1 * Data Cable
1 * P4 320*160mm RGB full color LED display module
