Description

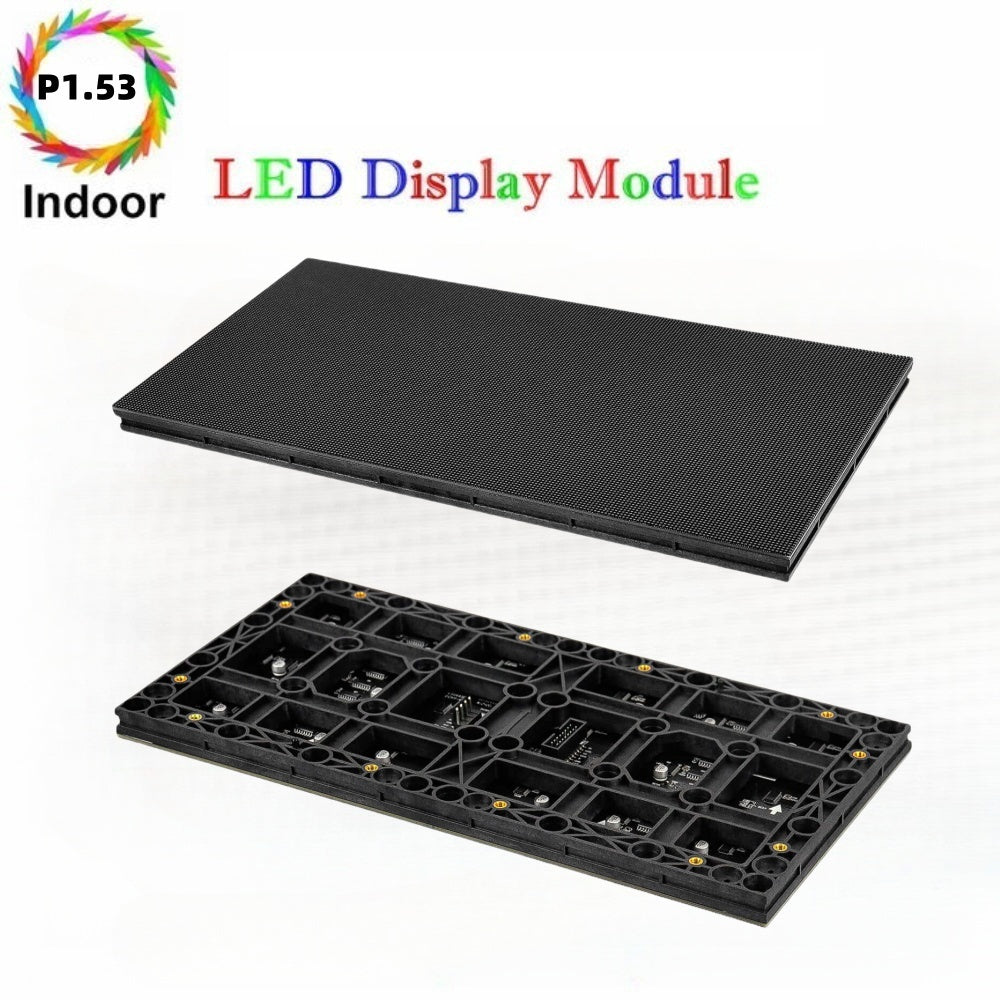

M-HD1.53 High Definition P1.53 (1.53mm) Small Pixel Pitch Indoor LED Module, Full RGB Pixel LED Tile in 320*160mm with 22050 dots, 1/52 Scan, 600 Nits
Specification
♥ Pixel Pitch:1.53mm
♥ Module Size: 320*160mm
♥ Module Resolution: 210*105
♥ Module Pixels:22,050 dots
♥ Scan: 1/52
♥ Pixel Density : 430,336dots/㎡
♥ Viewing Distance: >1.5m
♥ LED: SMD1515 ♥ Pixel Configuration: 1R 1G 1B
♥ Brightness: ≥600 Nits
♥ Contrast Rate : 3000:1
♥ Color Depth: 16bit
♥ Grey Level: 16384
♥ Refresh Frequency: >3840HZ
♥ Driving IC: MBI/ICN
♥ Color Uniformity : ≥97%
♥ Protection Rating: IP30
♥ Life span: ≥100,000 hours
♥ Operating Temperature: -20°C ~ 60°C(-4°F ~ 140°F)
♥ Operating Humidity: 10% ~ 90%
♥ Voltage: 5V
♥ Viewing Angle: H:160deg. V:160deg.
♥ Power Consumption(w) : Max. 20W
♥ Blind Spot Rate: ≤0.0003
Package include:
♥1x LED Matrix Module
♥1x 1 to 2 Power Cord

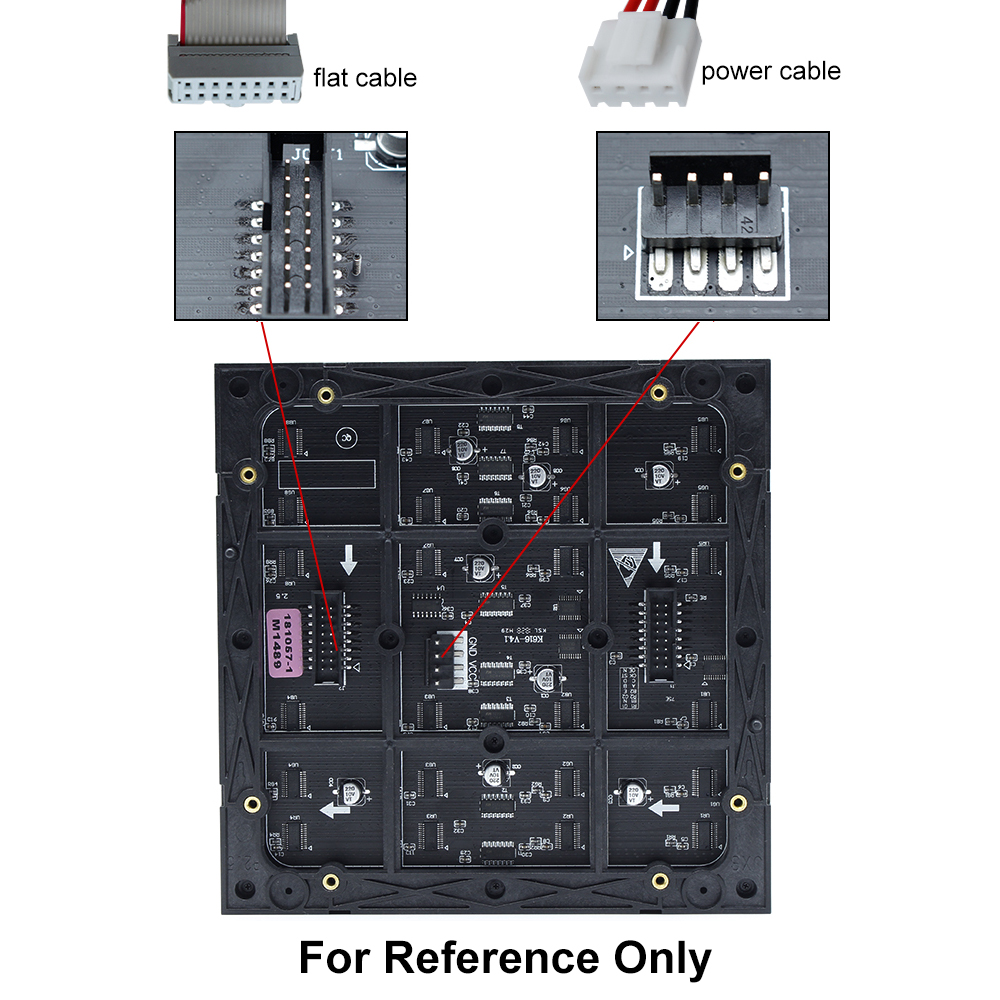

♥1x 16 pin cables (about 300mm)
Kindly Note:
If you need a large quantity of these items,
please contact us for wholesale price from Amazon Message Center directly.
