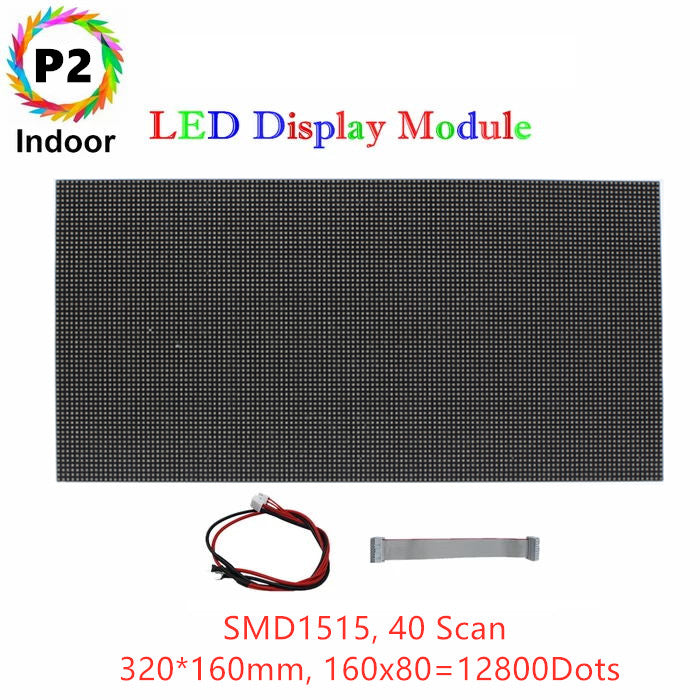

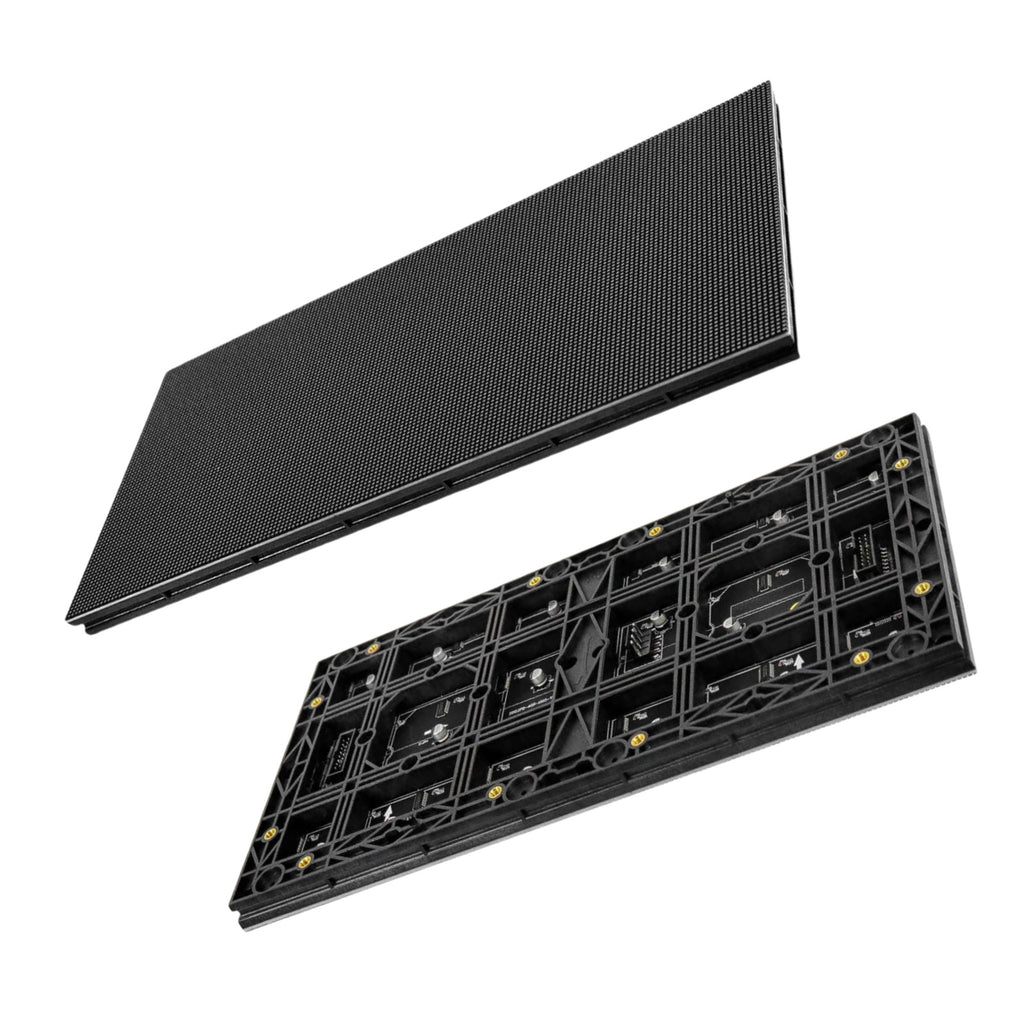

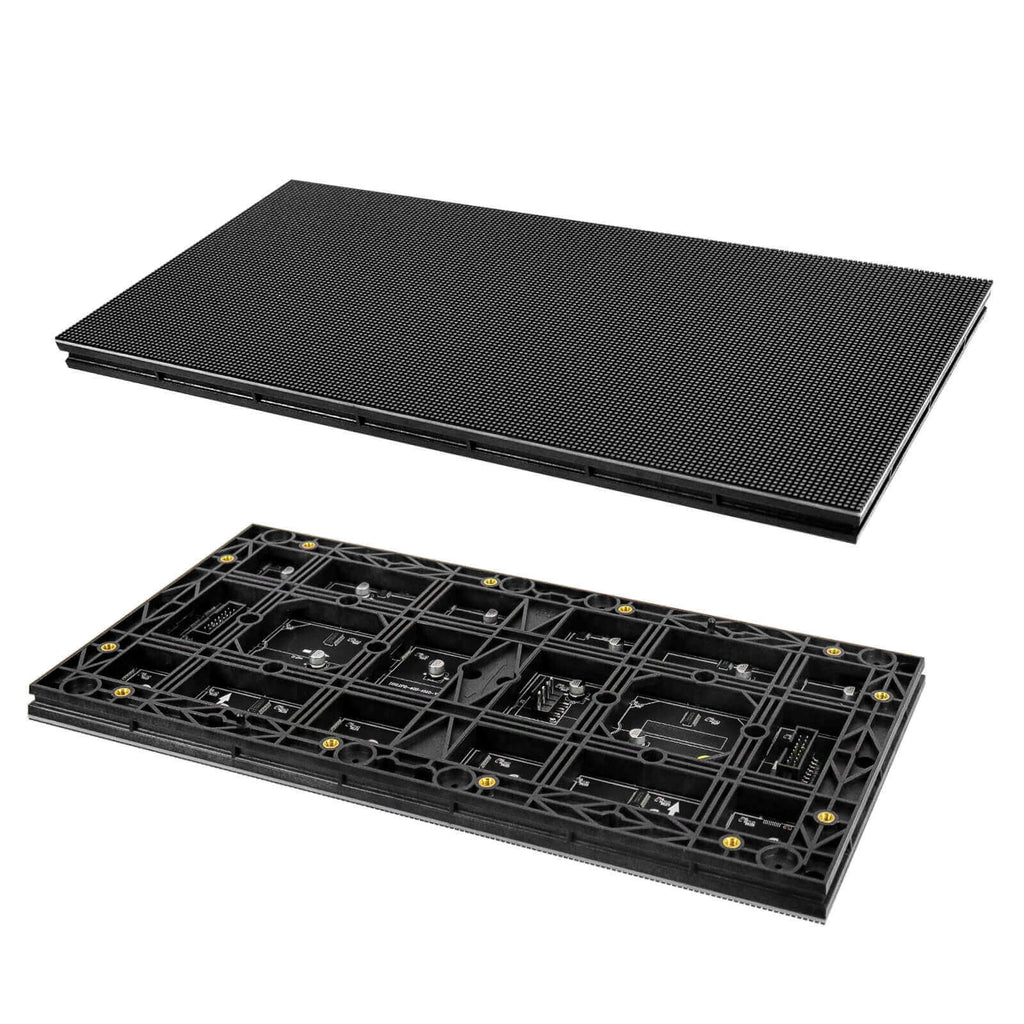

M-HD2L High Definition P2 (2mm) Small Pixel Pitch Indoor LED Module,Full RGB Pixel LED Tile in 320*160mm with 12800 dots, 1/40 Scan, 600 Nits for indoor Display

LEDLightsWorld
Price:
$35.00 USD

Description

Specifications:


♥ Pixel Pitch:2mm

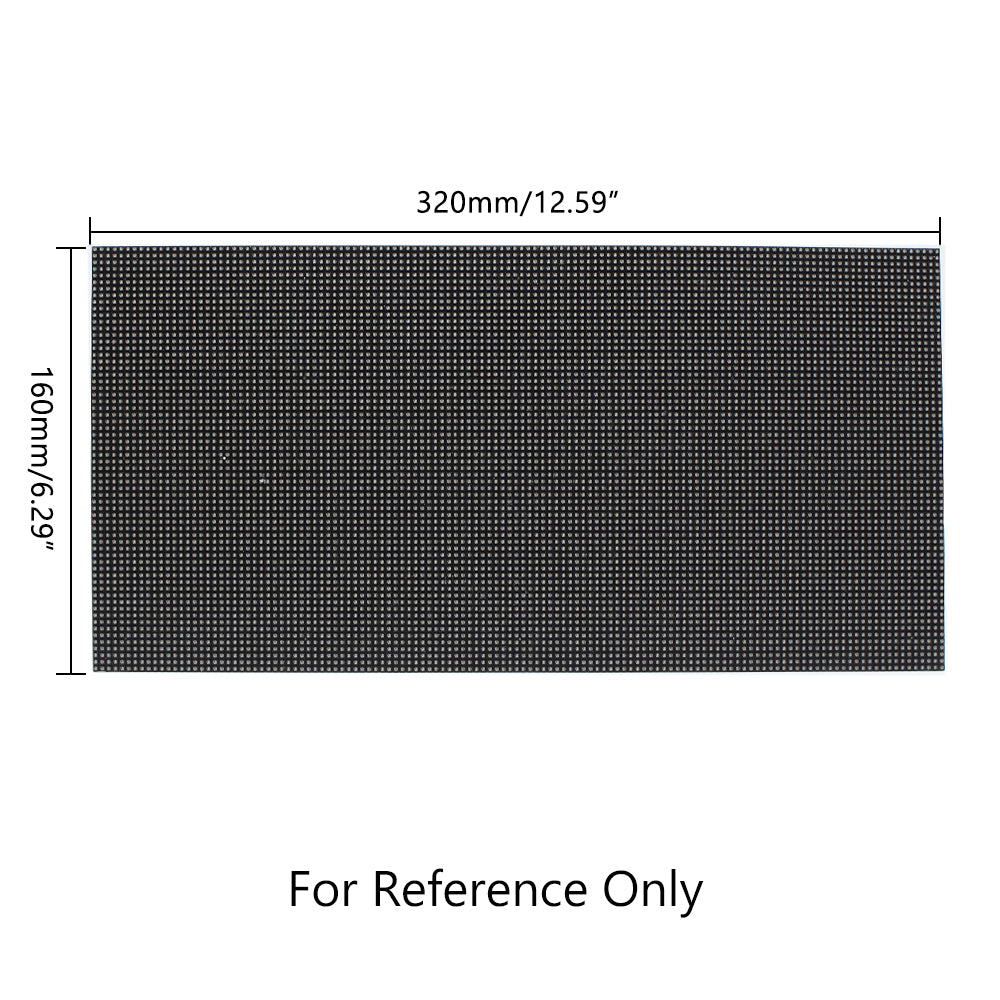

♥ Module Size: 320*160mm
♥ Module Resolution: 160*80
♥ Module Pixels: 12800dots
♥ Scan: 1/40
♥ Pixel Density : 250000dots/㎡
♥ Viewing Distance: >2m
♥ LED: SMD1515
♥ Pixel Configuration: 1R 1G 1B
♥ Brightness: ≥600 Nits
♥ Contrast Rate : 3000:1
♥ Color Depth: 16bit
♥ Grey Level: 16384
♥ Refresh Frequency: >3840HZ
♥ Driving IC: MBI/ICN
♥ Color Uniformity : ≥97%
♥ Protection Rating: IP30
♥ Life span: ≥100,000 hours
♥ Operating Temperature: -20°C ~ 60°C(-4°F ~ 140°F)
♥ Operating Humidity: 10％ ～ 90％
♥ Voltage: 5V
♥ Viewing Angle: H:160deg. V:160deg.
♥ Power Consumption(w) : Max. 20W
♥ Blind Spot Rate: ≤0.0003

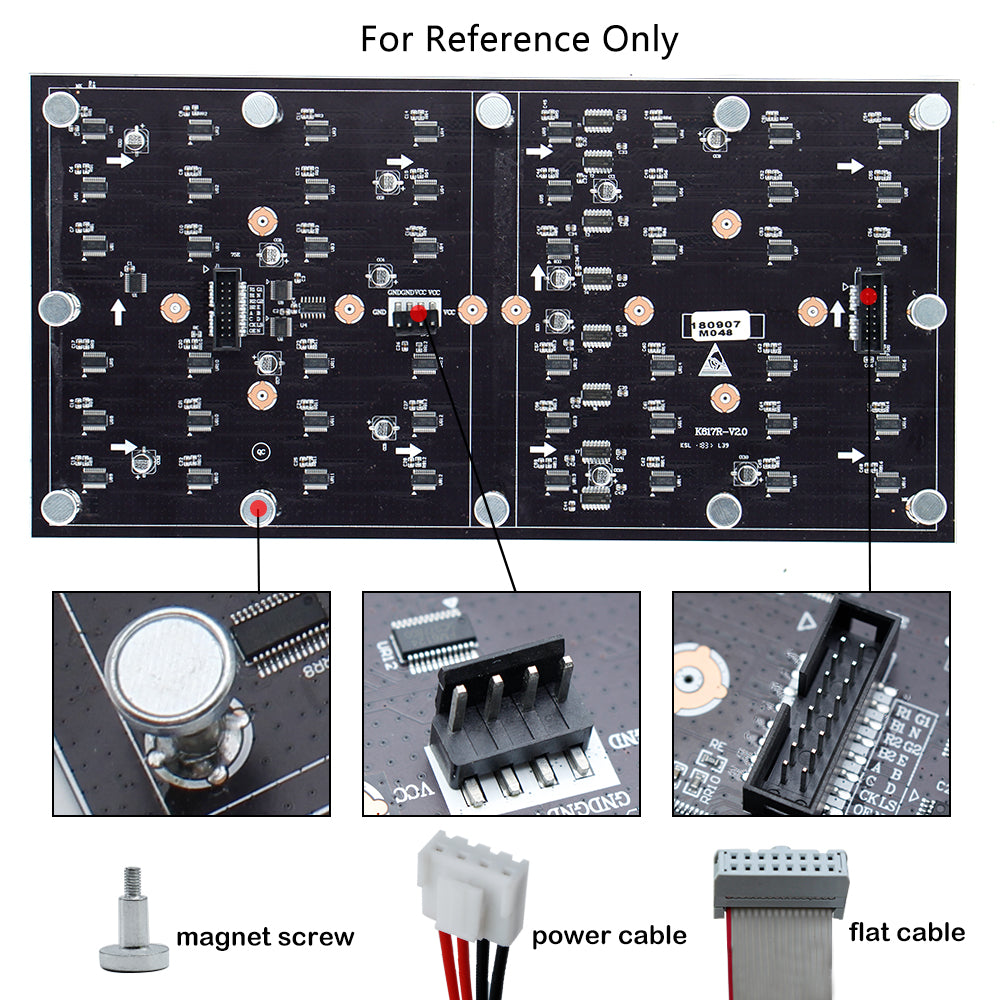

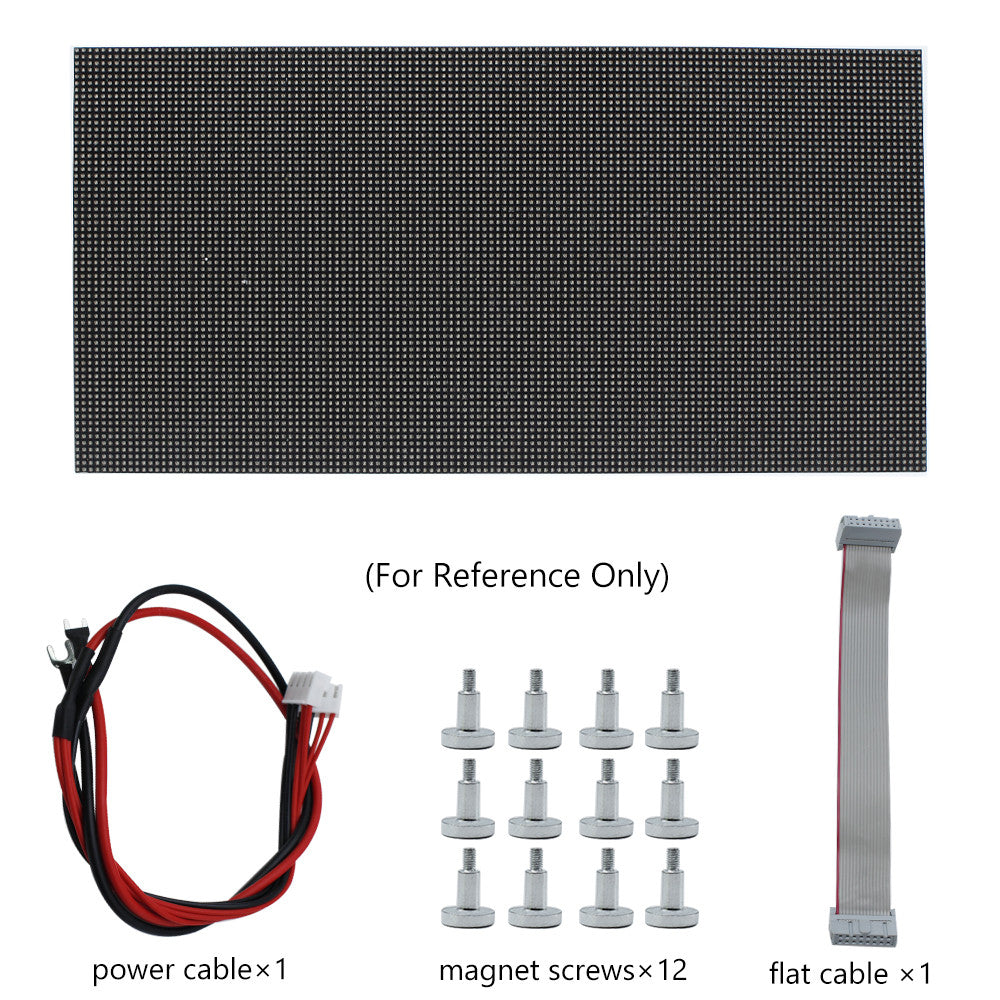

Package include:


♥1x LED Matrix Module
♥1x 1 to 2 Power Cord
♥1x 16pin cables (about 300mm)

Kindly Note:
If you need a large quantity of these items,
please contact us for wholesale price directly.
