Description
M-HD1.8 High Definition P1.86 (1.86mm) Small Pixel Pitch Indoor LED Module, Full RGB Pixel LED Tile in 320*160mm w/ 14792dots, 1/43 Scan, 600 Nits
Specifications:
♥ Pixel Pitch:1.86mm
♥ Module Size: 320*160mm
♥ Module Resolution: 172*86
♥ Module Pixels: 14792dots
♥ Scan: 1/43
♥ Pixel Density : 284444dots/㎡
♥ Viewing Distance: >1.8m
♥ LED: SMD1515
♥ Pixel Configuration: 1R 1G 2B
♥ Brightness: ≥600 Nits
♥ Contrast Rate : 3000:1
♥ Color Depth: 16bit
♥ Grey Level: 16384
♥ Refresh Frequency: >3840HZ
♥ Driving IC: MBI/ICN
♥ Color Uniformity : ≥97%
♥ Protection Rating: IP30
♥ Life span: ≥100,000 hours
♥ Operating Temperature: -20°C ~ 60°C(-4°F ~ 140°F)
♥ Operating Humidity: 10％ ～ 90％
♥ Voltage: 5V
♥ Viewing Angle: H:160deg. V:160deg.
♥ Power Consumption(w) : Max. 20W
♥ Blind Spot Rate: ≤0.0003

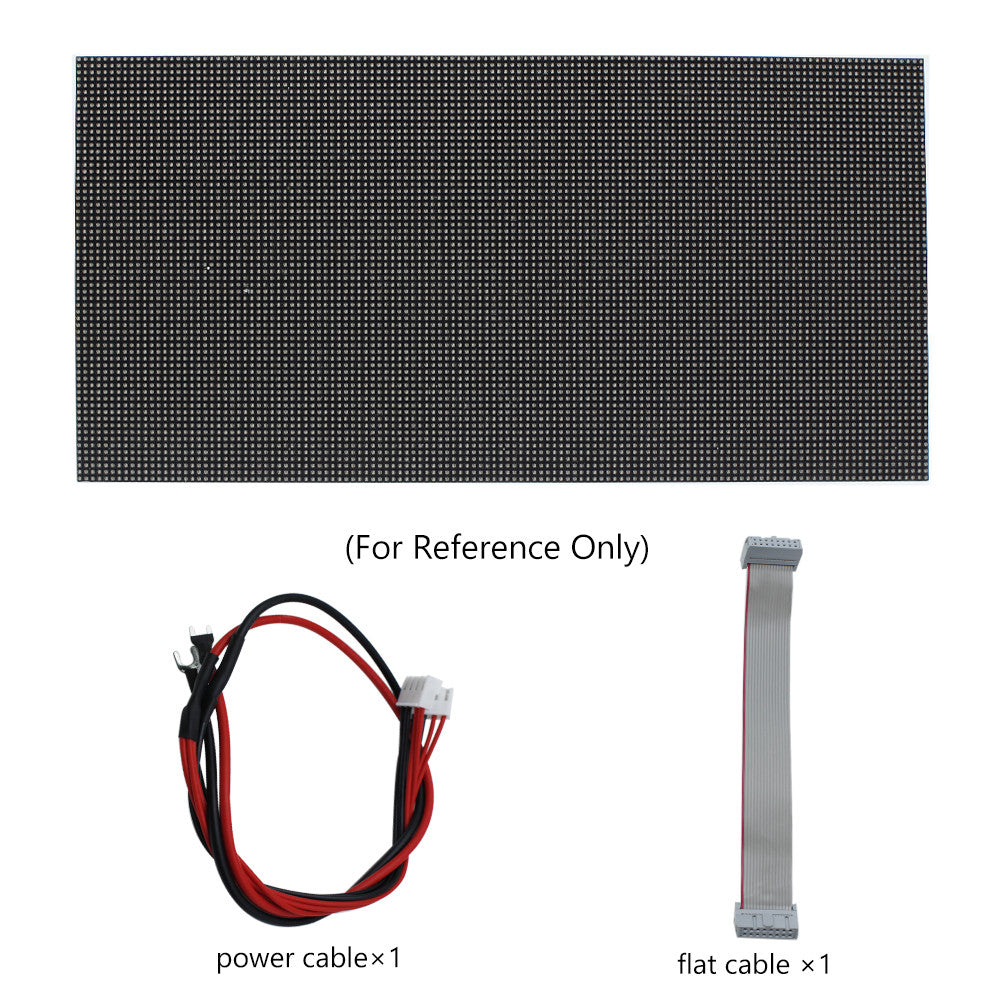

Package include:
♥1x LED Matrix Module
♥1x 1 to 2 Power Cord
♥1x 16pin cables (about 15cm)
Kindly Note:
If you need a large quantity of these items,
please contact us for wholesale price directly.
