oF-A Waterproof IP65 Outdoor Fixed LED Display Screen 5000nits in Pixel Pitch 4 | 5 | 6 | 6.7 | 8 | 10 mm in 960x960mm Die-Casting Aluminum Cabinet

oF-A Series Outdoor Fixed LED Display Screen Optional in Pixel Pitch 4 | 5 | 6 | 6.7 | 8 | 10 mm in 960x960mm Die-Casting Aluminum Cabinet Waterproof IP65 Rated

Such special design setting forth outdoor LED displaying wall is usually appearing like the unique signage located in front of the building or the considered as an icon for making a broadcast medium of bulletin, notice and product details and so on to be released, whenever people walk near to the building, it's an effective way to capture the first viewer's attention and promote the business, much different from the indoor mounting LED wall, it is built up to withstand so much weather rating conditions and cope with stability issue and heat dissipation, hence several items of revolutionary technology being applied over the chassis of LED panels to overcome all sorts of conditions.

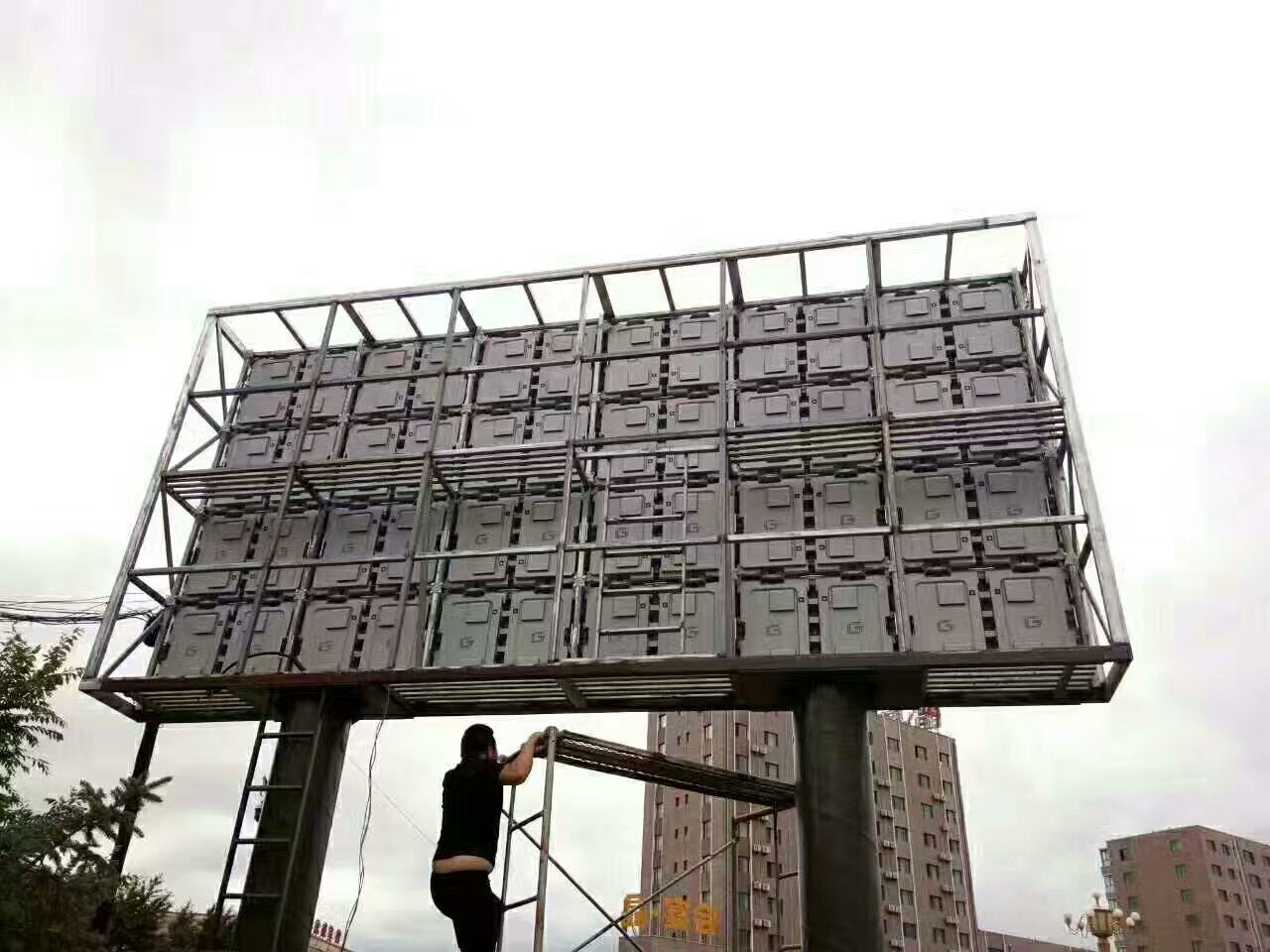

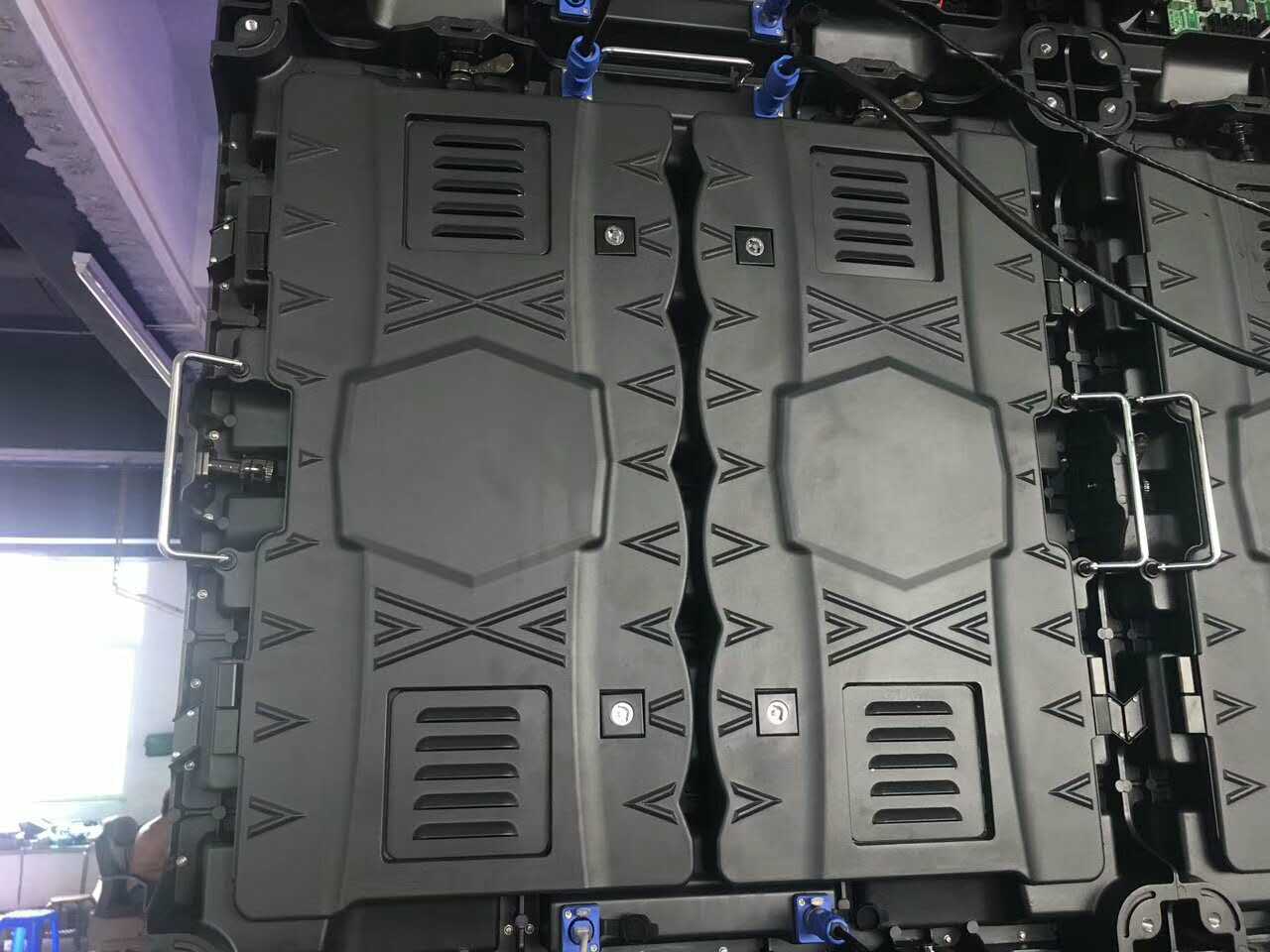

Upgrade your display content from wherever you can depend on, the introduction of outdoor fixed LED signage may have presented an accessing way for assembly and rear maintenance outside at the high-floors building, the mounting holes and pin lock for alignment make sure each module to be attached tightly and could make an adjustment being easily accessible.

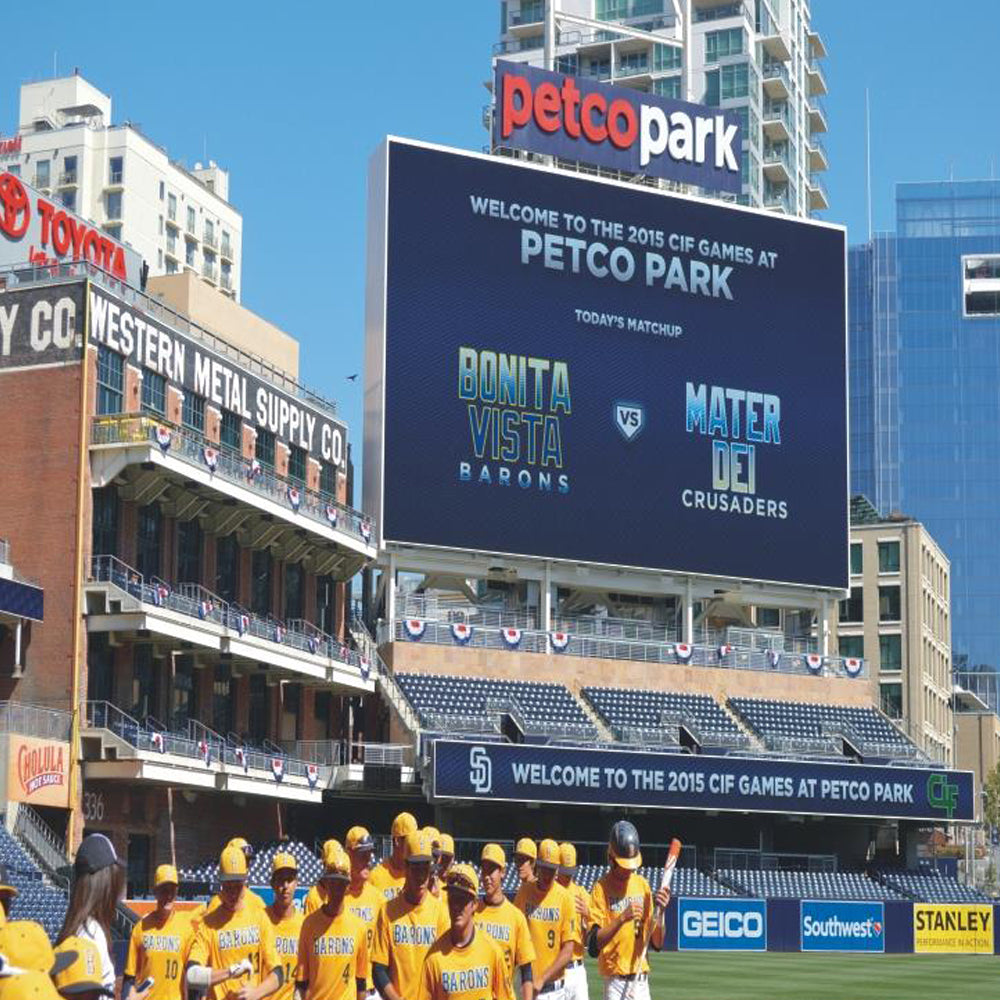

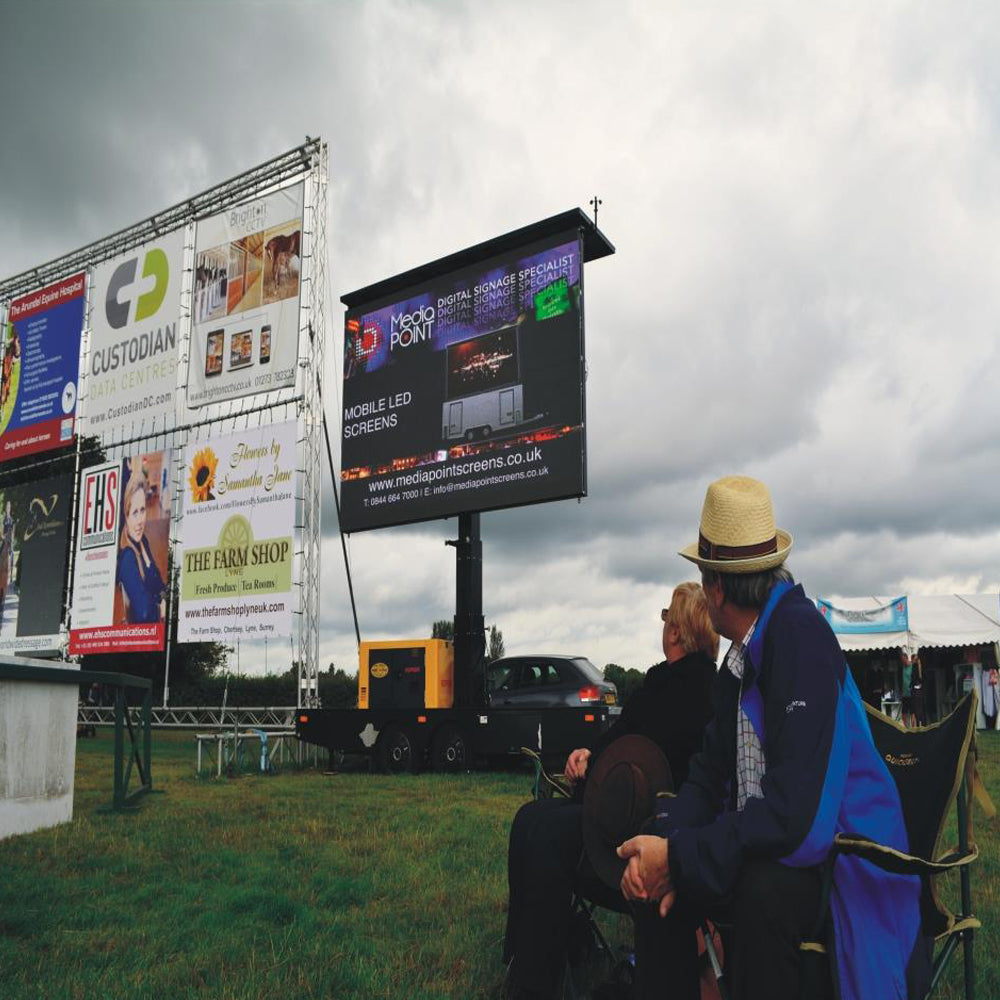

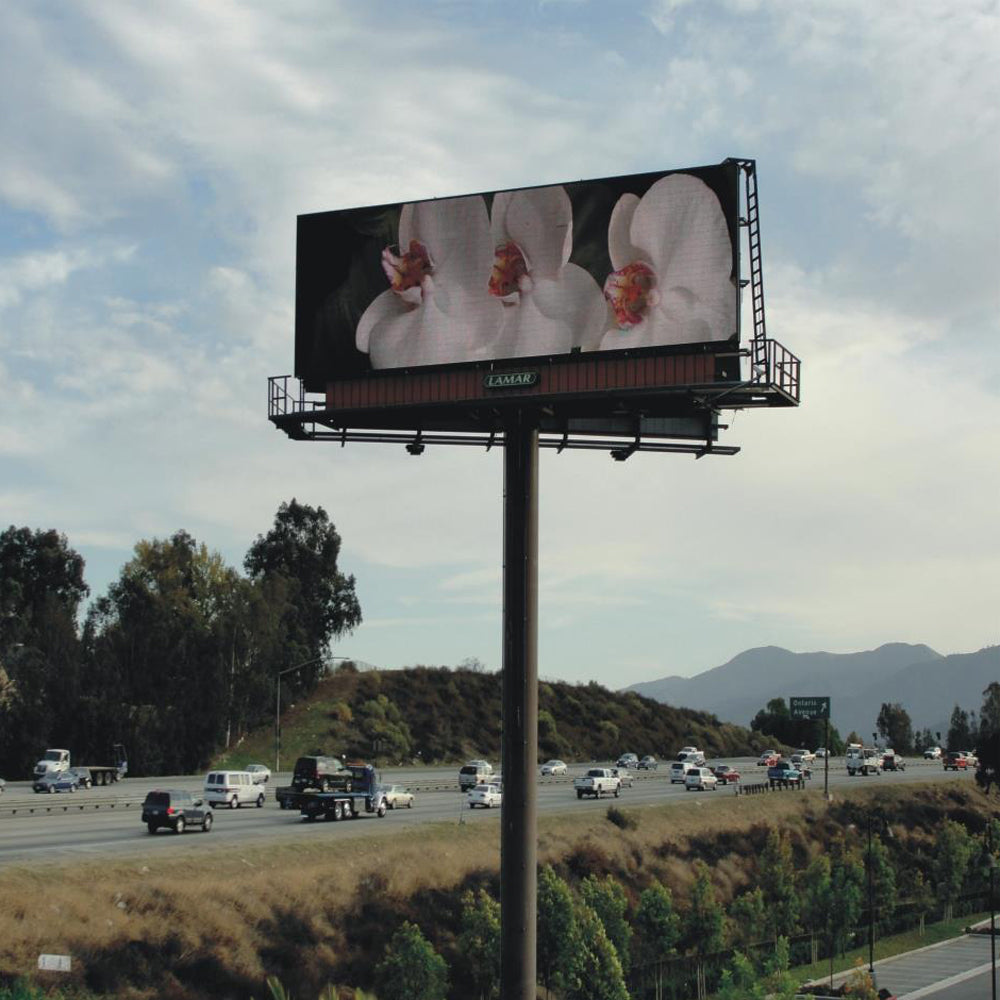

The outdoor fixed large-scale digital sign could be applied at diversity of sites for advertising, such as stadium video recap, shopping mall with dozens of floors and so on.

Specifications

Part #	oF-A4	oF-A5	oF-A6	oF-A6.7	oF-A8	oF-A10
Pixel Pitch	4mm	5mm	6mm	6.7mm	8mm	10mm
View Distance	>4m	>5m	>6m	>7m	>8m	>10m
Cabinet Pixel(Dots)	57600	36864	25600	20164	14400	9216
Brightness(nits)	>4500	>4500	>4500	>4500	>4500	>4500
LED	1921	2525	3535	3535	3535	3535
Scan	16S	8S	8S	6S	5S	2S
Refresh Frequency(HZ)	1920	1920	1920	1920	1920	1920
Protection Grade	IP65	IP65	IP65	IP65	IP65	IP65
Input Voltage	100-240V	100-240V	100-240V	100-240V	100-240V	100-240V
Maintenace	Rear	Rear	Rear	Rear	Rear	Rear



Features

* High Protection Grade of IP65, Waterproof for Outdoor LED Display
* High Quality Aluminum Alloy with Good Dissipation
* High Brightness > 5000nits, Rated for Outdoor LED Display Screen Projects
* Die-casting Aluminum Cabinet, Allow for Seamless Combination of Large LED Screen
* Silent Design with Fanless Cabinet, the Whole LED Display Works without Making any Noise.

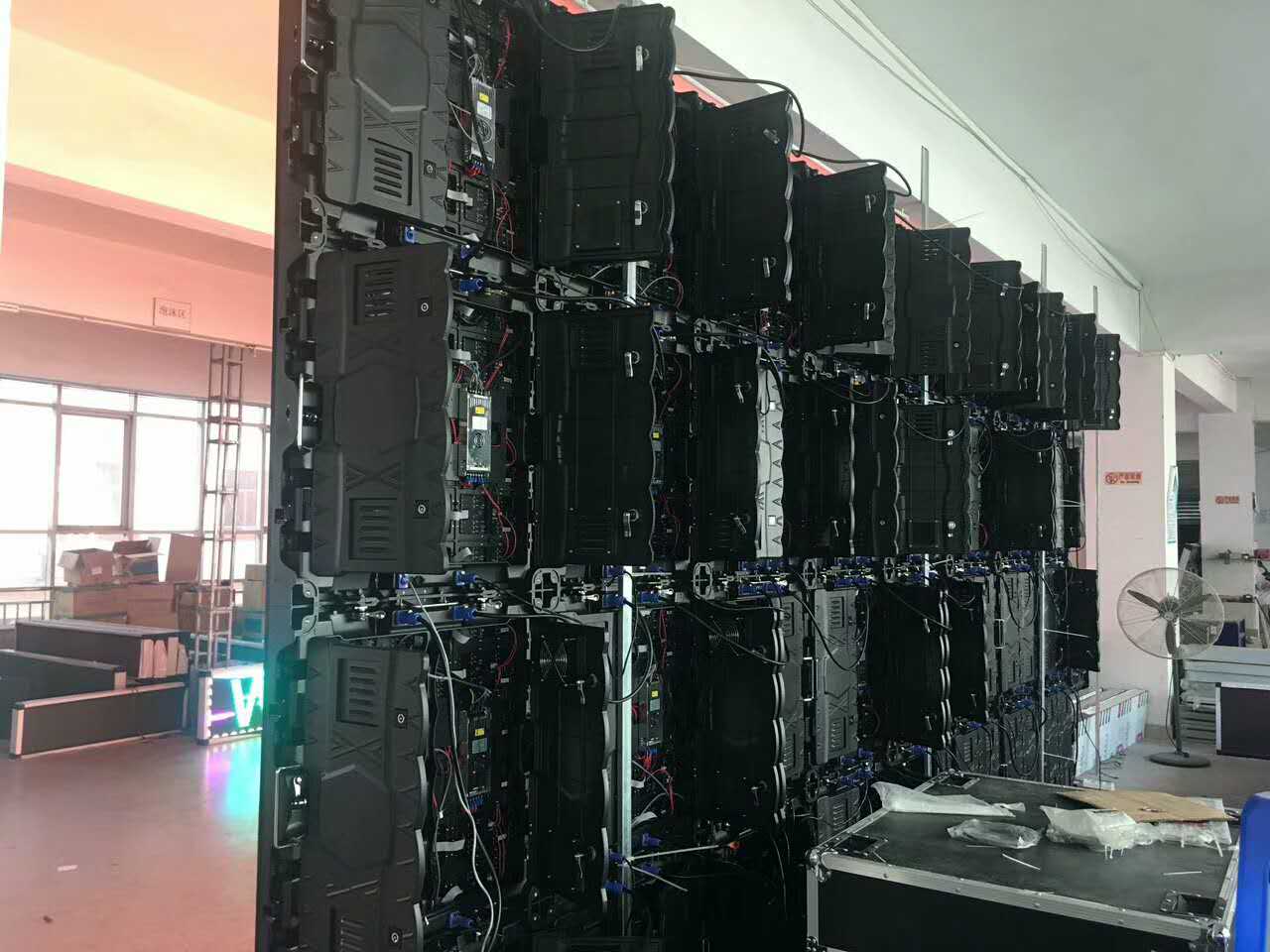

* With fast lock each LED display cabinet, multiples can be spliced together into a Large LED Display soon.
