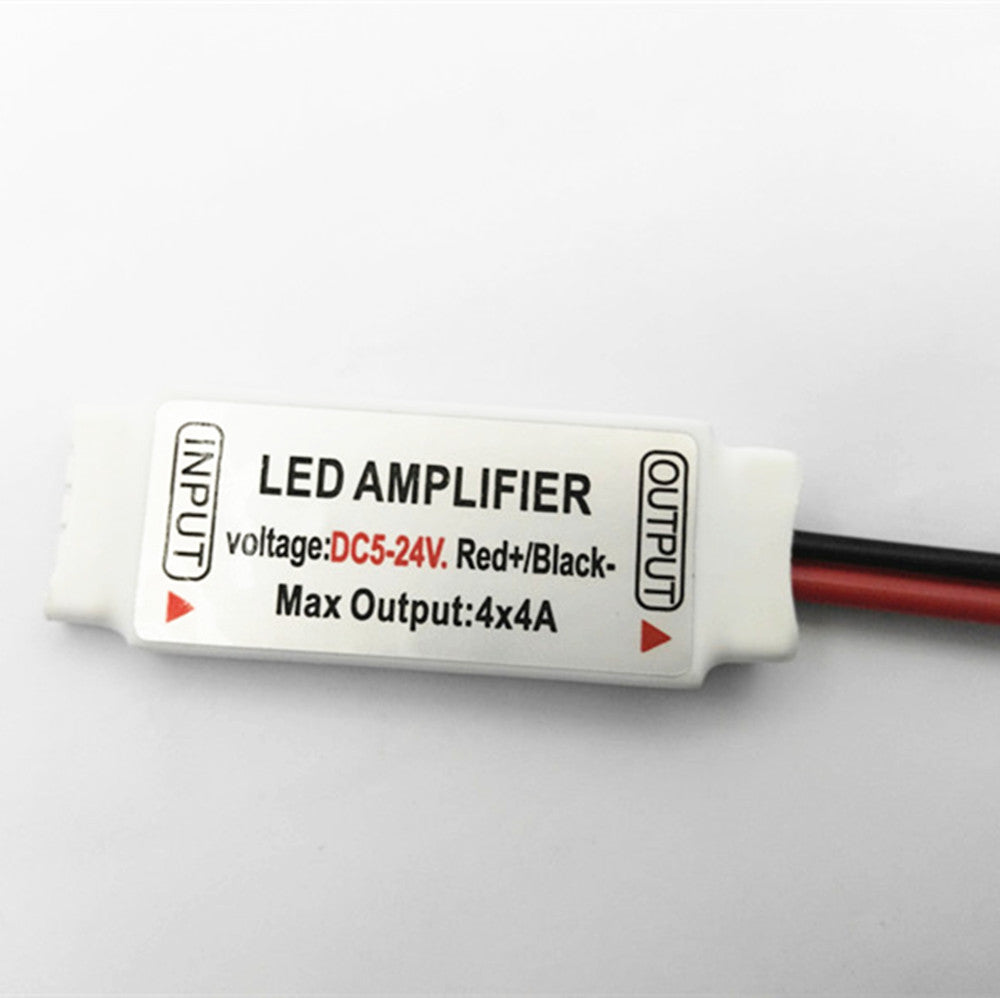

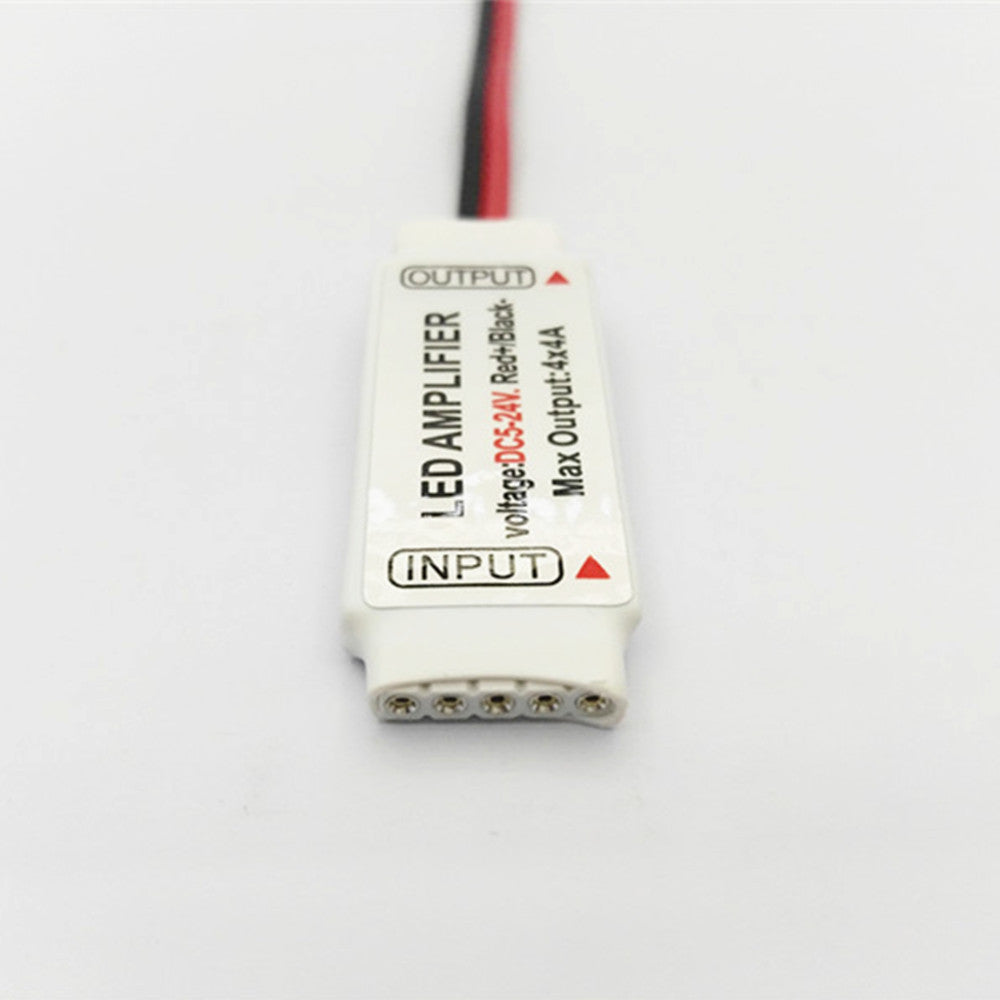

Mini RGBW Amplifier 4 Channel for 12V or 24V RGBW / RGBWW Color LED Flexible Strip Lights
This 4channel Amplifier is able to use for RGBW/RGBWW 12V/24VDC LED lights. With 6Amp/Channel, its max load is 24Amp. It's usually used with controller together, to enlarge the signal, to make one controller can control more LED Lights that over its rated load.
Specification
Operating Voltage | DC5-24V |
Product Size | L35*W10*H8 (mm) |
Net Weight | 15g |
Output Channel | 4 channel (R,G,B,W) |
Connection Way | Common Anode |
Output Current | 4Amp/Cannel |
Output Wattage | 12V:<192W, 24V:<384W |
Application | Enlarge signal, work for RGBW/RGBWW LED strips or bars |
Wiring
5Pin Input End for connect to RGBW Controller;
5Pin Output End for connect to RGBW LED Strip;
The Red/Black Wire for connect to Power Supply Postive(Red) and Negative(Black) Poles.
