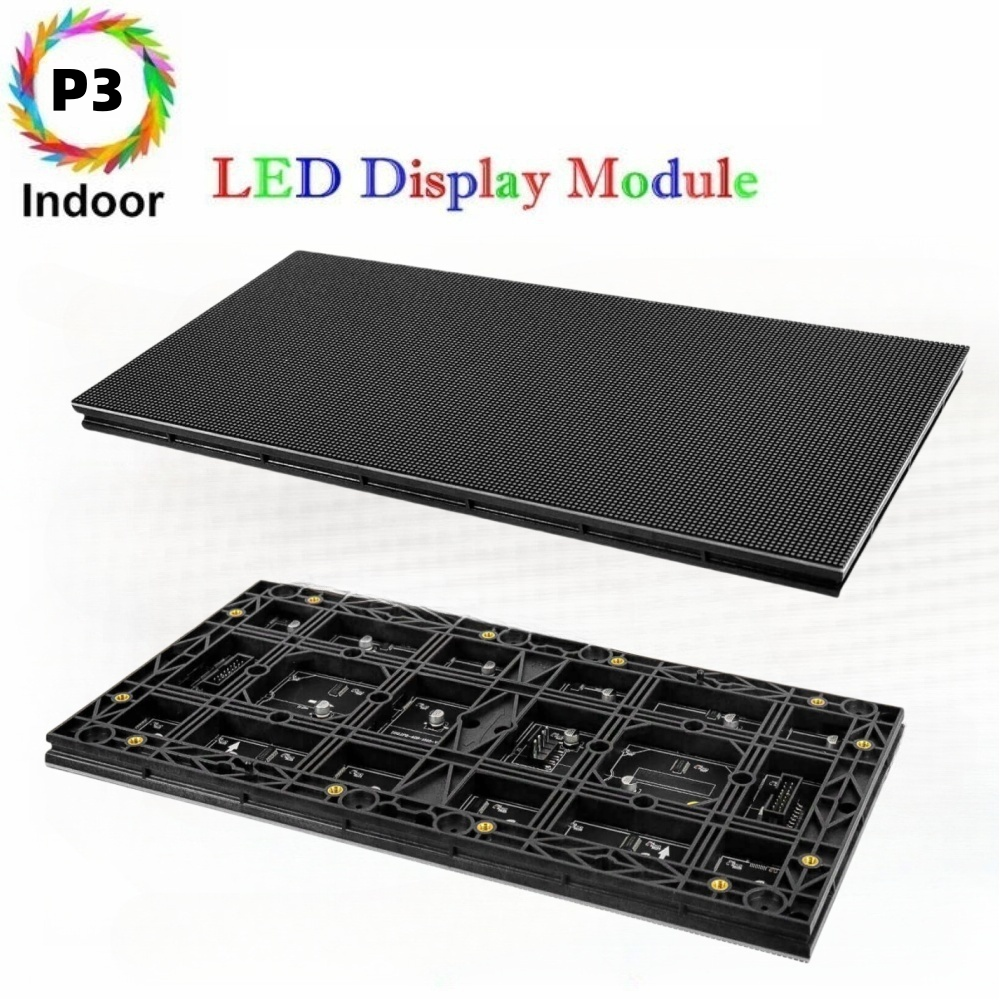

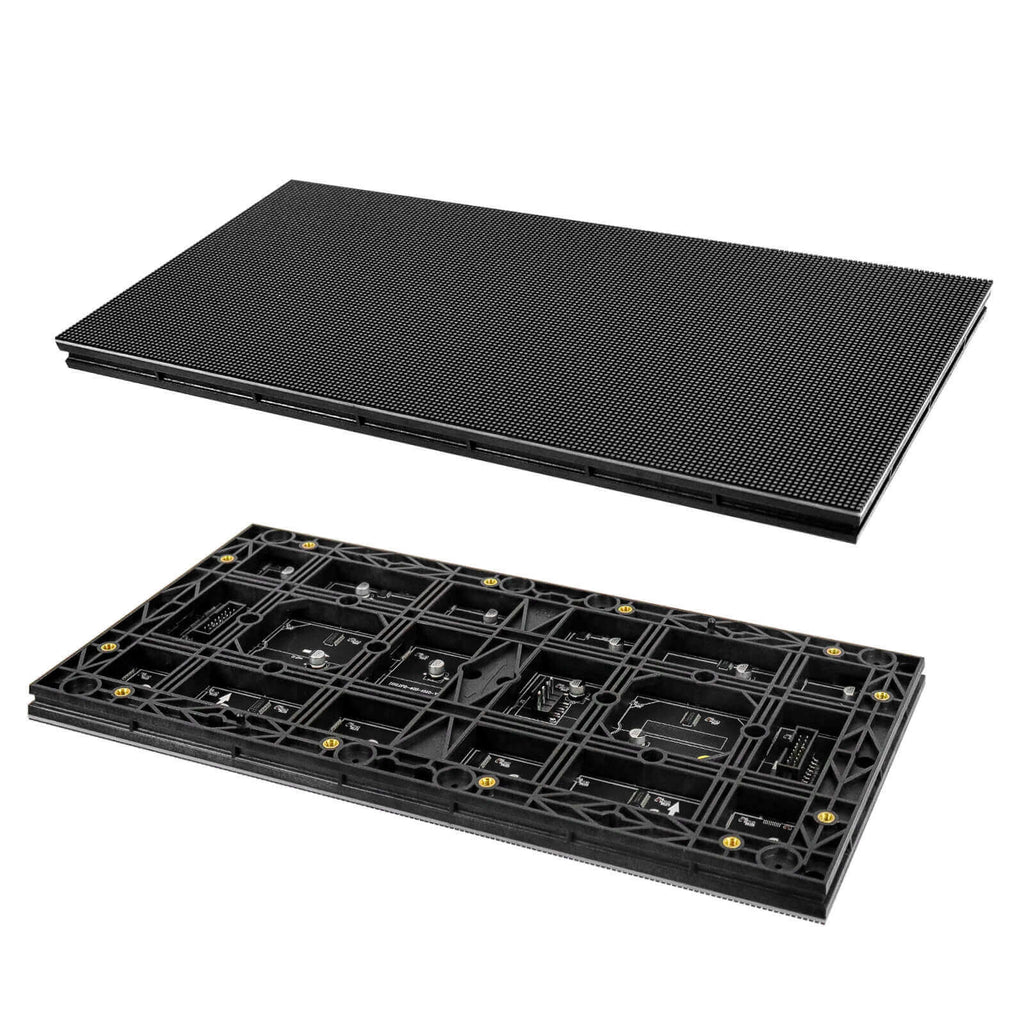

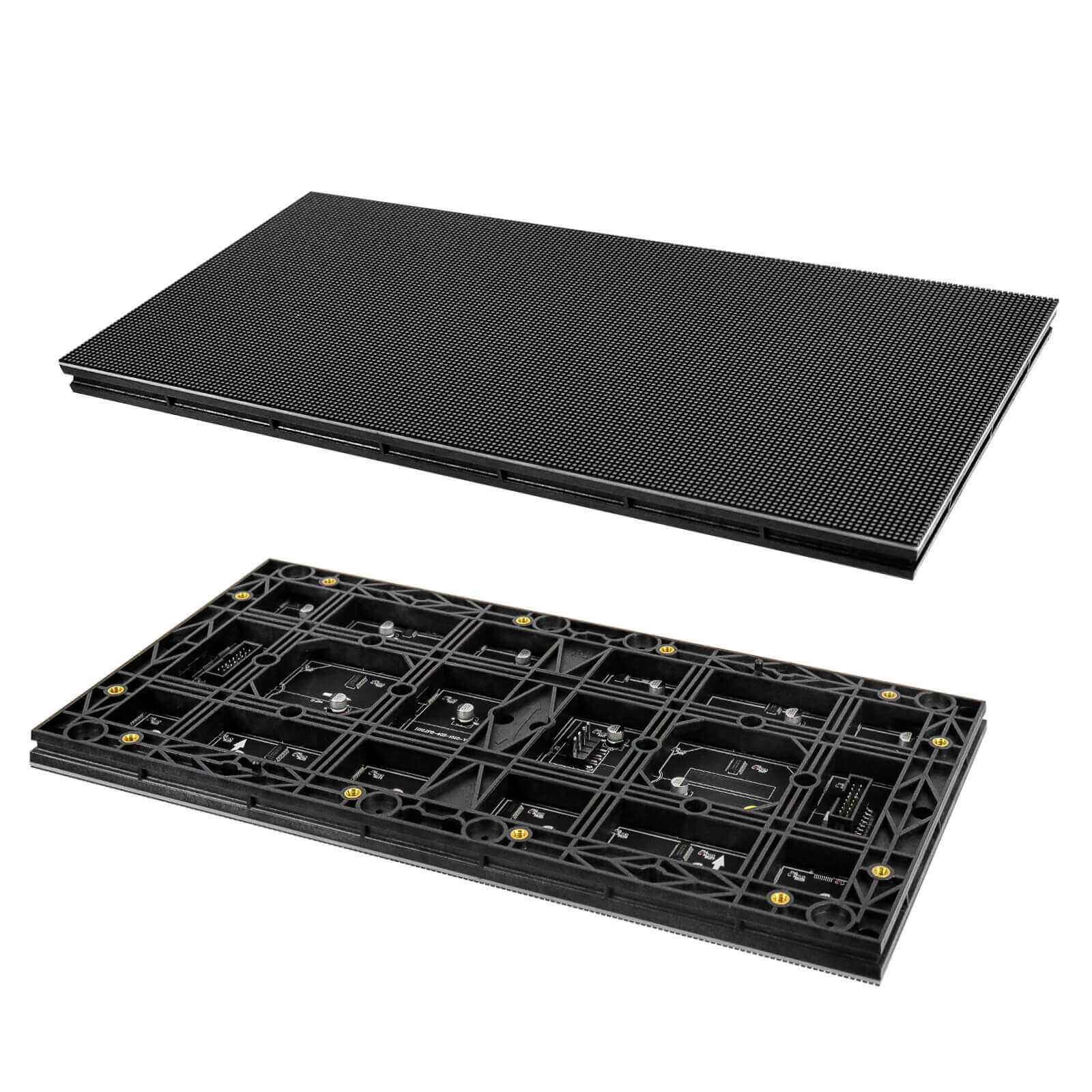

M-ID3L P3.076 (3.076mm) Indoor LED Display Panel, Full RGB Pixel LED Tile in 320*160mm with 5408 dots, 1/26 Scan, 600 Nits for indoor LED Display


Price:
Sale price$23.00 USD

Description

M-ID3L P3.076 (3.076mm) Indoor LED Display Panel, Full RGB Pixel LED Tile in 320*160mm with 5408 dots, 1/26 Scan, 600 Nits for indoor LED Display

Specifications:


♥ Pixel Pitch:3.076mm

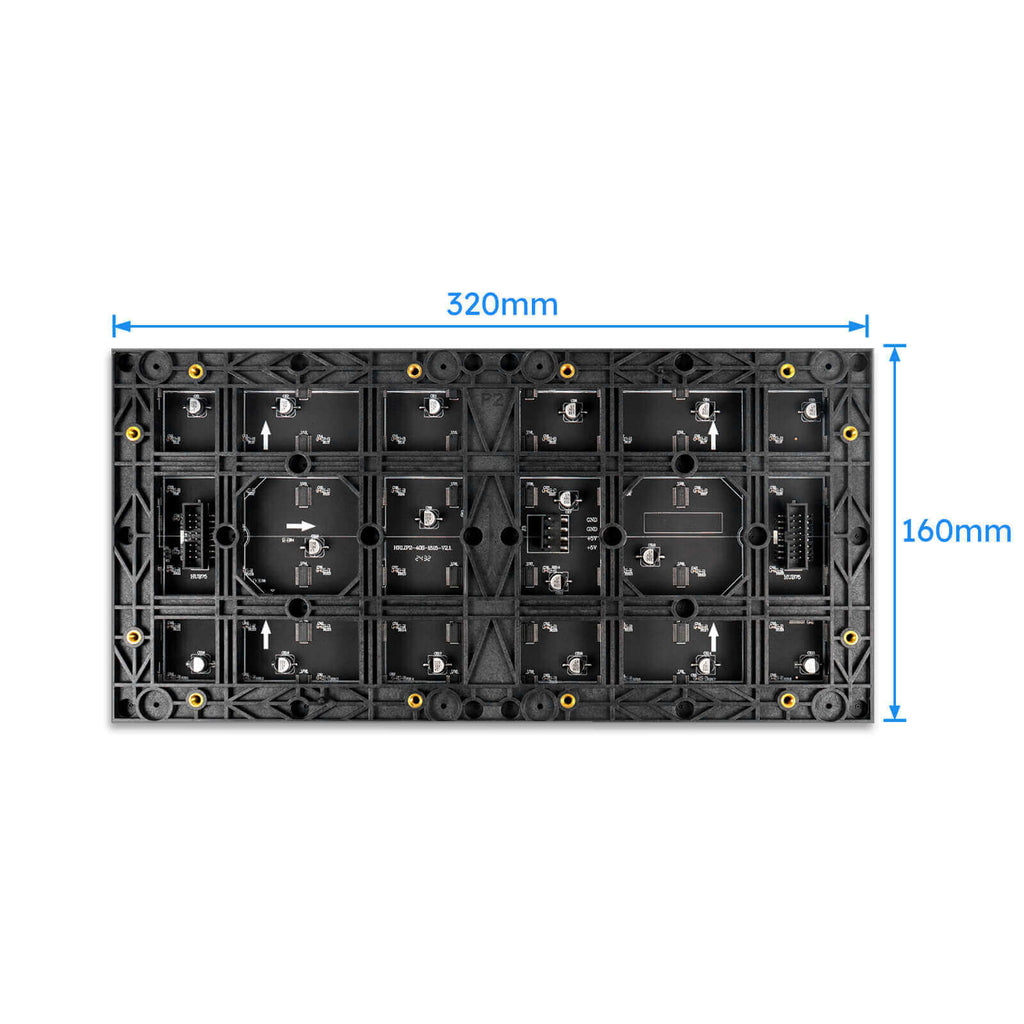

♥ Module Size: 320*160mm
♥ Module Resolution: 104*52
♥ Module Pixels: 5408dots
♥ Scan: 1/26
♥ Pixel Density : 105,625dots/㎡
♥ Viewing Distance: >3m
♥ LED: SMD2121
♥ Pixel Configuration: 1R 1G 1B
♥ Brightness: ≥600 Nits
♥ Contrast Rate : 3000:1
♥ Color Depth: 16bit
♥ Grey Level: 16384
♥ Refresh Frequency: >3840HZ
♥ Driving IC: ICN/FM
♥ Color Uniformity : ≥97%
♥ Protection Rating: IP30
♥ Life span: ≥100,000 hours
♥ Operating Temperature: -20°C ~ 60°C(-4°F ~ 140°F)
♥ Operating Humidity: 10% ~ 90%
♥ Voltage: 5V
♥ Viewing Angle: H:160deg. V:160deg.
♥ Power Consumption(w) : Max. 20W
♥ Blind Spot Rate: ≤0.0003

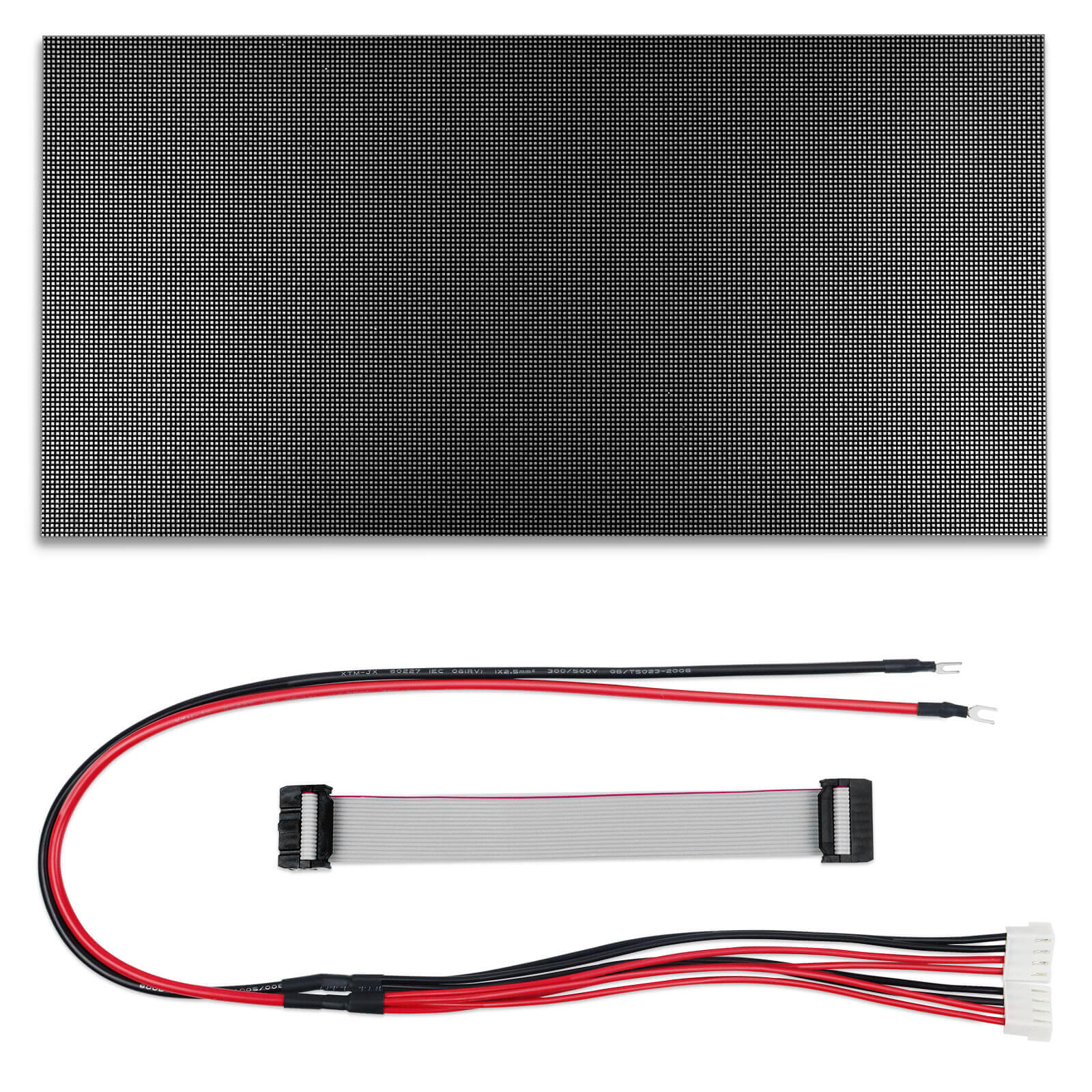

Package include:


♥1x LED Matrix Module
♥1x 1 to 2 Power Cord
♥1x 16pin cables (about 300mm)

Kindly Note:
If you need a large quantity of these items,
please contact us for wholesale price directly.
