Description

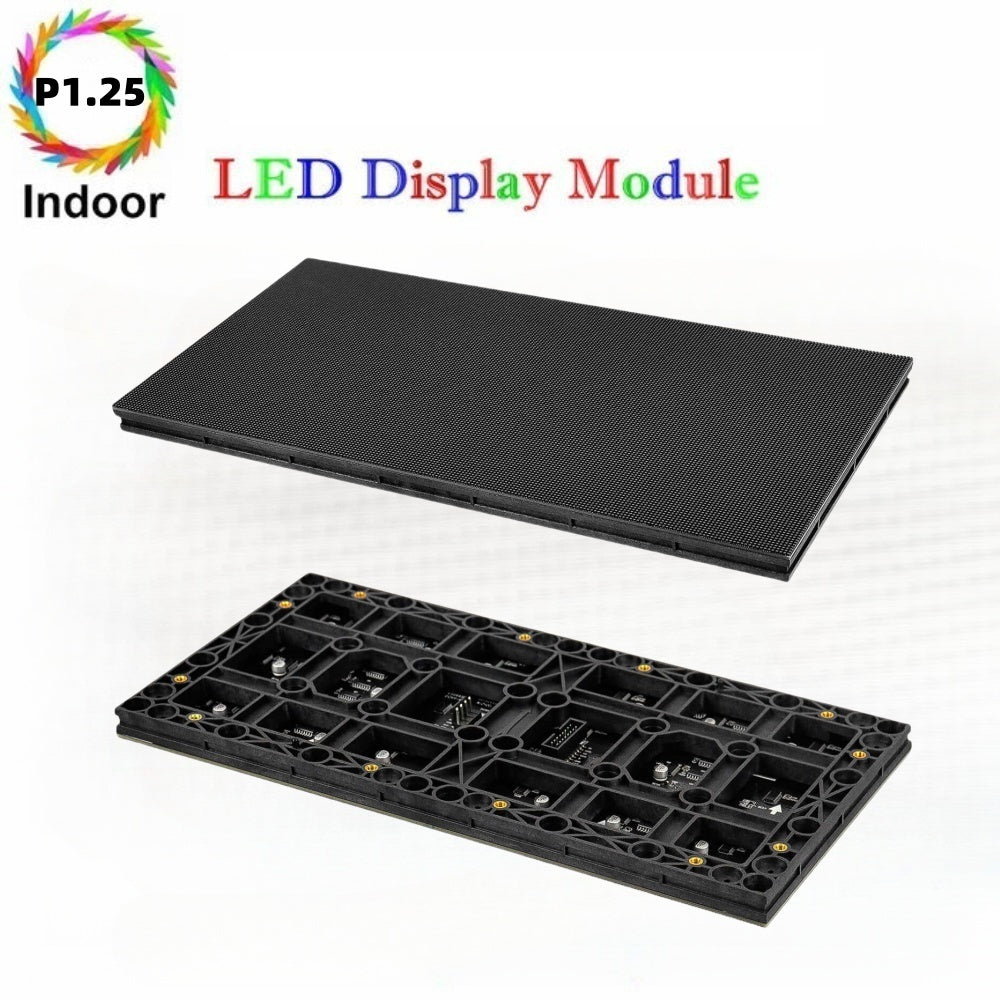

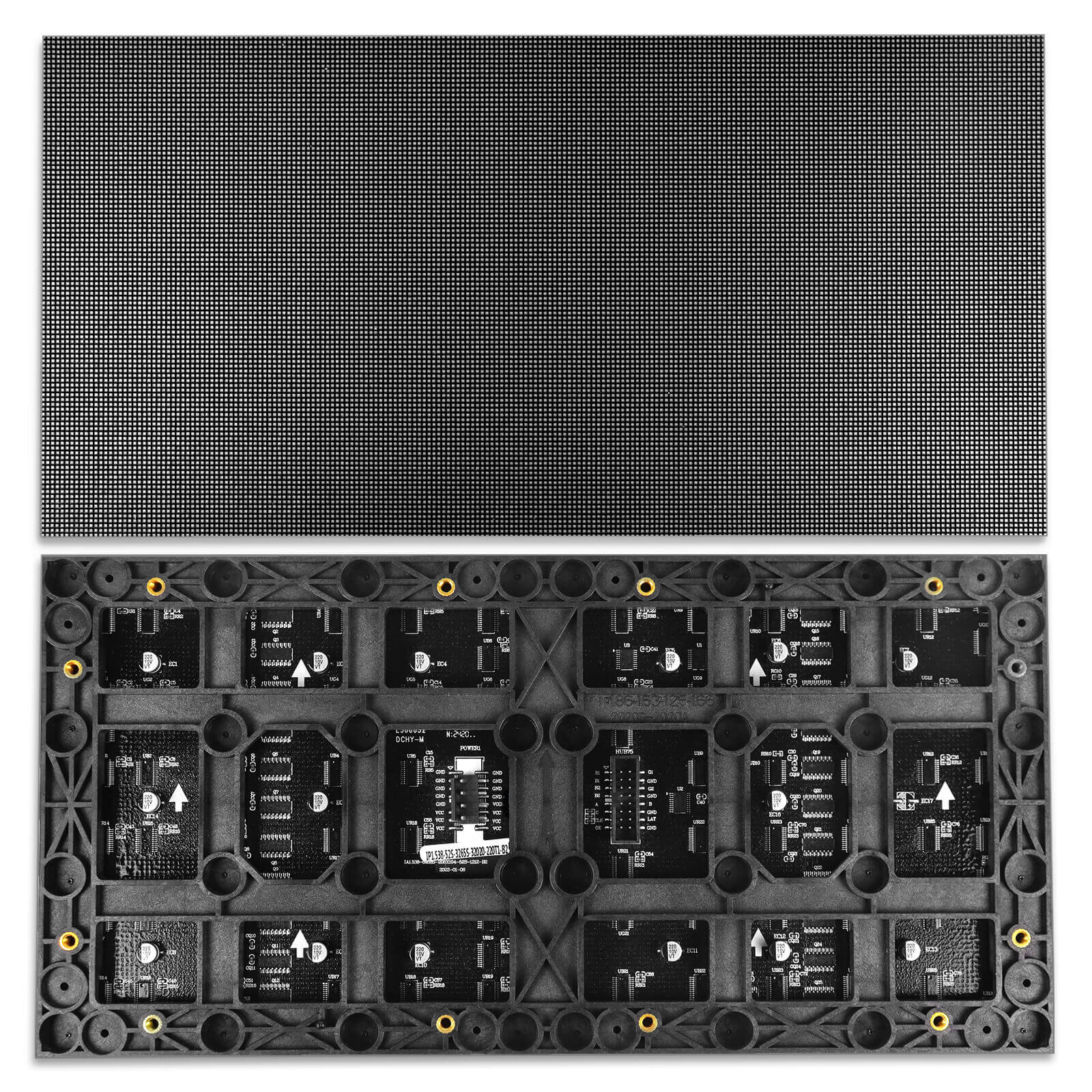

M-HD1.25 High Definition P1.25 (1.25mm) Small Pixel Pitch Indoor LED Module, Full RGB Pixel LED Tile in 320*160mm with 32768 dots, 1/64Scan, 600 Nits
Specification
♥ Pixel Pitch:1.25mm
♥ Module Size: 320*160mm
♥ Module Resolution: 256*128
♥ Module Pixels:32,768 dots
♥ Scan: 1/64
♥ Pixel Density : 430,336dots/㎡
♥ Viewing Distance: >1.25m
♥ LED: SMD1010 ♥ Pixel Configuration: 1R 1G 1B
♥ Brightness: ≥600 Nits
♥ Contrast Rate : 3000:1
♥ Color Depth: 16bit
♥ Grey Level: 16384
♥ Refresh Frequency: >3840HZ
♥ Driving IC: ICN/FM
♥ Color Uniformity : ≥97%
♥ Protection Rating: IP30
♥ Life span: ≥100,000 hours
♥ Operating Temperature: -20°C ~ 60°C(-4°F ~ 140°F)
♥ Operating Humidity: 10％ ～ 90％
♥ Voltage: 5V
♥ Viewing Angle: H:160deg. V:160deg.
♥ Power Consumption(w) : Max. 20W
♥ Blind Spot Rate: ≤0.0003
Package include:

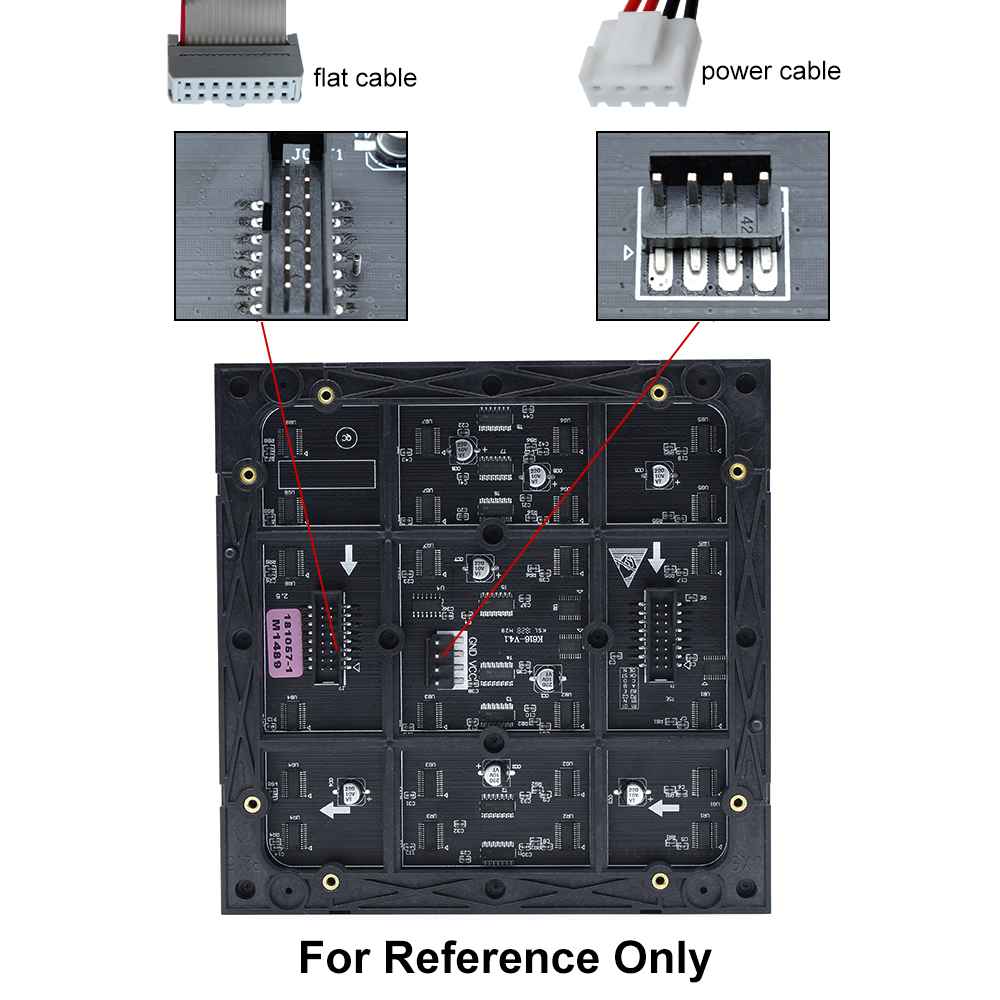

♥1x LED Matrix Module
♥1x 1 to 2 Power Cord
♥1x 16 pin cables (about 300mm)
Kindly Note:
If you need a large quantity of these items,
please contact us for wholesale price directly.
