Description
Product Notice

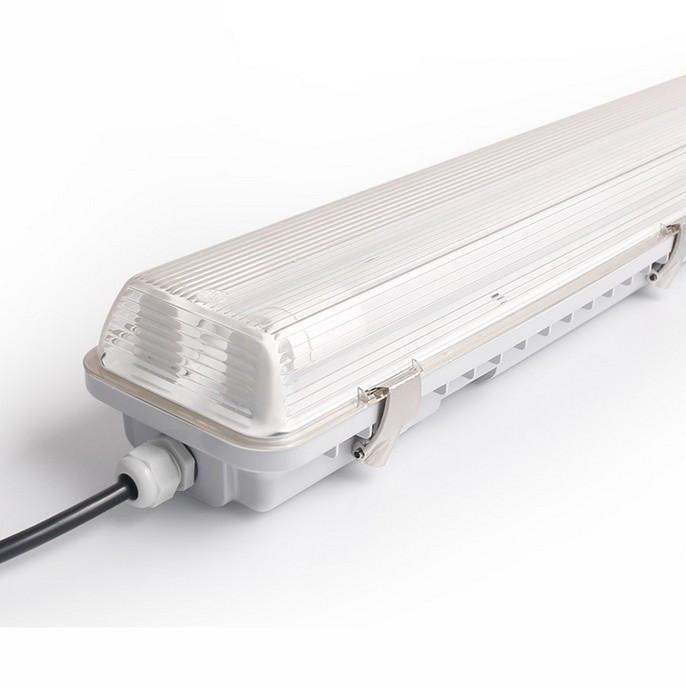

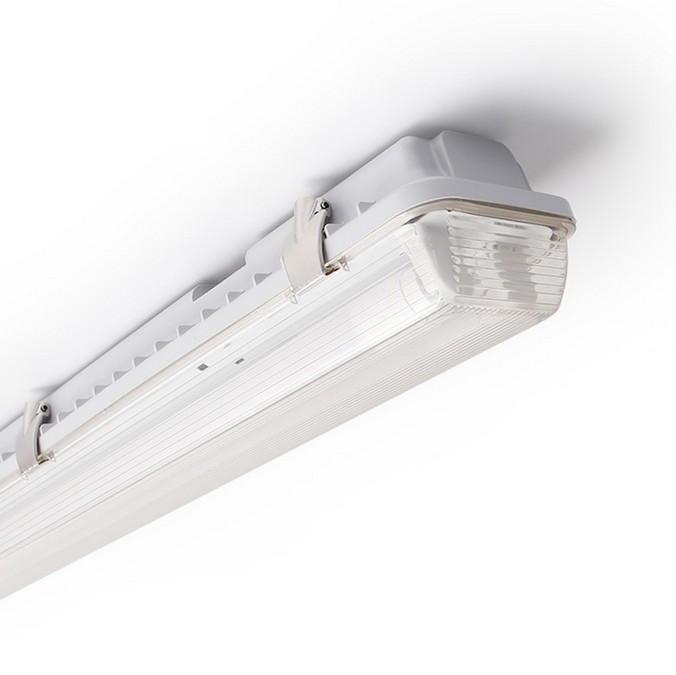

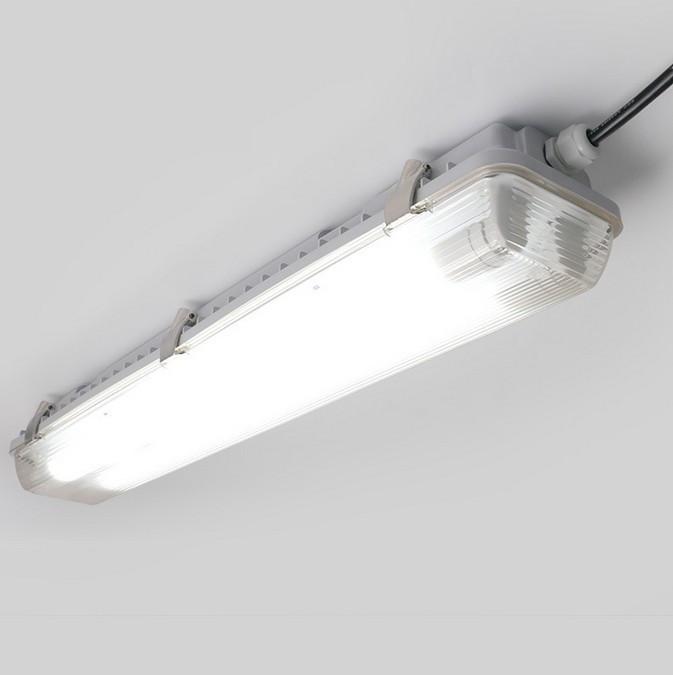

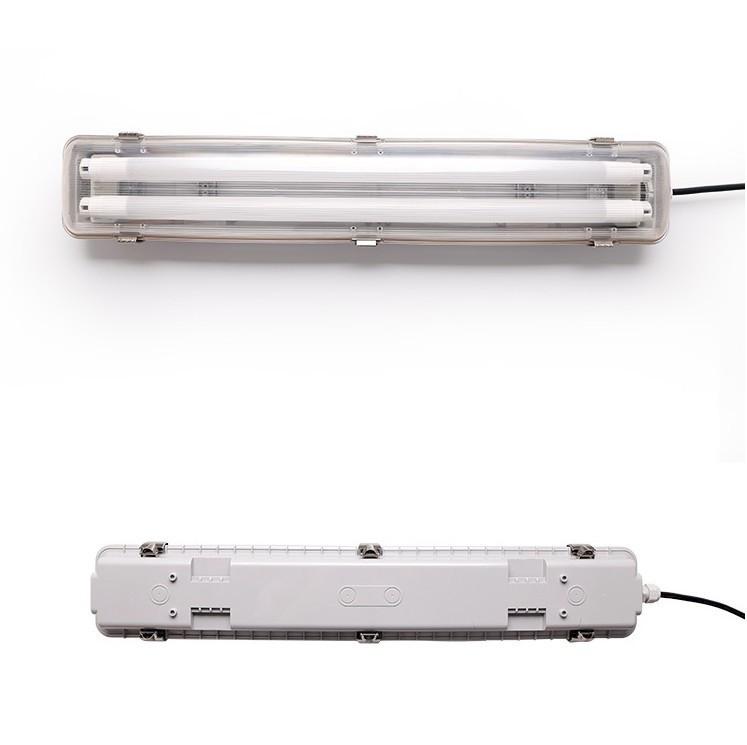

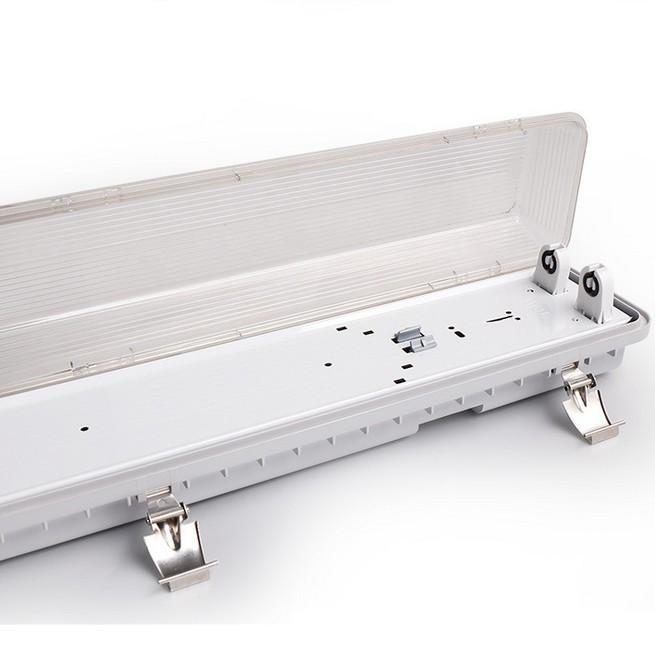

* Tri-proof Tube Fixture is designed for T8 G13 Bi-Pin Tube Light (the tubes DO NOT include).
* The fixture is waterproof, dustproof and corrosion proof with high light transmittance PC cover
* Material: ABS Base + PC Cover

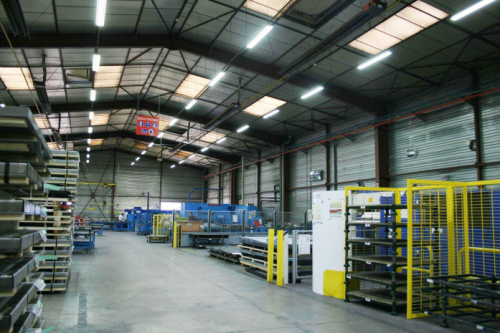

* IP65 suitable for outside and high traffic applications.

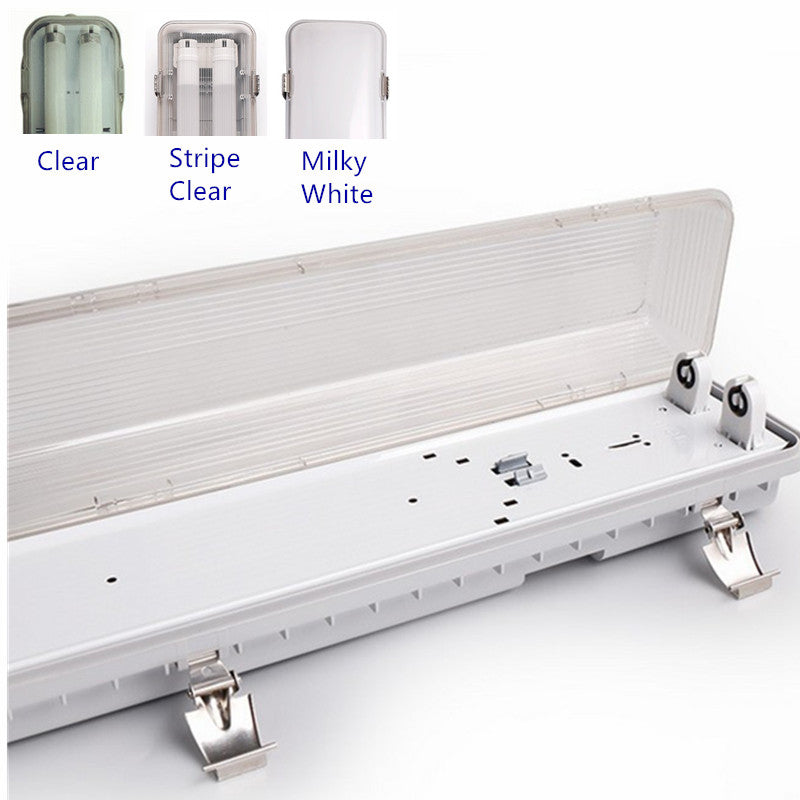

* PC Cover Color Options: Clear, Stripe Clear, Milky White, with light transmittance Clear> 90%, Stripe Clear> 90%, Milky White>80%
* Fit for surface mounting with mounting clips included, and pendant mounting with no pendant thread,
* The fixture buckles included are in plastic material, if need in stainless steel, please contact us.
* Note: If you have LED Tube already only purchase this housing, please tell the power feed style (single-end/dual-end) of your tube when place the order.
Then we will make the fixture to fit your tubes.
Dimension
1 x 2FT T8 663*86*90 (mm)
1 x 4FT T8 1265*86*90 (mm)
1 x 5FT T8 1565*86*90 (mm)
Installation Instruction
Fit for surface mounting with mounting clips included, and pendant mounting with no pendant thread,
Note: If you have LED Tube already only purchase this housing, please tell the power feed style (single-end/dual-end) of your tube when place the order.
We will have the fixture be pre-wired to fit for your tubes before shipping. So when you get the fixture, only need to plug the tubes in, and the wire out of the fixture run to line electricity.
