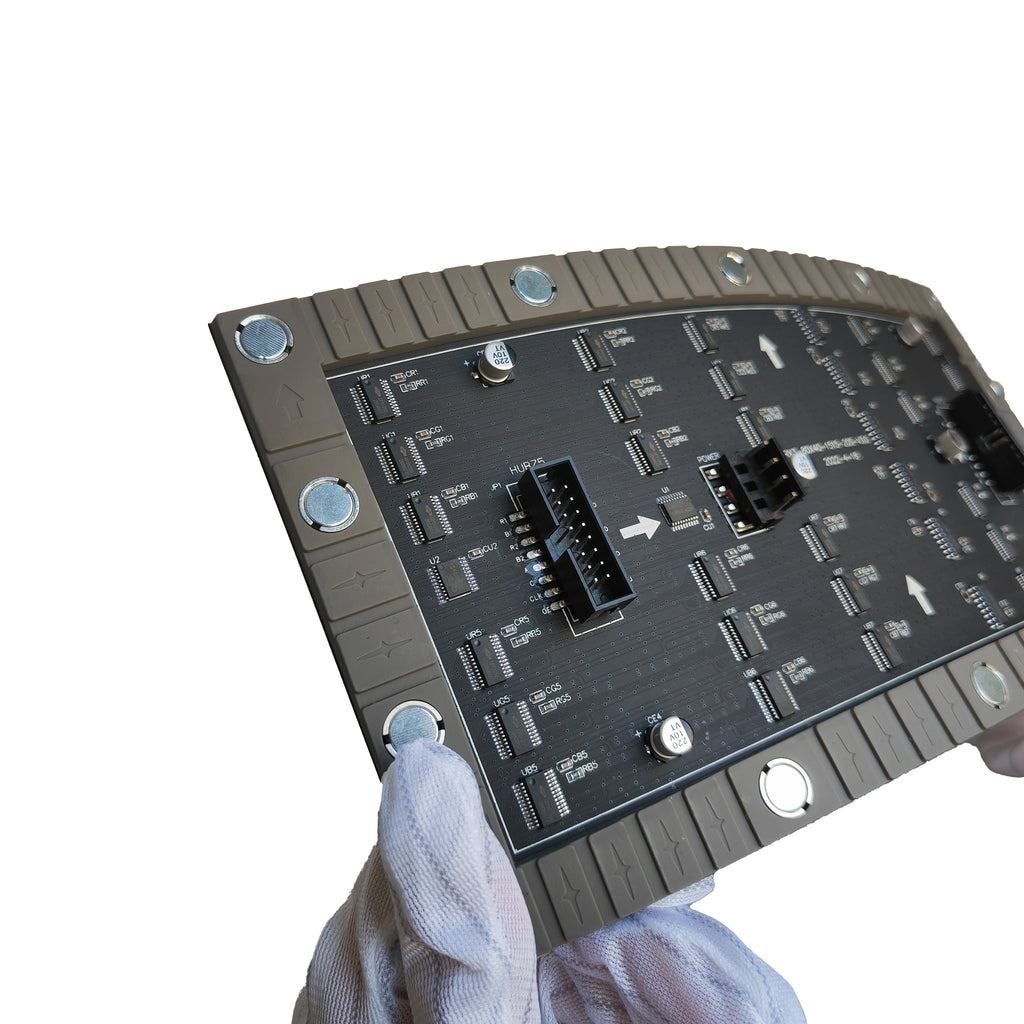

HKXR3S (P3) Indoor Flexible LED Display Module, 3mm Full RGB Pixel LED Display Panel Screen in 240* 120 mm with 3200 dots, 1/20 Scan, 800 Nits LED Tile for Indoor Display
| Items | HKXR3S |
| Technical Parameters | |
| Pixel Configuration | 1R1G1B Full Color |
| Encapsulation | SMD2121 |
| Pixel Density (dots/m2) | 111111 |
| Module Size (mm) | 240x120x8.6 (Width x Height x Thickness) |
| Moduel Resolution (dots) | 80x40 |
| Scan Mode | 1/20 |
| Standard Dirver IC (Optional) | Dual cache |
| Refresh Rate (Hz) | 1920 |
| Frame Rate (Hz) | 60 |
| Gray Scale (bit) | 12 Adjustable |
| Splicing diameter/mm | 458 |
| Curved arc | ≥150° |
| Data Interface Type | HUB75（1 in 1 out） |
| Moduel Barcket Materials | Silicon Rubber Soft Bracket |
| Module Weight (Kg/pcs) | 0.2 |
| Cabinet Size | Can be ODM freely upon module sizes |
| Cabient Material | Powder Coated Sheet Metal Steel Cabinet |
| Cabinet Eveness (mm) | ≤ 0.5 |
| IP Protection Grade | IP20 |
| Assembly / Maintanance Type | Front & Rear Assembly / Maintenance |
| Photoelectronic Special Features | |
| Brightness (nits) | 850-900 |
| Color Temperature (K) | 10,000—12,000 Adjustable |
| Brightness Eveness | ≥97% |
| Horizontal / Vertical Veiw Angle | ≥140°/≥120° |
| Contrast Ratio | ≥'5000:1 |
| Electrical Parameters | |
| Module Input Voltage DC（V） | 5 |
| Moduel Maximum Current DC（A） | 2.8 |
| Module Maximum Power Consumption（w/pcs） | 14 |
| Working Input Voltage AC（V） | 110—220 |
| Peak Power Consumption（w/m2） | 490 |
| Average Power Consumption（w/m2） | 140 |
| Application Parameters | |
| Typical Life Span（hrs） | 100,000 |
| Working Temperature（℃） | -20—40 |
| Storage Temperaure（℃） | -20—40 |
| Working Humidity（RH） | 20—75% (No Condensation) |
| Storage Humidity（RH） | 20—75% (No Condensation) |
