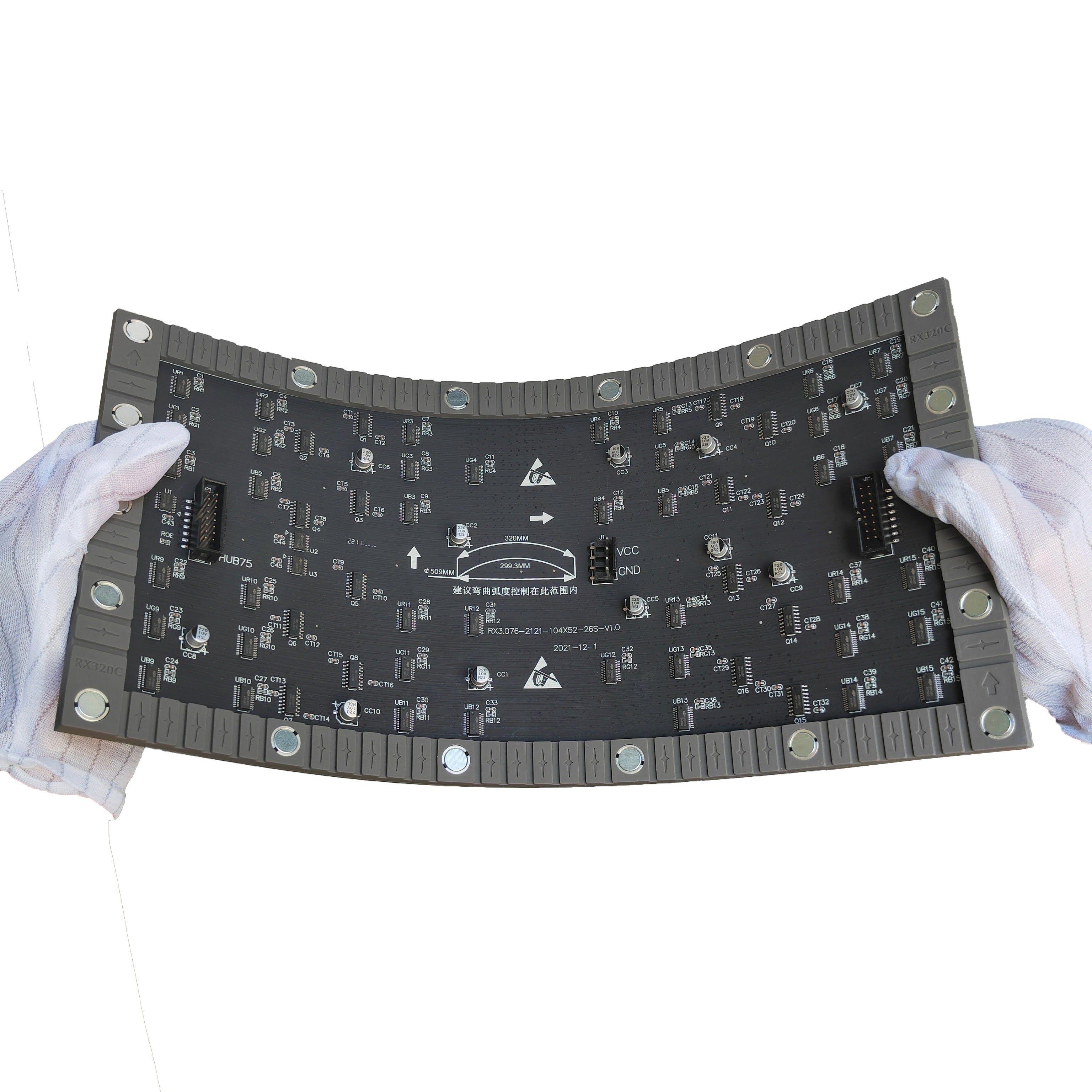

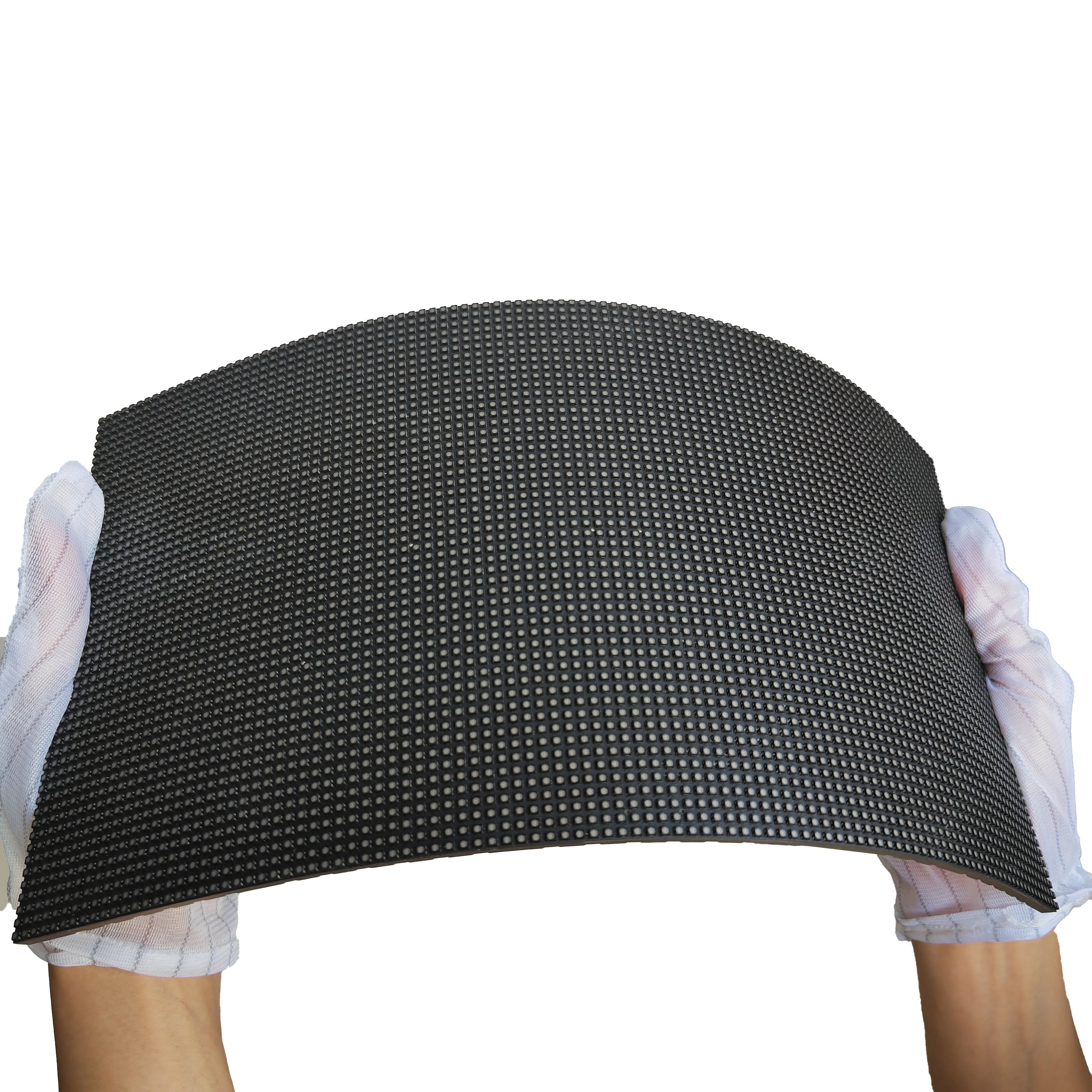

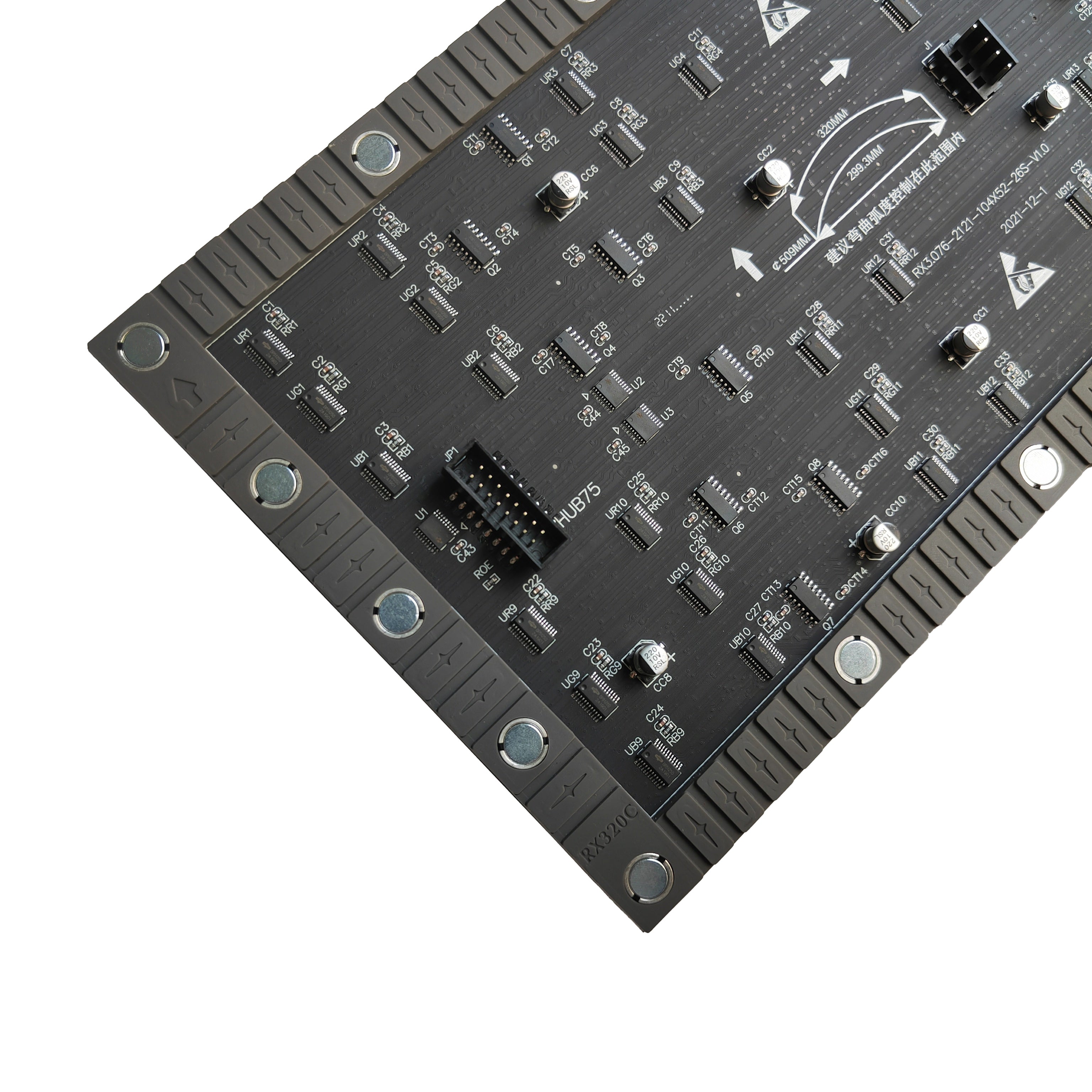

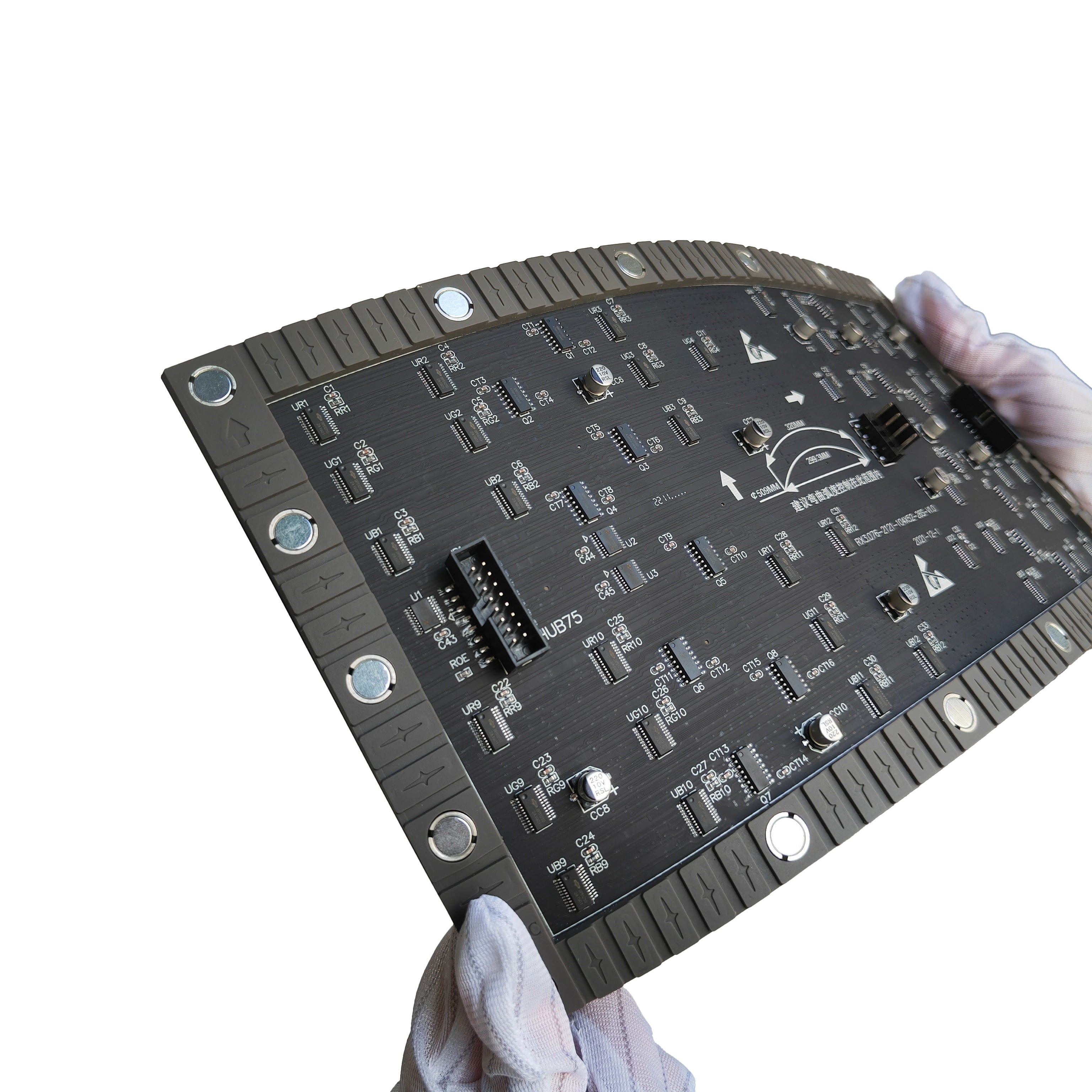

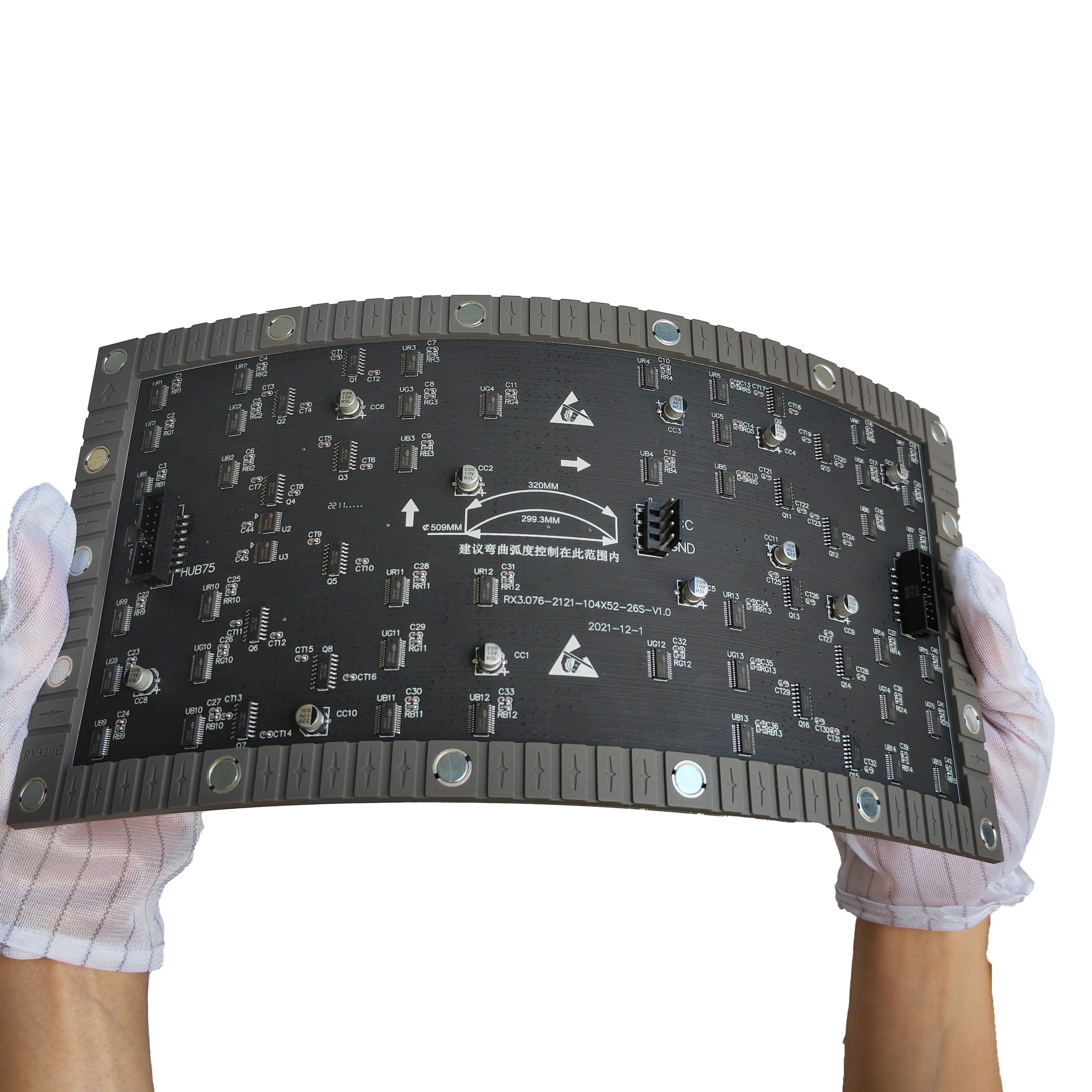

HKXR3L (P3.076) Indoor Flexible LED Display Module, 3mm Full RGB Pixel LED Display Panel Screen in 320* 160 mm with 5408 dots, 1/26 Scan, >600 Nits LED Tile for Indoor Display

Save $11.00

Price:
Sale price$28.00 USD Regular price$39.00 USD

Description

HKXR3L (P3.076) Indoor Flexible LED Display Module, 3mm Full RGB Pixel LED Display Panel Screen in 320* 160 mm with 5408 dots, 1/26 Scan, >600 Nits LED Tile for Indoor Display

Items HKXR3L
Technical Parameters
Pixel Configuration 1R1G1B Full Color
Encapsulation SMD1515
Pixel Density (dots/m2) 105625
Module Size (mm) 320x160x8.6 (Width x Height x Thickness)
Moduel Resolution (dots) 104x52
Scan Mode 1/26
Standard Driver IC (Optional) Dual cache
Refresh Rate (Hz) 3840
Frame Rate (Hz) 60
Gray Scale (bit) 12 Adjustable
Splicing diameter/mm 407
Curved arc ≥135°
Data Interface Type HUB75no cascading interface
Moduel Barcket Materials Silicon Rubber Soft Bracket
Module Weight (Kg/pcs) 0.29
Cabinet Size Can be ODM freely upon module sizes
Cabient Material Powder Coated Sheet Metal Steel Cabinet
Cabinet Eveness (mm) ≤ 0.5
IP Protection Grade IP20
Assembly / Maintanance Type Front & Rear Assembly / Maintenance
Photoelectronic Special Features
Brightness (nits) >600
Color Temperature (K) 10,000—12,000 Adjustable
Brightness Eveness ≥97%
Horizontal / Vertical Veiw Angle ≥150°/≥120°
Contrast Ratio ≥6000:1
Electrical Parameters
Module Input Voltage DCV 5
Moduel Maximum Current DCA 4.2
Module Maximum Power Consumptionw/pcs 21
Working Input Voltage ACV 110—220
Peak Power Consumptionw/m2 410
Average Power Consumptionw/m2 118
Application Parameters
Typical Life Spanhrs 100,000
Working Temperature(℃) -20—40
Storage Temperaure(℃) -20—40
Working HumidityRH 20—75% (No Condensation)
Storage HumidityRH 20—75% (No Condensation)
