Description

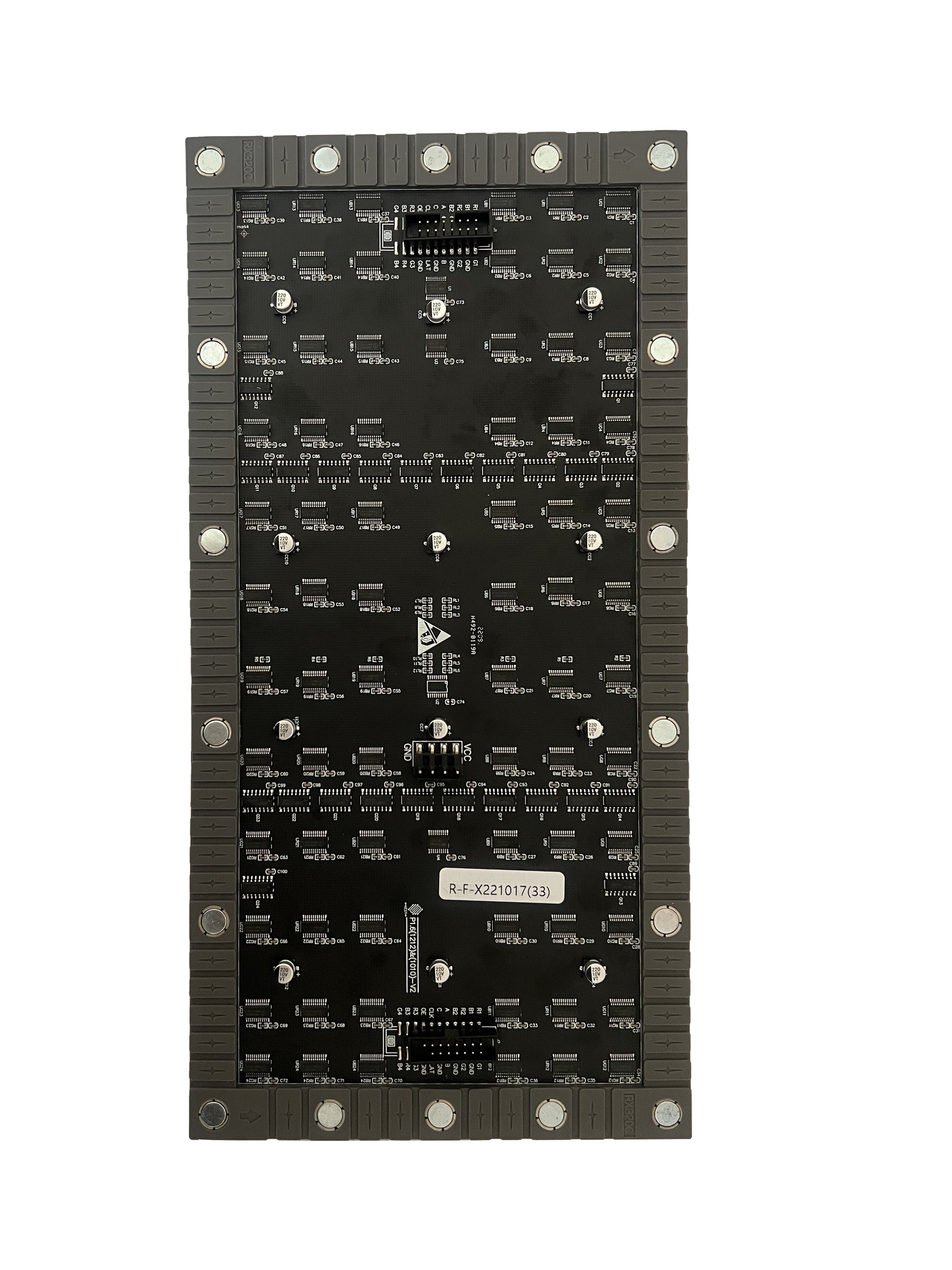

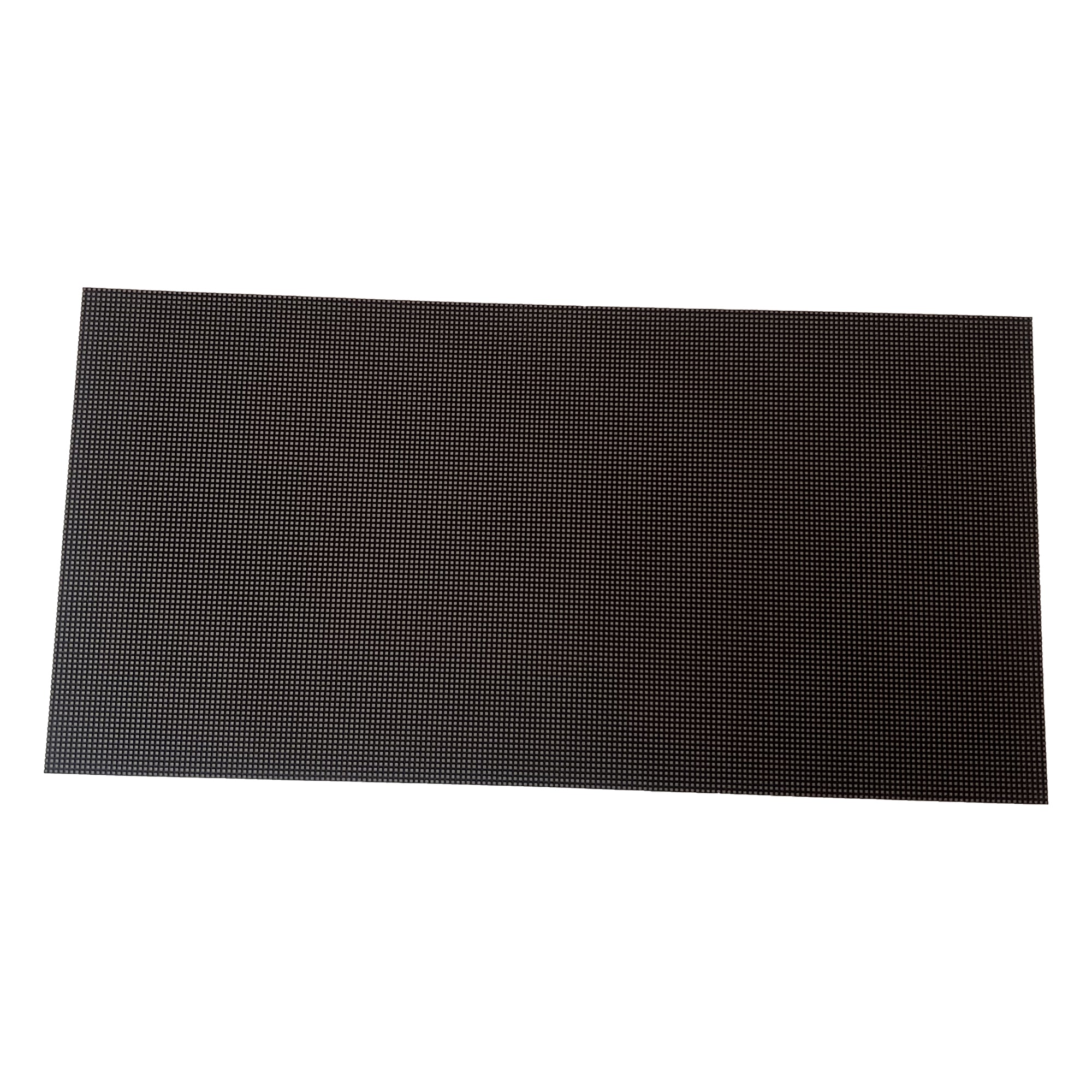

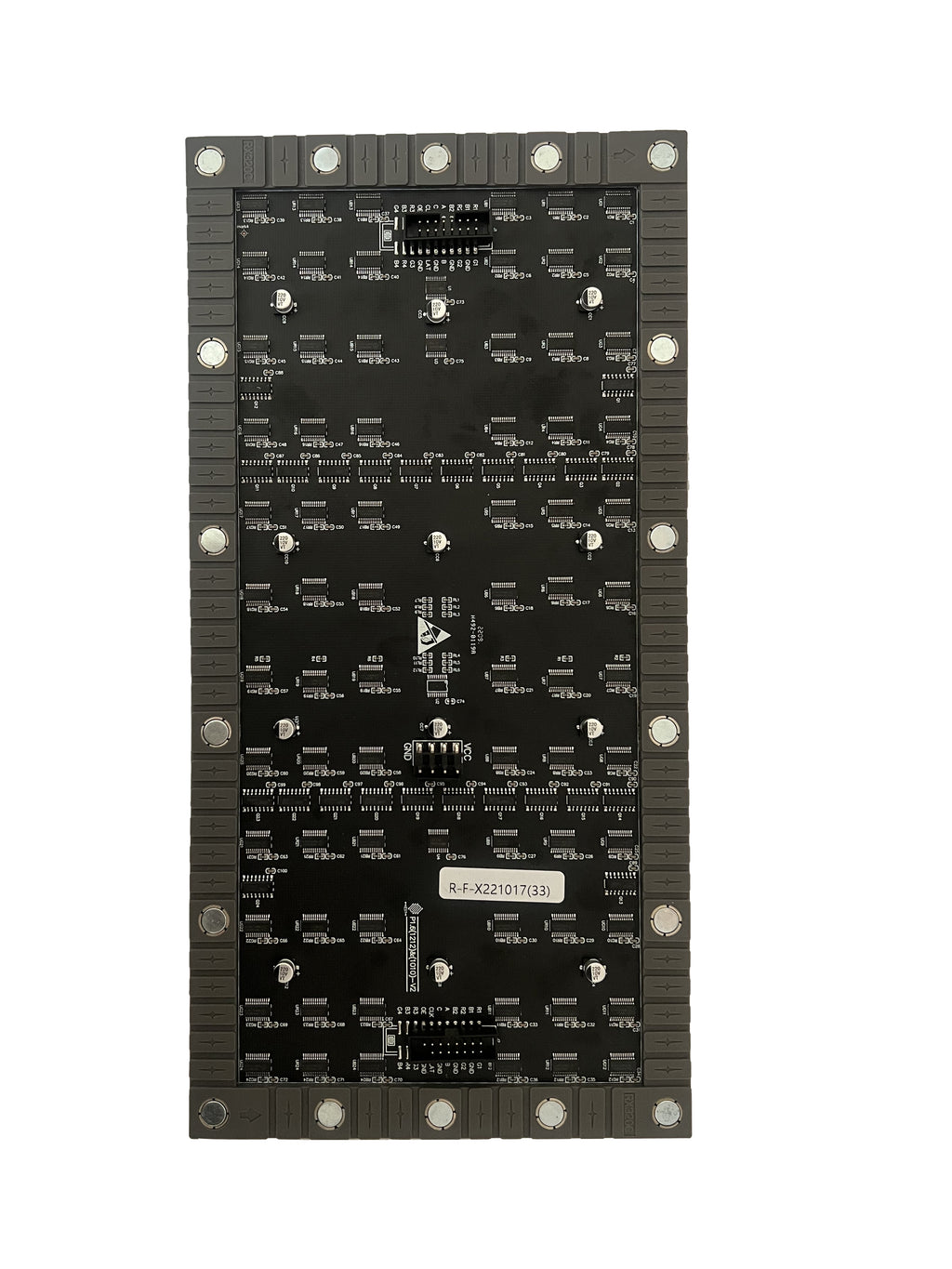

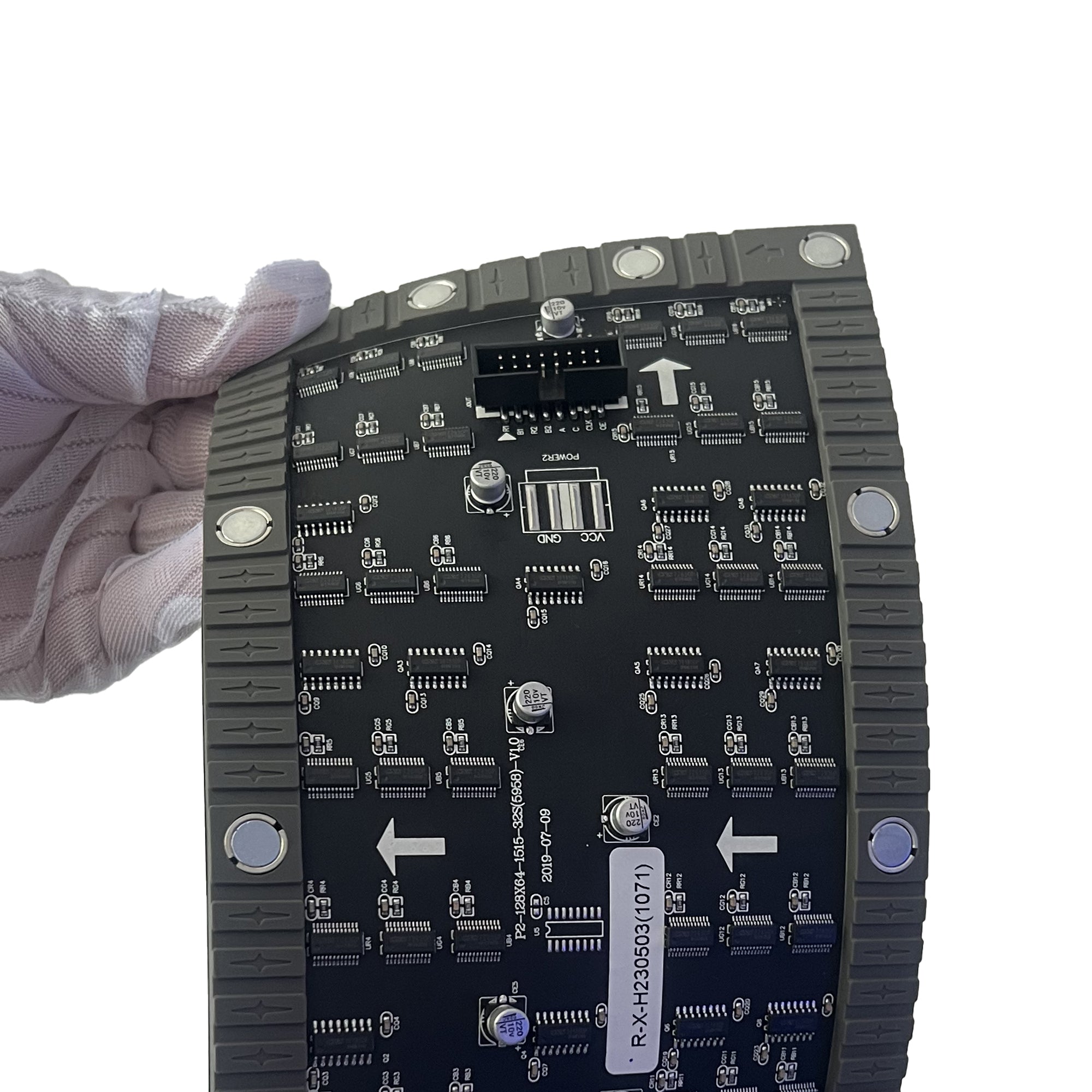

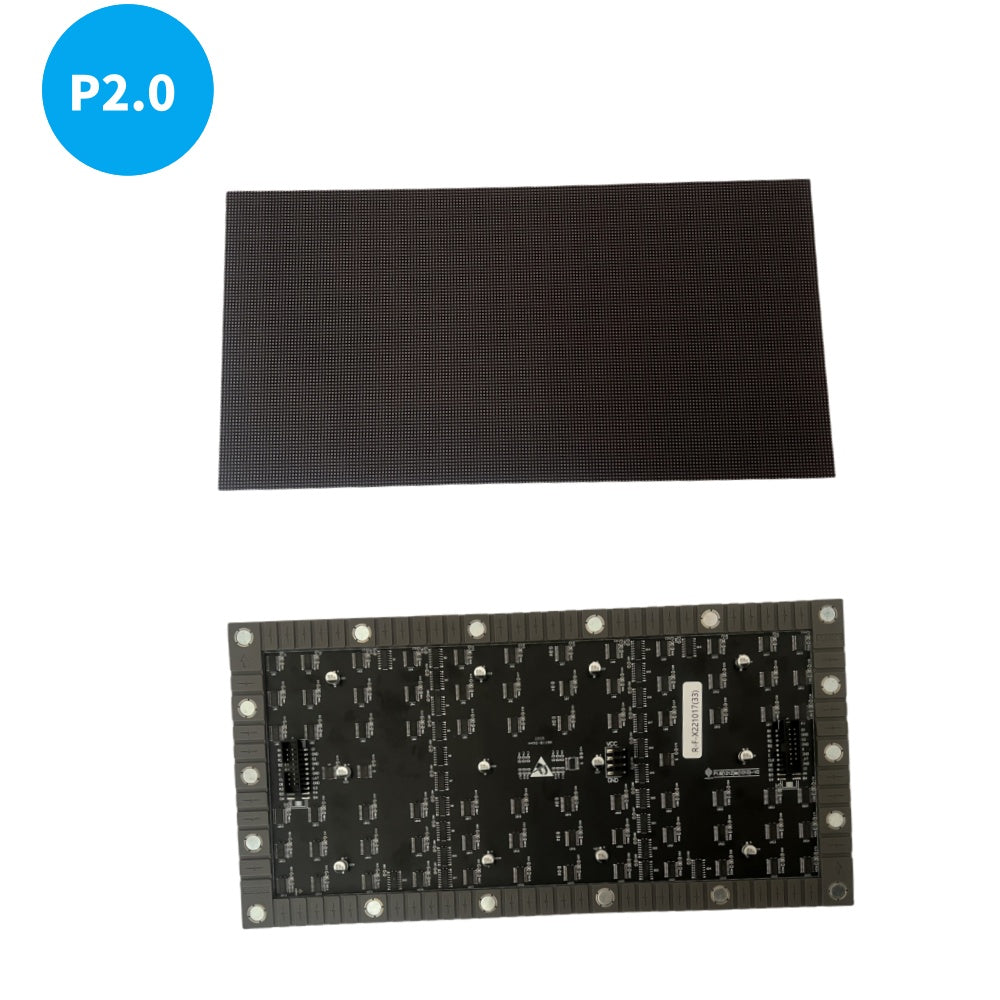

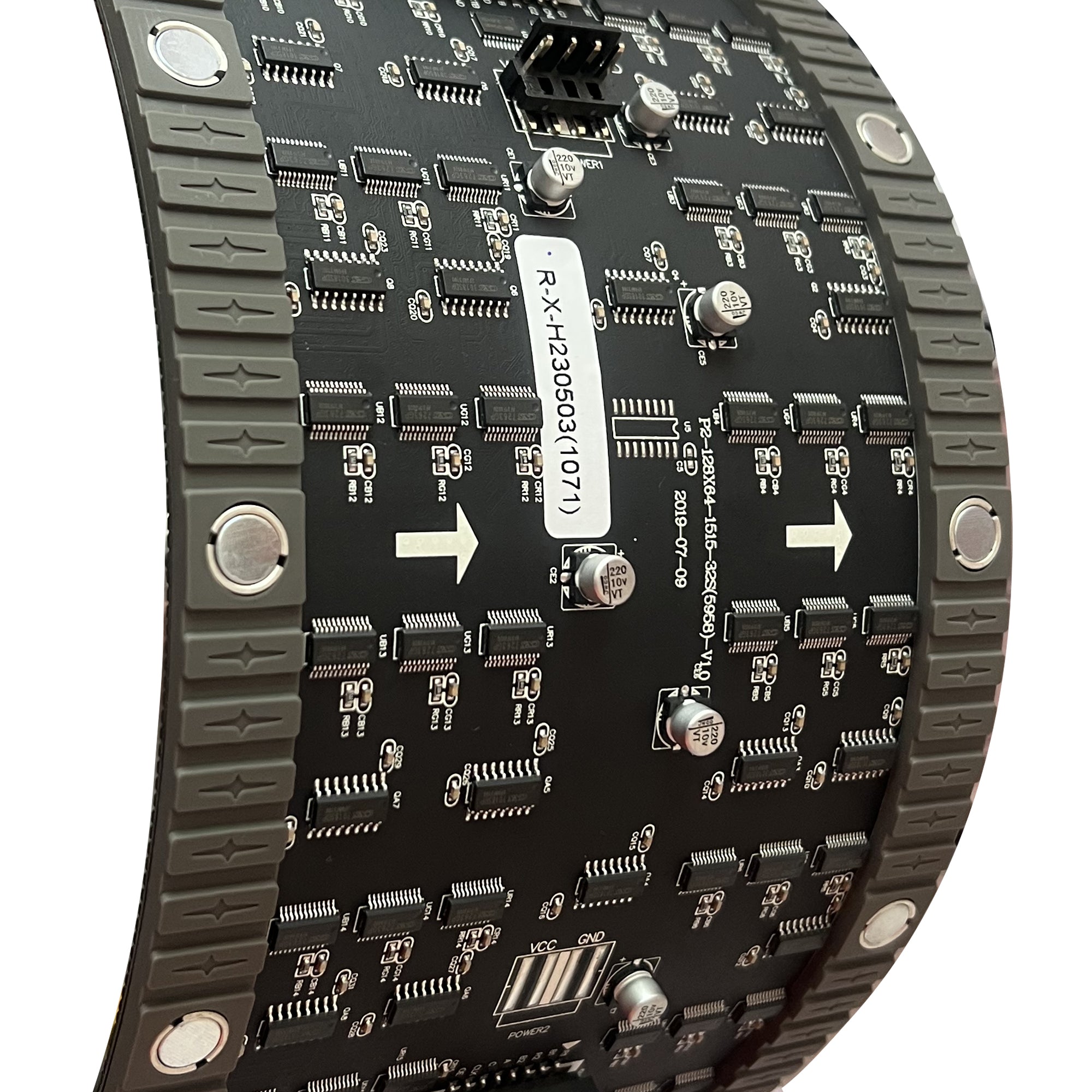

HKXR2M (P2) Indoor Flexible LED Display Module, 2mm Full RGB Pixel LED Display Panel Screen in 256 * 128 mm with 8192 dots, 1/32 Scan, 600 Nits LED Tile for Indoor Display
Included
- 1x Data Connector
- 1x 5V Power Connector
- 1 * P2 256*128mm RGB full color LED display module
Specification
| Items | HKXR2M |
| Technical Parameters | |
| Pixel Configuration | 1R1G1B Full Color |
| Encapsulation | SMD1515 |
| Pixel Density (dots/m2) | 250000 |
| Module Size (mm) | 256x128x8.6 (W x H x T) |
| Moduel Resolution (dots) | 128x64 |
| Scan Mode | 1/32 |
| Standard Dirver IC (Optional) | PWM |
| Refresh Rate (Hz) | 3840 |
| Frame Rate (Hz) | 60 |
| Gray Scale (bit) | 12-13 adjustable |
| Splicing diameter/mm | 652 |

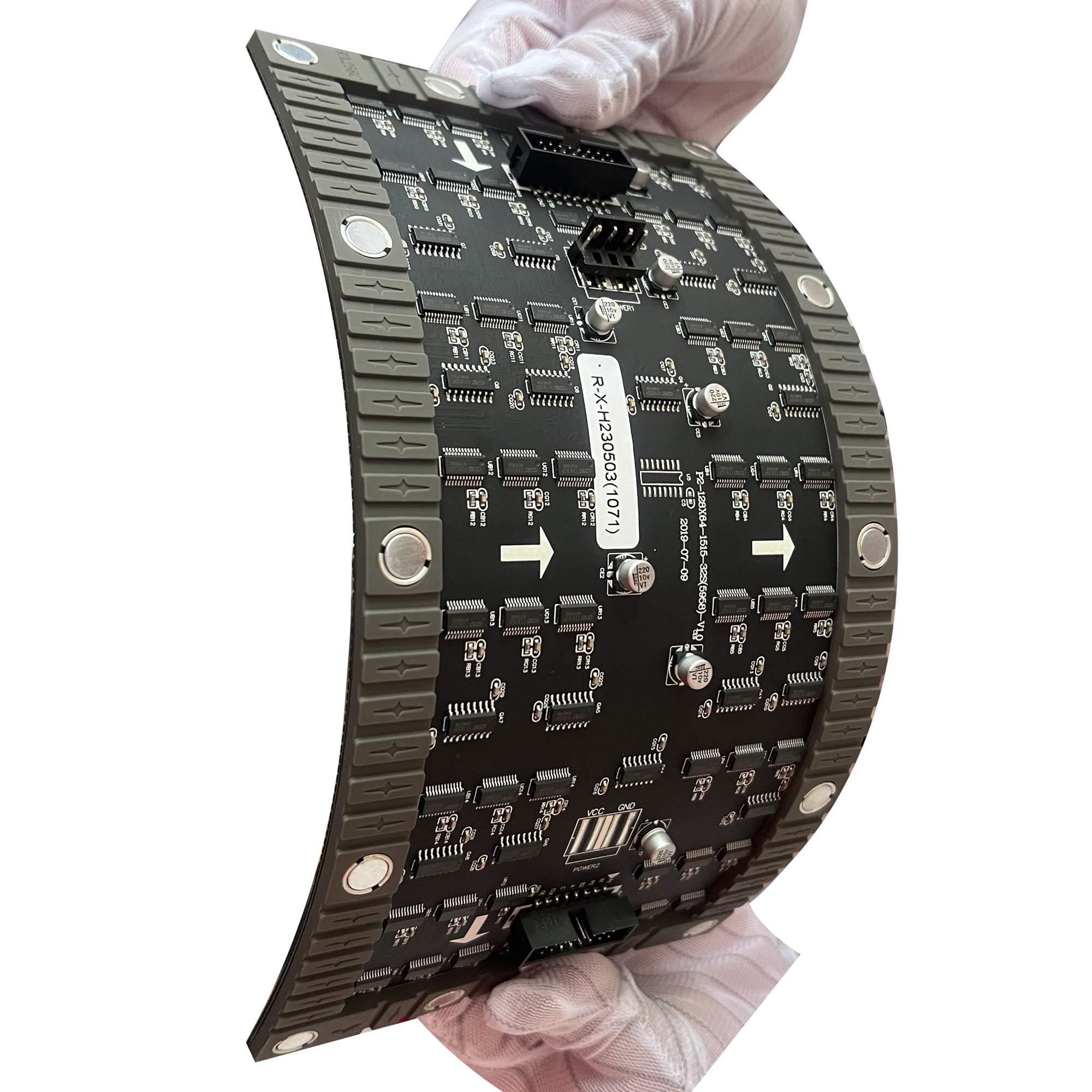

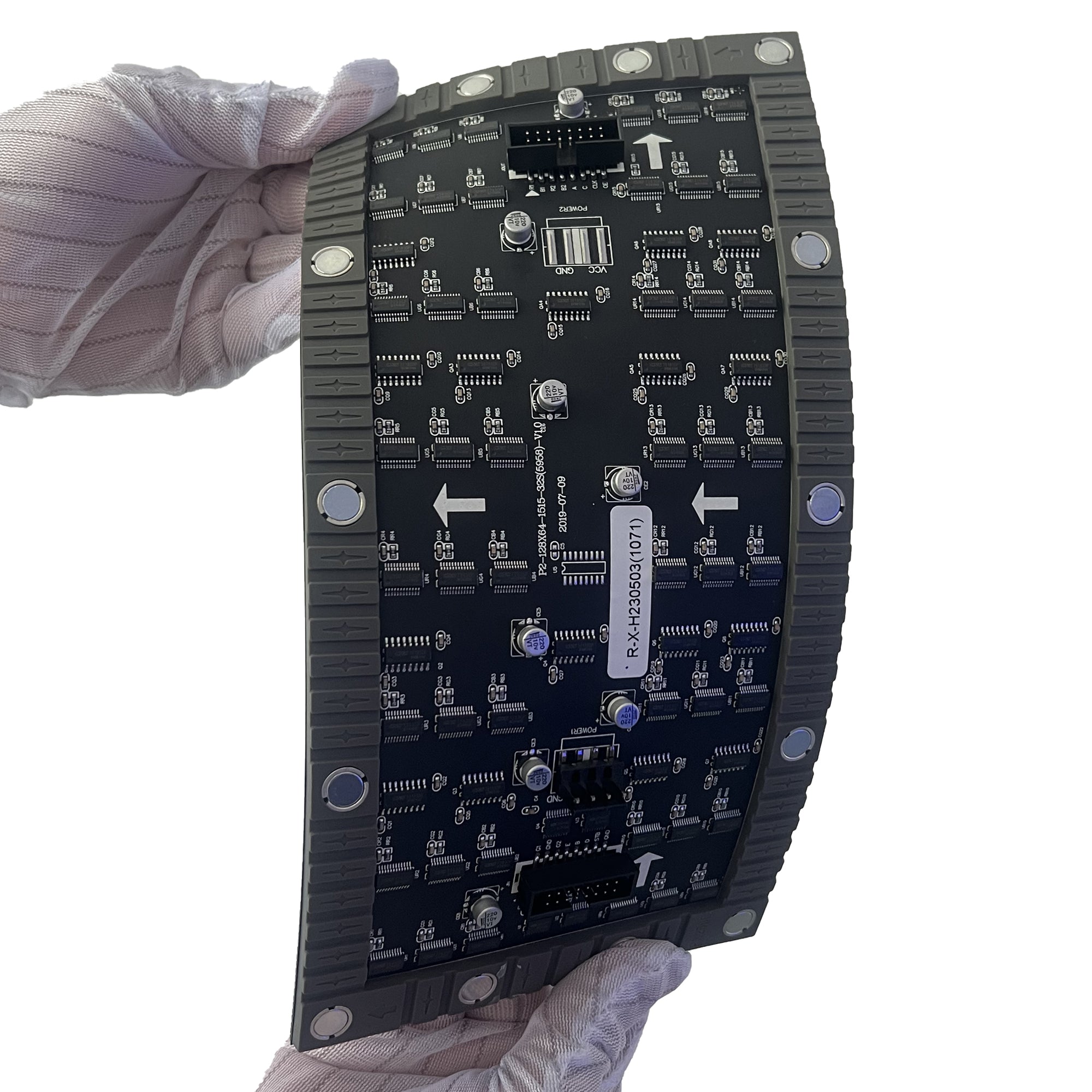

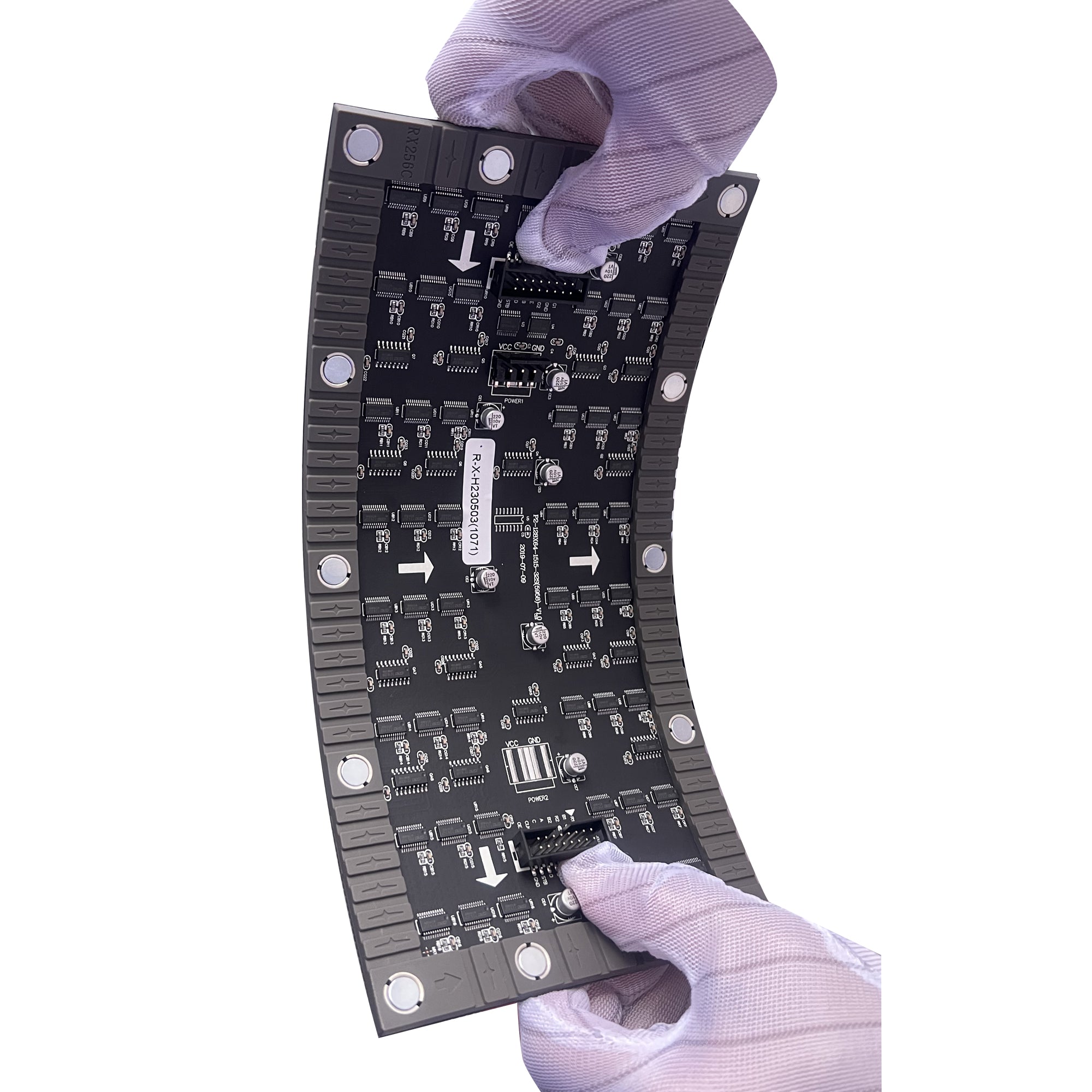

| Curved arc | ≥158° |
| Data Interface Type | HUB75 (1 in 1 out ) |
| Module Bracket Materials | Silicone soft bottom shell |
| Module Weight (Kg/pcs) | 0.225 |
| Cabinet Evenness (mm) | ≤ 0.5 |
| IP Protection Grade | IP20 |
| Assembly / Maintenance Type | Front & Rear Assembly / Maintenance |
| Photoelectronic Special Features | |
| Brightness (nits) | 600-800 |
| Color Temperature (K) | 10,000—12,000 Adjustable |
| Coordinate | X:0.2500 Y:0.3000 ± 0.01 |
| Horizontal / Vertical Veiwing Angle | X: 150° / Y: 120° |
| Contrast Ratio | ≥5000:1 |
| Electrical Parameters | |
| Module Input Voltage DC（V） | 5 |
| Module Maximum Current DC（A） | 2.8 |
| Maximum Power Consumption（w/pcs） | 14 |
| Working Input Voltage AC（V） | 110—220 |
| Peak Power Consumption（w/m2） | 490 |
| Average Power Consumption（w/m2） | 140 |
| Application Parameters | |
| Typical Life Span（hrs） | 100,000 |
| Working Temperature（℃） | -20—40 |
| Storage Temperature（℃） | -20—40 |
| Operating temperature range（℃） | -20—40 ℃ |
| Operating humidity range（RH） | 20%—75%RH |
