Description

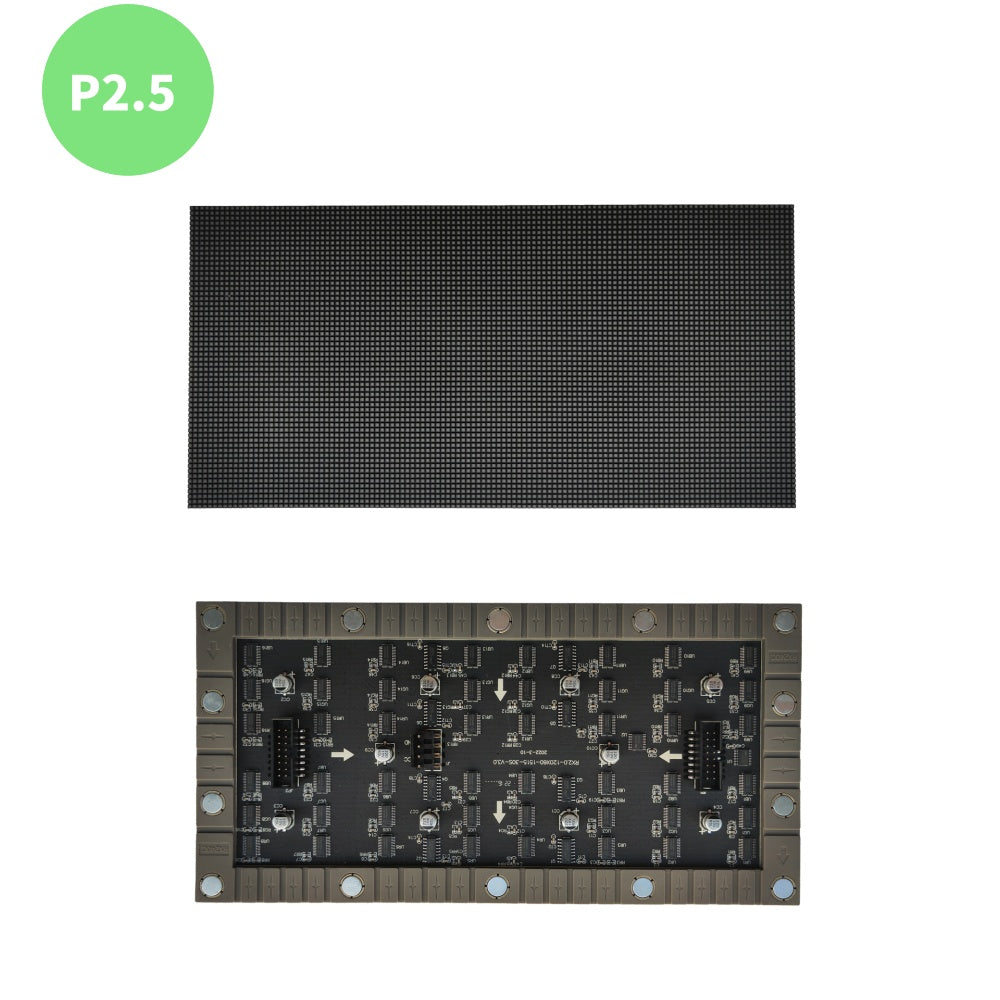

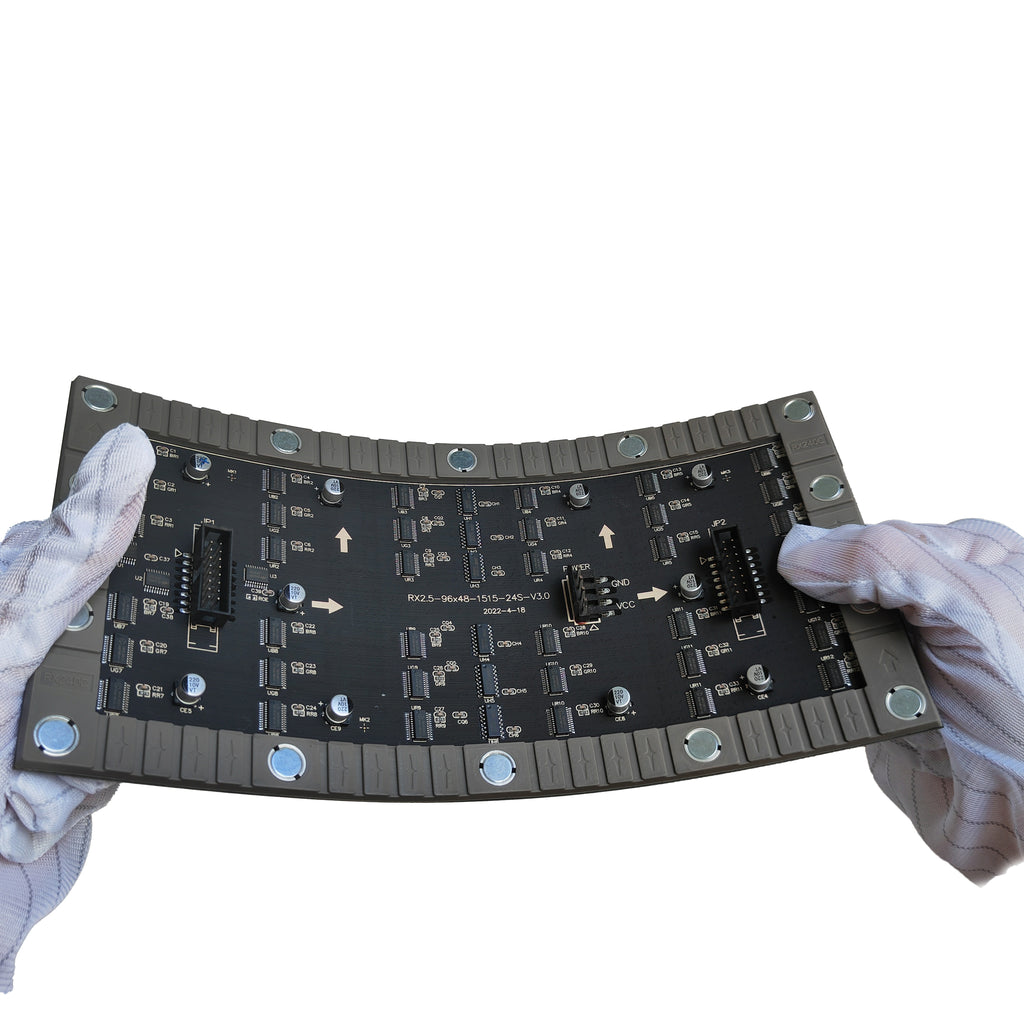

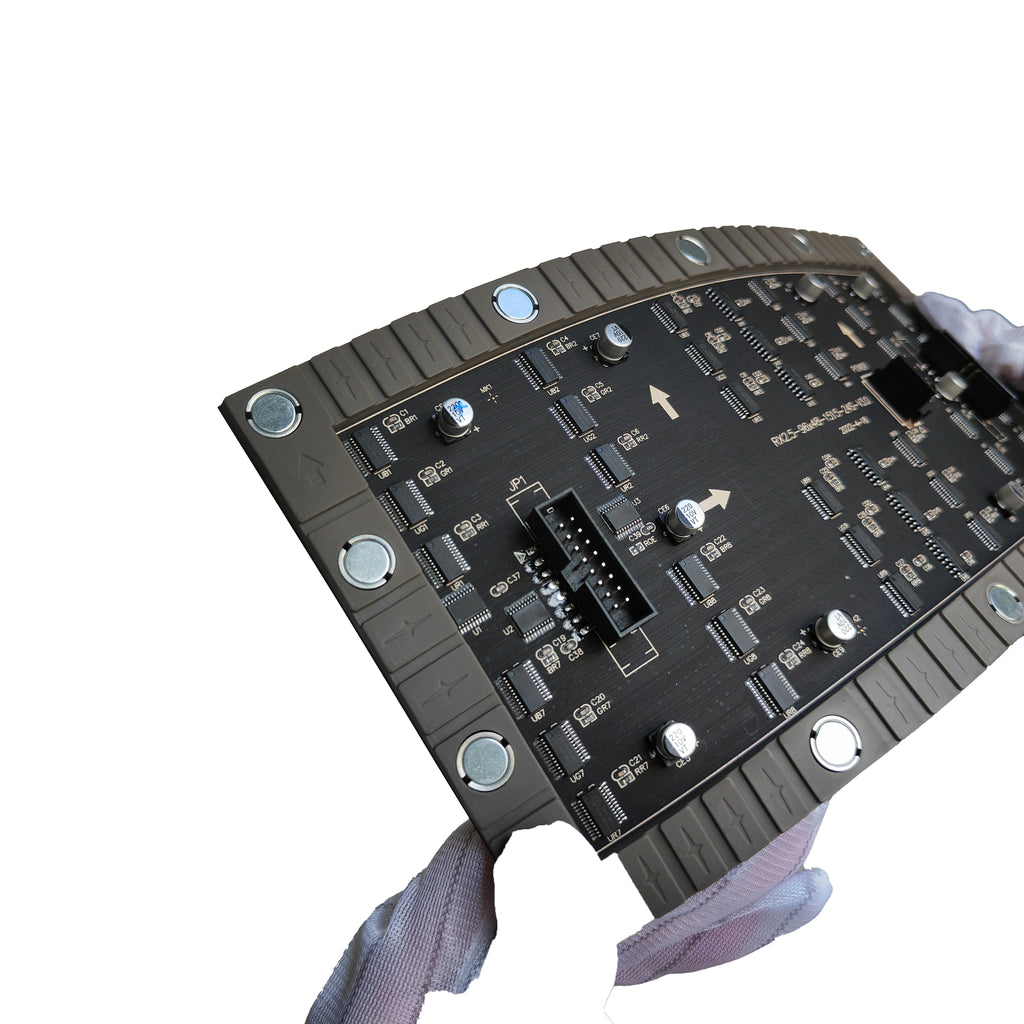

HKXR-A2.5 (P2.5) Indoor Flexible LED Display Module, 2.5mm Full RGB Pixel LED Display Panel Screen in 240* 120 mm with 4608 dots, 1/30 Scan, 600 Nits LED Tile for Indoor Display
Included
1 * Power Cable
1 * Data Cable
1 * P2.5 240*120mm RGB full color LED display module
| Items | HKXR-A2.5 |
| Technical Parameters | |
| Pixel Configuration | 1R1G1B Full Color |
| Encapsulation | SMD1515 |
| Pixel Density (dots/m2) | 160000 |
| Module Size (mm) | 240x120x8.6 (Width x Height x Thickness) |
| Module Resolution (dots) | 96x48 |
| Scan Mode | 1/24 |
| Standard Driver IC (Optional) | PWM or Dual cache |
| Refresh Rate (Hz) | 3840 |
| Frame Rate (Hz) | 60 |
| Gray Scale (bit) | 12 Adjustable |
| Splicing diameter/mm | 306 |
| Curved arc | ≥169° |
| Data Interface Type | HUB75（1 in 1 out） |
| Module Bracket Materials | Silicon Rubber Soft Bracket |
| Module Weight (Kg/pcs) | 0.19 |
| Cabinet Size | Can be ODM freely upon module sizes |
| Cabinet Material | Powder Coated Sheet Metal Steel Cabinet |
| Cabinet Evenness (mm) | ≤ 0.5 |
| IP Protection Grade | IP20 |
| Assembly / Maintenance Type | Front & Rear Assembly / Maintenance |
| Photoelectronic Special Features | |
| Brightness (nits) | 600 |
| Color Temperature (K) | 3,000—10,000 Adjustable |
| Brightness Evenness | ≥97% |
| Horizontal / Vertical View Angle | ≥160°/≥140° |
| Contrast Ratio | ≥5000:1 |
| Electrical Parameters | |
| Module Input Voltage DC（V） | 5 |
| Module Maximum Current DC（A） | 2.6 |
| Module Maximum Power Consumption（w/pcs） | 15 |
| Working Input Voltage AC（V） | 110—220 |
| Peak Power Consumption（w/m2） | 460 |
| Average Power Consumption（w/m2） | 130 |
| Application Parameters | |
| Typical Life Span（hrs） | 100,000 |
| Working Temperature（℃） | -10—40 |
| Storage Temperature（℃） | -20—40 |
| Working Humidity（RH） | 20—75% (No Condensation) |
| Storage Humidity（RH） | 20—70% (No Condensation) |
