LEDLIGHTSWORLD infrared 850nm/940nm LED strip.This popular LED strip light has 30 bright LED tri-chip 5050 LED per meter. Available in 50cm, 100cm, 200cm, 300cm, 400cm and 500cm lengths with yellow, black, or white finish options. Special lengths requirement can be customized. Non-weatherproof, Waterproof IP65/IP67 and IP68 flexible light strips with adhesive backing, can be cut into 3-LED segments(4inch long). 12VDC operation. Dimmable with compatible LED dimmers

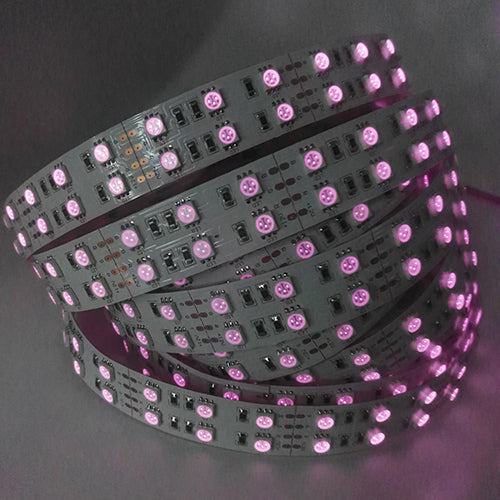

1) The Infrared LED Strip is invisible light

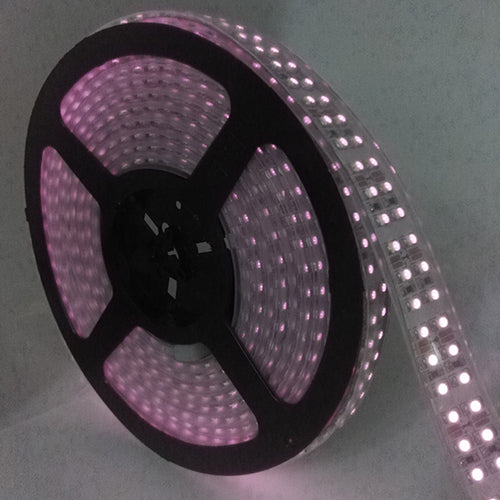

2) To put the IR strip under the Camera with Night Vision (NO IR filter), you can see red spot
|LED Type||SMD5050||Strip Section||6LED per 2inch|
|Length Available||0.5 to 5 Meter||Available Color||850nm and940nm|
|Protection Grade||Non-waterproof, IP65, IP67||PCB Background||White|
|Item||DC12V SMD5050-600-IR InfraRed (850nm/940nm) Tri-Chip Double Row Flexible LED Strips 120LEDs 28.8W Per Meter|
|Weight||0.35kgs/roll for non-waterproof; 0.5kgs/roll for IP65/IP67|
|PCB Backing||Adhesive backing for Non-waterproof and waterproof IP65/IP67|
|Lead||Single color strip has two contacts(V+,V-) and is Polarity Sensitive.|
|Pre-wiring||20cm(8'') Red-Black lead wire is pre-soldered at one end of the strip|

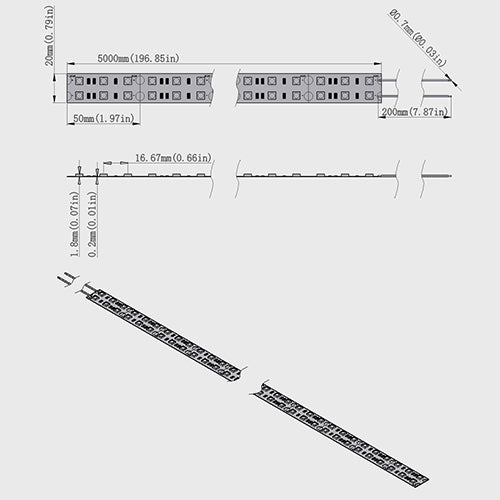

Drawing per 5000mm for non-waterproof strip (1inch=25.4mm)
*For surveillance or security
*For Night Version Light
*For the multitouch display

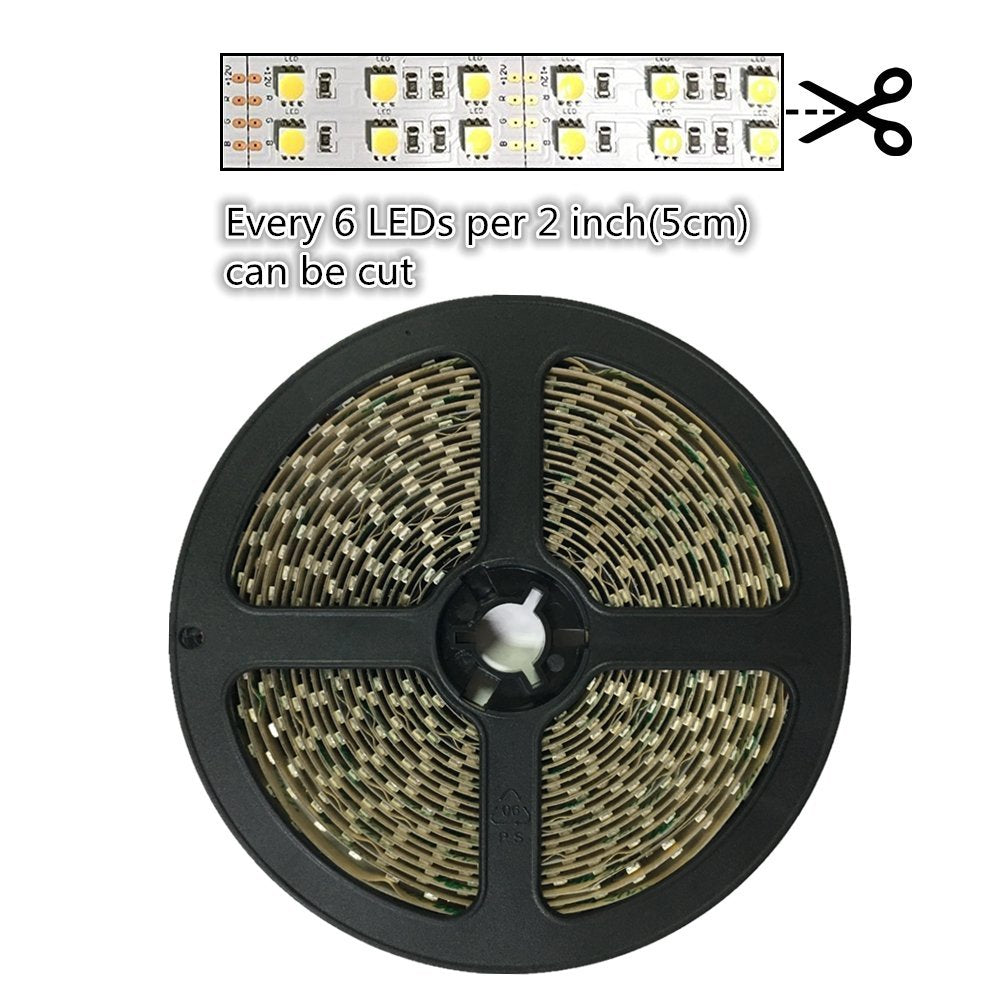

*Can be cut into 6-LED segments
*Dimmable - See our Dimmer Selection
*Always disconnect power supply before cutting/connecting LED Light Strips.
*Do not crimp strip tape, attempt to bend strips width-wise, or length-wise to a radius less than 15mm
*Do not connect LED Light Strips directly to 120V AC power.
*Apply power to test LED Light Strips before mounting.
Waterproof Strip Dimension

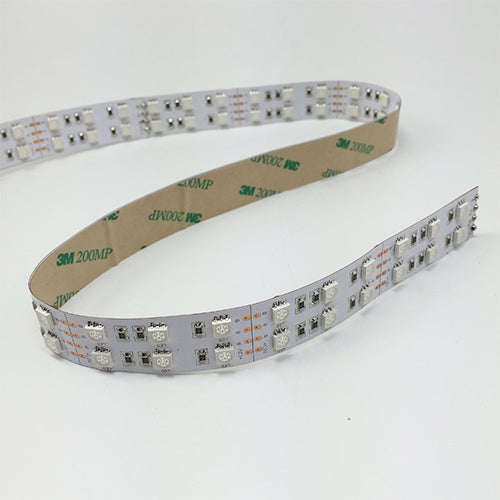

*Non-waterproof : Bare Strip, with self-adhesive backing, for indoor or dry location use.

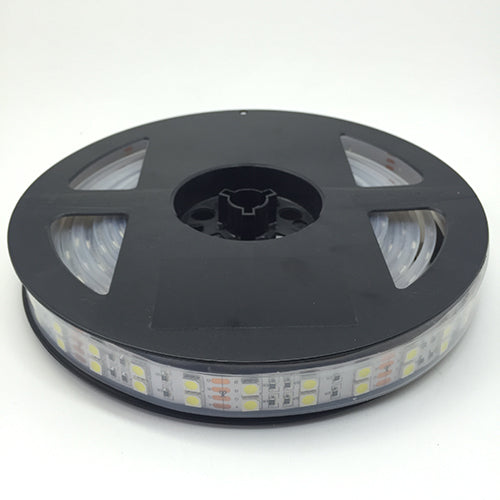

*Waterproof IP65 : Strip Surface is covered on top with Gel, and with self-adhesive backing. IP65 grade can protect sprayed water from all direction.

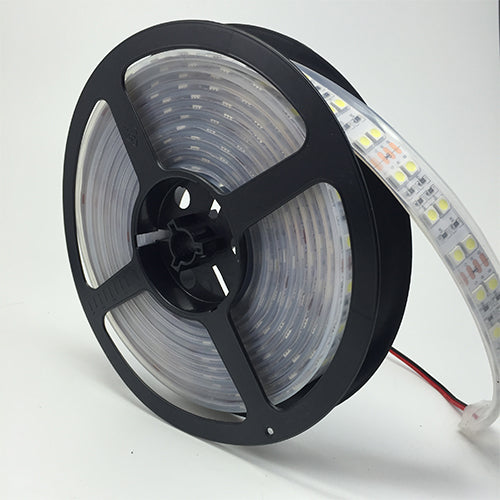

*Waterproof IP67: The bare strip is put in a hollow silicone tube and sealed at two ends. IP67 grade can shortly immersed in water.
*Waterproof IP68: The bare strip is put in a U Shape silicone tube, then covered on top with silicon gel, and sealed at two ends, which make it's solid.IP68 grade can be used under water.
How to power/control the strip
When choosing the transformer, the wattage to choose depends on how many pieces light strips it power.And when choosing the transformer, we suggest to use a bigger wattage transformer than the strip rated power to avoid full load working of the transformer. And a big power transformer do no harm to the strip but good for safty.
And a big power transformer do no harm to the strip but good for safty.
Below please find the connection diagram for Single Color Light Strip for reference.
Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)
#1 Typical connection for one Dimmer to control one string of light bars
#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifer loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
