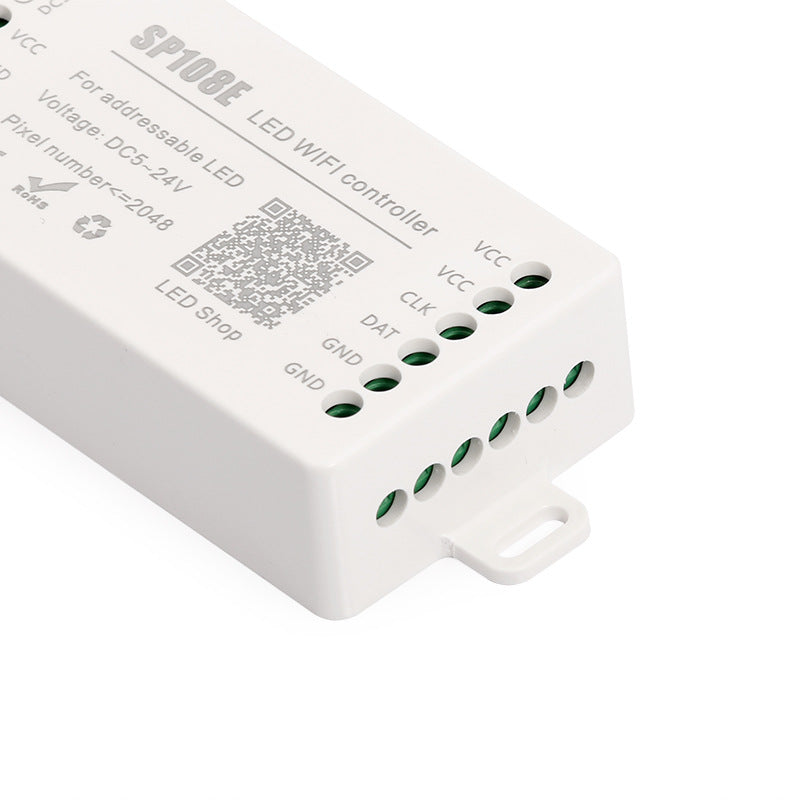

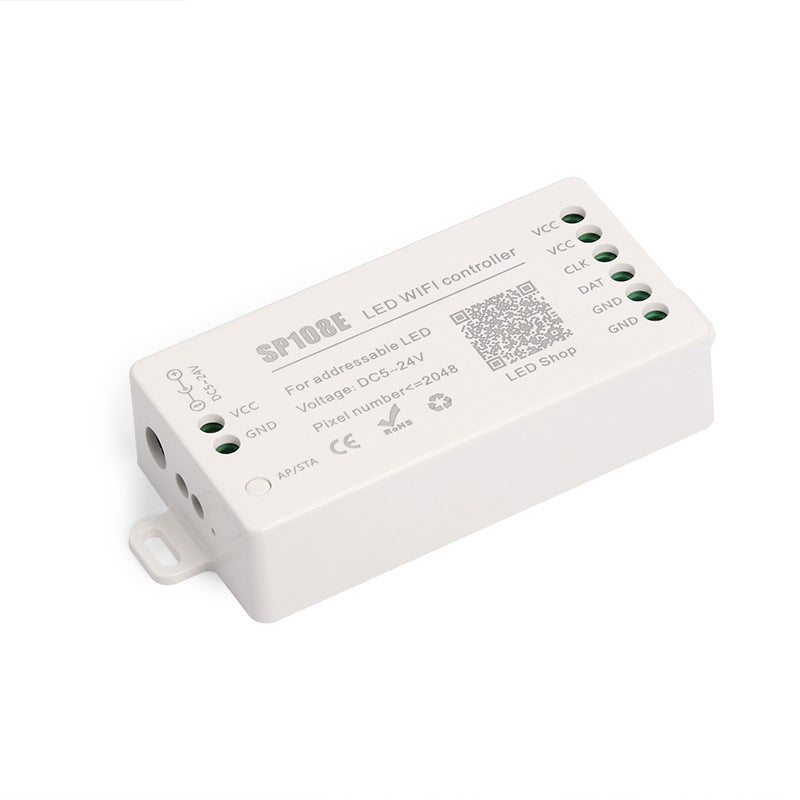

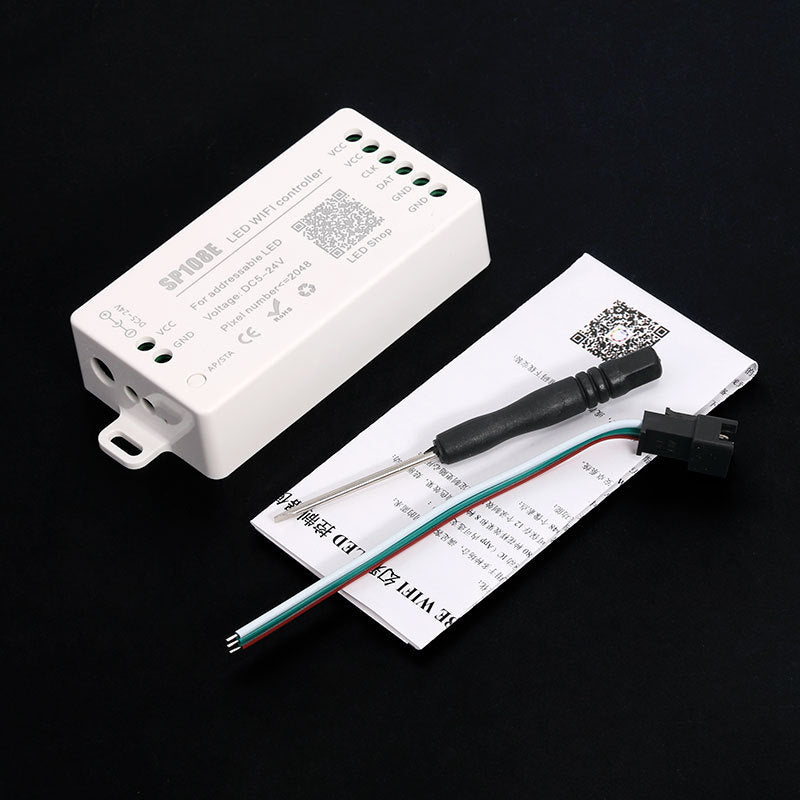

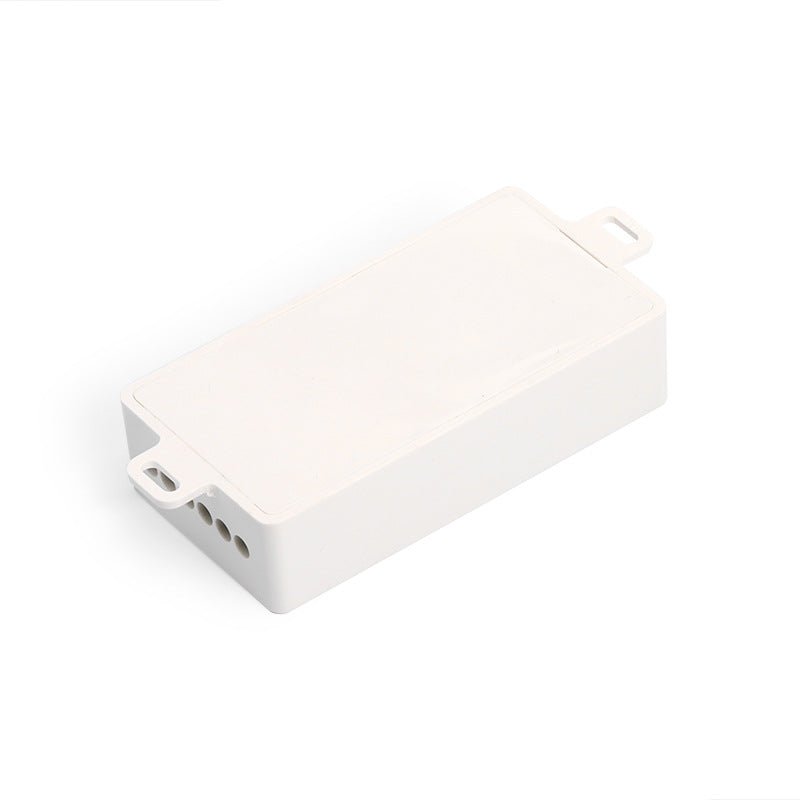

5V-24V DC Wireless SP108E Bluetooth Music Symphony Controller for Dream Color Magic Color Addressable Color Changing LED Flexible Strip Lights Max 2048Pixels Controllable

1. Product parameters:

a: DC5-24V wide voltage input, the power supply has anti-reverse connection function.
b: Mobile phone APP control, remote control distance is long.
c Support routing mode and LAN connection mode, suitable for various occasions.
d: Brightness adjustable; RGB channel sequence adjustable; built-in 180 pattern effects and 8 adjustable color effects.
e: You can select the mobile phone picture to preview or keep, up to 12 recording effects can be saved.
f: Adjustable number of segments and points, up to 2048 pixels.
g: With the function of saving the setting parameters when power off.
h: Net weight 40g. Gross weight 65g
i: Size: 85mm*45mm*22mm


2. Support IC:

SM16703.UCS1903.WS2811. WS2812.WS2801.WS2813. WS2818.SK6812.SK6812RGBWTM1804.TM1914.TM1913. LPD6803.LPD8806.SK9822. GS8206.GS8208.TX1812. TX1813.INK1003.APA102. APA105.DMX512.P9813. P943S.P9411. P9413.P9414 P9412. (All the above IC APPs can be selected. Both Android and iPhone)

Product application: You can find the APP in the App Store, Google Play, and App Store by searching for "LedShop"


3. Technical parameters:
Working temperature: -20℃~60℃;
Working voltage: DC5V~24V;
Working current: 20mA~90mA;
Remote control distance: 30M;
Size: 80mm*41mm*20mm;
Net weight: 40g;
Certification: CE, RoHS;



4. Working mode and connection method:

This controller supports two working modes:

• Routing mode (AP): In this mode, the mobile phone is directly connected to the controller, and the controller is equivalent to a connection hotspot. When the controller is not connected to any WIFI network, the controller will automatically switch to AP mode after waiting for 20s after power-on. The user first needs to find the wireless hotspot named SP108E_xxx on the WIFI setting page of the mobile phone, and then connect, password The default is 12345678. After the connection is successful, enter the APP to start the control;

•LAN connection mode (STA) mode: In this mode, the mobile phone and the controller are in the same local area network at the same time, and users in the local area network can control it at any time. If the controller is not connected to any WIFI network, it will be in a state of waiting for network configuration within 20 seconds after power-on. If you need to add the controller to the wireless network, first ensure that the mobile phone has been connected to the WIFI network, enter the APP and click the add device button, Enter the current WIFI password, click the Confirm button and wait for the network configuration to complete. Select the corresponding controller and click Remove Device to remove the controller from the current network.

5. Connection method:
