2Pack 3.3ft/1M Flush Mounting LED Aluminum Channel, 17mm Wide for Cutout Size, 71mm for Height, Anodized Extruded Aluminum Profile, with Milky White Cover, Silver Housing Aluminum Track, Inner Width 12mm (0.47inch) for PCB

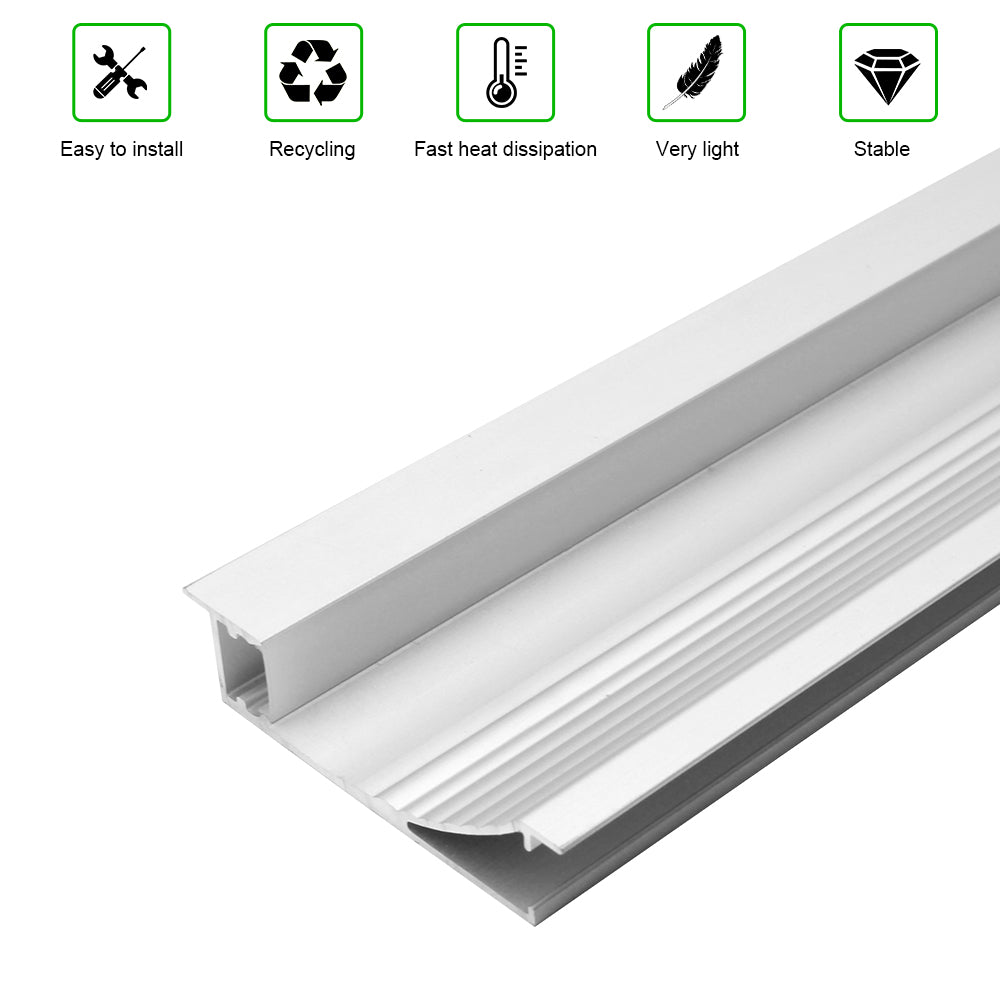

【Heat Dissipation Aluminum Profile】 The aluminum profile is made of high-precision, high-strength aluminum, with fast heat dissipation, durable corrosion resistance, and wear-resistant.
【Protective Cover】 The milky white cover having an 85% transmittance producing homogenous & soft lighting works well to help spread the light and makes the LED light diffuse, gives a soft and uniform light.
【Aluminum Profile Inner Width】12mm (0.47inch) inner width, this aluminum channel works with LED strip lights and waterproof strip lights less than 12mm (0.47inch) wide. You can put several narrow LED strips in it to make the lighting
【Installation Method】 This special shape aluminum profile is designed for recessed into wall or furniture, with an LED strip stick inside, it's a chic lighting.
Item: Aluminum Channel
Housing Colour: Silver
Cover Colour: Milky White

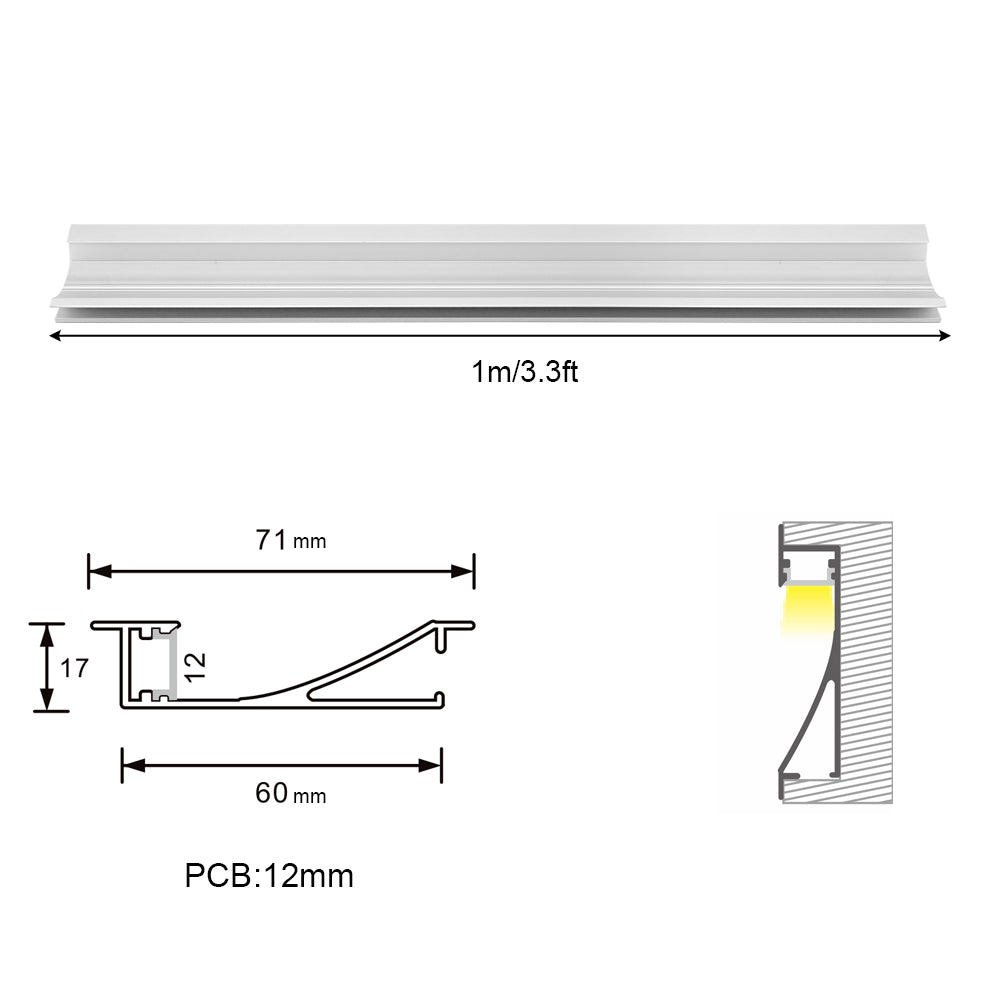

Length: 1000mm (39.37inch) (max length
Width: 17mm (0.669inch)
Inner width for PCB: 12mm (0.47inch)
Height: 71mm (2.795inch)
Mounting: Recessed Mounting
Material: Extruded, Anodized aluminum
NOTE: Max length 3 Meters (9.84/ft), if need other lengths, please contact us.

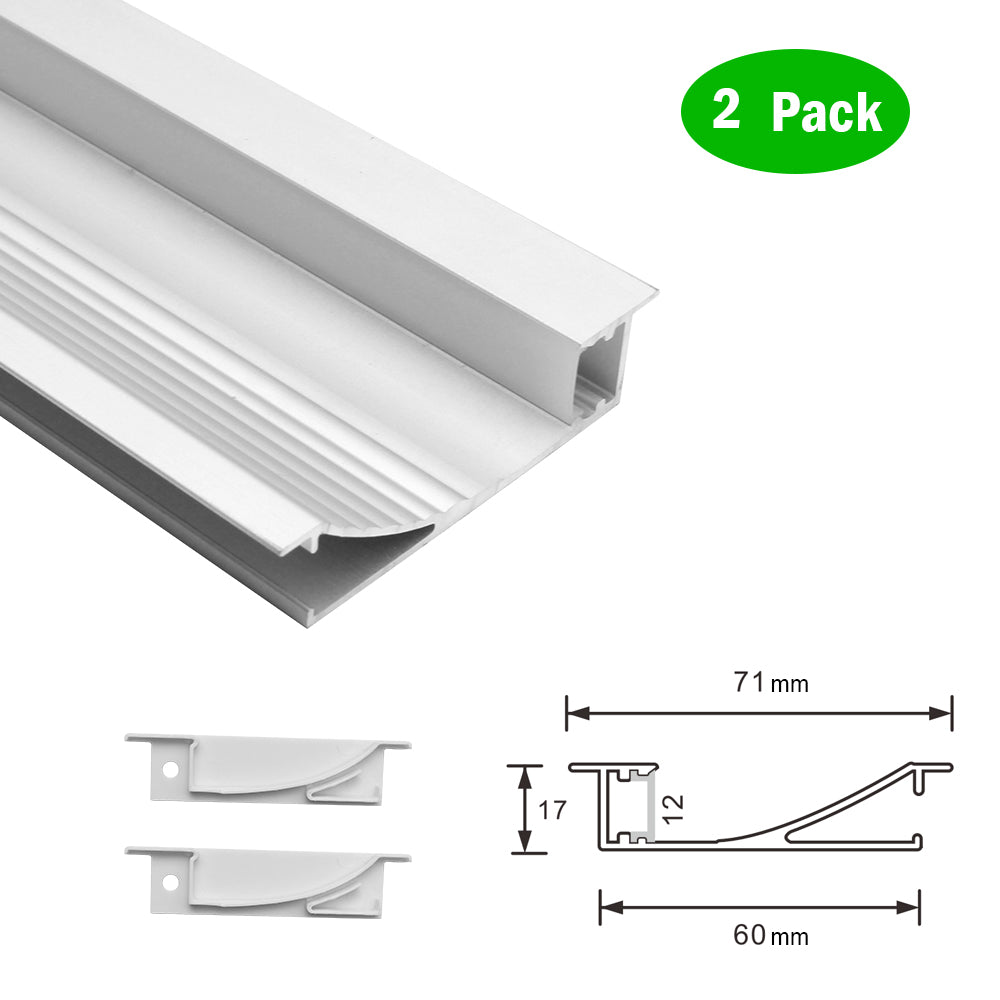

2x 1Meter L7117 Extruded Aluminum Channel
2x 1Meter L7117 Milky White Diffuser (cover)
2x End Cap
