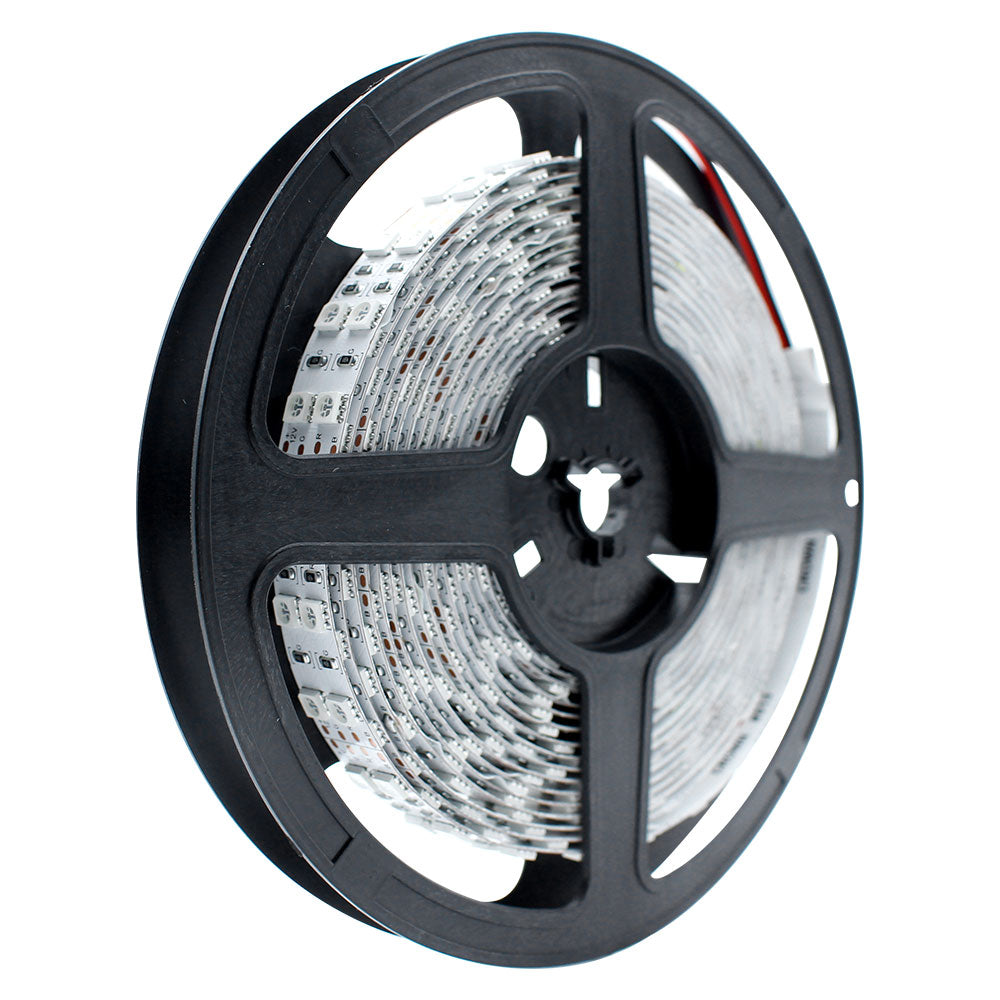

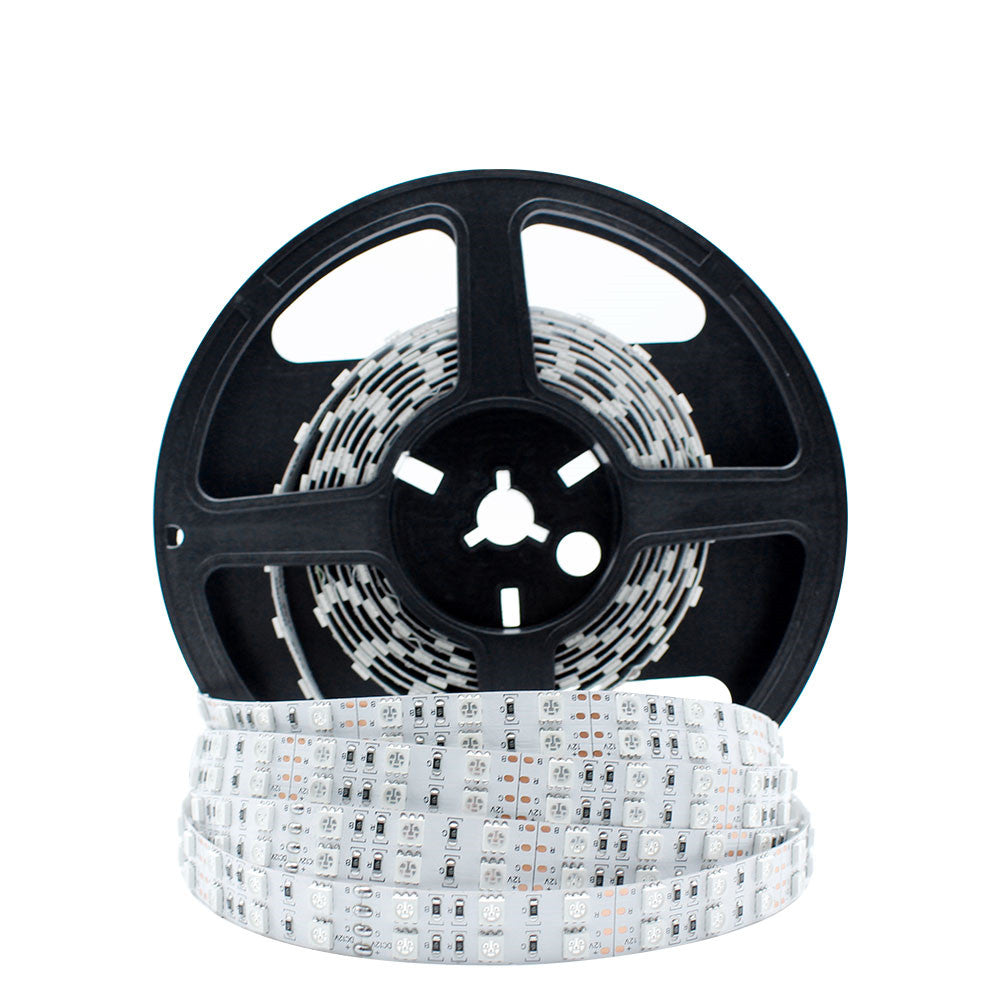

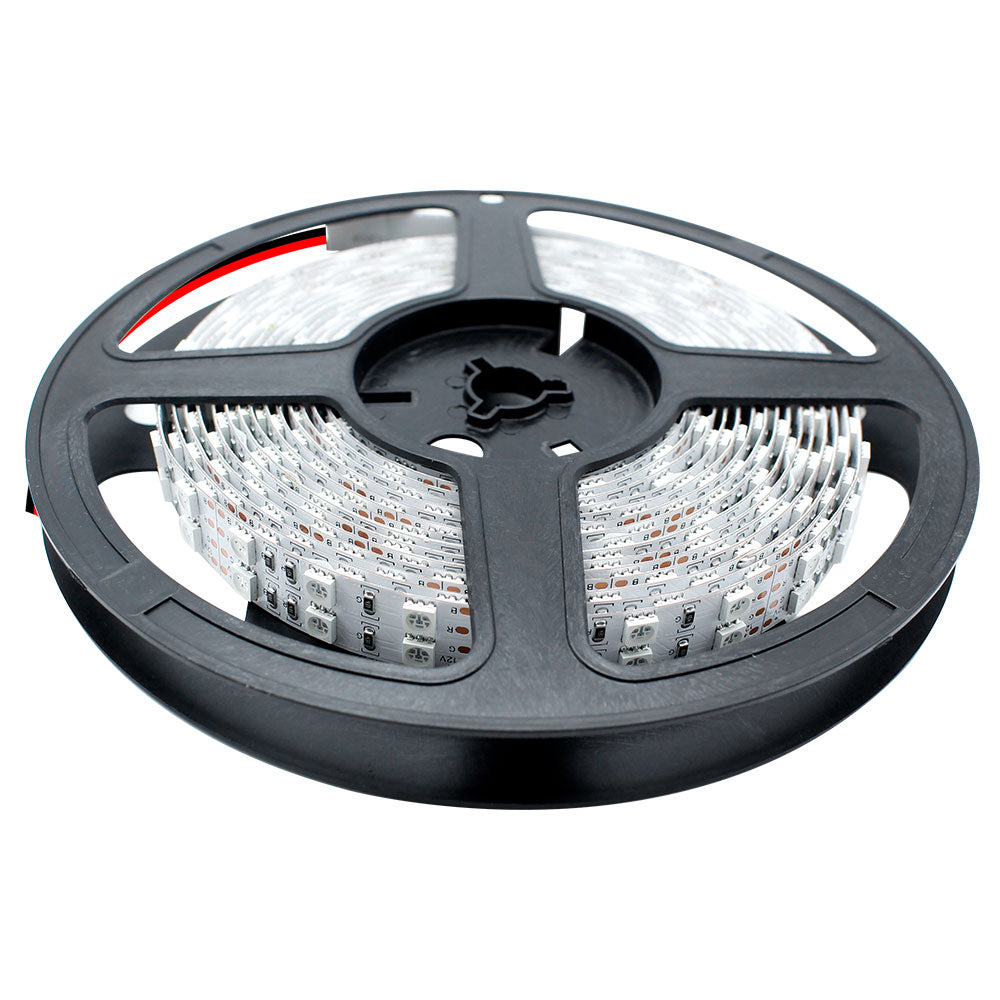

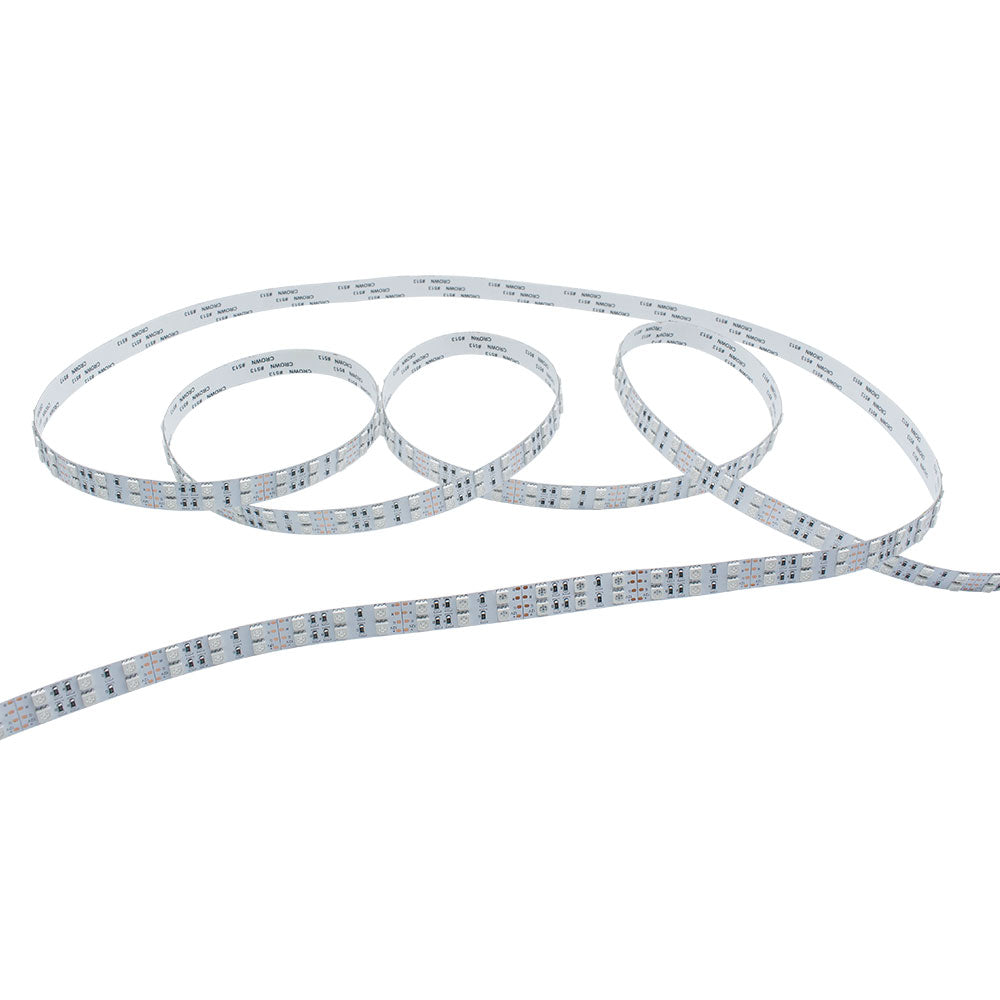

365nm 370nm SMD5050-600 12V 12A 144W UV LED Strip Light for Curing, Currency Validation

5M-HK-15MM-F5050-365-60-NW-UV-12

Length: 500cm
Color: UV 365NM
Waterproof: Non-Waterproof
Price:
$259
Stock:
In stock
 More payment options

Description

Wavelength: 365nm-370nm

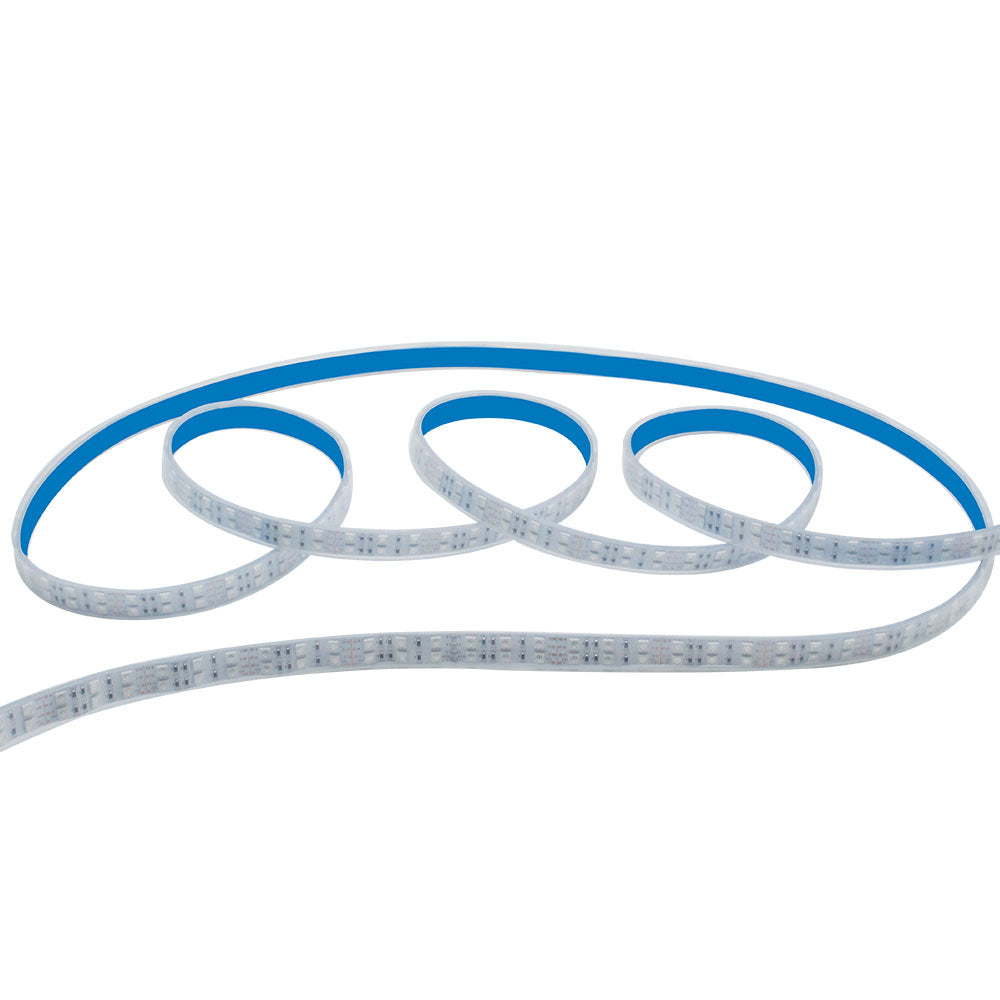

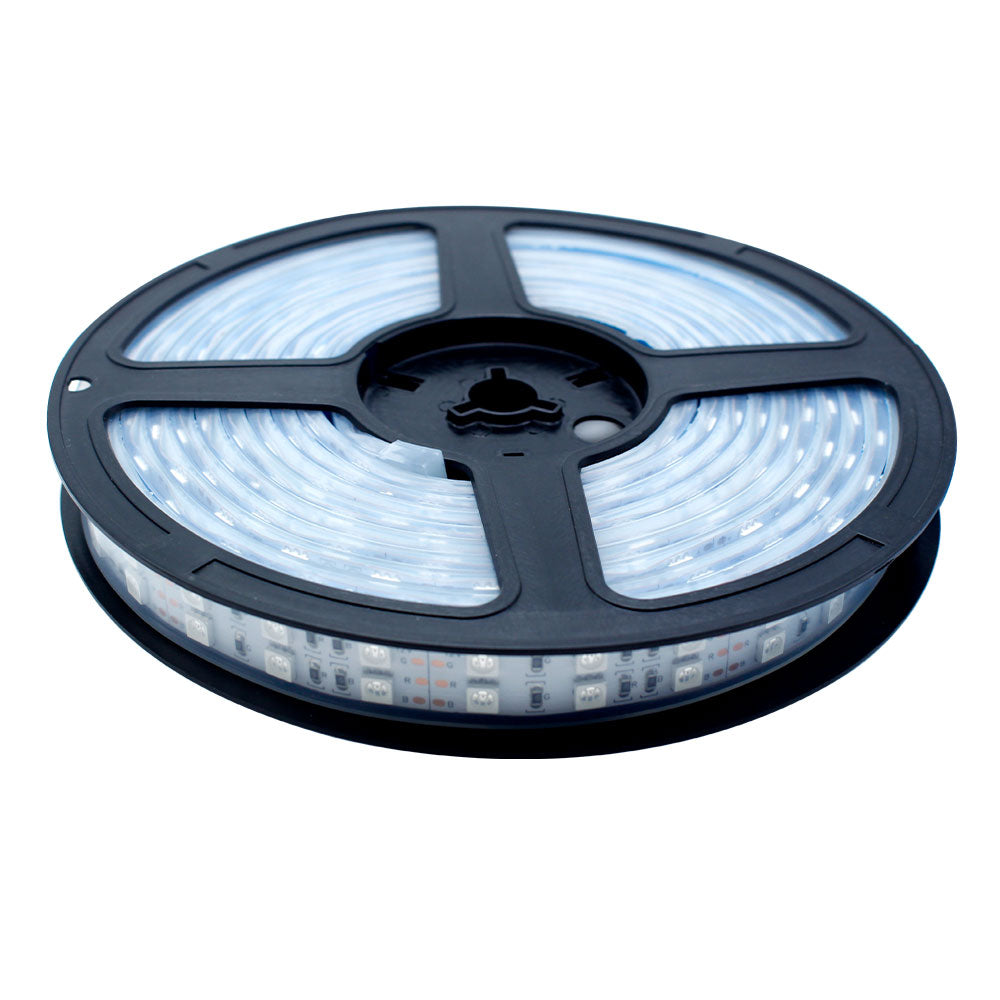

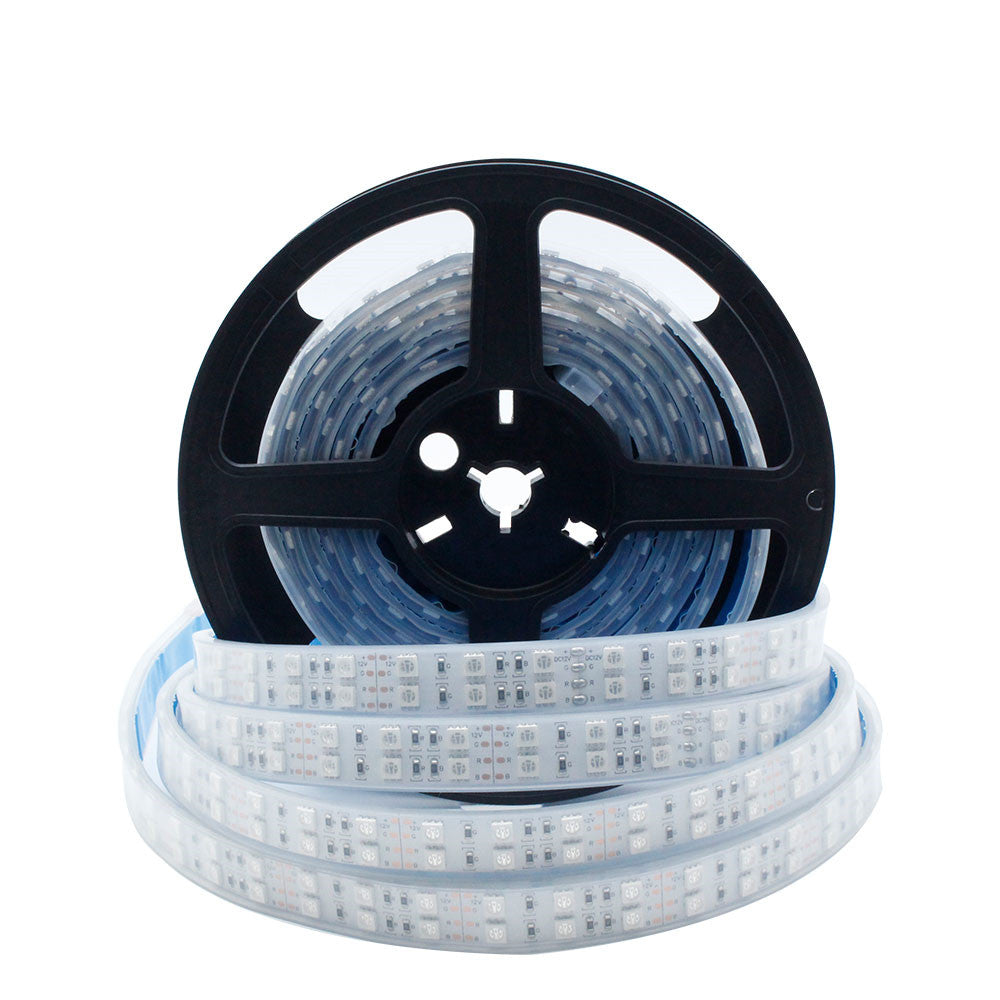

IP Grade avaliable : Non-Waterproof , IP65 Waterproof , IP67 Waterproof , IP68 Waterproof

365nm-370nm SMD5050-600 12V DC <12W, 144Amp  UV (Ultraviolet) LED Strip Light Non-Waterproof Flexible White PCB Strip Light Ideal for Curing, Currency Validation, Mosquito killer, Fluorescence disclosing and Medical Field

Note: Sold by Different Lengths in 50cm, 100cm, 200cm, 300cm, 400cm, 500cm.

Available Lengths and Suggested Power Supply to power (the power supply is not included)

Length Wattage (w) Suggested Power Supply
50cm 14.4
12V, 1.25Amp, 15W
100cm 28.8
12V, 2.5Amp, 30W
200cm 57.6 12V, 5.0Amp, 60W
300cm 86.4
12V, 8.0Amp, 96W
400cm 115.2 12V, 10Amp, 120W
500cm 144 12V, 12.5Amp,150W

To use bigger power supply than rated power of the strip is to avoid full loaded working, which is better for the lifespan of the Power Supply.

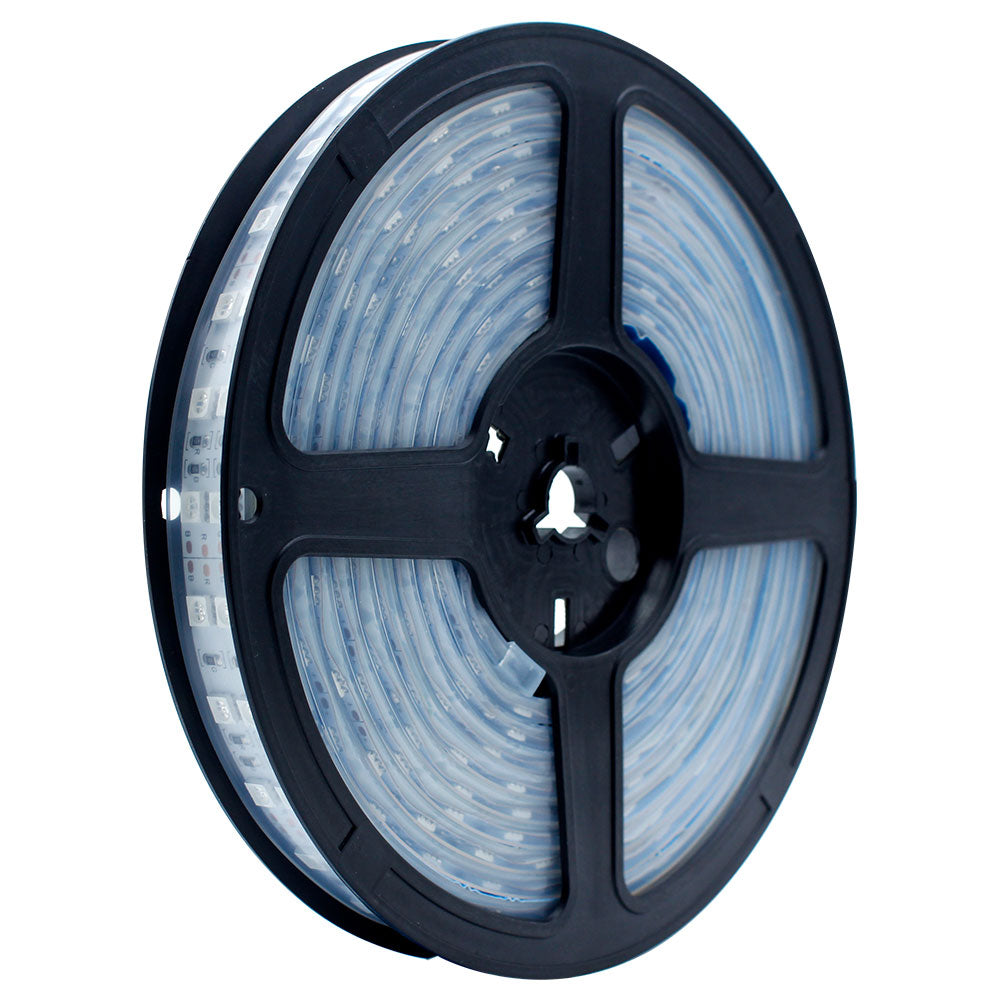

Strip Light Specification for 5 Meter Roll

LED Type: UV SMD5050
LED QTY.: 120LED/Meter
Input Voltage: 12V DC
Wattage (max): 28.8Watt/Meter
Cuttable: Every 6LED per 2'' can be cut
Size(W*H/mm): 15*1.8
Weight: 0.125kgs per 5meter per roll
Wavelength: 365nm-370nm, 380nm-385nm
PCB Background color: White
PCB Backing: Double-sided Adhesive backing
Beam Angle: 120°
Dimming: PWM dimmable(for more information please refer to different Dimmer applications)
Waterproof Type: Non-waterproof(indoor use)
Pre-wiring: 20cm Red/Black Lead wire at one end of the strip

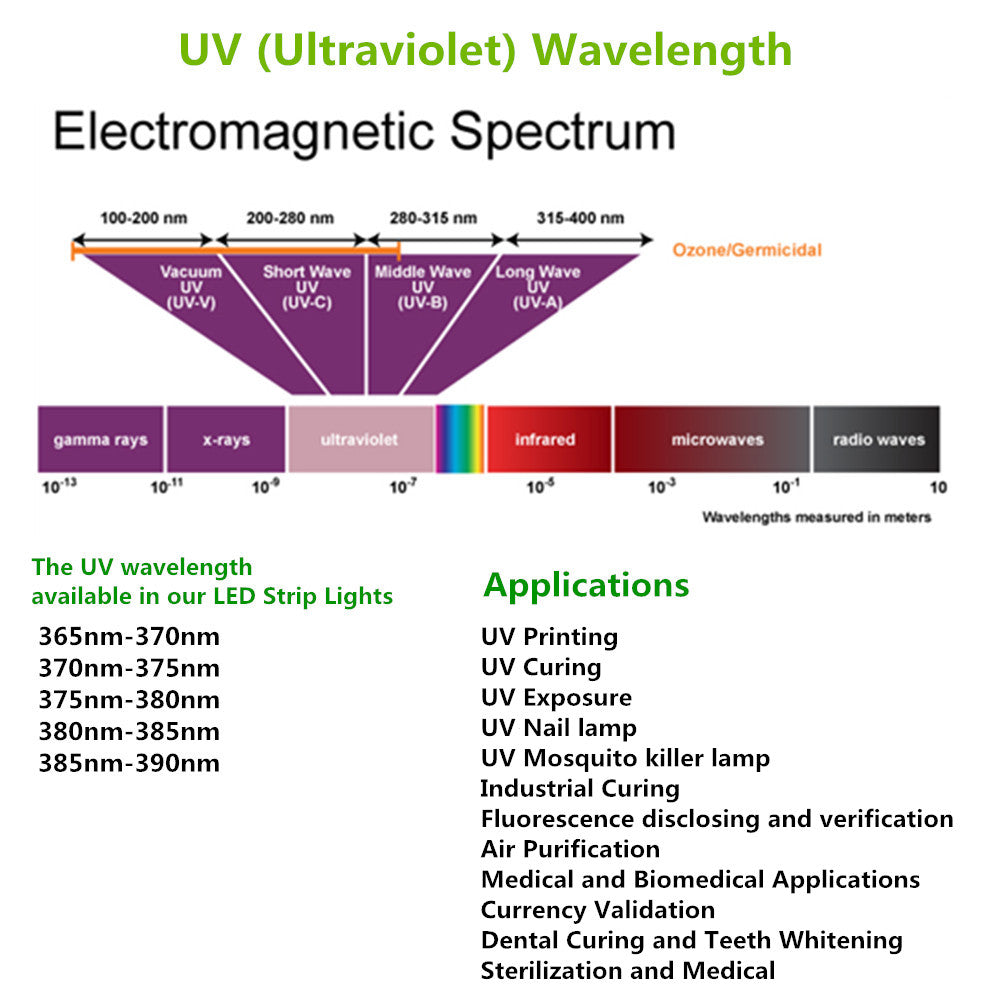

UV LED Lights Application

UV Mosquito killer lamp
Industrial Curing
Fluorescence disclosing and verification
Air Purification
Medical and Biomedical Applications
Currency Validation
Dental Curing and Teeth Whitening
Sterilization and Medical

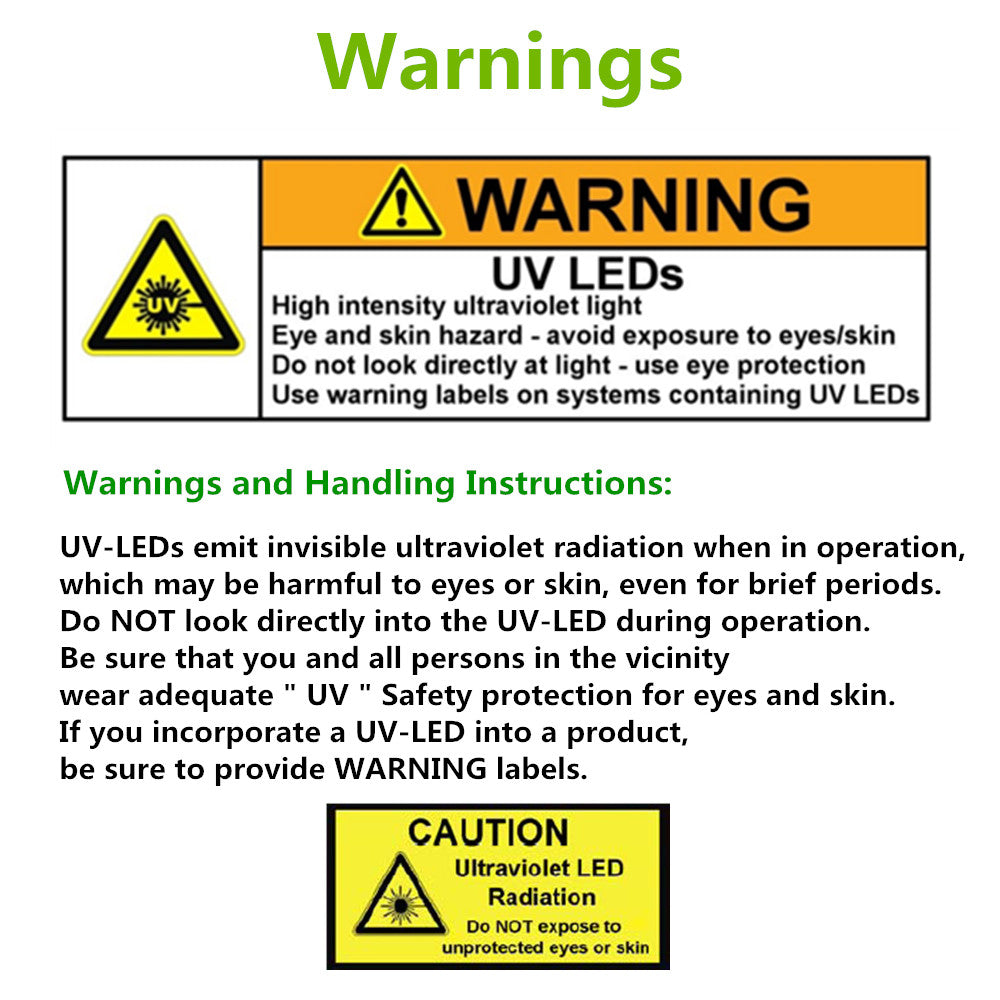

Warnings and Handling Instructions on UV LED Lights

UV-LEDs emit invisible ultraviolet radiation when in operation, which may be harmful to eyes or skin, even for brief periods. Do NOT look directly into the UV-LED during operation. Be sure that you and all persons in the vicinity wear adequate " UV " Safety protection for eyes and skin. If you incorporate a UV-LED into a product, be sure to provide WARNING labels.
Dimension for 5050-300 in 500cm
