Description
*Length: SMD3838-600LED per 16.4FT(5Mtr)
*Power: 24VDC <50W 5Amp
*24V DC operating, need to work with 24V transformer if run to the wall outlet (non included)
*IP Protection: Non-Waterproof, Waterproof IP65, IP67, and IP68 available
*Control: Need to work with matched RGB controller(non included)
*Easy Installation: With 3M double-sided adhesive tape back, very sticky that fit for various mounting materials
| Technical Specification |
| Code | HK-F3838RGB60-X |
| Size(W*H/mm) | 8*2 |
| Length Available | 50cm,100cm,200cm,300cm,400cm,500cm |
| Voltage | 24VDC |
| Power | 12W/Meter |
| LED Type | SMD3838 |
| Color | RGB |

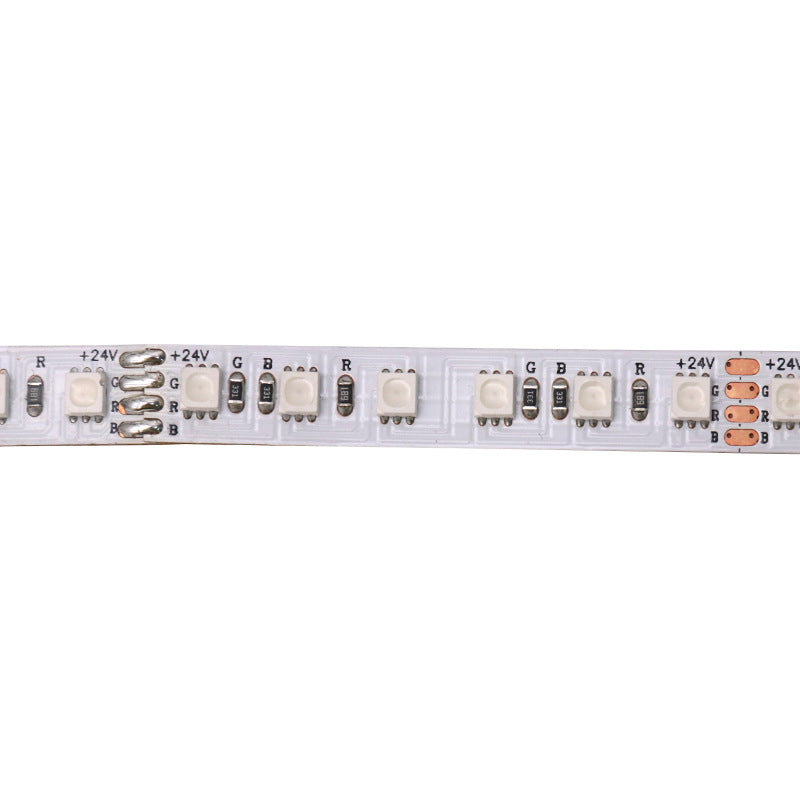

| Cut Section | Every 6LED per 2'' Can be Cut |
| Beam Angle | 120° |
| PCB Background | White |
| Wiring | One end solder with 10cm 4pin RGB Connector |
| Accessory | Double Sided Adhesive Backing for IP20 and IP65, Mounting Bracket Comes for IP67 and IP68, 2pcs each Meter. |
| Dim Type | PWM dimmable |
| Waterproof Type | IP20, IP65, IP67, IP68 |
| Other Features |
| Item | RGB Color Changing 24VDC < 60W, 5Amp SMD3838 600 LED flexible strip, 5meter per roll |
| Weight | 0.15kgs/roll for non-waterproof; 0.25kgs/roll for IP65/IP67; 0.5kgs/roll for IP68. |
| PCB Backing | Adhesive backing for Non-waterproof and waterproof IP65,extra rubber mounting clips provide for IP67 and IP68 (2pcs every meter). |
| Lead | Single color strip has two contacts(V+,V-) and is Polarity Sensitive. |
| Pre-wiring | One end solder with 10cm 4pin RGB Connector |
Package included:
• 1x 5meter per roll LED Flexible Strip
Applications:
• Widely used for home, hotels, clubs, shopping malls
• Architectural decorative lighting, boutique atmosphere lighting
• Extensively applied in backlighting, concealed lighting, advertisement lighting box edge lighting
• Emergency & security lighting, advertisement sign lighting
• Holiday, event, show exhibition decoration
• Auditorium walk stairway lighting, Hidden groove, Wine cabinet Decor
• Amusement park, theater and aircraft cabin mood lighting
• Applicable for automobile, boat and bicycle decoration
Waterproof Strip Dimension
*Non-waterproof : Bare Strip, with self-adhesive backing, for indoor or dry location use.
*Waterproof IP65 : Strip Surface is covered on top with Gel, and with self-adhesive backing. IP65 grade can protect sprayed water from all direction.
*Waterproof IP67: The bare strip is put in a hollow silicone tube and sealed at two ends. IP67 grade can shortly immersed in water.
*Waterproof IP68: The bare strip is put in a U Shape silicone tube, then covered on top with silicon gel, and sealed at two ends, which make it's solid.IP68 grade can be used under water.
