Description
Constant Voltage TRIAC Dimmable Power Supply 110-220V AC to 12V/24V DC for LED Strip Lights
Power parameters
Single channel constant voltage output, output voltage is 12V and 24V DC
Supports leading edge (Triac) and trailing edge (ELV) dimming
Dimming range 0-100% flicker-free dimming
87% efficiency
Smooth dimming curve, no jitter
Overload protection; short circuit protection
Suitable for indoor LED lamps, light strips, rigid light strips, wall washers, etc.
Output parameters
Voltage: 12V 24V DC
Current: Maximum 12V 12.5A ,24V 6.3A for 150W ; 12V 8.3A 24V ,4.12A for 100W (In actual applications, the current will be automatically adjusted according to the actual load)
Power: at least 5w can be driven
Voltage accuracy: ±5%
Input Parameters
Voltage: 90-130V 200VAC-240VAC
Frequency: 50/60Hz
Dimming voltage range: 40-240VAC
Efficiency (typical): 87%
Current: 0.5A@230VAC
Inrush current: 15A@230VAC
Protection
Short circuit: hiccup, self-recovery after removing the fault
Overload: hiccup, self-recovery after removing the fault
Function

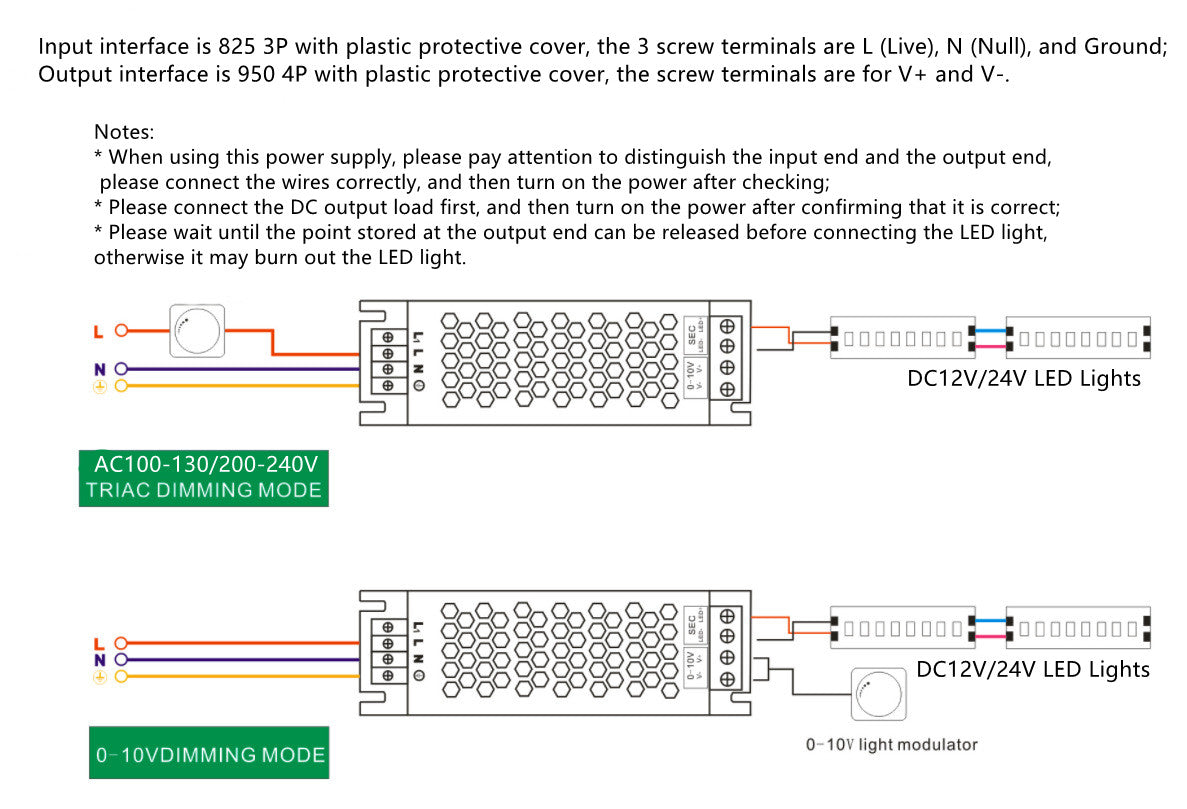

Dimming method: leading edge/back edge thyristor
Super high compatibility with dimming system and dimmer
Compatible with various intelligent dimming modules LDS INTERNATIONAL, Punch DALITEK, Philips PHILIPS dynalite, Lutron LUTRON, Clipsal, C-BUS dimming system, Crestron crodigy, ABB, Siemens SIEMENS, Schneider Merten, Osram 0- 100% flicker-free dimming. It has 99.9% compatibility with ordinary dimmers.
| Code: | Input Voltage | Output Current: | Size: |
| HK-DPS-100W | AC90-130V/190-265V | 8.33Amp | L235*W50*H30mm |

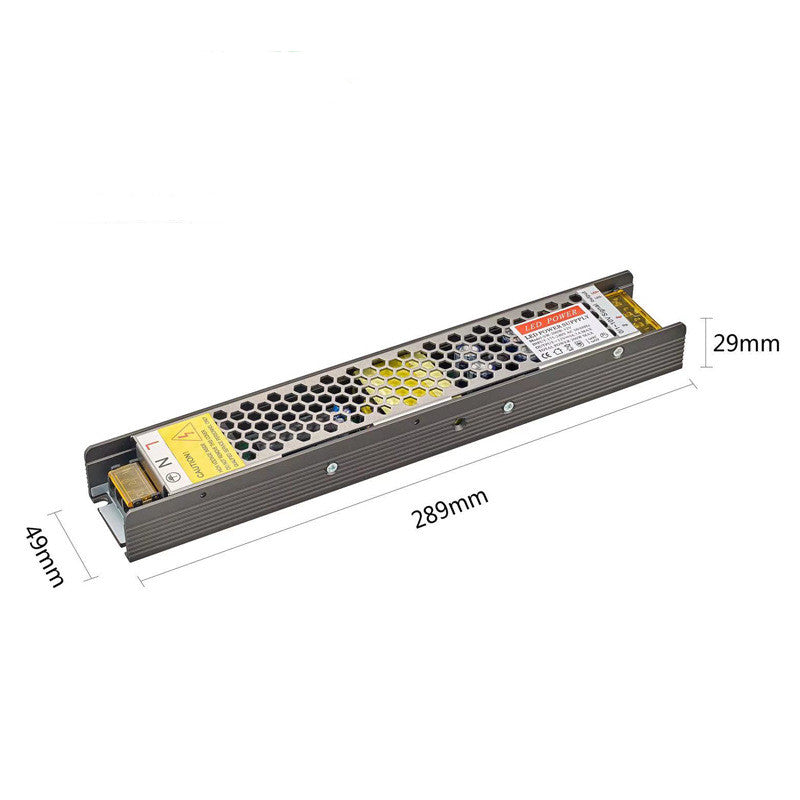

| HK-DPS-150W | AC90-130V/190-265V | 12.5Amp | L288*W50*H30mm |
