Description
Features:
●Mini size, 25mm (1inch) cut out, only need small space for installation●IP65 Waterproof rated, be able to use for various purpose, like for kitchen undercabinet light, step lighting, floor lighting, starry sky ceiling light, etc.
●Aluminum light body, light in weight
●Dimmable by working with compatible dimmer and power supply (12V dimmer , 0-10V dimmer or TRAIC dimmer). The dimmer and power supply are not included
Application:

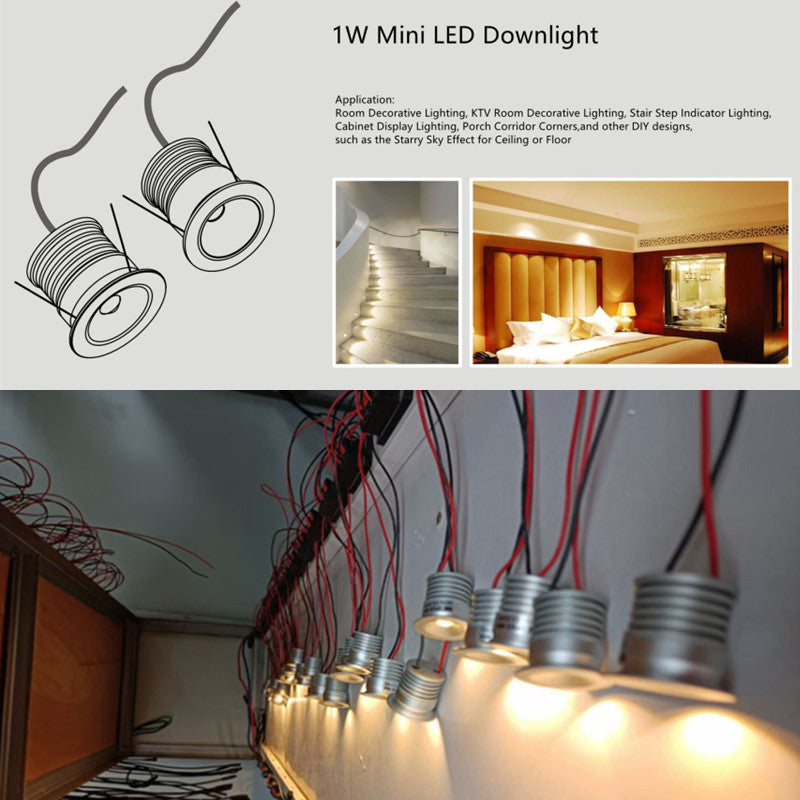

Room Decorative Lighting, KTV Room Decorative Lighting, Stair Step Indicator Lighting, Cabinet Display Lighting, Porch Corridor Corners,
and other DIY designs, such as the Starry Sky Effect for Ceiling or Floor
Specification

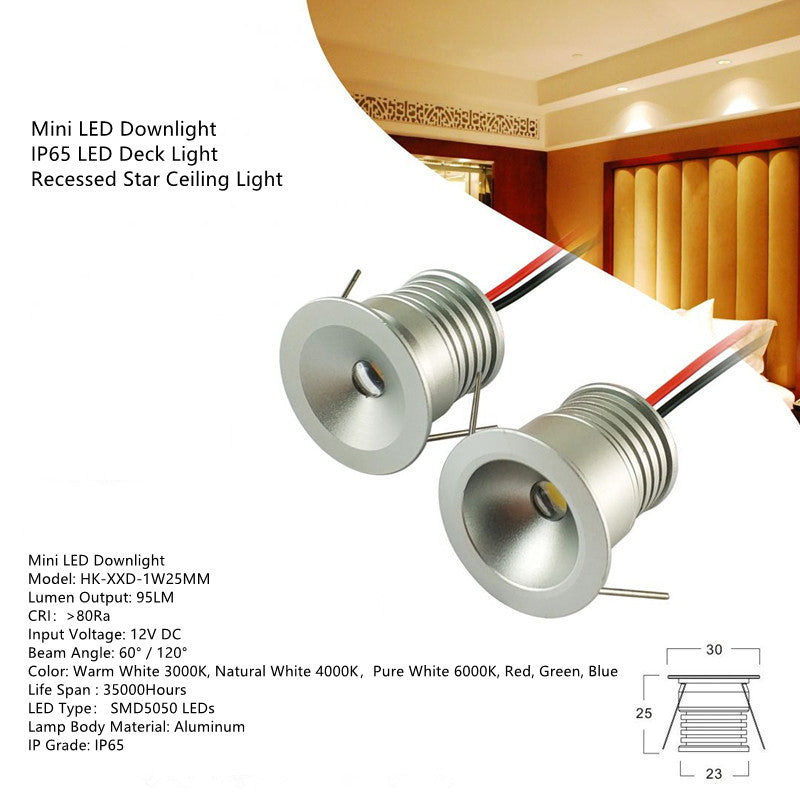

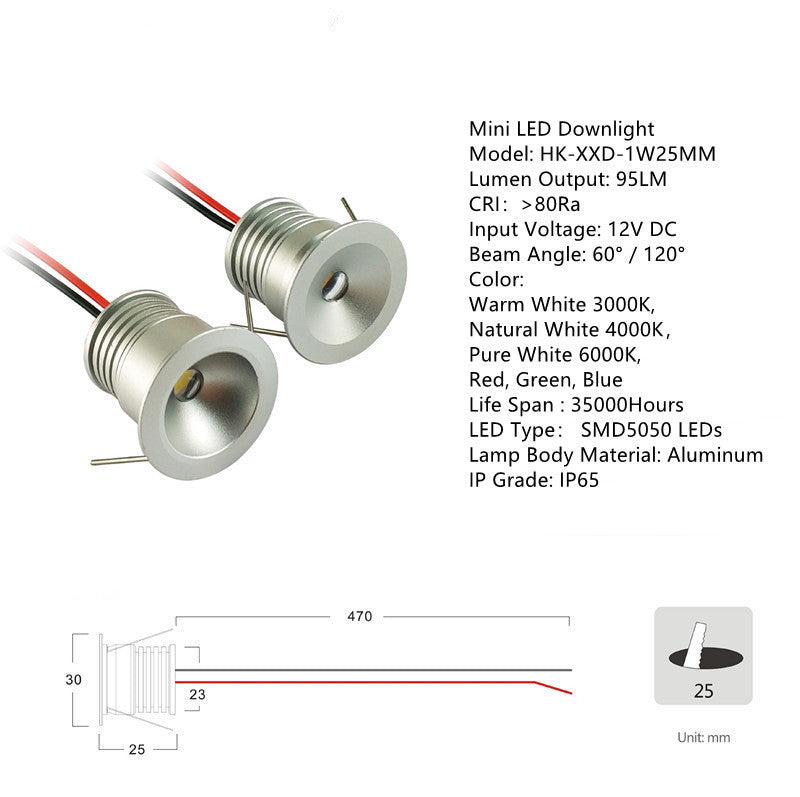

Mini LED Downlight
Model: HK-XXD-1W25MM
Lumen Output: 95LM
CRI：>80Ra
Input Voltage: 12V DC

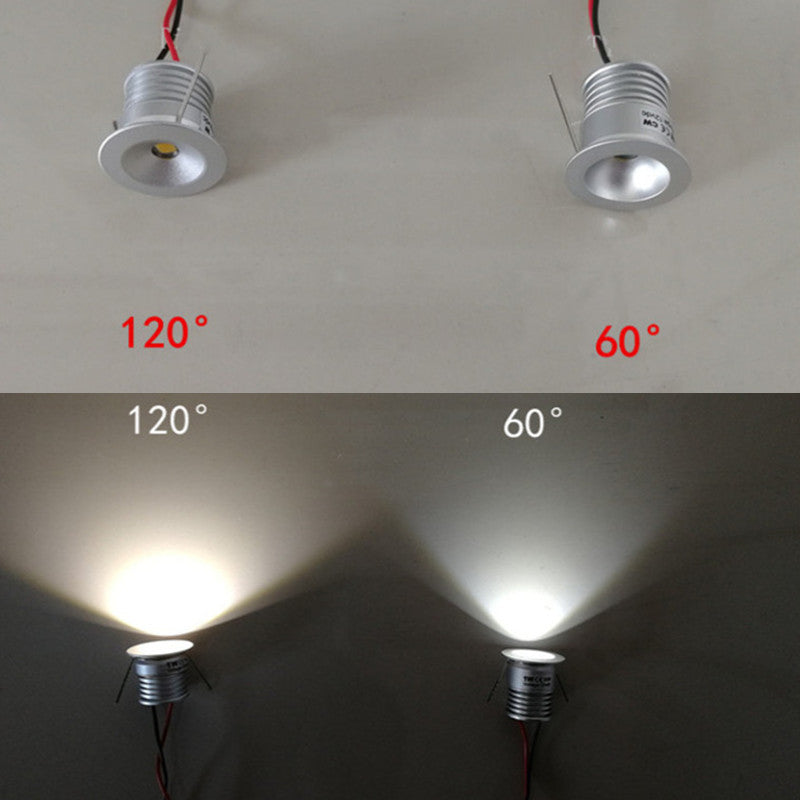

Beam Angle: 60° / 120°
Color: Warm White 3000K, Natural White 4000K，Pure White 6000K, Red, Green, Blue
Life Span : 35000Hours
LED Type： SMD5050 LEDs
Lamp Body Material: Aluminum
IP Grade: IP65
Package include: 9pcs 1W 12VDC LED mini downlight

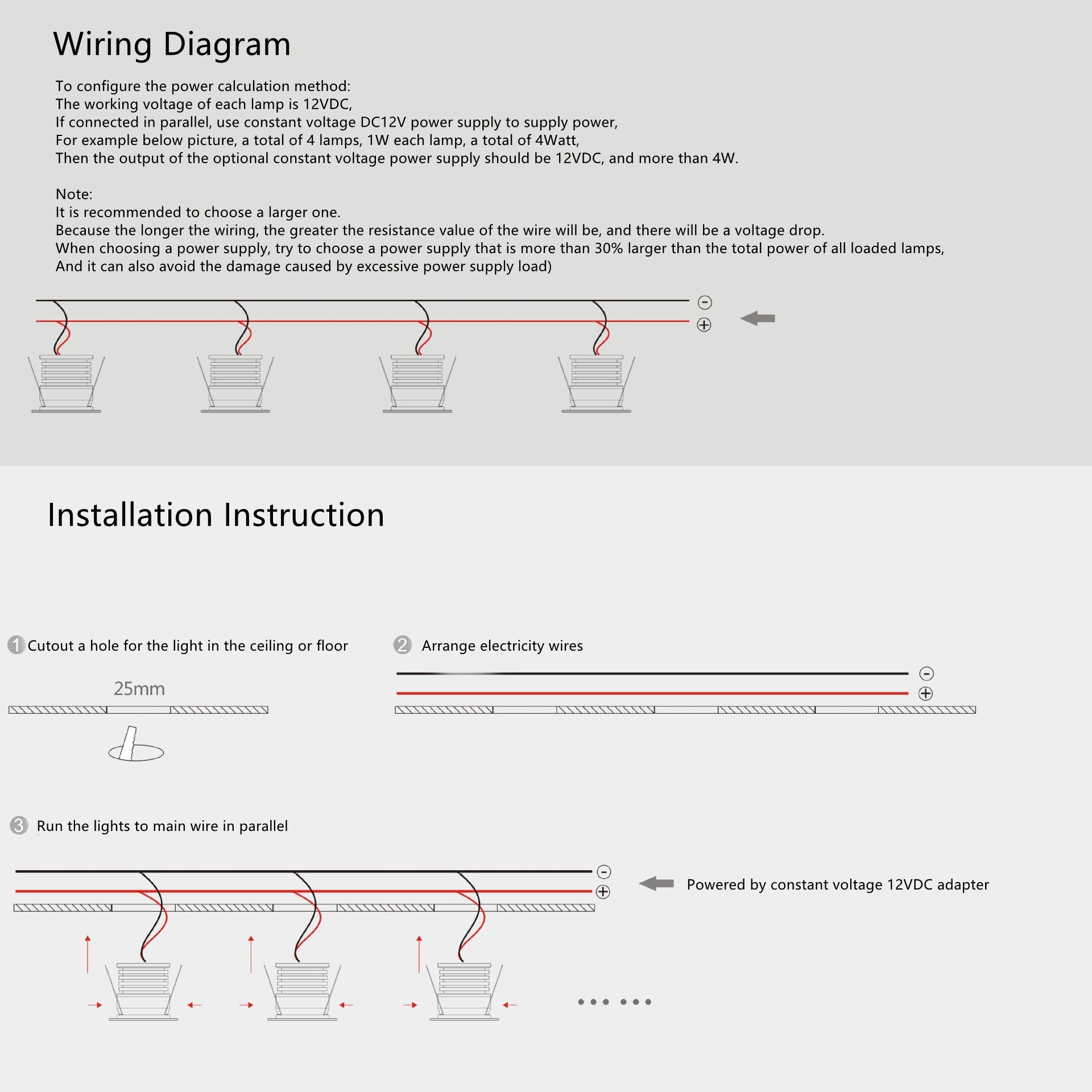

To configure the power calculation method:
The working voltage of each lamp is 12VDC,
If connected in parallel, use constant voltage DC12V power supply to supply power.
The Power Supply is not included, need to purchased separately.
Note:
It is recommended to choose a larger one.
Because the longer the wiring, the greater the resistance value of the wire will be, and there will be a voltage drop.
When choosing a power supply, try to choose a power supply that is more than 30% larger than the total power of all loaded lamps,
And it can also avoid the damage caused by excessive power supply load.
