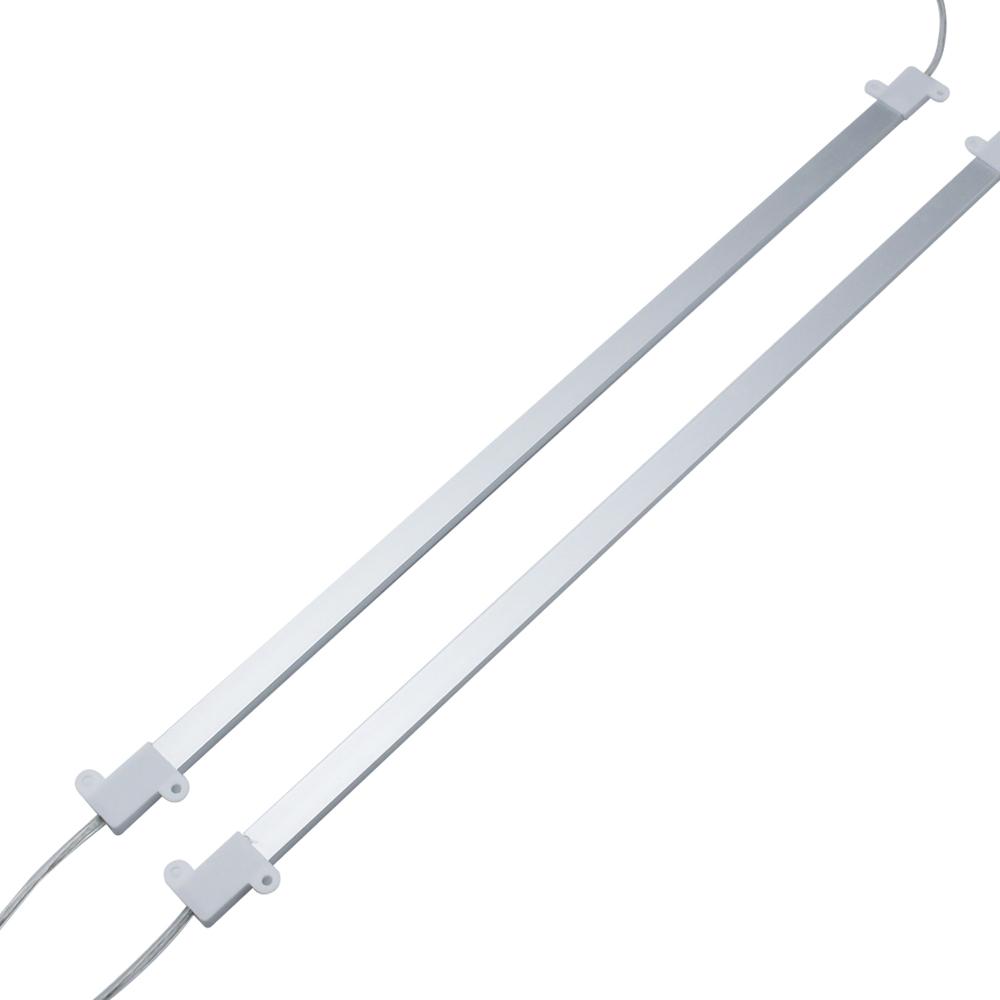

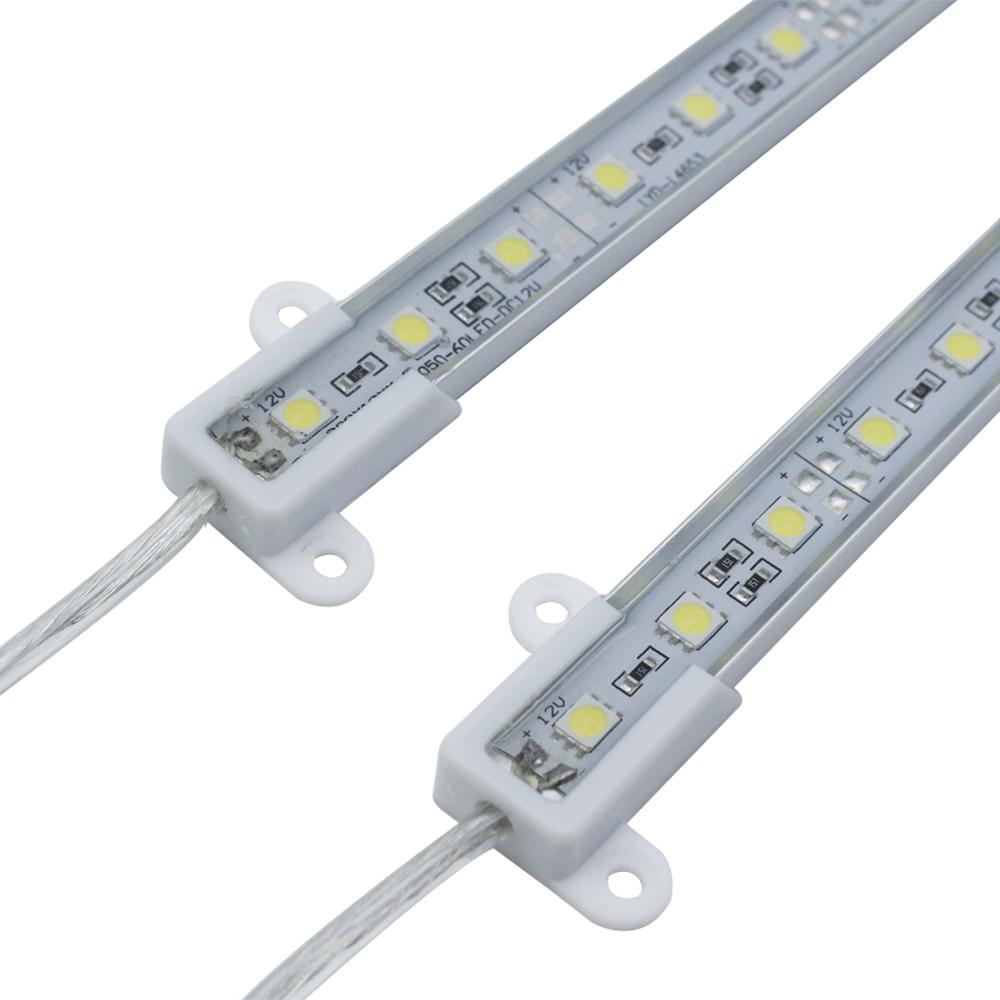

*12V DC 7.2W 50cm SMD5050 Waterproof Aluminum Shell LED Rigid Light Bar
*Sold by 5pcs per pack
*RGB color changeable, need to work with RGBW LED controller
*Single Color: Pure White, Warm White, Nature White, Ultra Warm White, Red, Green, Blue,Yellow, Purple, Amber
*Single Color Dimmable. Method #1 Dim by 12V DC LED Dimmers and power by standard 100-240VAC to 12V DC transformer; Method #2 Dim by 120V/220V AC Wall Dimmer, and be powered by 120V/220V AC to 12V DC Dimmable Transformer. Contact us for dimmer and transformer options
*IP protection: IP65 Waterproof for outdoor or damp location
*Easy Installation: Method #1--With screw hole at each light bar's both ends, just use screws to fix it to mounting sruface. Method #2--With 3M adhesive tape backing, just stick it. Note: Before stick please clean and wipe the surface which need to be installed.
*Recommend max 10pcs run end by end in series the best, to avoid light dim at back end of the run caused by voltage drop.
*To power 5pcs, we suggest to use one 12V DC 4Amp 48Watt or bigger transformer (not included)
Item 12VDC Constant Voltage SMD5050 Waterproof Aluminum Channel LED Linear Rigid Strip
LED Type RGB color or single color SMD5050
LED QTY./Length 45LED/50cm(20'') Note: Special length, please contact us, we accept custom-made orders.
LED Section Every 3LED per 2''(50mm)
Net Weight 80g/pc
Input Voltage 12V DC
Beam Angle 120¡ã
Power Consumption 7.2W
Lumen Output 450-500LM for White color
Light Color RGB color, Pure White, Warm White, Red, Green, Blue, Yellow, Purple, Amber
PCB color option White Aluminum PCB
Control RGB color changeable, need to work with RGB LED controller(not included); Single Color is dimmable via Dimmer
Waterproof Type Waterproof IP65 for damp location and outdoor

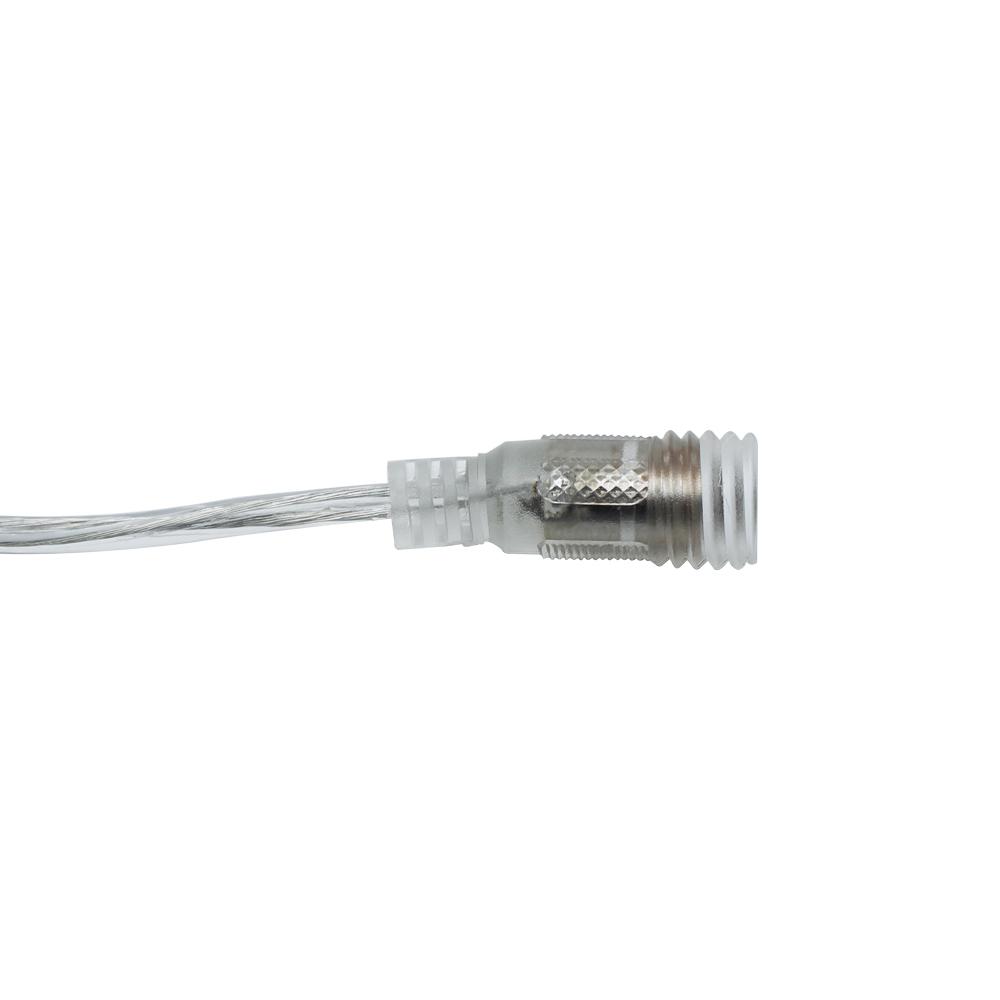

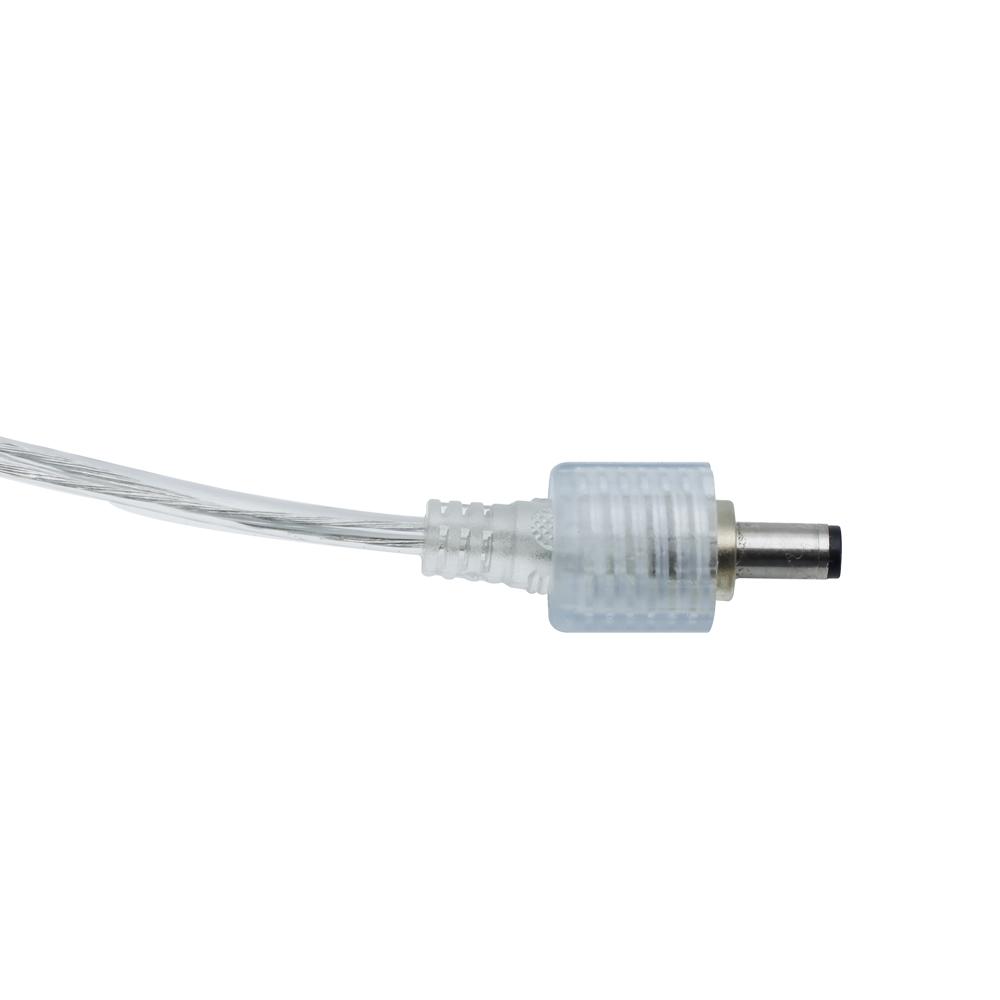

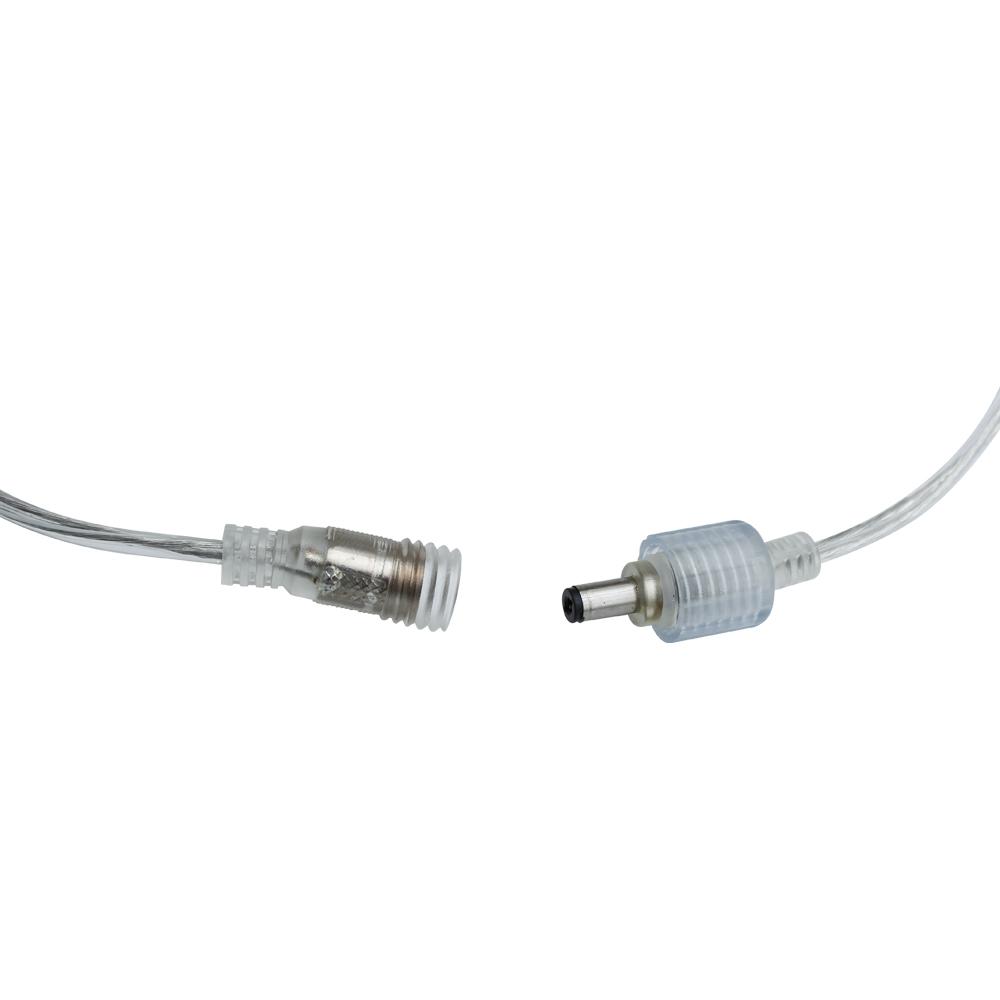

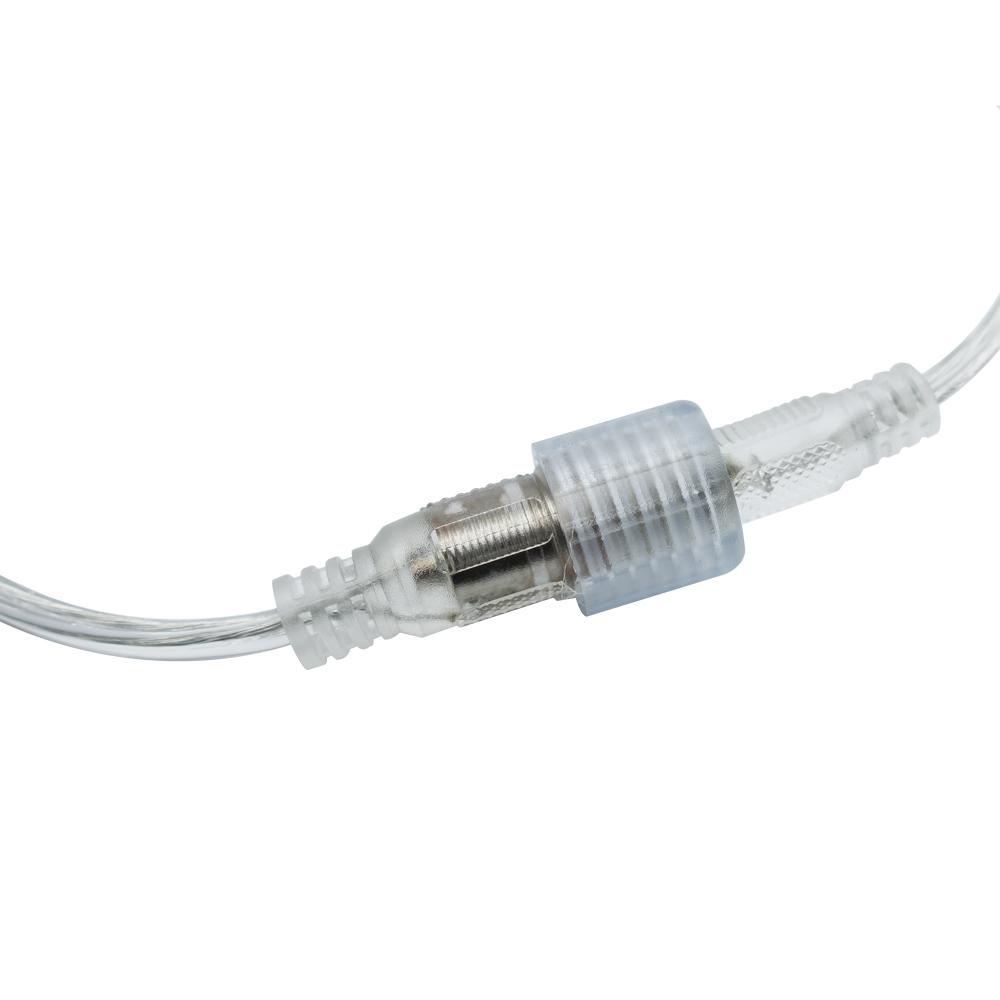

Pre-wiring 12cm female at one end,12cm male at the other end
Installation Remark To avoid voltage drop, it's suggested to run 10pcs in series as a string the max.
