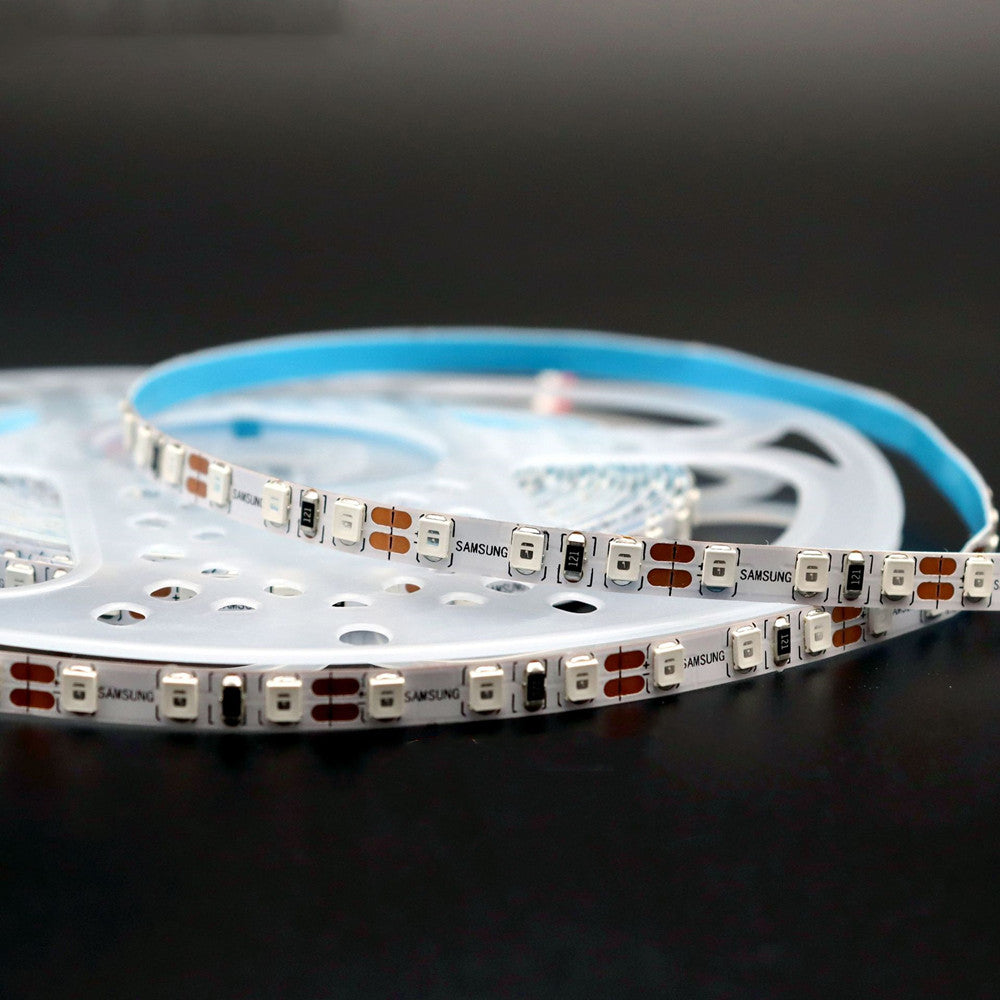

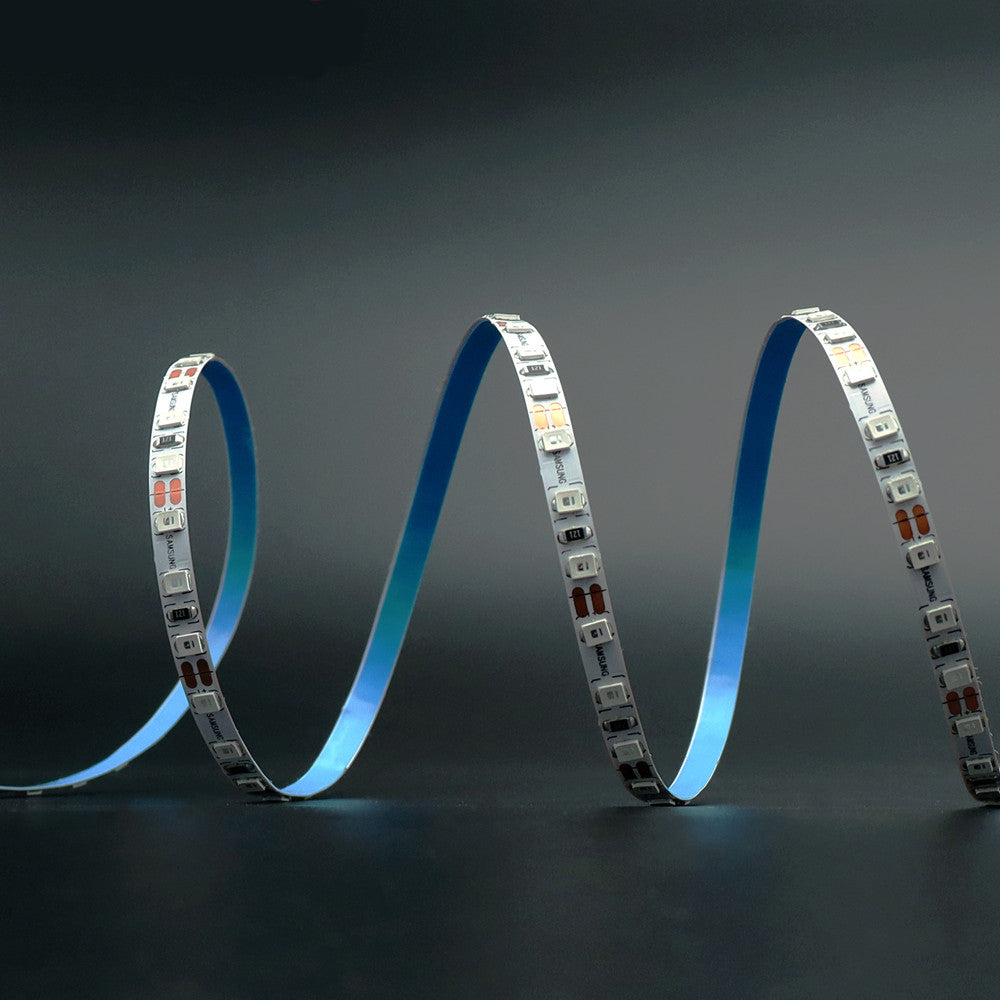

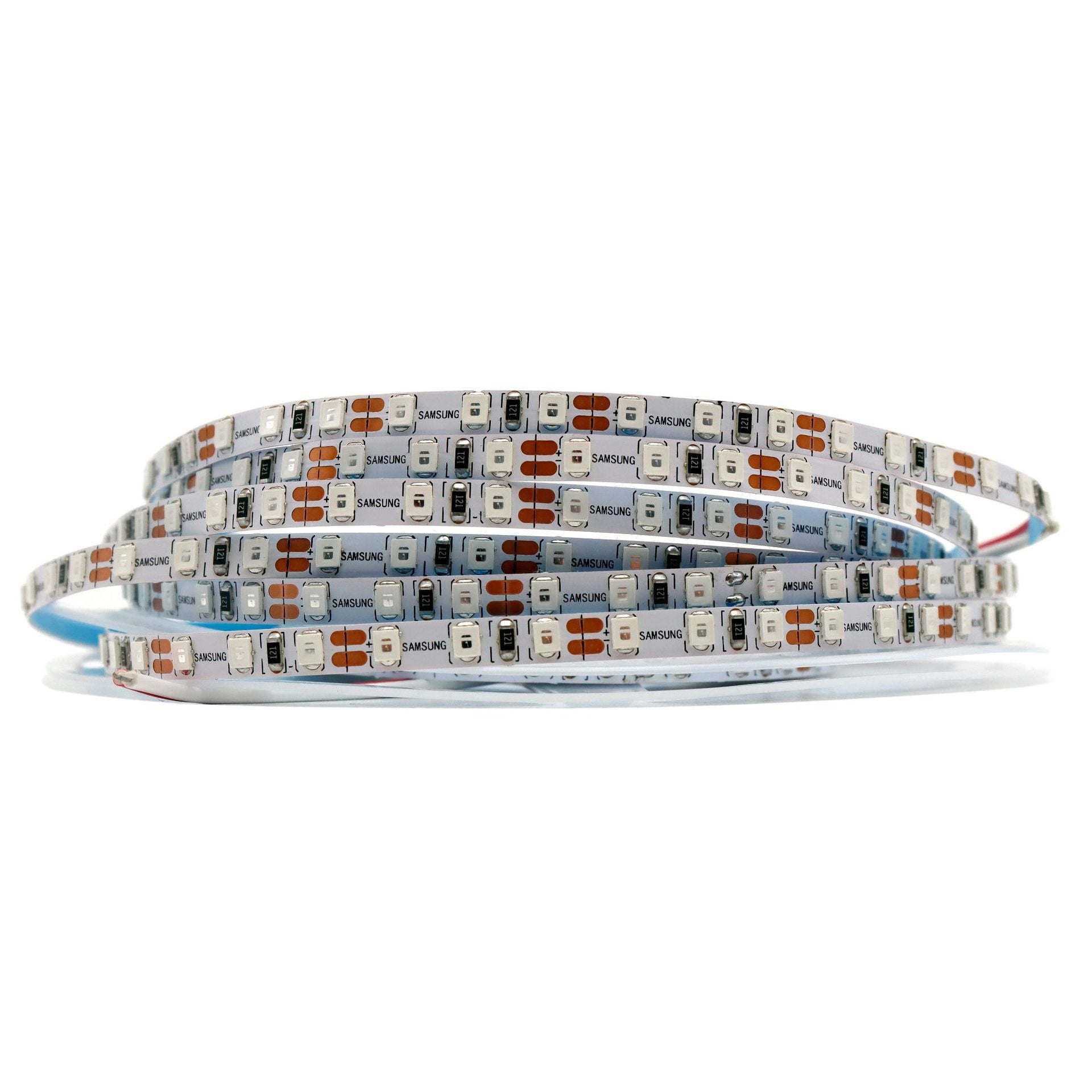

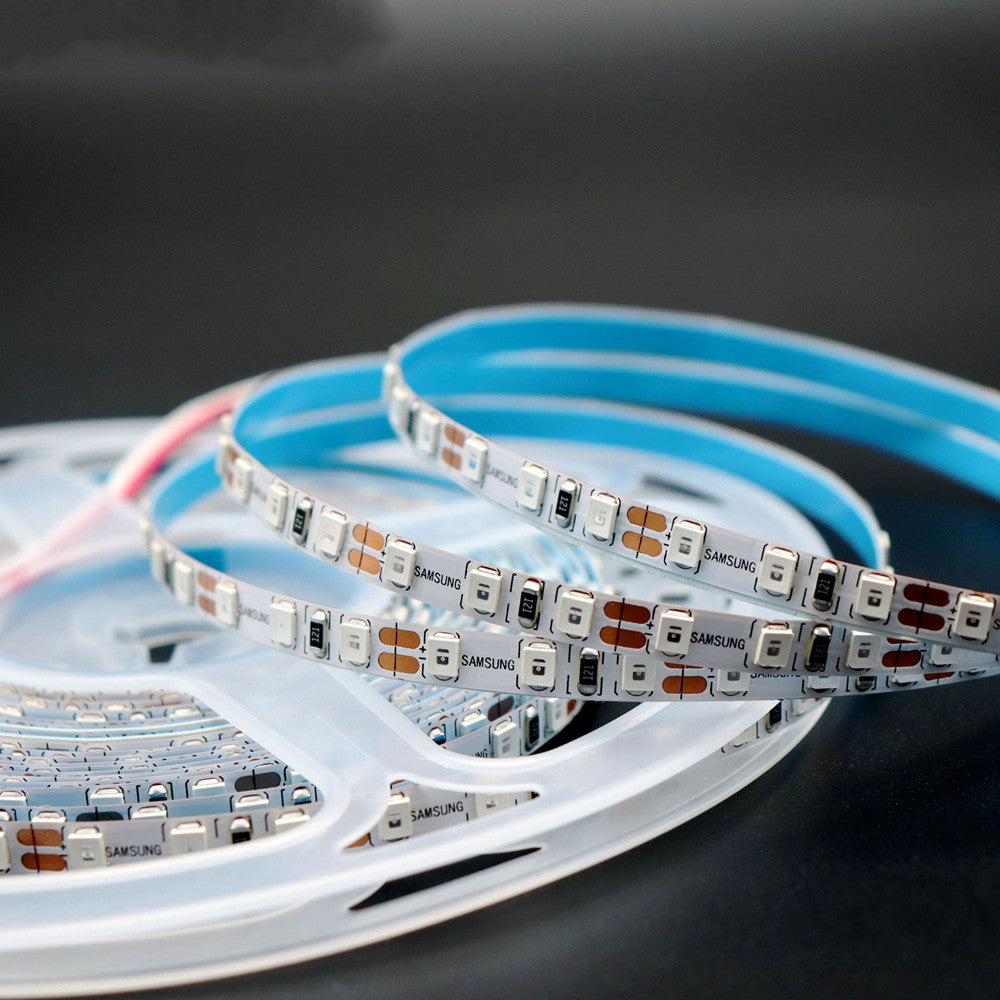

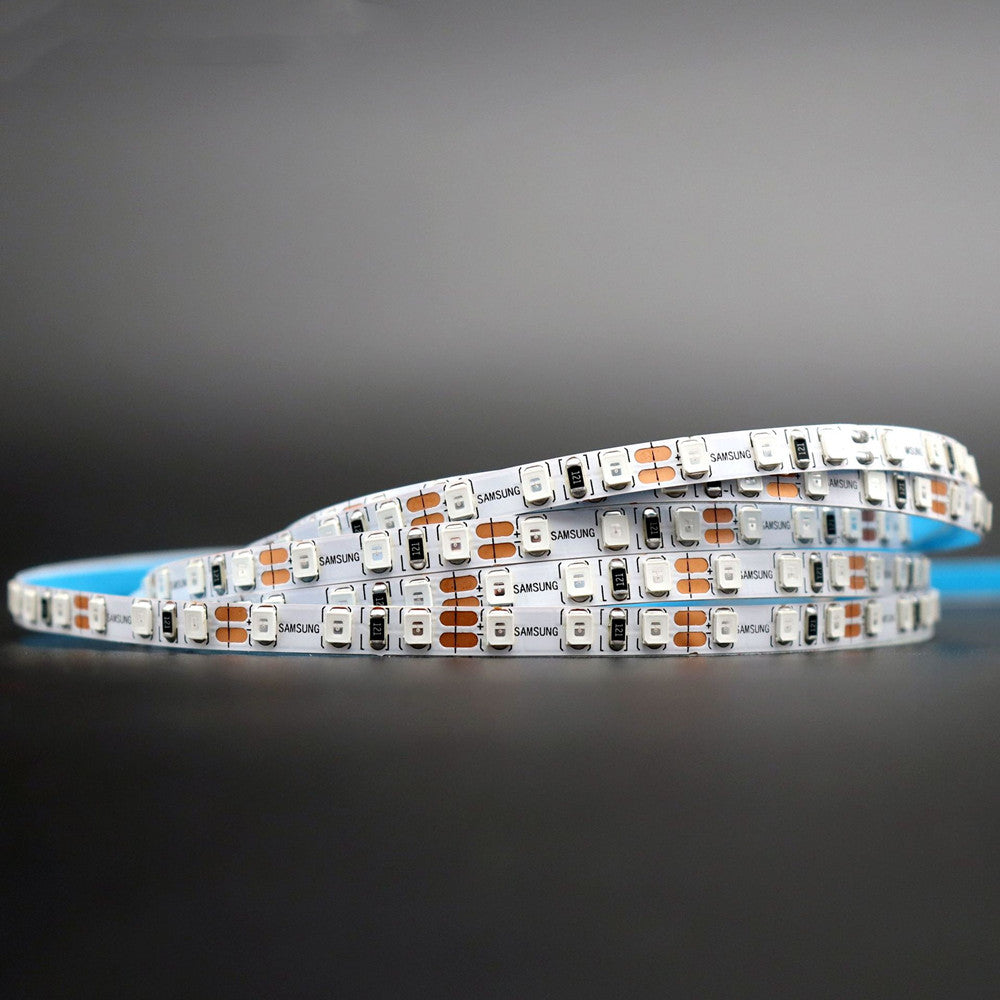

5MM Wide SMD2835-600 120LEDs per Meter Red, Green, or Blue 12V 16.4FT (5Meters) Roll LED Strip Non-waterproof
Item: 12VDC SMD2835 LED flexible strip, 600LED per 5meter per roll
LED Type: single color SMD3528
LED QTY.: 120LED/Meter
Input Voltage: 12V DC
Wattage (max): 8 Watt/Meter
Cuttable: Every 3LED per 1'' can be cut
Weight: 0.15kgs per 5meter per roll
Lumen Output: 600-700LM/Meter
PCB color option: White
PCB Backing: Double-sided Adhesive backing
Beam Angle: 120°
Dimming: PWM dimmable(more information please refer to different Dimmer applications)
Waterproof Type: Non-waterproof(indoor use), IP20
Pre-wiring: 10cm Red/Black Lead wire at one end of the strip
Packing: 5meter per roll packed in a static bag
How to power/control the strip
When choosing the transformer, the wattage to choose depends on how many pieces light strips it power.And when choosing the transformer, we suggest to use a bigger wattage transformer than the strip rated power to avoid full load working of the transformer. And a big power transformer do no harm to the strip but good for safty.
And a big power transformer do no harm to the strip but good for safty.
Below please find the connection diagram for Single Color Light Strip for reference.
Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)
#1 Typical connection for one Dimmer to control one string of light bars
#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifer loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
