Description
Wavelength: 365nm-370nm
Sold by Different Lengths in 50cm, 100cm, 200cm, 300cm, 400cm, 500cm.
IP Grade avaliable : Non-Waterproof , IP65 Waterproof , IP67 Waterproof , IP68 Waterproof

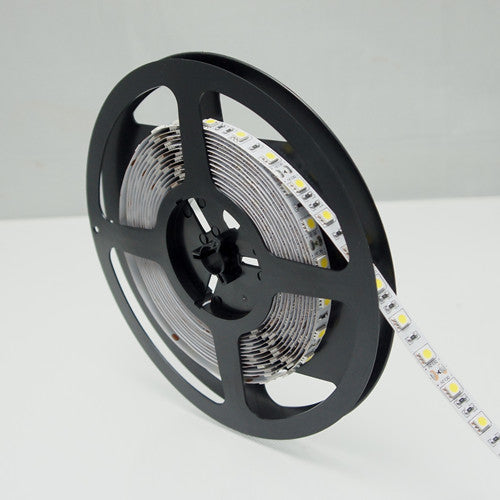

365nm-370nm SMD5050-300 12V DC <10W/Meter UV (Ultraviolet) LED Strip Light Non-Waterproof Flexible White PCB Strip Light Ideal for Curing, Currency Validation, Mosquito killer, Fluorescence disclosing and Medical Field
Note: Sold by Different Lengths in 50cm, 100cm, 200cm, 300cm, 400cm, 500cm.
Available Lengths and Suggested Power Supply to power (the power supply is not included)
| Length | Wattage (w) | Suggested Power Supply |
| 50cm6 | 6 | 12V, 1.0Amp, 12W |
| 100cm | 10 | 12V, 1.0Amp, 12W |
| 200cm | 20 | 12V, 2.0Amp, 25W |
| 300cm | 30 | 12V, 3.0Amp, 36W |
| 400cm | 40 | 12V, 4.0Amp, 48W |
| 500cm | 50 | 12V, 5.0Amp, 60W |
To use a bigger power supply than the rated power of the strip is to avoid full loaded working, which is better for the lifespan of the Power Supply.
Strip Light Specification for 5 Meter Roll
LED Type: UV SMD5050
LED QTY.: 60LED/Meter
Input Voltage: 12V DC
Wattage (max): 14.4Watt/Meter
Cuttable: Every 3LED per 2'' can be cut
Size(W*H/mm): 10*1.8
Weight: 0.15kgs per 5meter per roll
Wavelength: 365nm-370nm, 380nm-385nm
PCB Background color: White
PCB Backing: Double-sided Adhesive backing
Beam Angle: 120°
Dimming: PWM dimmable(for more information please refer to different Dimmer applications)
Waterproof Type: Non-waterproof(indoor use)
Pre-wiring: 20cm Red/Black Lead wire at one end of the strip
UV LED Lights Application
