Description
The 35-inch strip screen uses LED backlight, which has more uniform display brightness and wider color gamut. Industrial-grade design, with ultra-high reliability and high stability, and an average trouble-free operation time of more than 50,000 hours. It uses RK3566 high-performance motherboard equipped with Android11 system, with a maximum main frequency of 1.8GHz, and has super performance. Supports 1080P 60fps H.265/H.264 video encoding. Supports infrared remote control, Wi-Fi, RJ45 and other rich interfaces, and is widely used in security, medical, transportation, finance, industrial control and other intelligent control fields
Features:
The whole machine is made of metal, which is radiation-proof, magnetic-field-proof and strong-electric interference-proof
Professional hard screen technology is adopted, with large viewing angle, fast response speed and high color reproduction.
LED backlight mode is adopted, and the brightness is more uniform
High physical resolution of 3840*200, and the picture quality is more delicate
The viewing angle can reach 178°, which is close to the horizontal
1200:1 ultra-high contrast ratio, the picture display is more vivid and the color performance is more outstanding
Industrial-grade design, high reliability, high stability and low power consumption
Specifications
Download Datasheet
| PARAMETERS | ||
| The Screen | Size | 35" |
| Screen supplier | BOE | |
| Resolution | 3840*200 | |
| Display size (mm) | 877.824(H)*45.72(V) | |
| Brightness | 500cd/m2 | |
| Contrast | 1000:01:00 | |
| Viewing angle (horizontal/vertical) | 89/89/89/89 (Min.)(CR≥10) | |
| Response time | 8ms (typ.) | |
| Display color | 1.07G | |
| Pixel pitch | 76.2(H)*228.6(V) um | |
| Refresh rate | 60Hz | |
| Control Board | Motherboard | RK3566；4 Core A53，1.8GHz, Mali-G52 GPU |
| Memory | 2+16G | |
| System | Andriod 11 | |
| Interface | TF、microUSB、USB、speak、DC in | |
| Audio | Speaker | Optional |
| Remote | Remote control | Optional |
| Weight | Net weight | TBD |

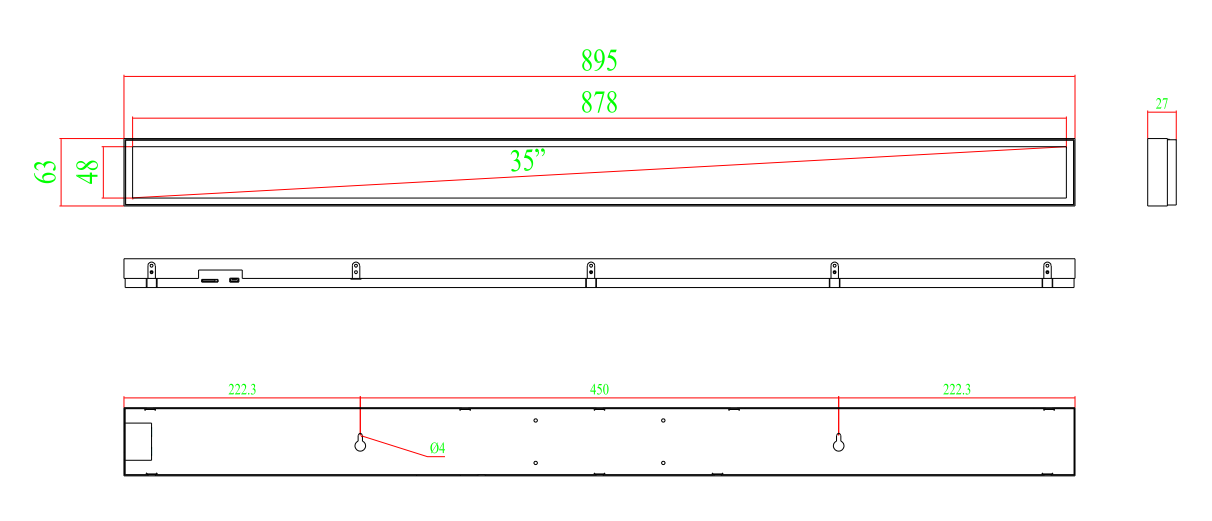

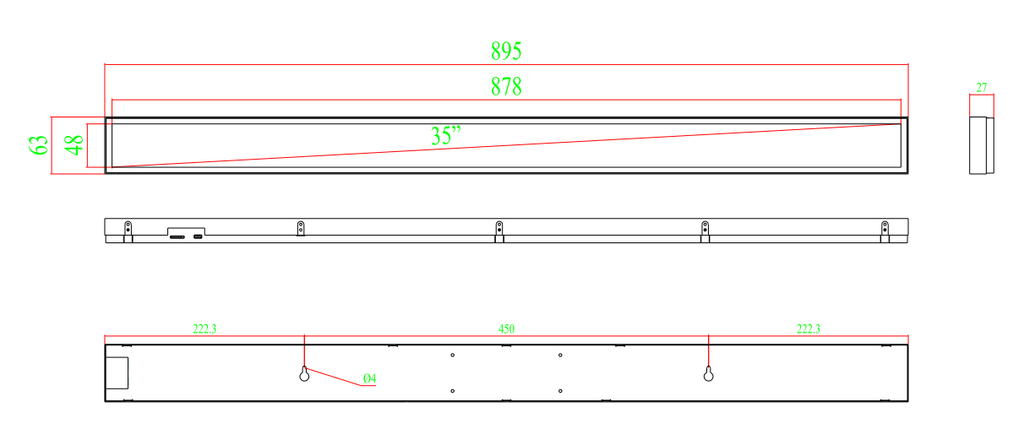

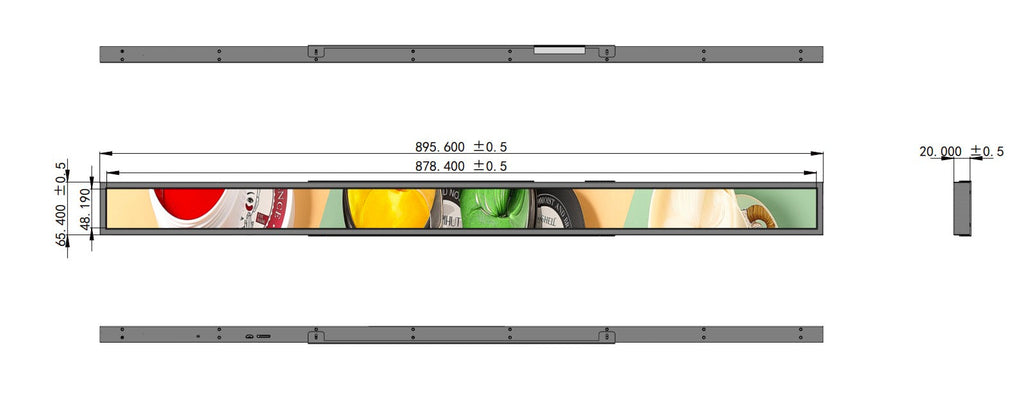

| Physical Size | Device size | 895*63*27 mm |
| Casing material | Metal Sheet | |
| Power Consumption | Power input voltage | DC 12V |
| Device power | ≤45W | |
| Standby power | <1W | |
| Working Environment | Operating temperature | 0℃～+50℃ |
| Operating humidity | 10%～90% RH Non-Condensing | |
| Storage temperature | -20℃～60℃ | |
| Storage humidity | 5%～95% RH Non-Condensing | |
| Language | OSD | English / Chinese |
| Accessories | Power cord | *1 |
