Description
15mm Super Slim LED Curtain Display Screen 360° Foldable Patented 7.8mm Pixel Pitch Outdoor LED Display
Features:

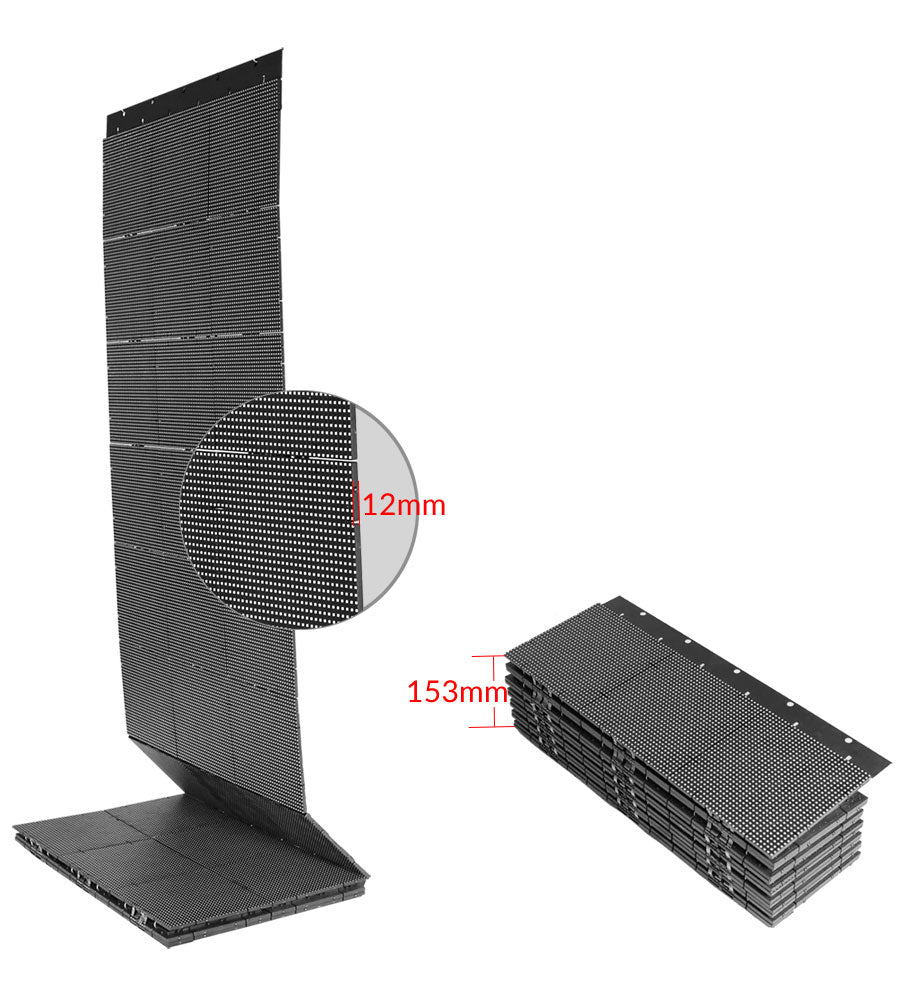

* Ultra-thin design : 15mm max in thickness, the minimum thickness only 8mm, only 1/10 of the tranditional LED Screen;
* Light Weight : less than 12.5kgs/sqm, almost only half the weight of the tranditional LED Display Screen
* 360° Foldable：patented innovative desgin, the screen is able to fold forward and backward into a slim pile, just like a curtain.
It's easy for installation and transportation, which again save transportaion and storage room.
* Unlimited Large Screen: One receiving card can support max 1536 pixels, and can overlay more control boxes to splicing to a large screen;
* Fast lock design, fast installation & dismantle: With special fast lock design, can achieve quick replacement of a module without any tool ,which saves 80% of the maintenance time.
* Clean and neat design: The separate design of power supply and screen body, makes the whole screen looks clean and neat, at the same time ensures that the screen is cool &quiet.
Specification:
| Part # | Smart-FCS7.8 |
| Pixel Pitch(mm) | 7.8 |
| Waterproof | Indoor IP65 |
| LED Type | 2727 |
| Scan Mode | 4 |
| Max Brigthness | 6000 |
| Operating Voltage | 24V |
| Average Power (w/sqm) | 150 |
| Unit Size: | 250x250 |
| Signle side thicnkness: | 15mm |
| Weight (kg/sqm) | 12.5kgs |
| Foldable Angle | 360° |
| Magnet | Yes |
| Quick Maintenance | Yes |
| Max Length of control box | 12m |
Product Videos:
360 Degree Foldable LED Display Screen

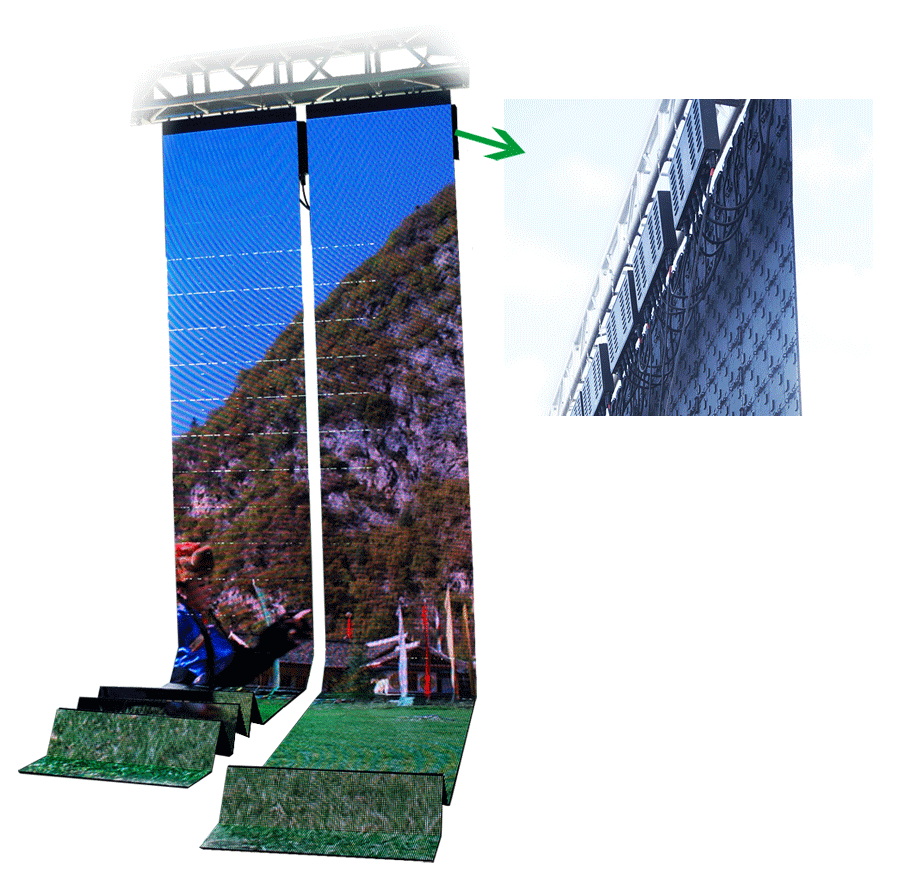

Mobile Rental LED Screen Curtain

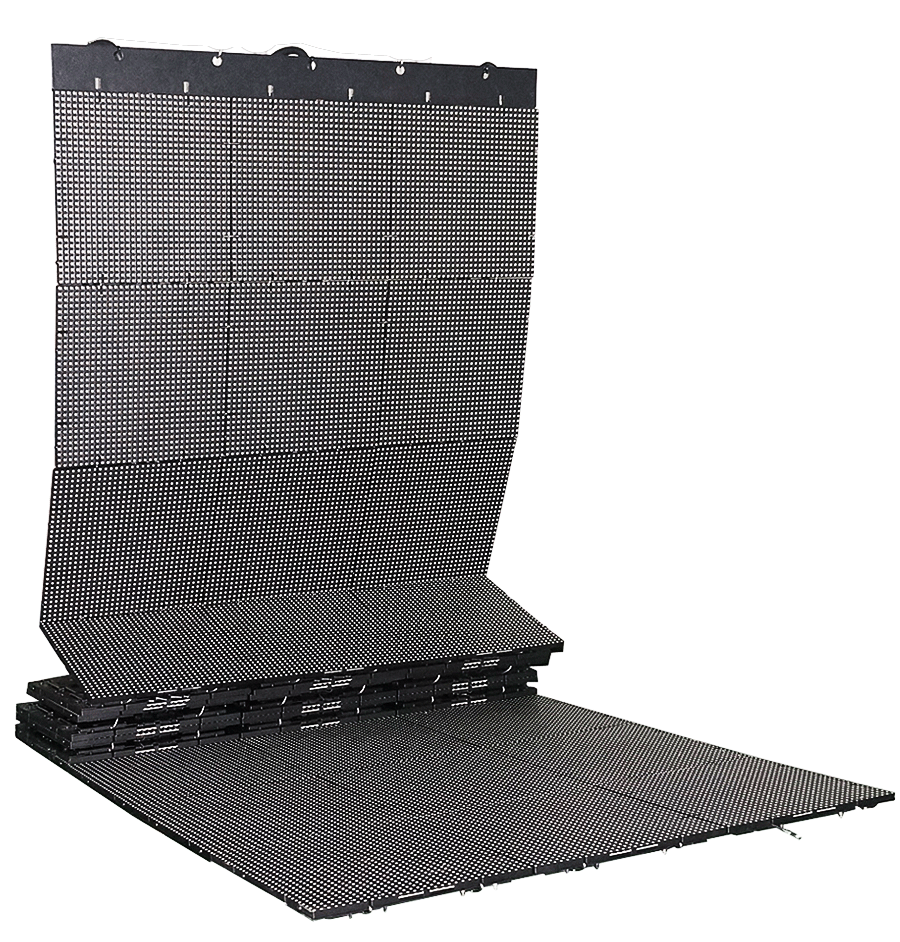

360 degree foldable
Onumen foldable led screen design is a new invention which breaks through the design concept of the traditional led cabinet. Without any tool，you can perform 360 degree folding.

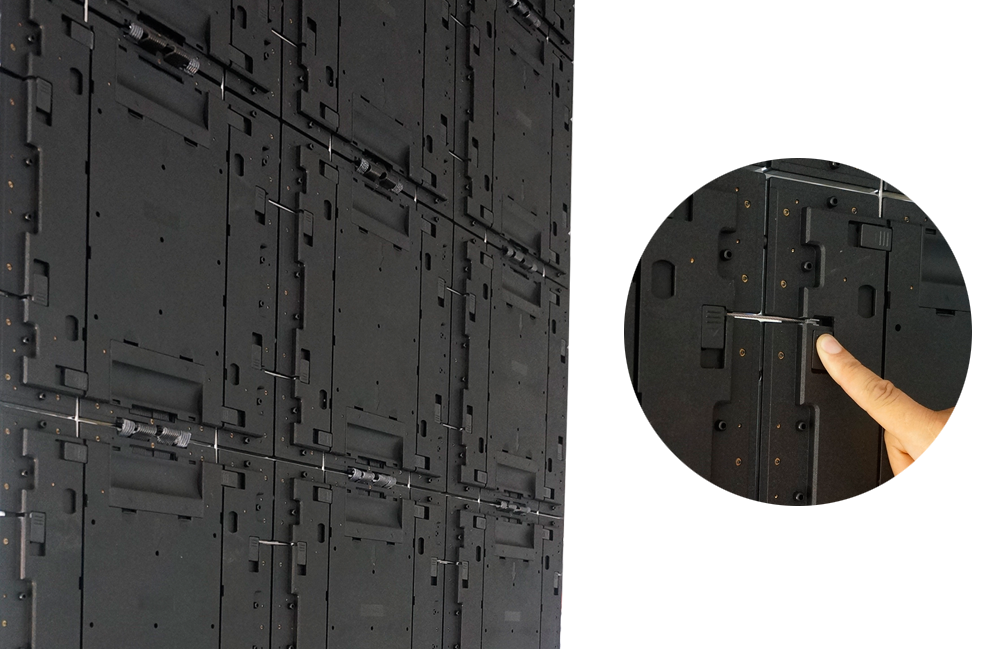

Fast lock design, fast installation & dismantle.
With special fast lock design,we can achieve quick replacement of a module without any tool ,which saves 80% of the maintenance time.
High refresh rate; High Grayscale; High Brightness splendidness instantly appears
Images are very stable, Stabilized images showing naturally and clearly.
Cool & quiet system
Cool & quiet system
The separate design of power supply and screen body ensures that the screen is cool &quiet.

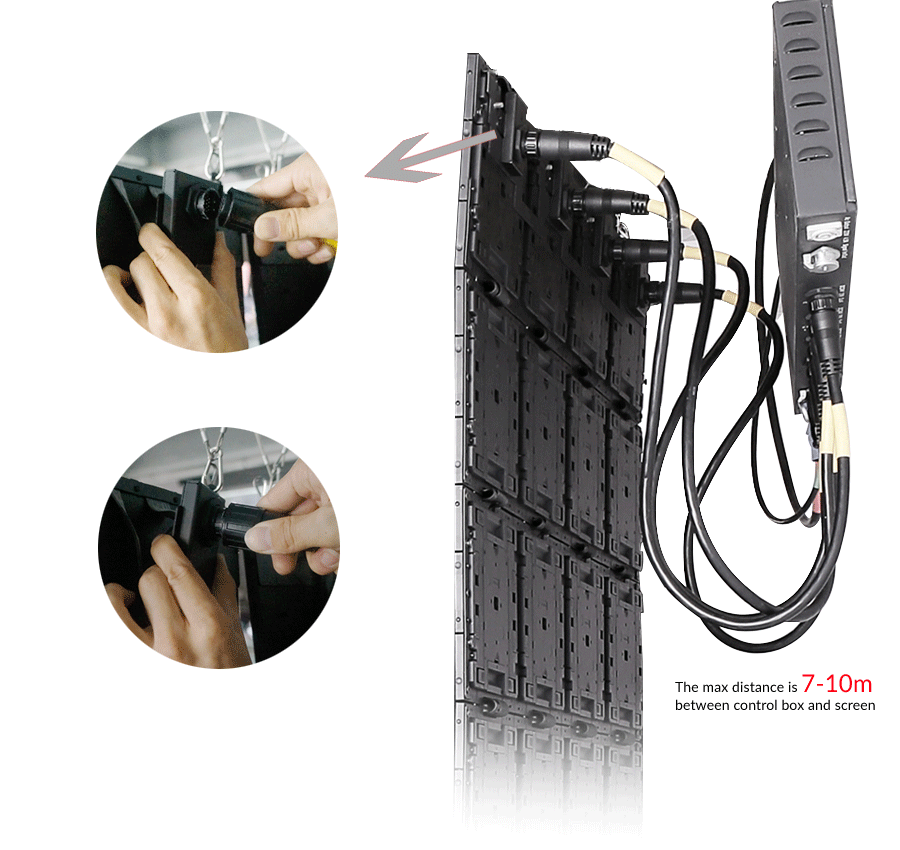

Ultra Long Control
One receiving card can support max 1536 pixels.

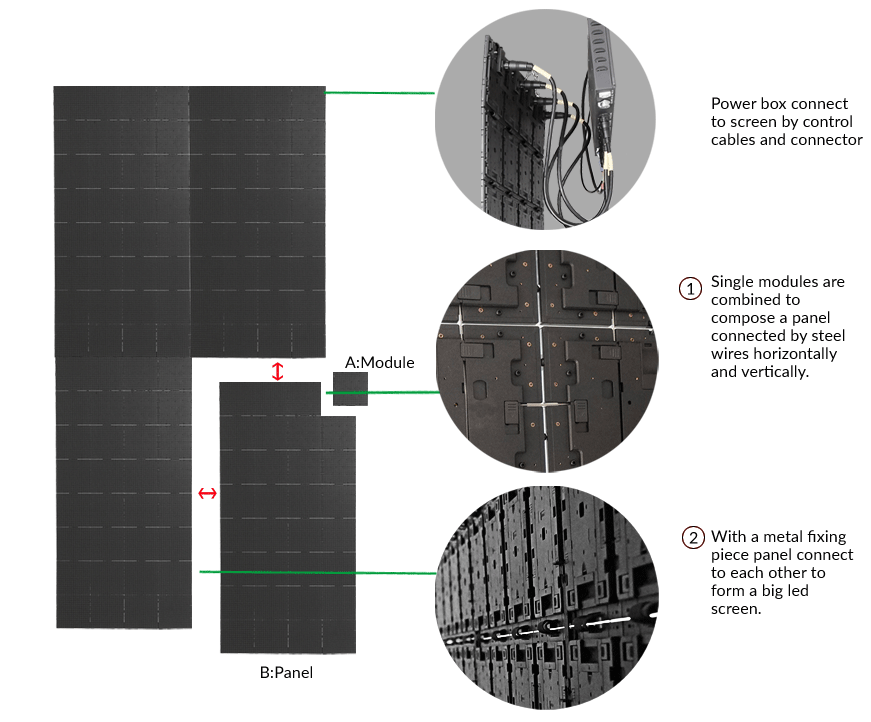

How to set up a big LED screen
Panels are made up of columns of modules, it is super easy and quick to set up big led screen.
Quickly install and dismantle, saving installation time and labor cost.

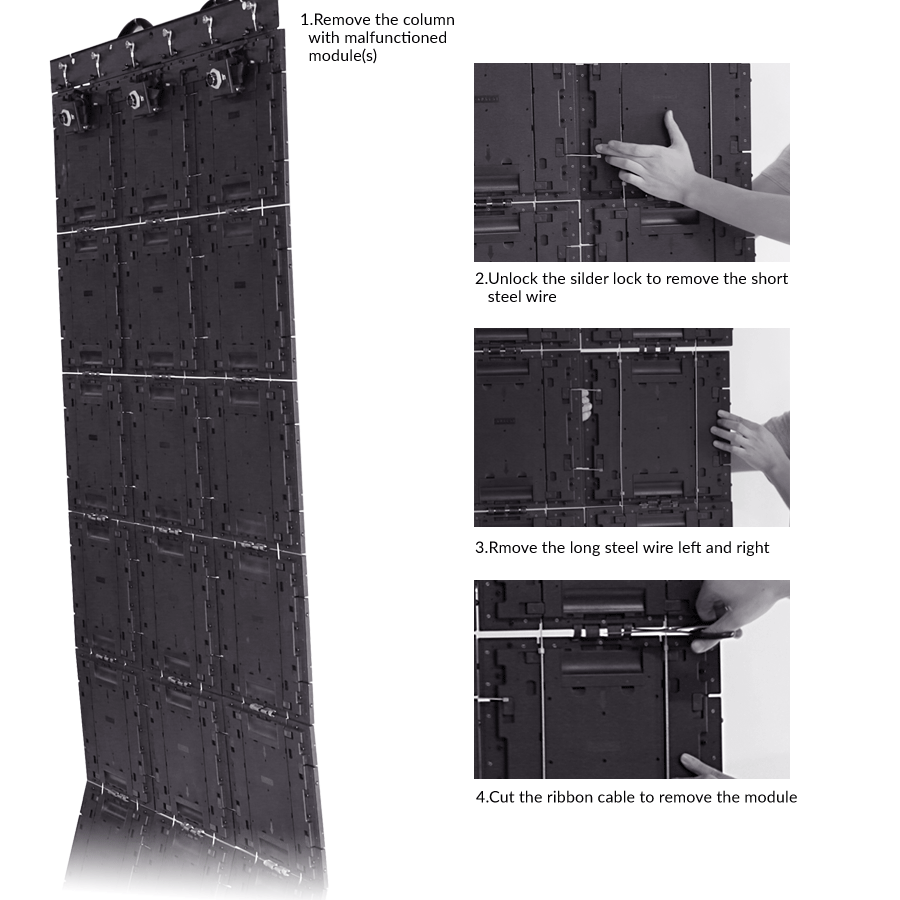

ONUMEN’s unique modular design is very easy for maintenance , we can achieve replacement of single module in one minute.
Space-efficient packaging
