| The Screen |
Model |
15.7"-YXLCD |
| LCD screen specifications |
Brand new original LCD panel |
| Viewing angle |
89/89/89/89 |
| Color |
16.7M, 72% NTSC |
| Refresh rate |
60HZ |
| Display area |
400*400 mm |
| Screen size |
15.7‘’ |
| Brightness |
700cd/m2
|
| Contrast ratio |
1000:1(TYPIC, different OC contrast ratios vary, subject to actual conditions) |
| Lifespan |
50000H |
| Resolution |
960*960 |
| Control Board |
Chip |
RK3568 |
| CPU |
Quad-core ARM Cortex-A55, 2.0G |
| RAM |
2G |
| System |
Android 11 |
| GPU |
Mali-G52 Quad-core |
| ROM |
16G (customizable) |
| Interface |
Headphones, HDMI out, RJ45, HDMI IN, USB 3.0*2, DC-IN |
| Network |
Gigabit wired network port; support 2.4G wireless network access (2.4G/5G dual-band optional); Bluetooth; support 3G/4G wireless module |
| Physical Features |
Frame material |
Sheet metal/profile |
| Body color |
Black |
| Frame color |
Black and other options available |
| Tempered glass |
Default: None, optional 3mm explosion-proof tempered glass |

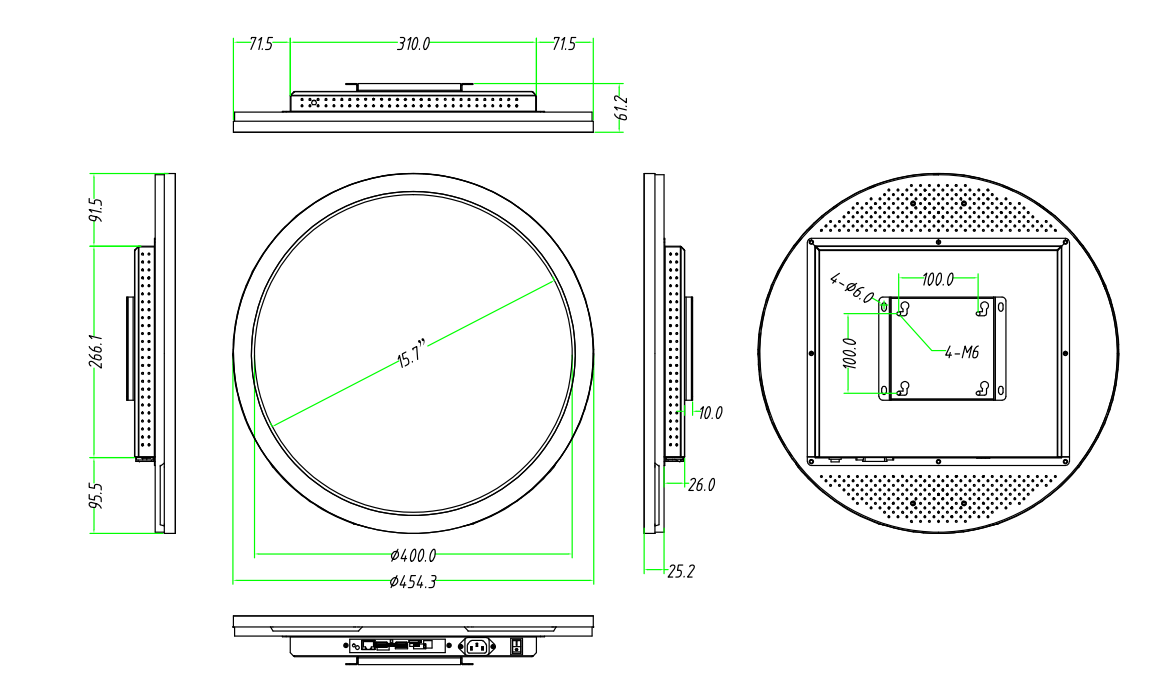

| Dimensions |
Φ453 * 61.2mm |
| Touch Function (Optiona) |
Touch type |
Capacitive touch |
| Minimum recognition |
6mm |
| Writing surface screen hardness |
7H |
| Response time |
＜25ms |
| Number of touch points |
20 points |
| Input method |
Finger, capacitive pen |
| Communication method |
Full-speed USB |
| Touch accuracy |
±1.5mm (more than 90% touch area) |
| Power Consumption |
Power input voltage |
DC 12V |
| Device power |
≤50W |
| Standby power |
<1W |
| Working Environment |
Input voltage |
AC110-220V/DC12-24V |
| Usage environment |
Temperature ‐0℃~55℃/Humidity 10%RH~90%RH |
| Standby power consumption |
≤1W |
| Storage environment |
Temperature ‐5℃~60℃/Humidity 10%RH~90%RH |
| Language |
OSD |
English / Chinese |
| Accessories |
Power cord*1, Wall Hanging Hardware *1 |
