Description

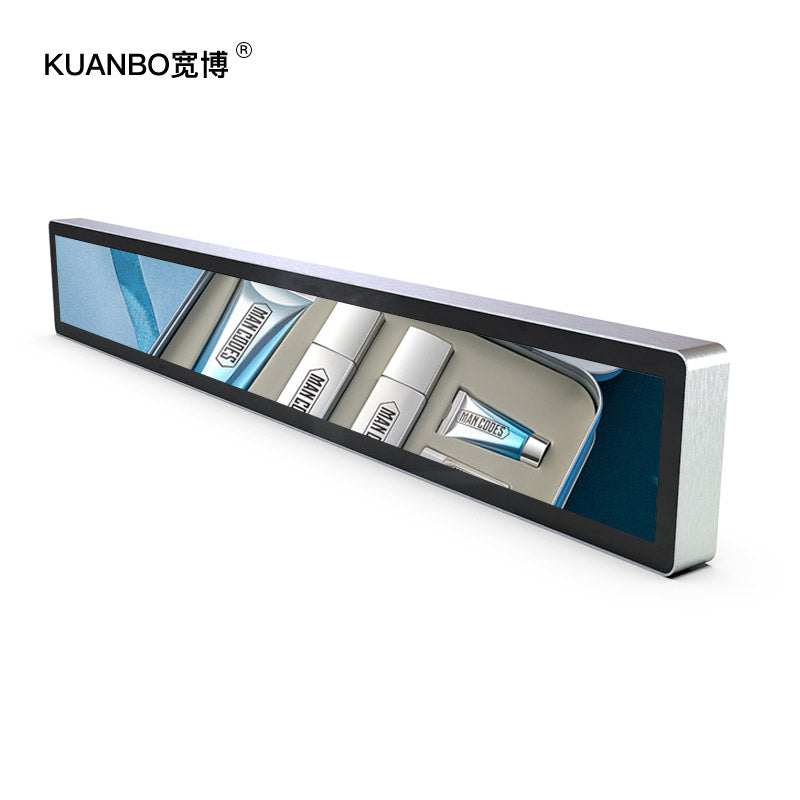

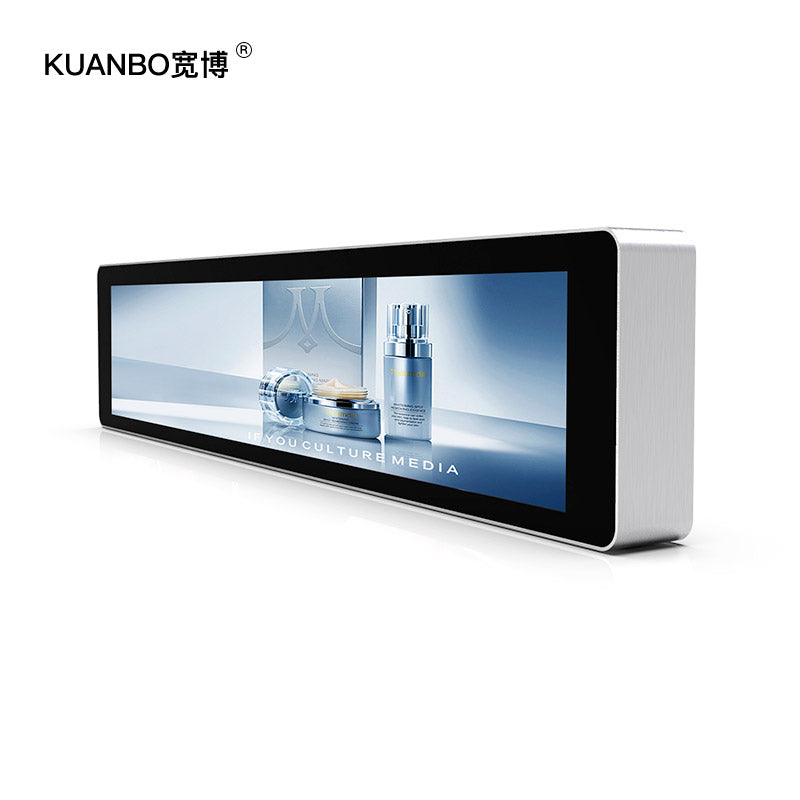

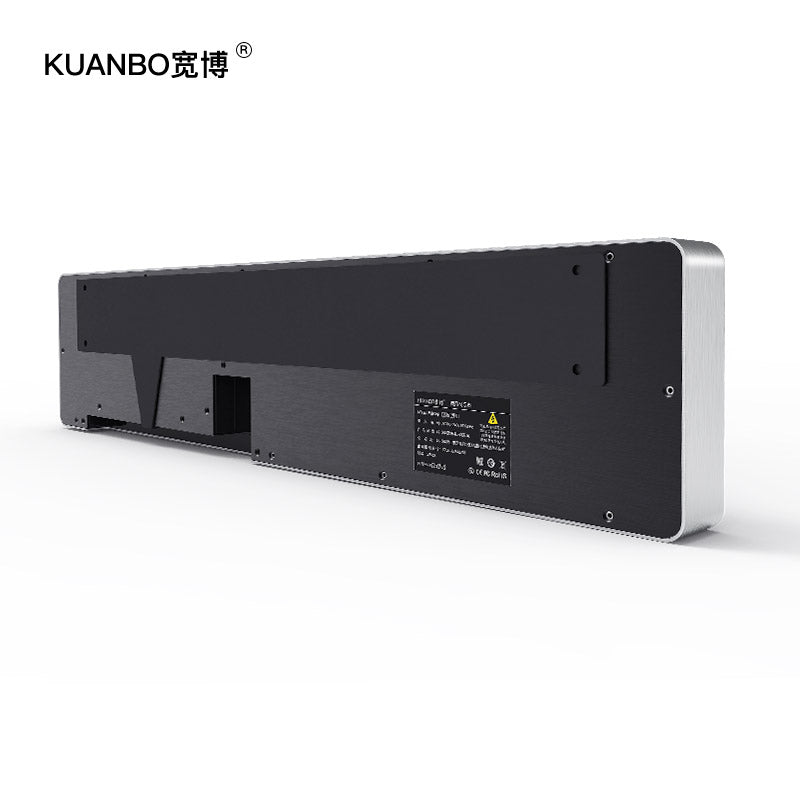

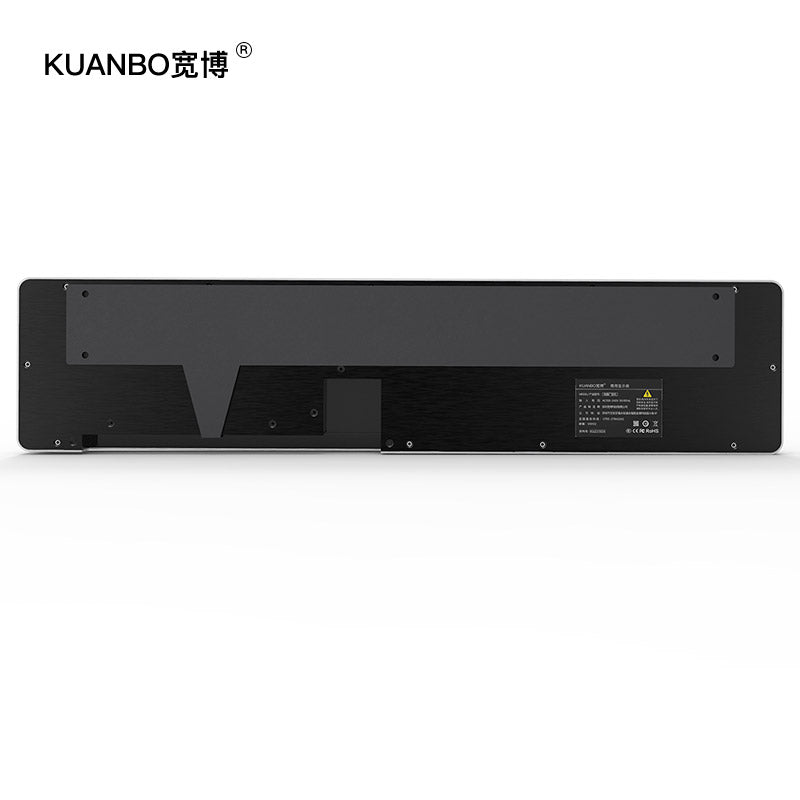

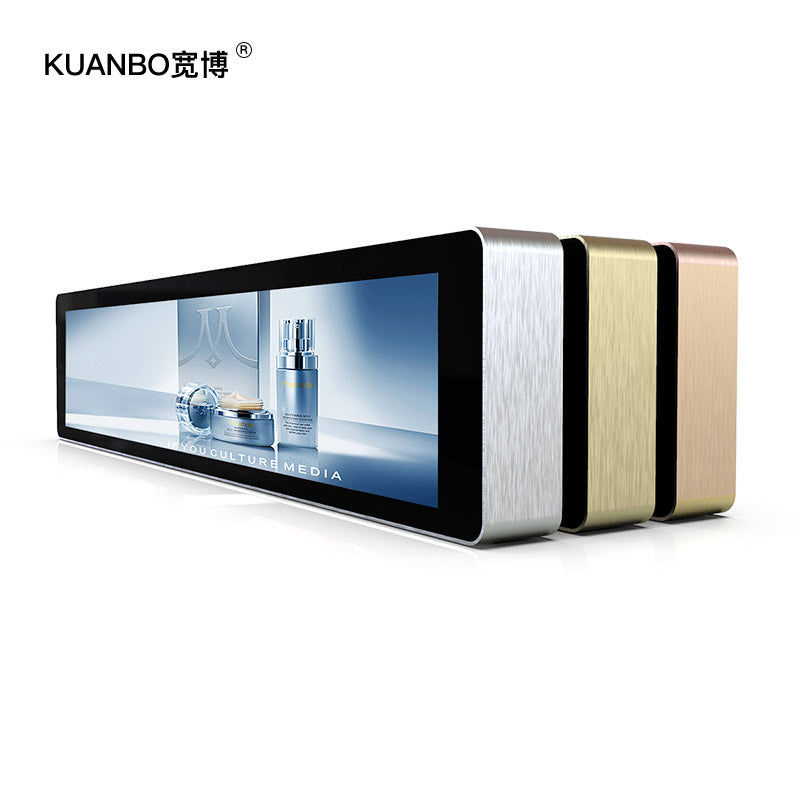

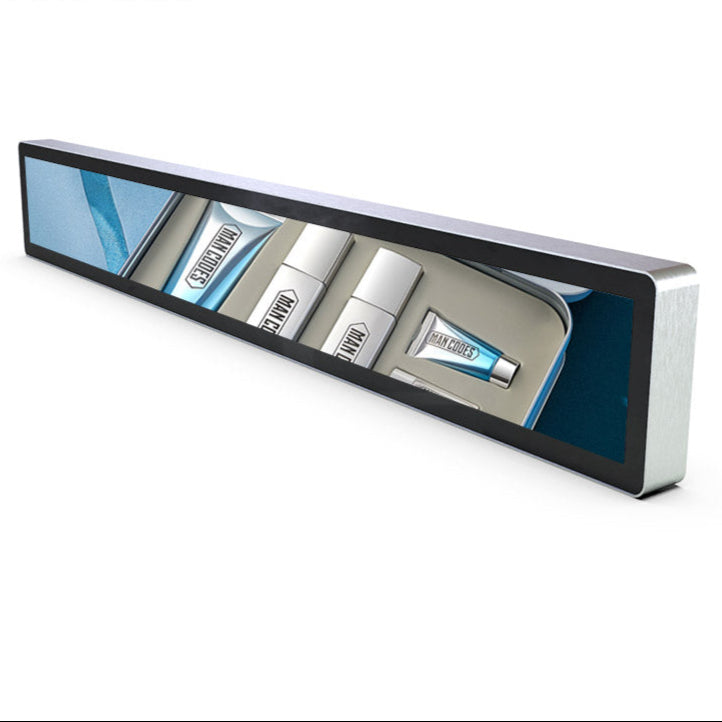

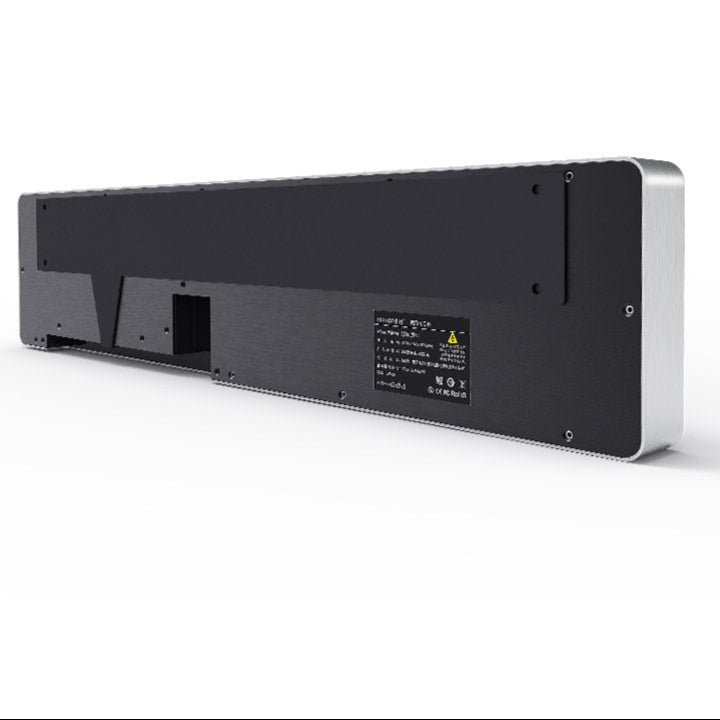

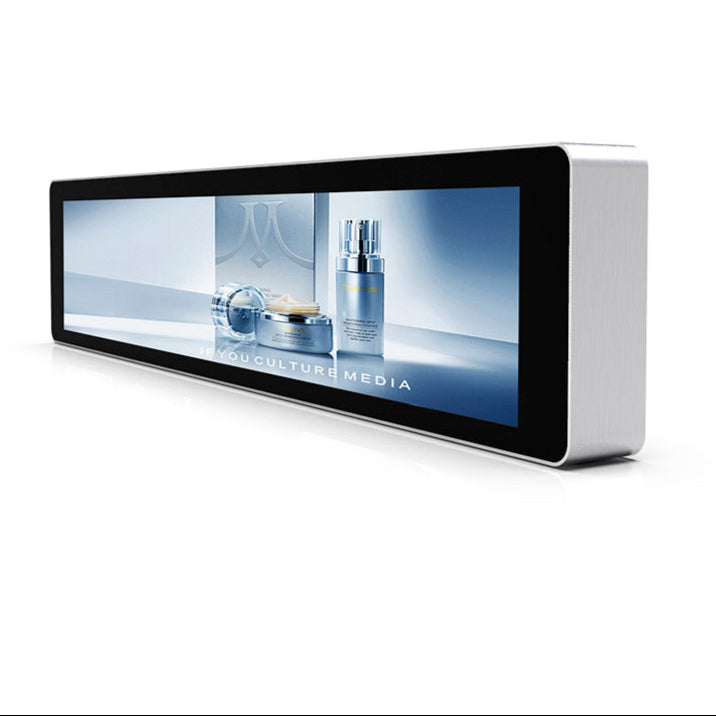

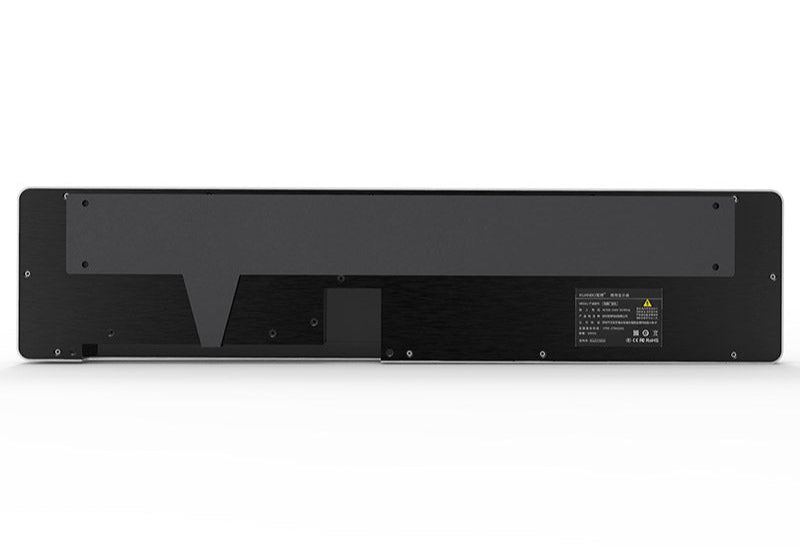

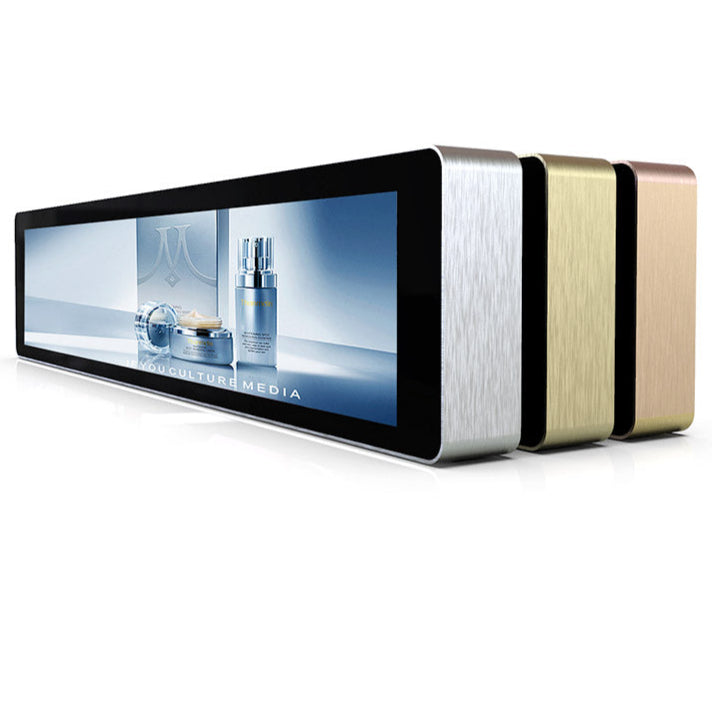

15.1" 1280X1080 Shelf Edge Stretched LCD Bar Display (400 CD/SQM) for supermarket
Specification
| Screen Parameter | Model | 15.1" |
| Panel type | a-Si TFT-LCD | |
| Display area | 374.78mm(H)x64.5mm (V) | |
| Display ratio | 3：1 | |
| Resolution | 1280X235 | |
| Display color | 16.7M | |
| Dot pitch | 0.630(H)×0.630（V） | |
| Brightness | 400CD | |
| Contrast | 1500：1 | |
| Viewing angle | 178° | |
| Response time | 8ms | |
| Refresh rate | 60Hz | |
| Menu language | Chinese/English | |
| Interface | Video interface | NA |
| Audio interface | N/A | |
| Other interfaces | N/A | |
| Control Board | CPU | ARM Corter-A35 Quad core |
| Memory | 1G DDR3 | |
| Hard disk | 8G EMMC | |
| WIFI | 2.4G WIFI 802.11b : DQPSK, DBPSK, CCK 802.11g/n : 64-QAM,16-QAM, QPSK, BPSK |
|
| Bluetooth | N/A | |
| Network port | N/A | |
| Interface support | TF Card×1/OTG×1/Type-c×1 | |
| System version | Android 8.1 | |
| Touch | In-Cell Touch | ～AC 100-240V 50/60Hz |
| Power | Input voltage | ≤25W |
| Maximum power consumption | ≤0.1W（Board only） | |
| Standby power consumption | -20--60° | |
| Physical | Storage temperature | 1×1.3W |

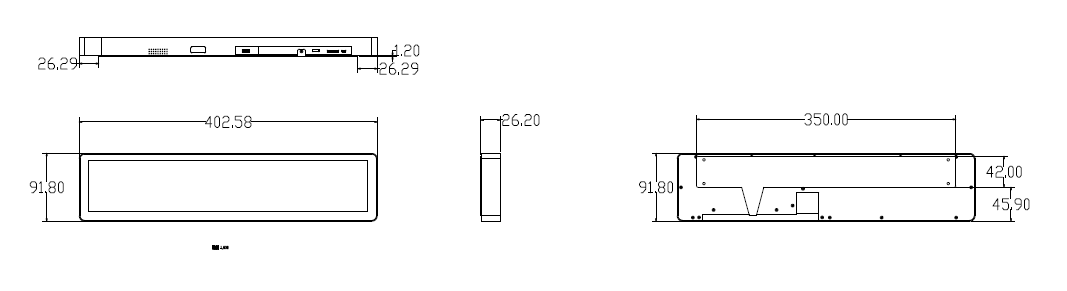

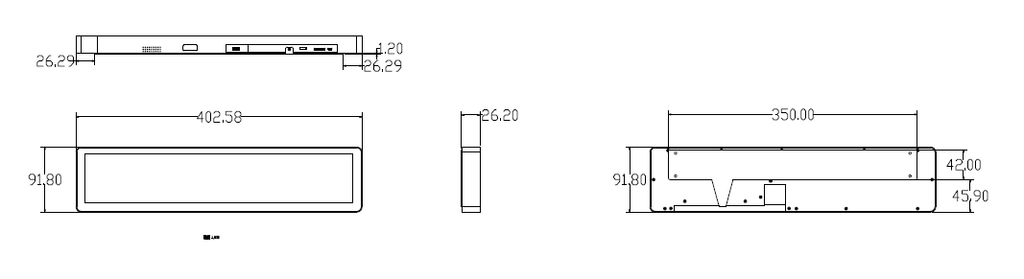

| Amplifier power | 402.58mm×91.8mm×26.2mm | |
| Product dimensions | 1.3KG | |
| Packaging dimensions | Wall Fixing | |
| Product net weight | 350mmX42mm | |
| Accessories | Remote control | X1 |
| Adaptor | 12V/3A |
