Description

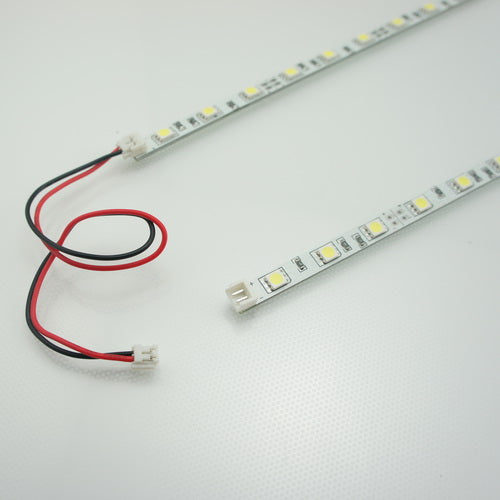

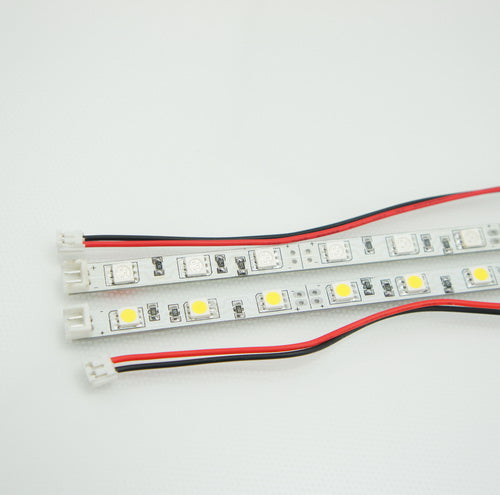

LEDLIGHTSWORLD infrared 850nm/940nm LED Linear Rigid Light Strip.This popular LED light strip in 570mm with 30LED 5050 per peice. It's Non-weatherproof with adhesive backing, can be cut into 3-LED segments(2.22inch long). 12VDC operation. Dimmable with compatible LED dimmers
| Technical Specification |
| Wattage | 7.2W/pc | Voltage | 12V DC |
| Beam Angle | 120° | Dimming | Yes |
| LED Type | SMD5050 | Strip Section | 3LED per 2.2inch |
| WxH | 8x4(mm) | LED QTY.: | 30LED/pc |
| Length Available | 570mm (customized length available) | Available Color | 850nm and940nm |
| Protection Grade | Non-waterproof | PCB Background | White |
| Other Features |
| Item | 12VDC Non-waterproof SMD5050-30-IR Infrared (850nm/940nm) LED Linear Rigid Strip, 30LEDs 7.2W per piece |
| Weight | 50g/pc |
| PCB Backing | Double-sided tape is attached at the backing of the light bar |
| Accesssories | 1pc 2pin prong connector, end to end connection jumper |
| Lead | V+ and V-, polarities sensetive |
Applications
*For surveillance or security
*For the multitouch display
*For Night Version Light
Features
*Can be cut into 3-LED segments
*Adhesive backing
*12VDC Operation
*Dimmable - See our Dimmer Selection
Safty Tips
*Always disconnect power supply before cutting/connecting LED Light Rigid Strips.
*Do not crimp or bend the Rigid Strips.
*Do not connect LED Rigid Strips. directly to 120V AC power.
*Apply power to test LED Rigid Strips before mounting.
Installation Planning
Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)
