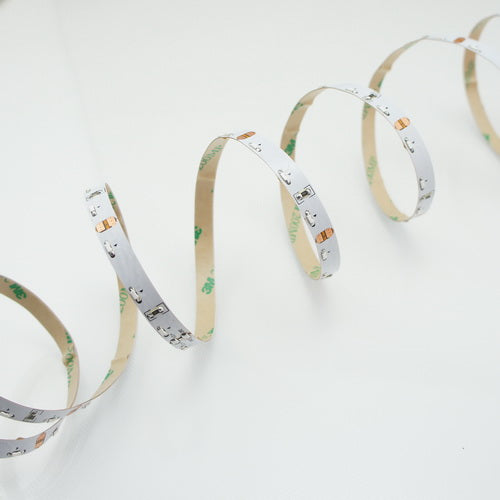

SMD335-300 flexible LED light strip with SMD 335 LEDs. Available in lengths of 0.5m(1.64ft), 1m(3.28ft), 2m(6.56ft), 3m(9.84ft), 5m(16.4ft) with White . Non-waterproof and IP65 flexible light strips will come with adhesive backing, IP67 strip will come with mounting clips.Can be cut into 3-LED segments for 12V DC operation version.

SPECIFICATION

Item ： 12VDC SMD335 side view LED flexible strip, 300LED per 5meter per roll
LED Type ：Side View SMD335
LED QTY：. 60LED/Meter
Cuttable： Every 3LED per 2'' can be cut
Size(W*H/mm) ：8*2
Weight： 0.15kgs per 5meter per roll(non-waterproof)
Input Voltage ：12V DC
Wattage (max)： 4.8Watt/Meter
Lumen Output ：200LM/Mtr @Warm White,220LM/Mtr @Natural White,250LM/Mtr @Pure White

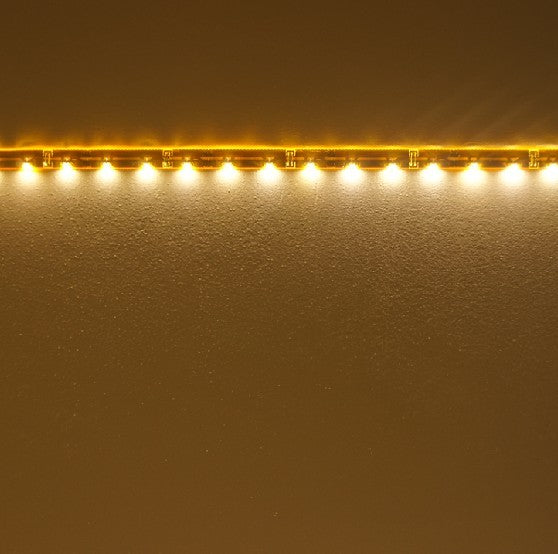

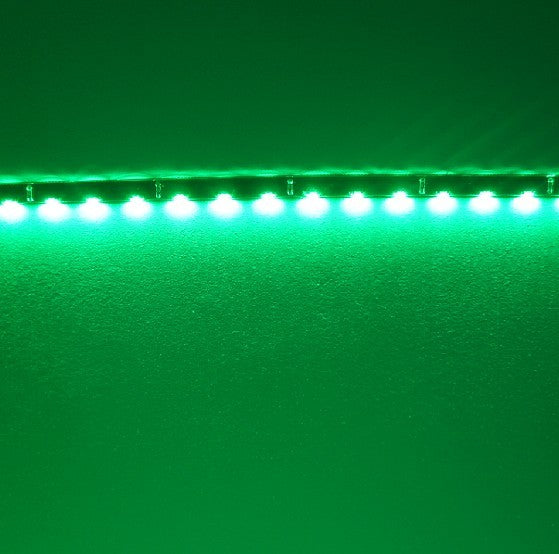

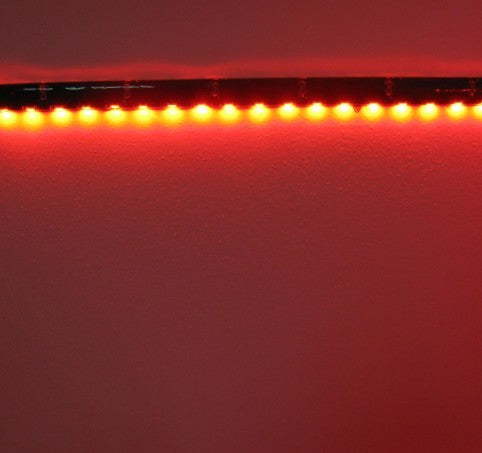

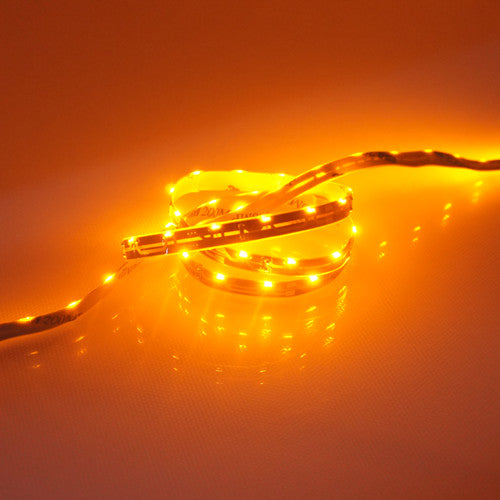

Light Color Pure White, Warm White, Natural White, Red, Green Yellow Blue
CCT 2700K-6500K
PCB color option： White
PCB Backing ： Adhesive backing for Non-waterproof and waterproof IP65, Mounting bracket for IP67 and IP68
Beam Angle ：120°
Dimming ：PWM dimmable
Waterproof Type ：Non-waterproof(indoor use), Waterproof IP65, If you need IP67, IP68 water proof, please contact us.
Pre-wiring： 20cm Red/Black Lead wire at one end of the strip
Packing： 5meter per roll packed in a static bag

DIMENSIONAL DRAWING

TIPS:

SMD335, 300Leds/reel,  Flexible LED Strip, 3-LED Cuttable, DC12V, 24W/reel, 2A/reel, 120°, 5m/reel, width : 8mm, On PCB with self-adhesive backing .

Non-waterproof & waterproof are available.

White colors are available in Pure White (5500-6500K), Warm White (3000-3500K), and Natural White (4000-4500K). Contact us if you have special color temperature requirement.

The delivery date of  Nature White(4000-4500K) would be longer. We would deliver the goods within 3-4 working days.

This product need a 12v 3amp 36watt LED power supply for 1 reel (5 meters)  or you can use 12v 5amp 60watt LED Adapter to run 2 reels (10meters). If you will cut the strip light, you may need some 8mm LED Strip Connectors for it.

These 12 volt Flexible LED Strips are sold in 0.5, 1, 2, 3 and 5 meters(1 meter is equivalent to 3.28 feet), if you need custom length, please contact us.

Waterproof Strip Dimension

*Non-waterproof : Bare Strip, with self-adhesive backing, for indoor or dry location use.
*Waterproof IP65 : Strip Surface is covered on top with Gel, and with self-adhesive backing. IP65 grade can protect sprayed water from all direction.
*Waterproof IP67: The bare strip is put in a hollow silicone tube and sealed at two ends. IP67 grade can shortly immersed in water.
*Waterproof IP68: The bare strip is put in a U Shape silicone tube, then covered on top with silicon gel, and sealed at two ends, which make it's solid.IP68 grade can be used under water.

How to power/control the strip

When choosing the transformer, the wattage to choose depends on how many pieces light strips it power.And when choosing the transformer, we suggest to use a bigger wattage transformer than the strip rated power to  avoid full load working of the transformer. And a big power transformer do no harm to the strip but good for safty.

And a big power transformer do no harm to the strip but good for safty.

Below please find the connection diagram for Single Color Light Strip for reference.

Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch

Light strip On/Off/Brightness is controlled by  Dimmer (Wireless or Hardwire Type available)

#1 Typical connection for one Dimmer to control one string of light bars

#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifer loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
