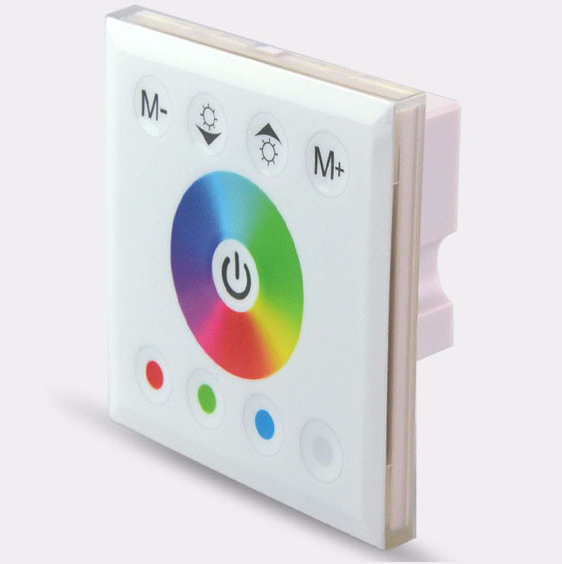

12V-24V DC Wall Panel Touchable Color Ring LED Controller for RGBW & RGBWW Color Changing LED Strips
Technical Parameters
● working temperature: -20-60 ℃
● supply voltage: DC12-24V
● output: 4 channels
● connection mode: common anode
● external dimension: L86 Χ W86 Χ H36 mm
● packing size: L115Χ W110 Χ H56 mm
● net weight: 128g
● gross weight: 187g
● static power consumption: <1W
● output power: 12V<192W,24V<384W
6 Modes
# | Mode | Remark |
1 | RGB 3color jump | Speed adjustable |
2 | RGB 3color strobe | Speed adjustable |
3 | RGB 3color flash | Speed adjustable |
4 | 7color jump | Speed adjustable |
5 | 7color strobe | Speed adjustable |
6 | 7color flash | Speed adjustable |
Dimension

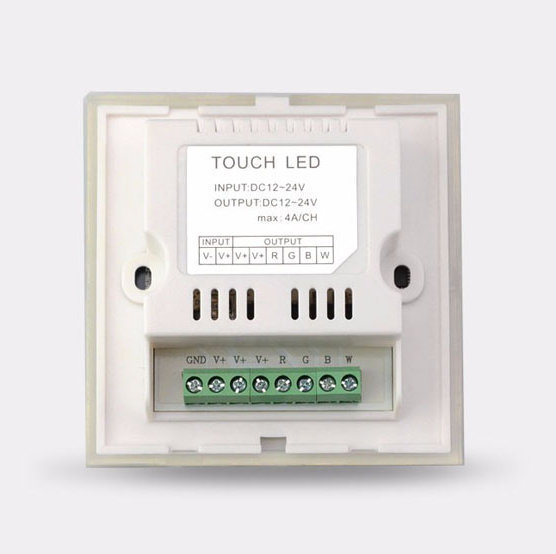

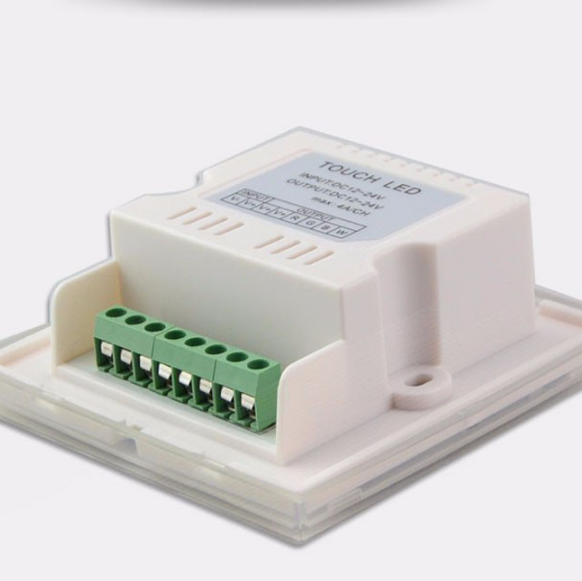

Wiring
Installation Guide
1. Use tool to take apart the front panel and back base of the wall panel LED controller
2. Get the wires be conneted well between the Back Base and the strips & power source
3. Recessed the Back Base into wall and fixed it by screws.
4. Finally press the Front Panel back into the Base Base.
