Description

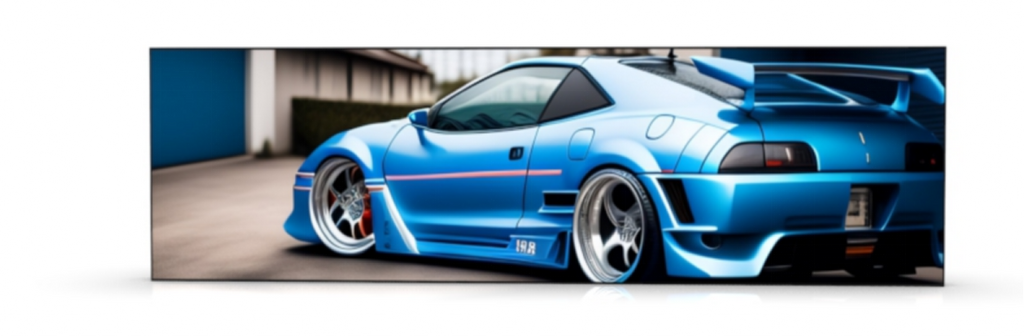

88" Stretched Bar LCD Display screen, various sizes of bar screen manufacturers are professionally customized
Specification
| Screen Parameter | Model | 88" |
| Panel type |
a-Si TFT-LCD
|
|
| Display area | 2148.48 × 598.32 mm (H×V)mm | |
| Display ratio | 32：9 | |
| Resolution | 3840*1080 | |
| Display color | 16.7M | |
| Dot pitch | 0.554×0.554 mm | |
| Brightness | 700CD/SQM | |
| Contrast |
1000：1 |
|
| Viewing angle | 178° | |
| Response time | 8ms | |
| Refresh rate | 60Hz | |
| Menu language | Chinese/English | |
| Interface | Video interface | HDMIx1 mimi AV inX1 MINI AV outX1 |
| Audio interface | N/A | |
| Other interfaces | N/A | |
| Control Board | CPU | RK3568 |
| Memory | 2G DDR3 | |
| Hard disk | 16G EMMC | |
| WIFI | 2.4G WIFI 802.11b : DQPSK, DBPSK, CCK 802.11g/n : 64-QAM,16-QAM, QPSK, BPSK |
|
| Bluetooth | N/A | |
| Network port | LANX1 | |
| Interface support | SD×1/USB×2 DCIN×1 , HDMIx1 | |
| System version | Android 9.0 | |
| Touch | In-Cell Touch | ～AC 100-240V 50/60Hz |
| Power | Input voltage | ≤150W |
| Maximum power consumption | ≤0.1W（Board only） | |
| Standby power consumption | -20--60° | |
| Physical | Storage temperature | 2×8W |
| Amplifier power | 2158.3mm*611.2mm*84.2mm | |
| Product dimensions | 56.5KG | |
| Packaging dimensions | Wall Mounting | |
| Product net weight | 600mmX400mm | |
| Accessories | Remote control | X1 |
| Drawing： | ||
 |
||
IMPORTANT NOTICE !
- 【Lead Time】: The product take 15-20days to make .
- 【Packing】：The LCD Screen will be packed in one-time plywood case for shipping.
- 【Free Shipping】：
- For shipping, the price on this page is include free shipping by SEA +Delivery to door by truck. It's by Fast Boat which in regular would take around 30-35days at least in transportation after boat departure;
- DDP TERM (all fee included) except the to destination country that this shipping service is not available, then we will contact the buyer if this clause does not apply to his country.
