Description
DESCRIPTION |
||

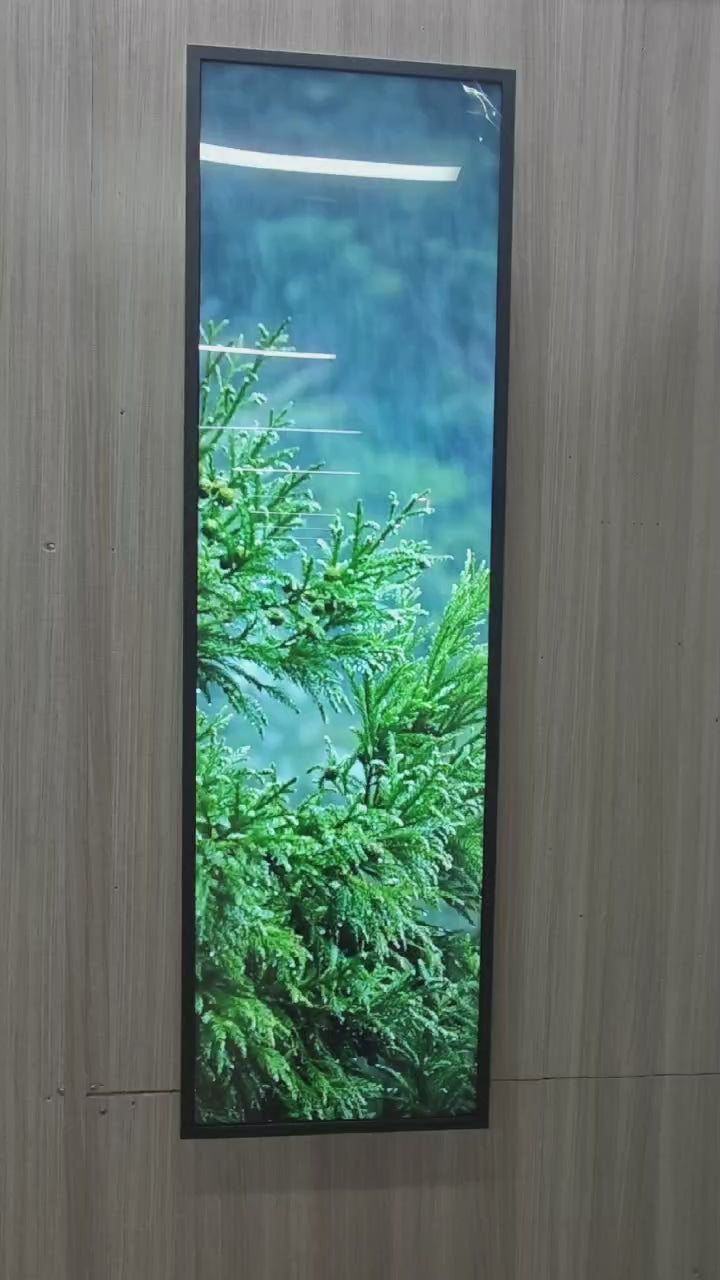

| The 49.5-inch strip screen uses LED backlight, which has more uniform display brightness and wider color gamut. Industrial-grade design, with ultra-high reliability and high stability, and an average trouble-free operation time of more than 50,000 hours. It uses the RK3568 quad-core chip solution, equipped with the Android11 system, with a main frequency of up to 2.0GHz, and has super performance. Supports AFBC (frame buffer compression), 4K/H.265 hard decoding, 1080P video decoding, and 4K-level video playback. Supports infrared remote control, RJ45, USB, OTG and other rich interfaces | ||
FEATURES |
||
| The whole machine is made of metal, which is radiation-proof, magnetic-field-proof and strong-electric interference-proof Professional hard screen technology is adopted, with large viewing angle, fast response speed and high color reproduction. LED backlight mode is adopted, and the brightness is more uniform High physical resolution of 3840*1080, and the picture quality is more delicate The viewing angle can reach 178°, which is close to the horizontal 1200:1 ultra-high contrast ratio, the picture display is more vivid and the color performance is more outstanding Industrial-grade design, high reliability, high stability and low power consumption |
||
PARAMETERS (DOWNLOAD DATASHEET) |
||
| The Screen | Size | 49.5" |
| Screen supplier | LG | |
| Resolution | 3840x1080 | |
| Display size (mm) | 1210(H)*340(V) | |
| Brightness | 500cd/m2 | |
| Contrast | 1200:1 | |
| Viewing angle (horizontal/vertical) | 89/89/89/89 (Min.)(CR≥10) | |
| Response time | 8ms (typ.) | |
| Display color | 1.07G | |
| Pixel pitch | 0.27963x0.27963m | |
| Refresh rate | 60Hz | |
| Control Board | Motherboard | RK3568,4 Core ARM Cortex-A55, 2.0GHz，Mali-G52 GPU |
| Memory | 2+16G | |
| System | Andriod 11 | |
| Interface | USB3.0, OTG, TF-card, Audio, RJ45, HDMI in | |
| Audio | Speaker | Optional |
| Remote | Remote control | Optional |
| Weight | Net weight | around 12kgs |

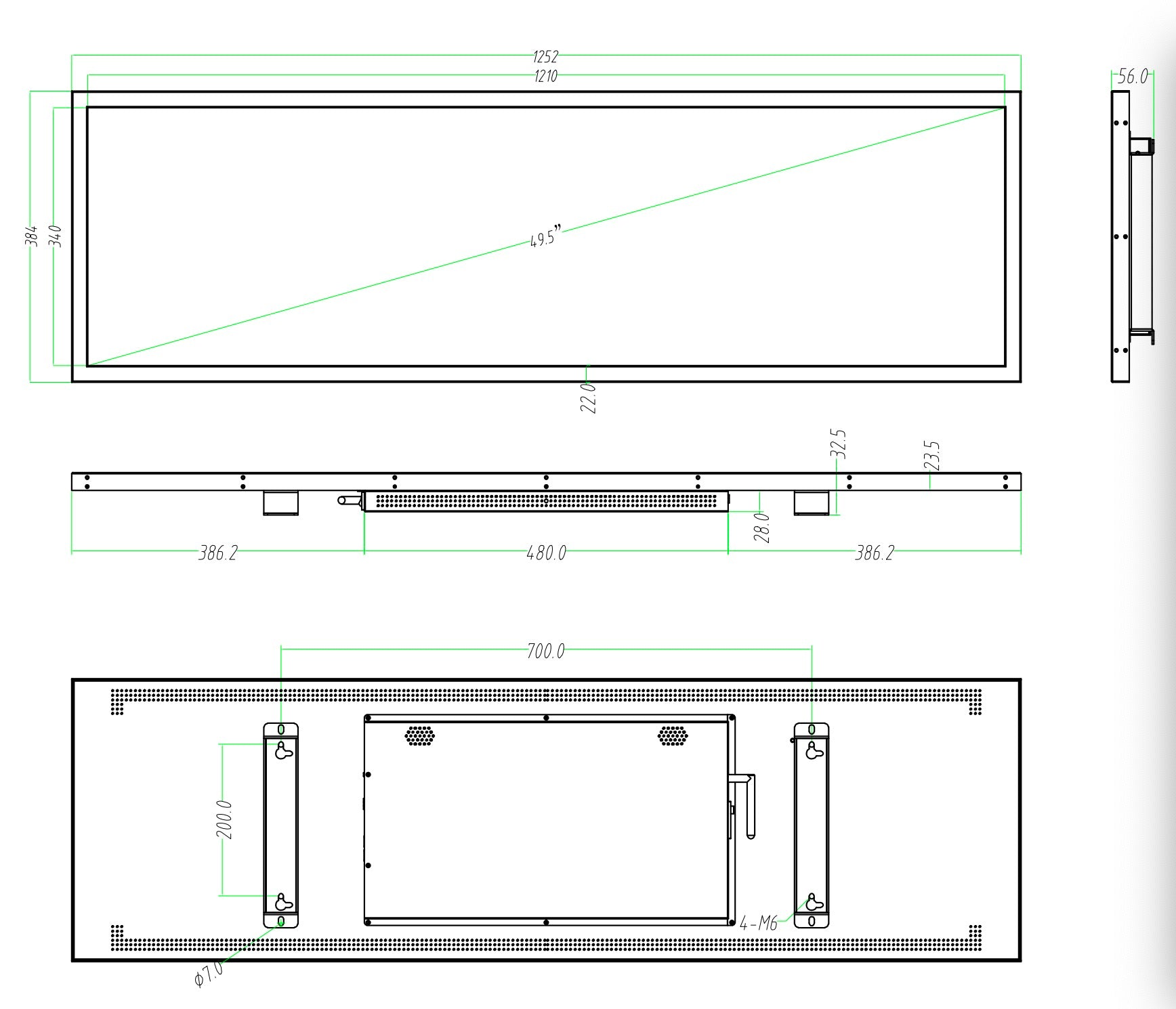

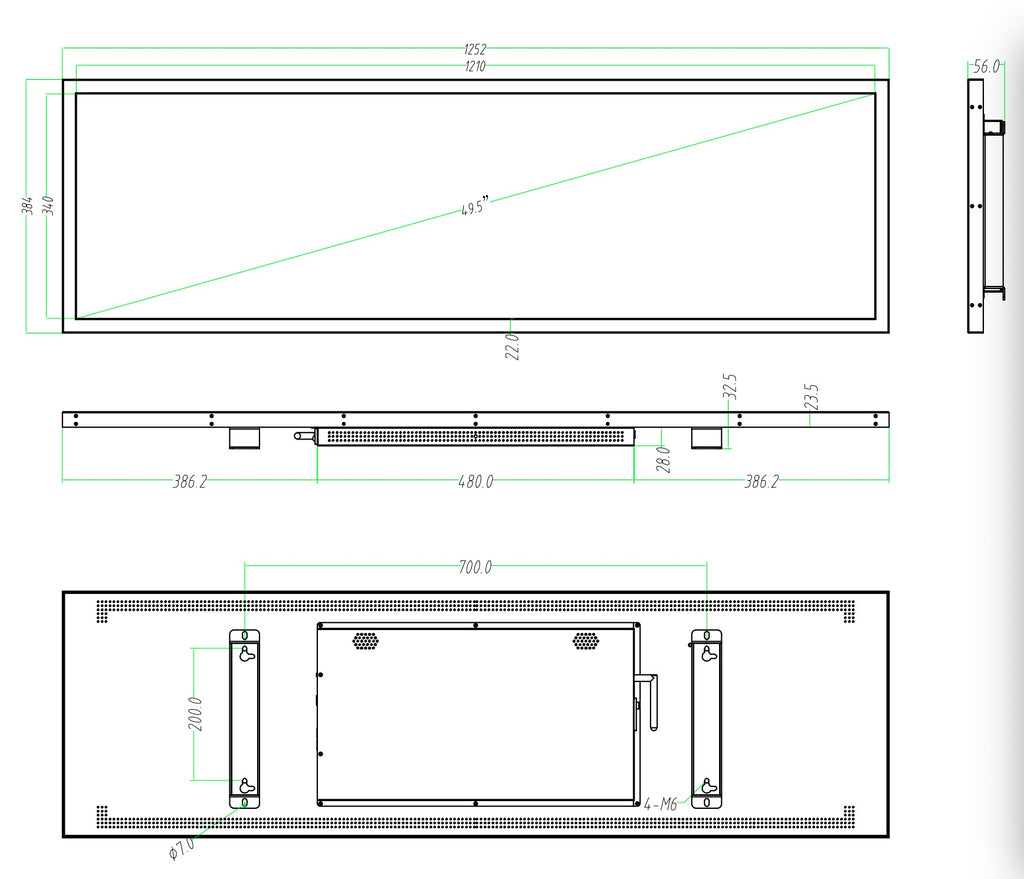

| Physical Size | Device size | 1252*384*56 mm |
| Casing material | Metal Sheet | |
| Power Consumption | Power input voltage | DC 12V |
| Device power | ≤55W | |
| Standby power | <1W | |
| Working Environment | Operating temperature | 0℃～+50℃ |
| Operating humidity | 10%～90% RH Non-Condensing | |
| Storage temperature | -20℃～60℃ | |
| Storage humidity | 5%～95% RH Non-Condensing | |
| Language | OSD | English / Chinese |
| Accessories | Power cord | *1 |
IMPORTANT NOTICE !
- 【Lead Time】: The product take 15-20days to make .
- 【Packing】：The LCD Screen will be packed in one-time hard carton box for shipping.
- 【Free Shipping】：
- For shipping, the price on this page is include free shipping by AIR +Delivery to door by truck. It's by flight + UPS delivery to door which in regular would take around 12-15days at least in transportation after flight departure;
- DDP TERM (all fee included) except the to destination country that this shipping service is not available, then we will contact the buyer if this clause does not apply to his country.
